Down4Sound  |  SKU: jp23v1-5-whslv

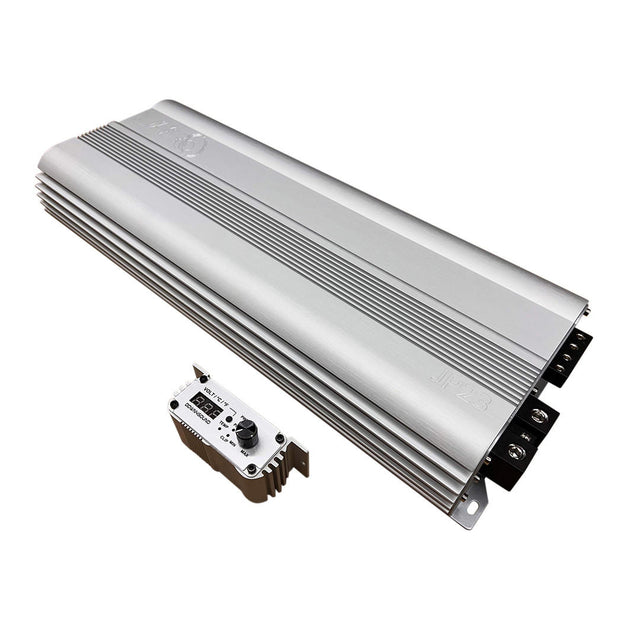

Down4Sound JP23 V1.5 Bass Amp

$299.99 USD $499.99
Shipping calculated at checkout.

Color: White Silver

$299.99

Subscribe to our newsletter

Sign up for exclusive offers.

Description

Down4Sound JP23 V1.5 Bass Amp

Mono Class D Amplifier

On Board Power & Protection Indicators

Strappable Design

Variable Low-Pass, Bass Boost & Subsonic Filters

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

1/0 AWG Power & Ground Inputs

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)

Power

Max Rated Output (Strapped to a second JP23 V1.5): 4,600 Watts

1 Ohm RMS: 2,300W

2 Ohm RMS: 1,300W

4 Ohm RMS: 700W

The Down4Sound JP23 V1.5 is a powerful, expandable bass amplifier. Available in ten colors and equipped with a variable 9 dB bass boost, subsonic, and lowpass acoustic controls, this amp delivers up to 2,300 watts at 1 ohm on its own. Strap another JP23 together for a single 4,600-watt powerhouse!

The JP23 is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers. With a Plexi base included, you can flip the amp over to see the heart of the Class D design. The included remote volume controller is packed with information like amp temperature, battery voltage, power, protection, and clipping status.

SPECIFICATIONS

Frequency Response: 10 - 250Hz

Variable Low Pass Filter: 35 - 250Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9 dB

Signal to Noise: <88dB

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 9 to 15.5 Volts

Recommended Fuse: 200 Amps

Dimensions: 17.71” Long x 7.32” Wide x 2.19” High
