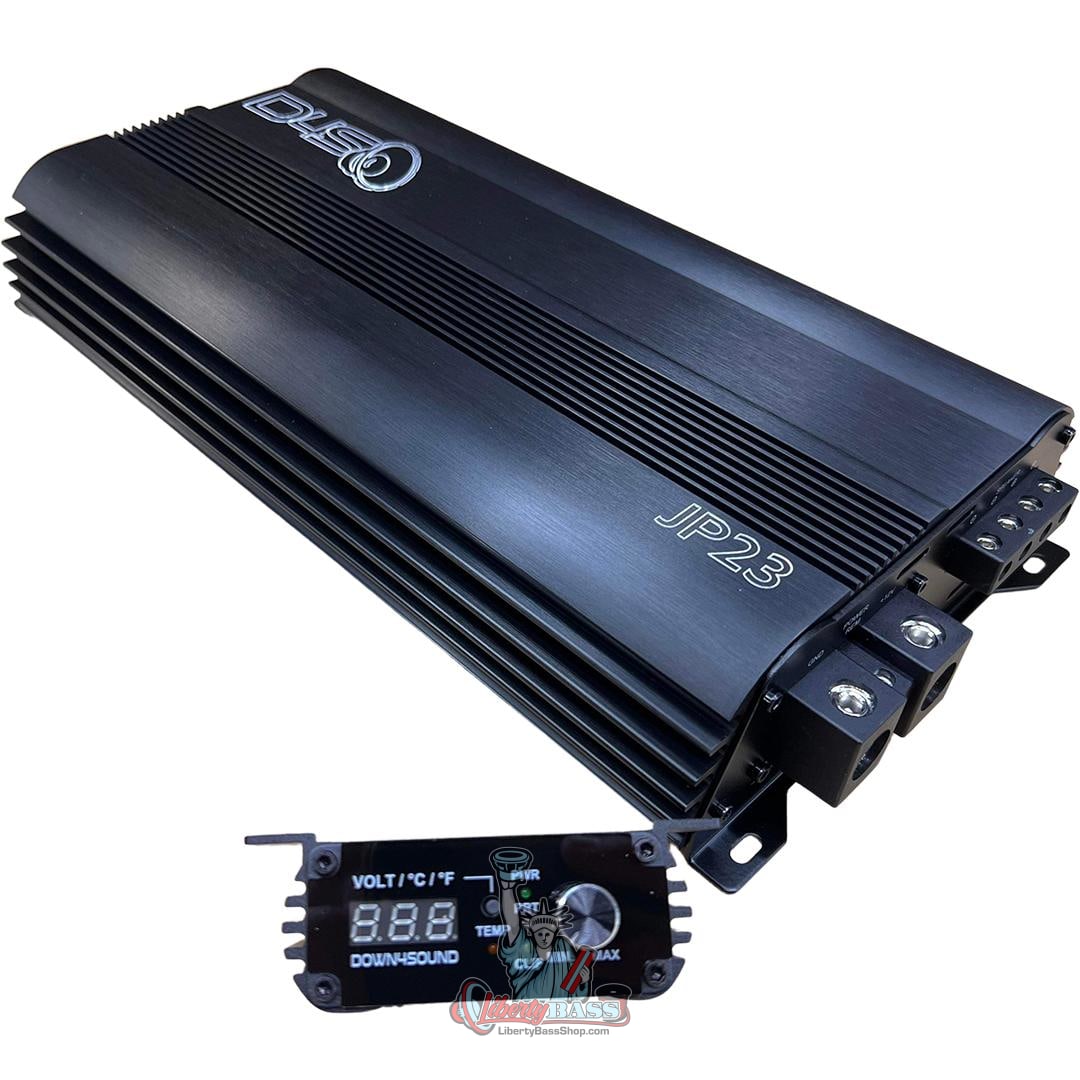

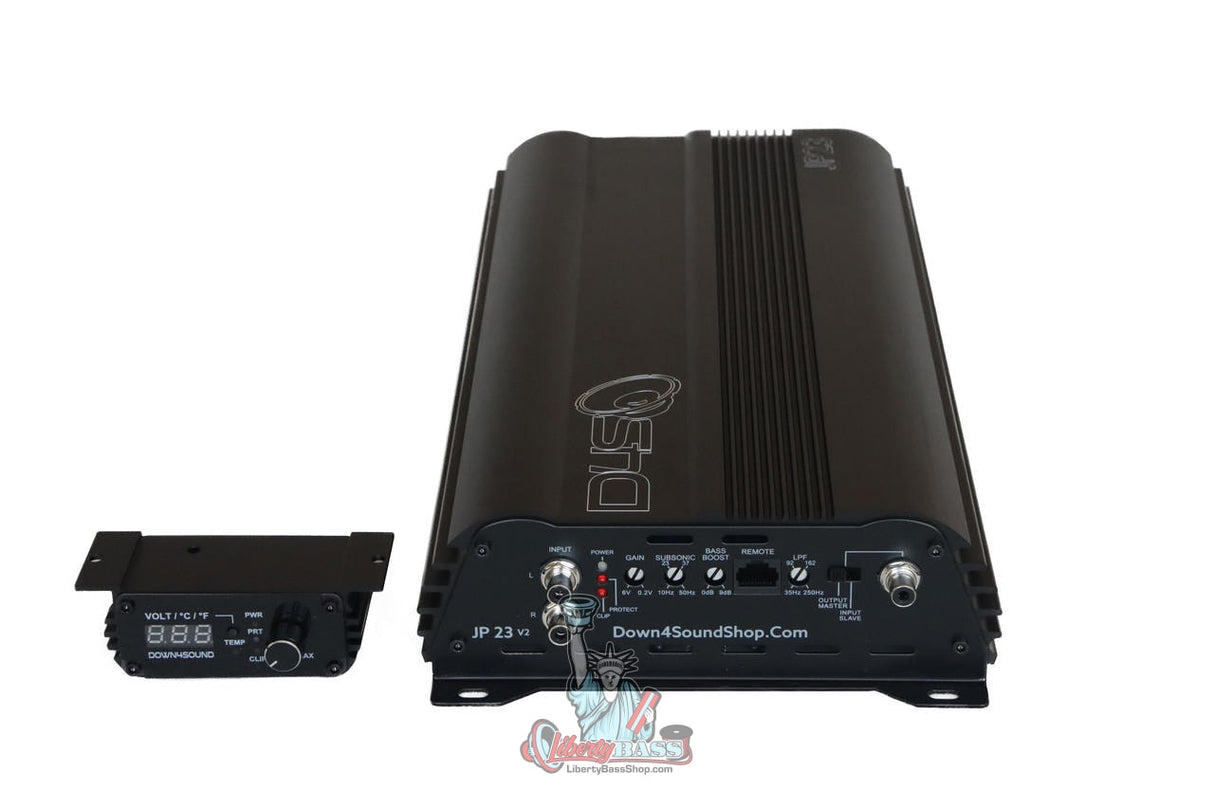

Down4Sound JP23 V2 – Bass Amplifier

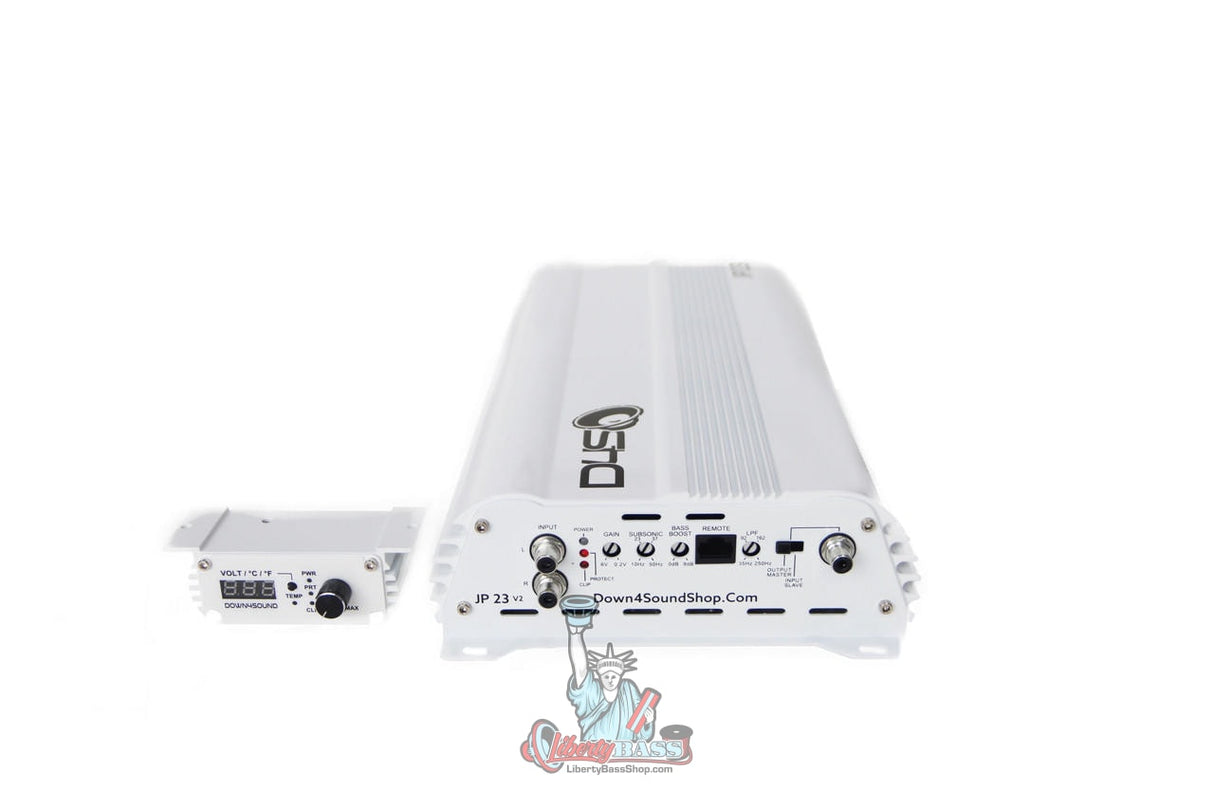

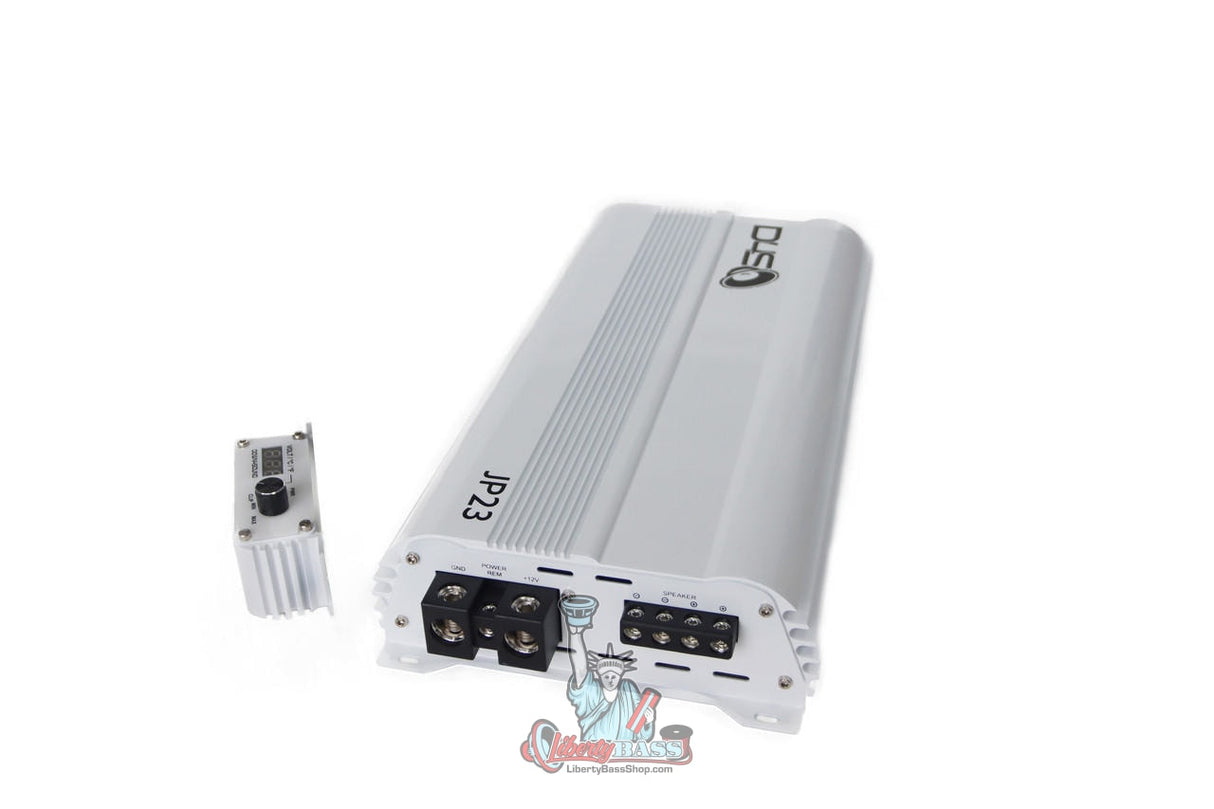

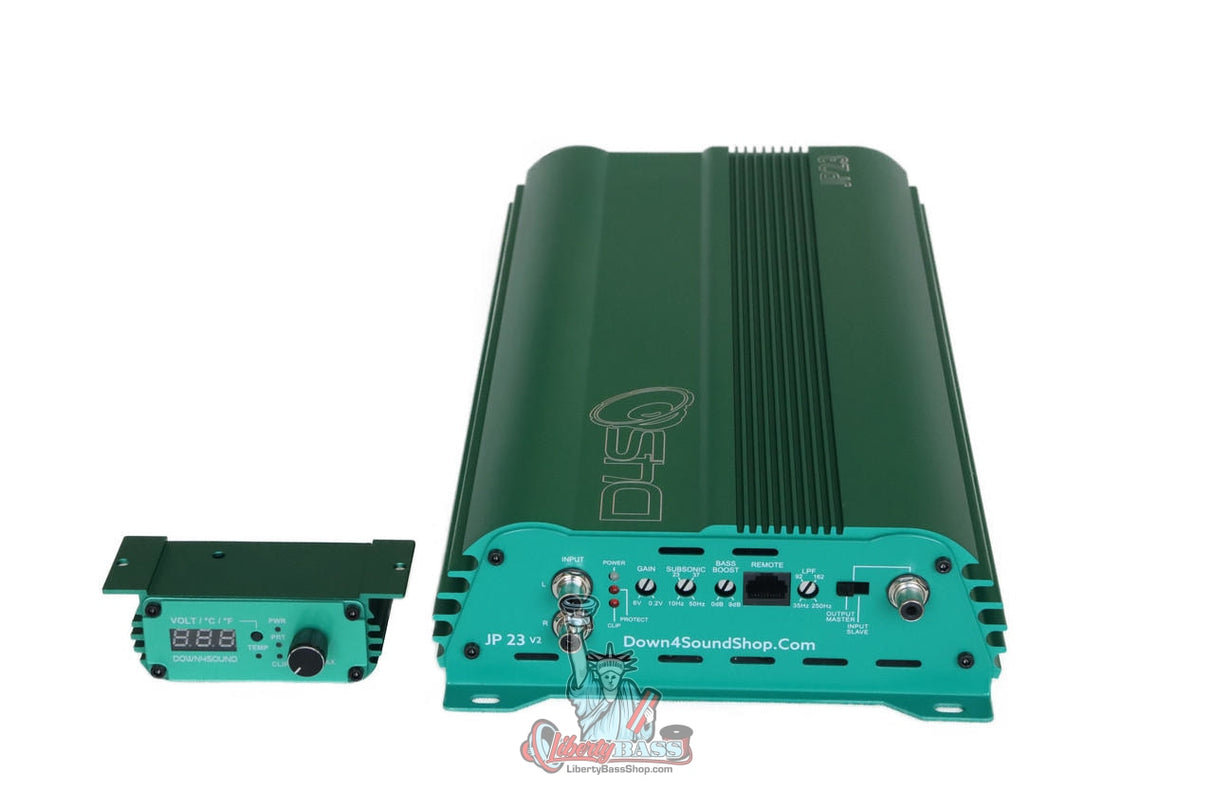

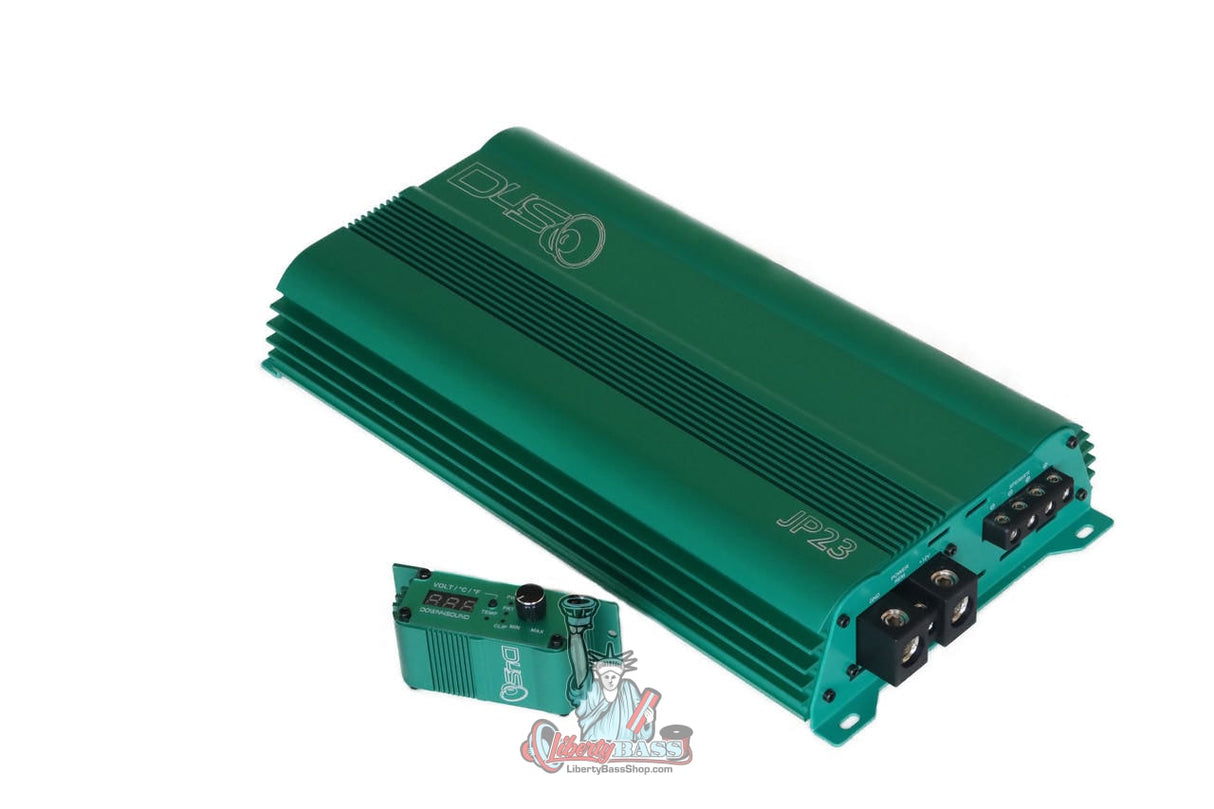

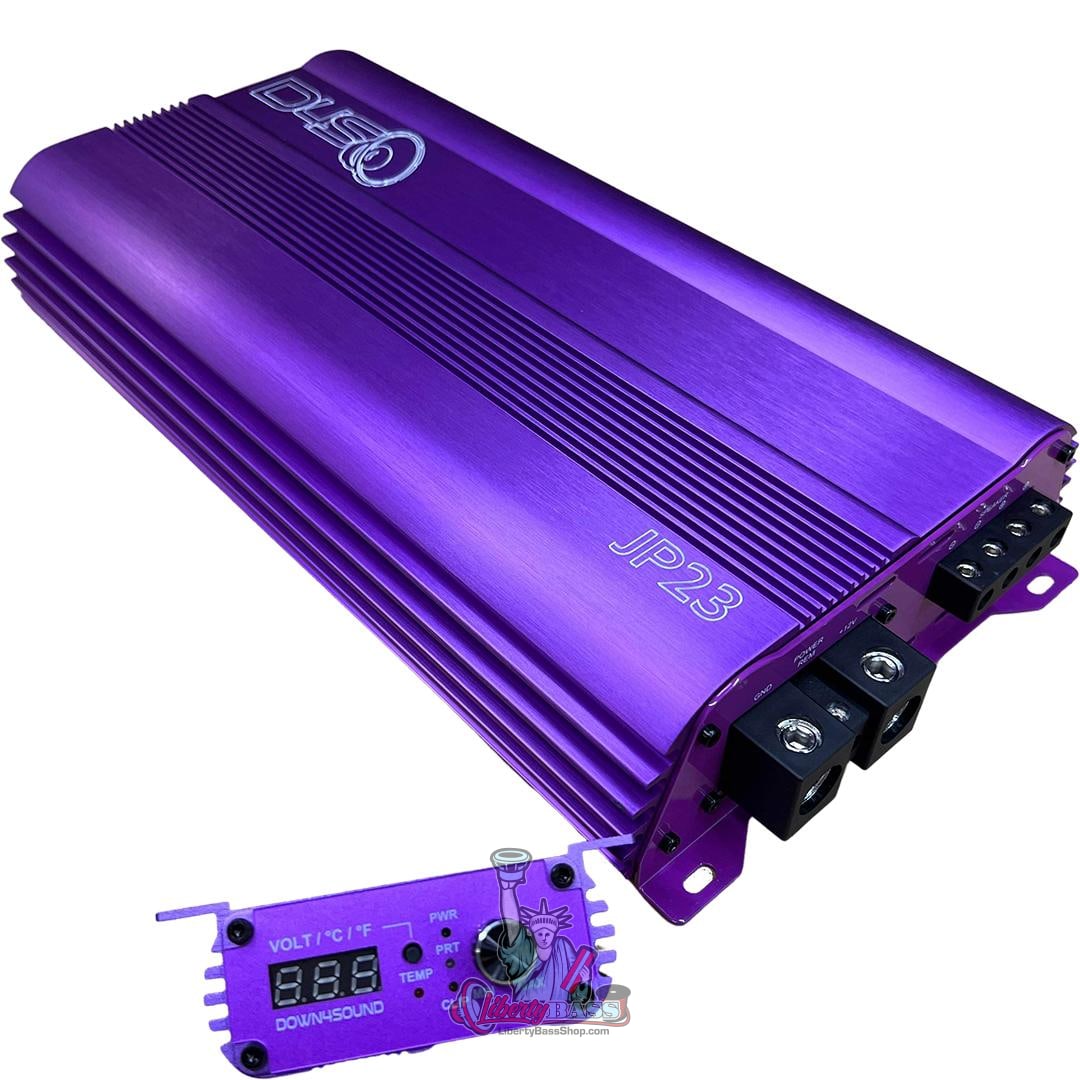

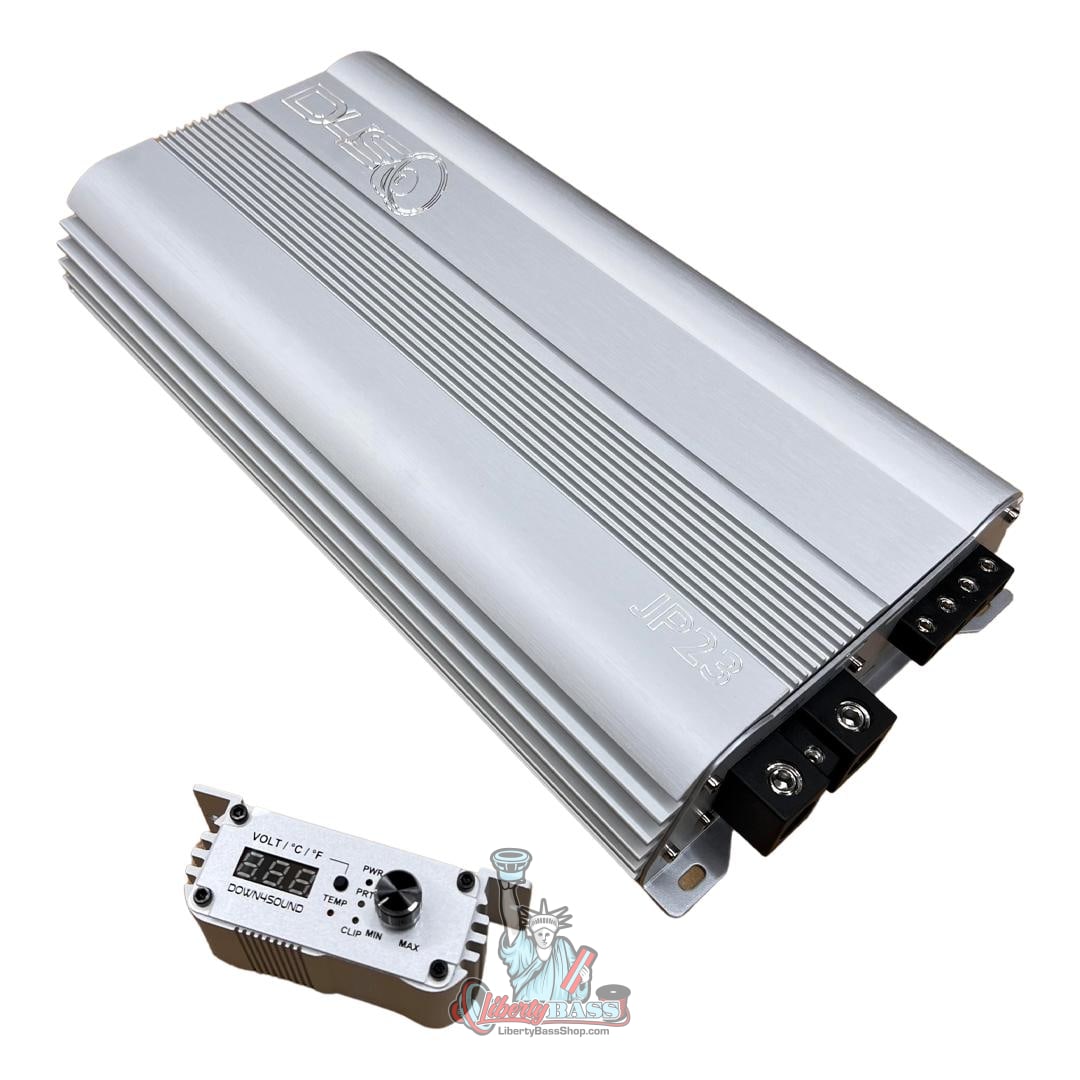

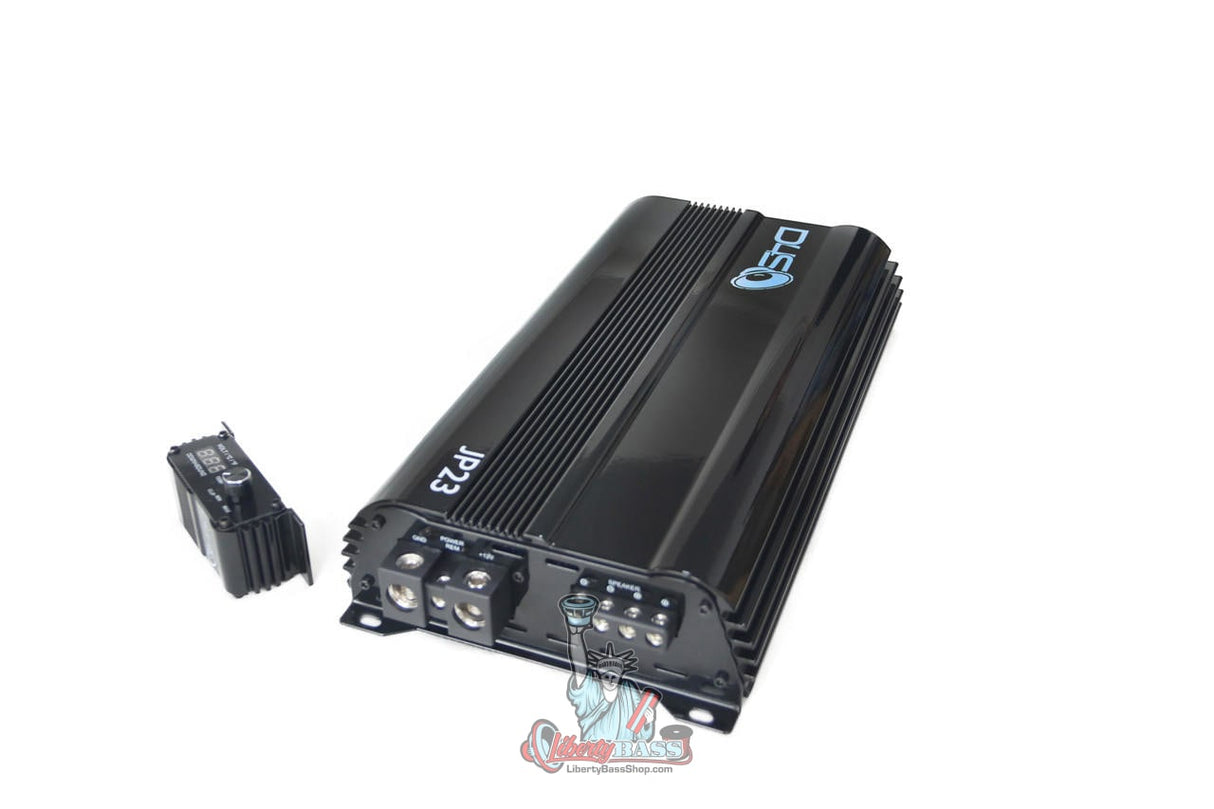

Down4Sound JP23 V2 – Bass Amplifier 🔊

The Down4Sound JP23 V2 is a high-power mono Class D bass amplifier that’s smaller, stronger, and delivers cleaner sound than its predecessor. Perfect for serious bass enthusiasts and expandable for massive setups.

Key Features ✨

• Mono Class D Amplifier
• On-Board Power & Protection Indicators
• Strappable Design for up to 5,600W 🔥

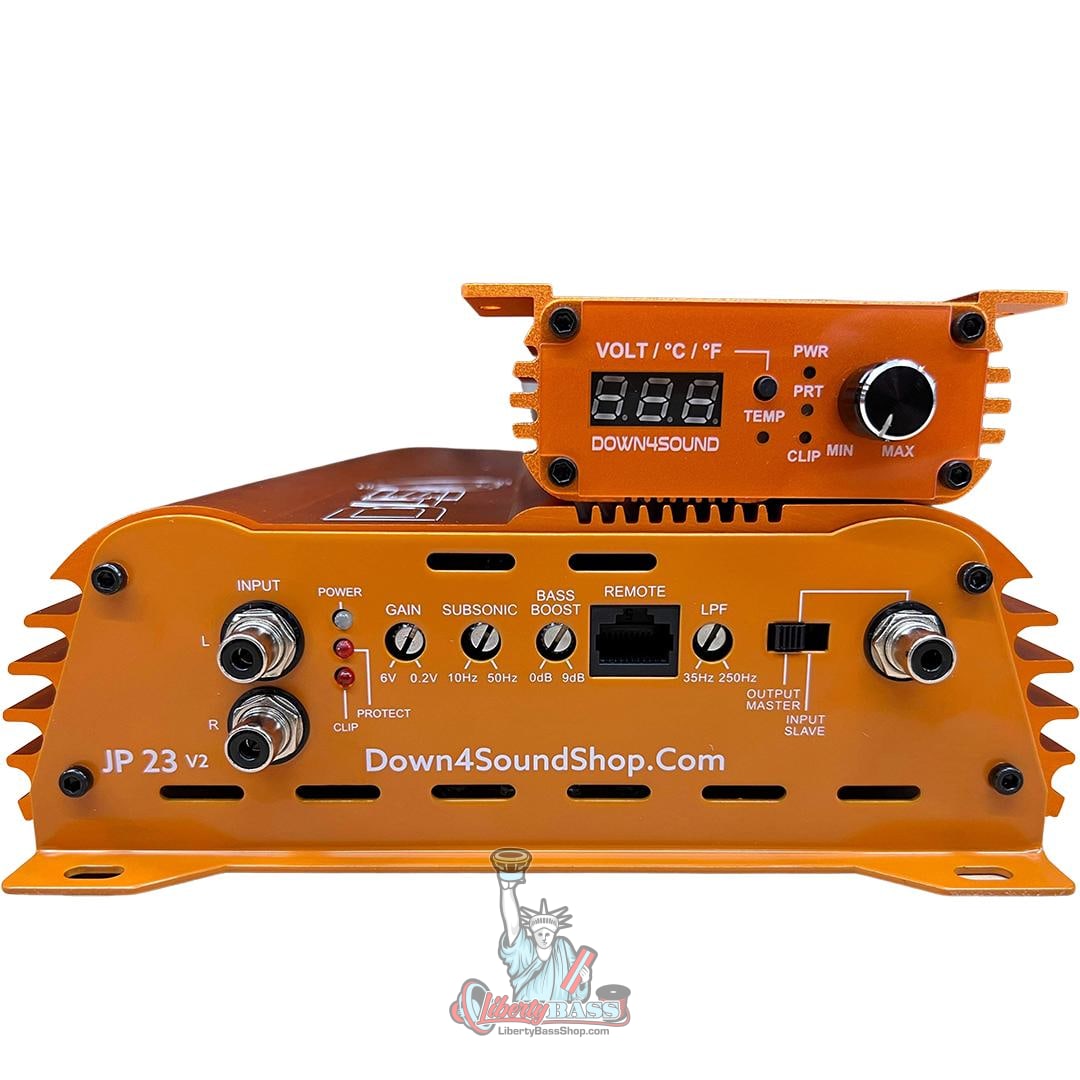

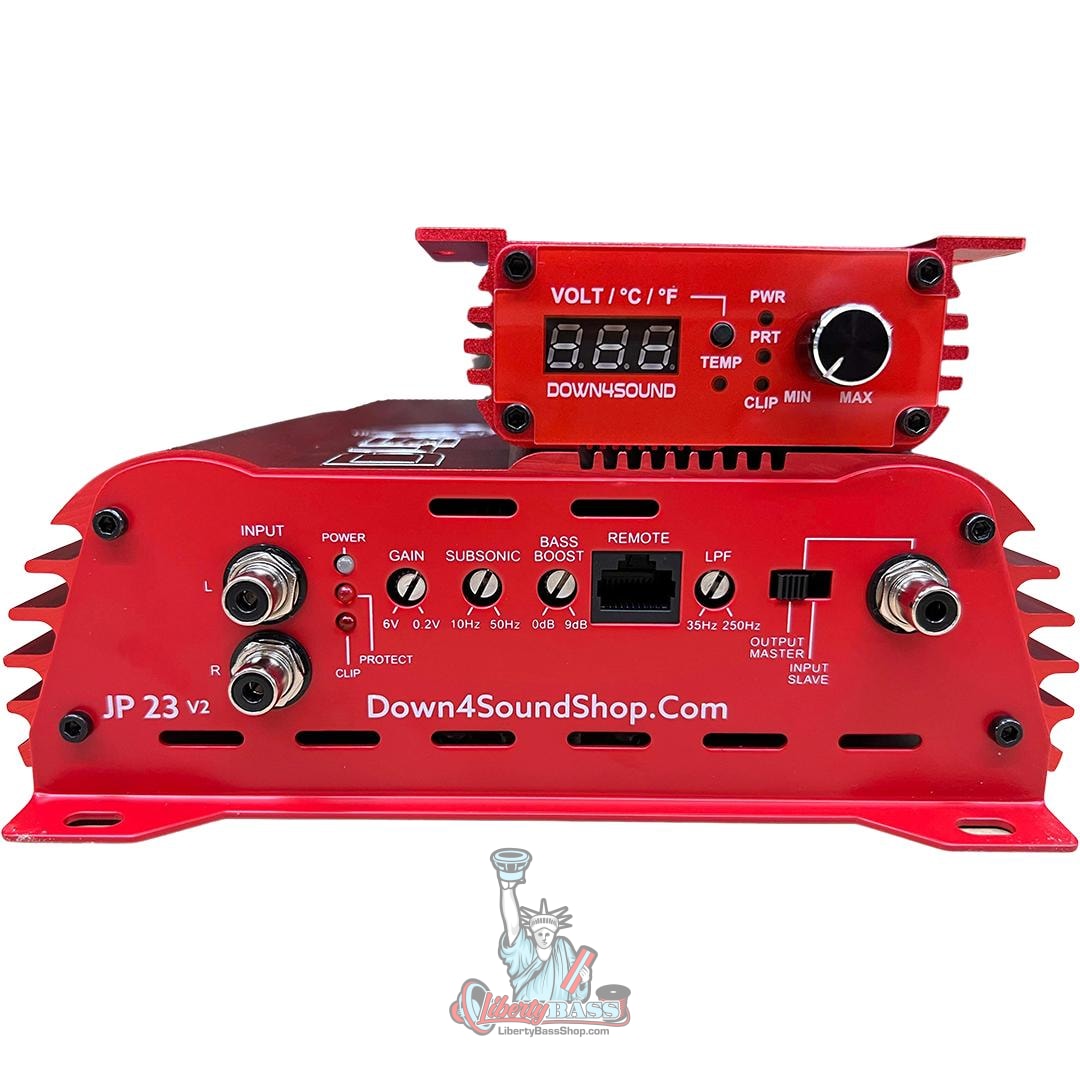

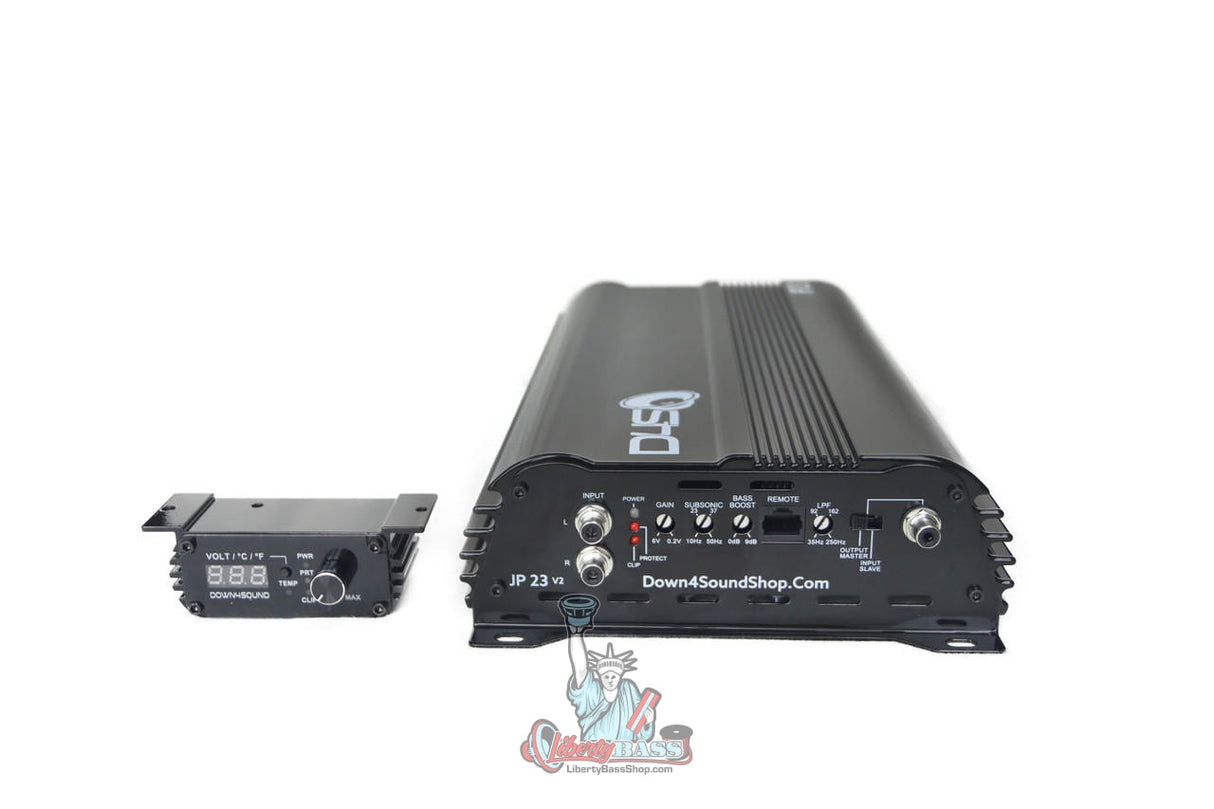

• Variable Low-Pass, Bass Boost & Subsonic Filters

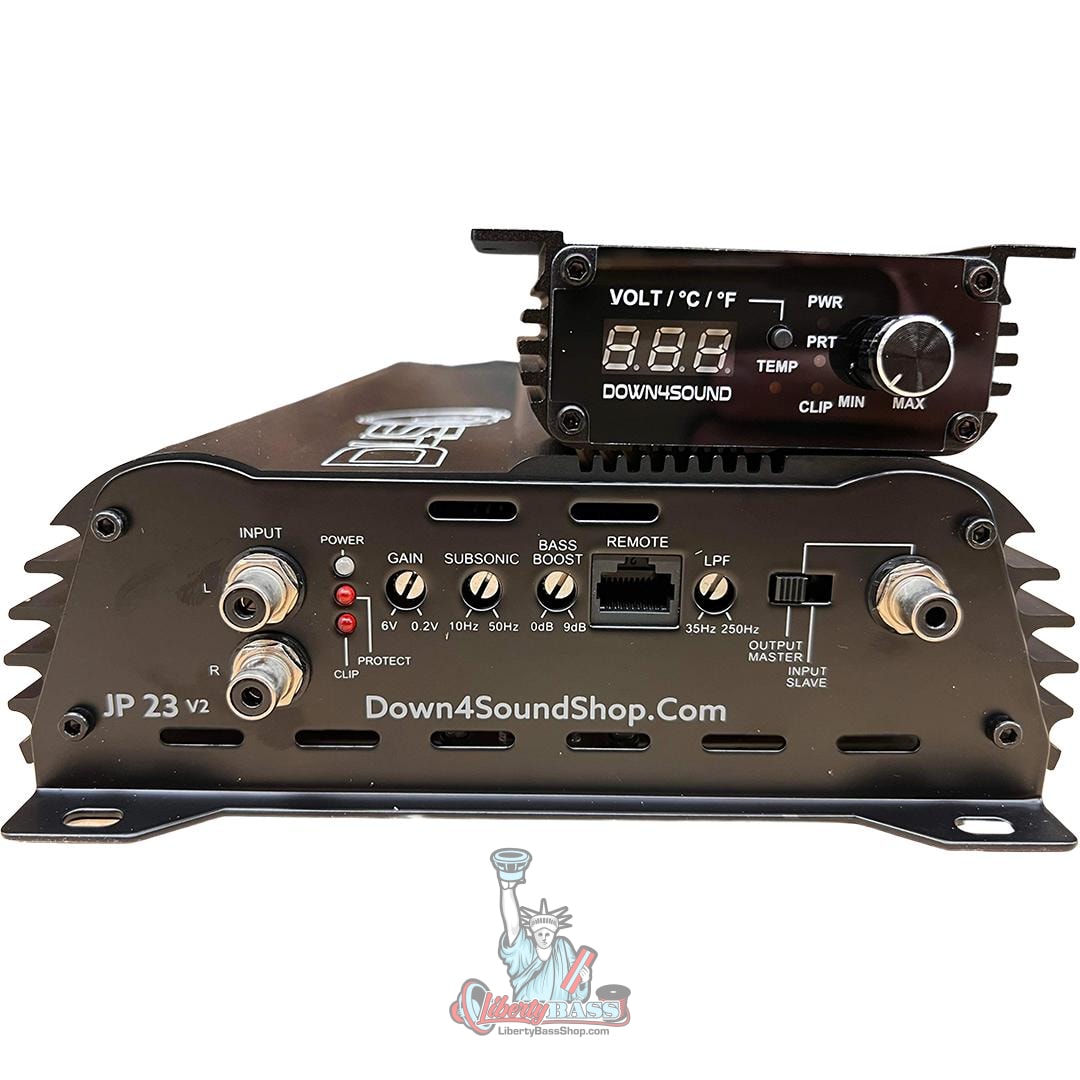

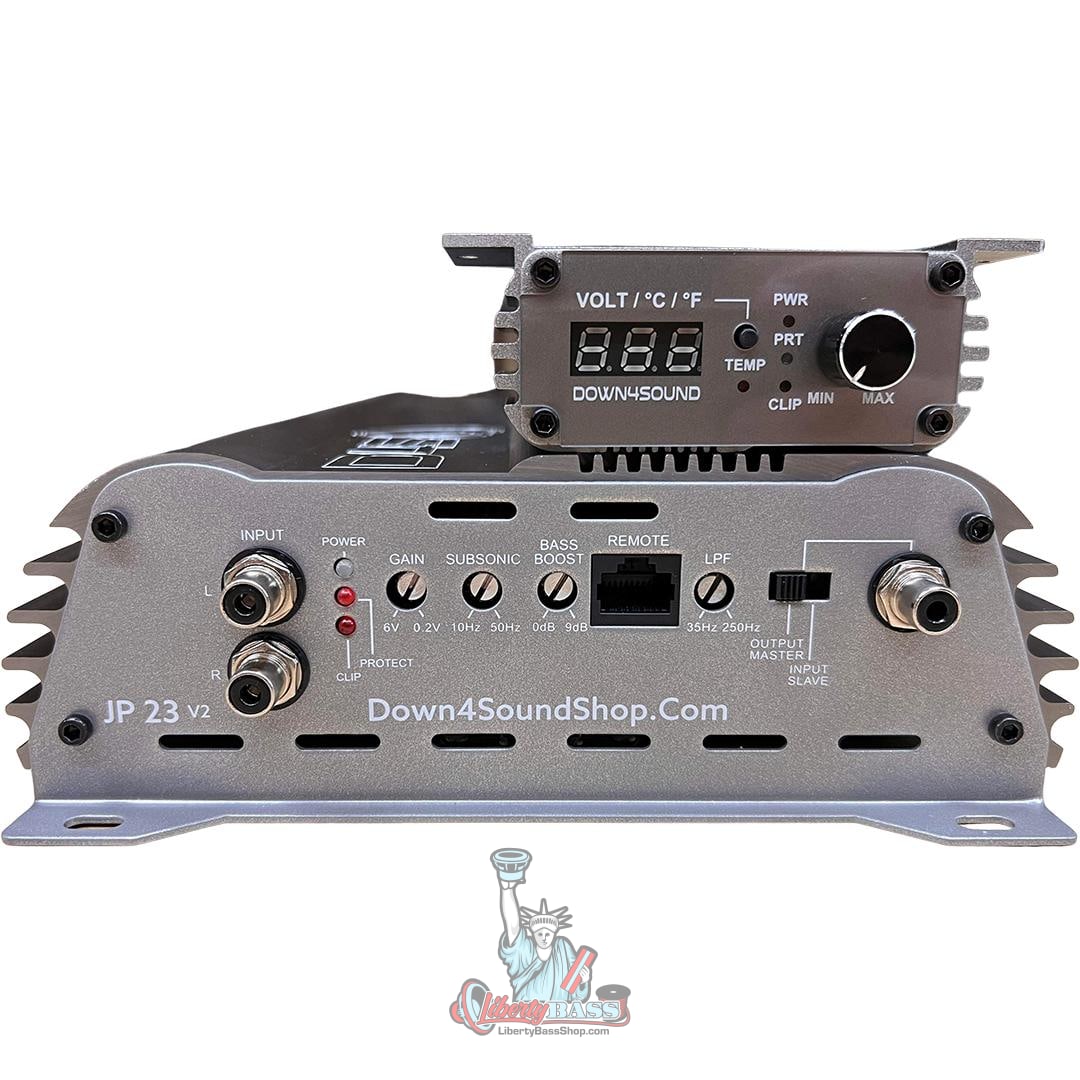

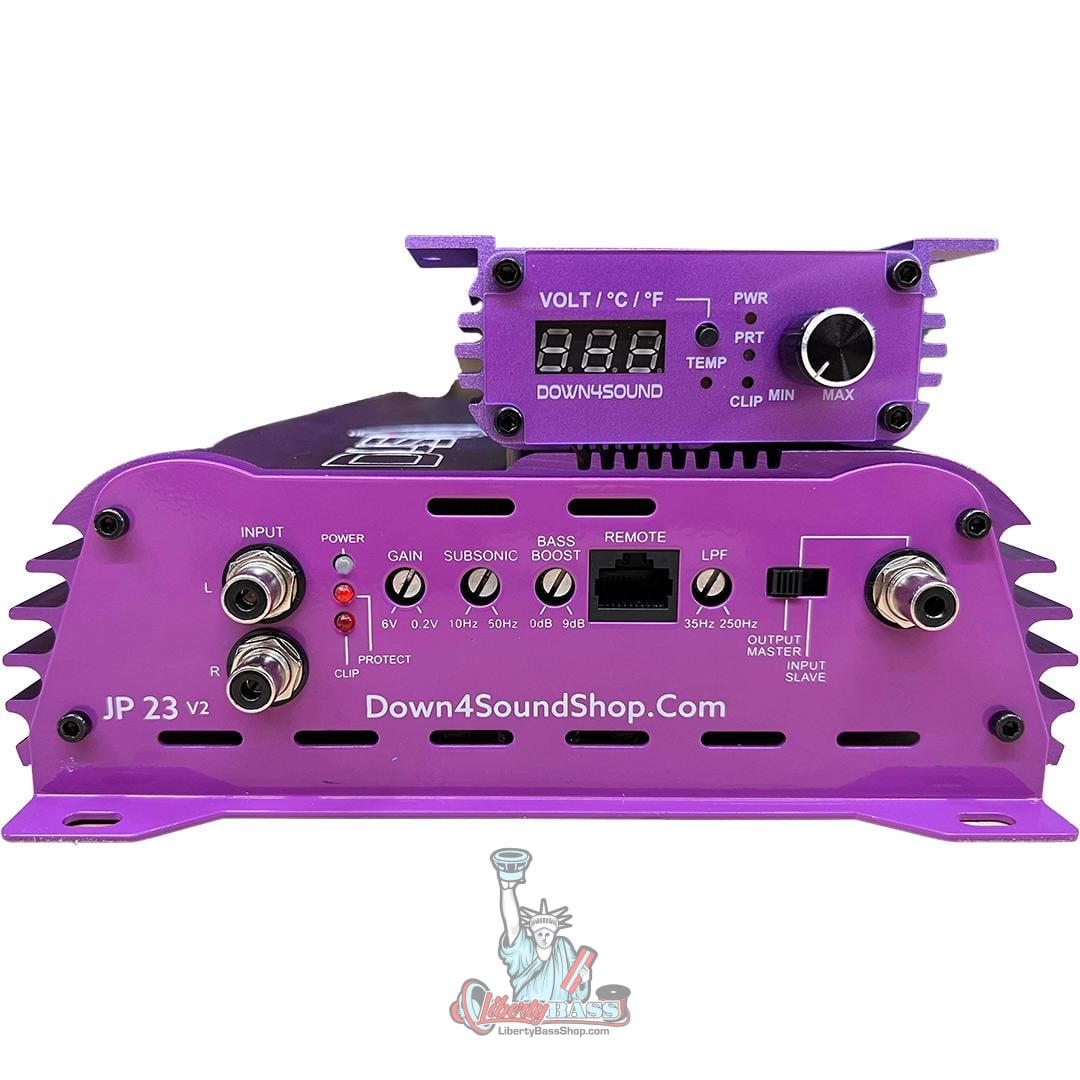

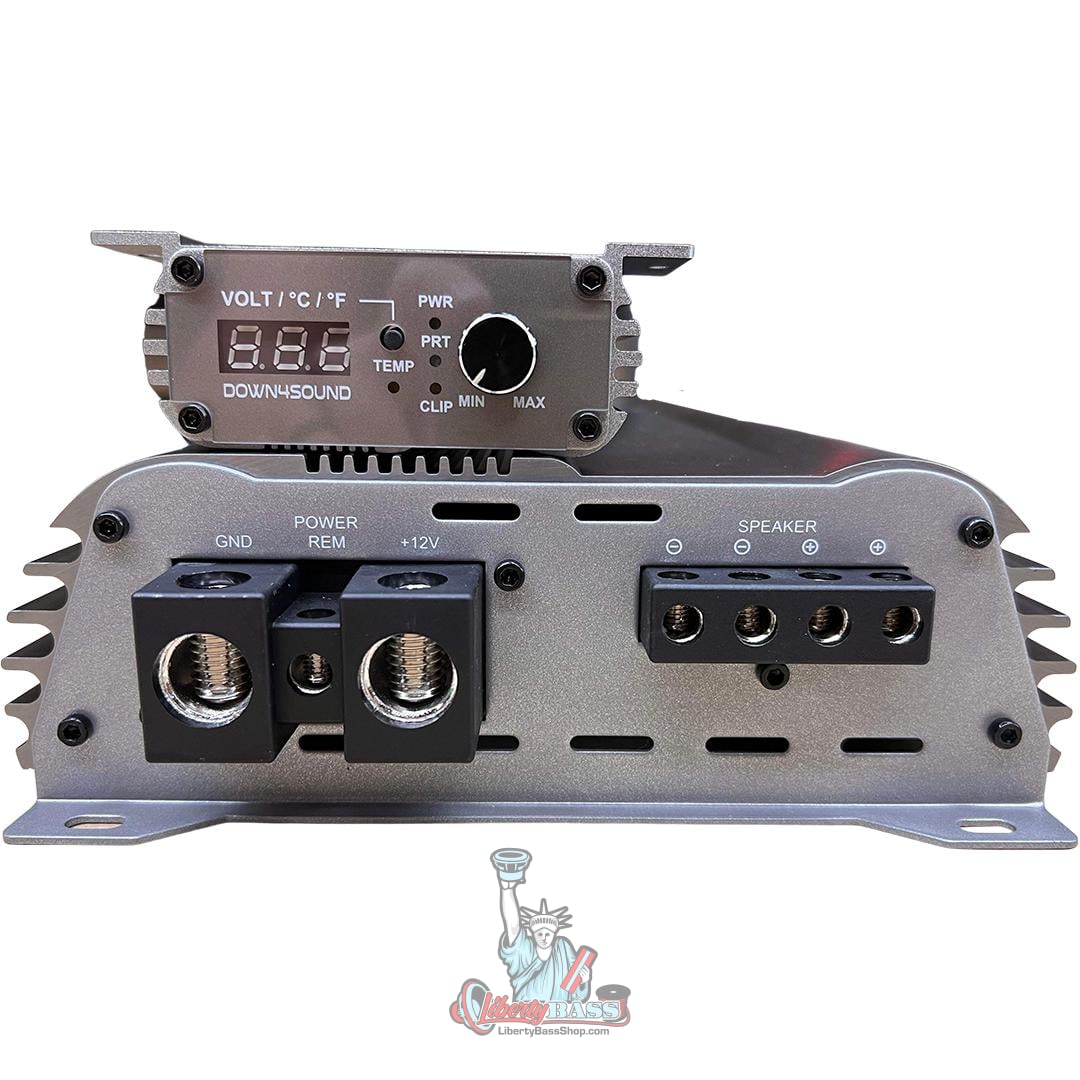

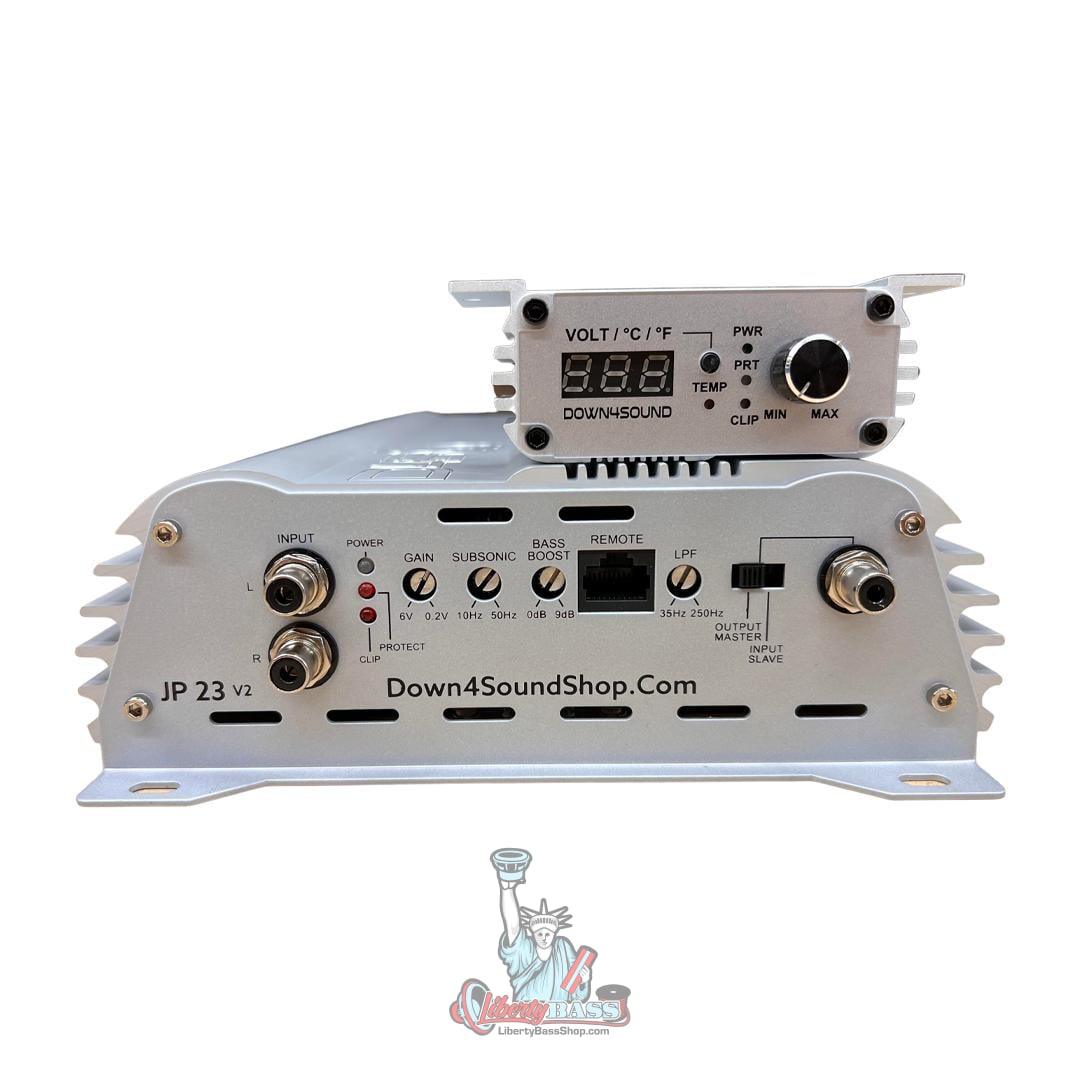

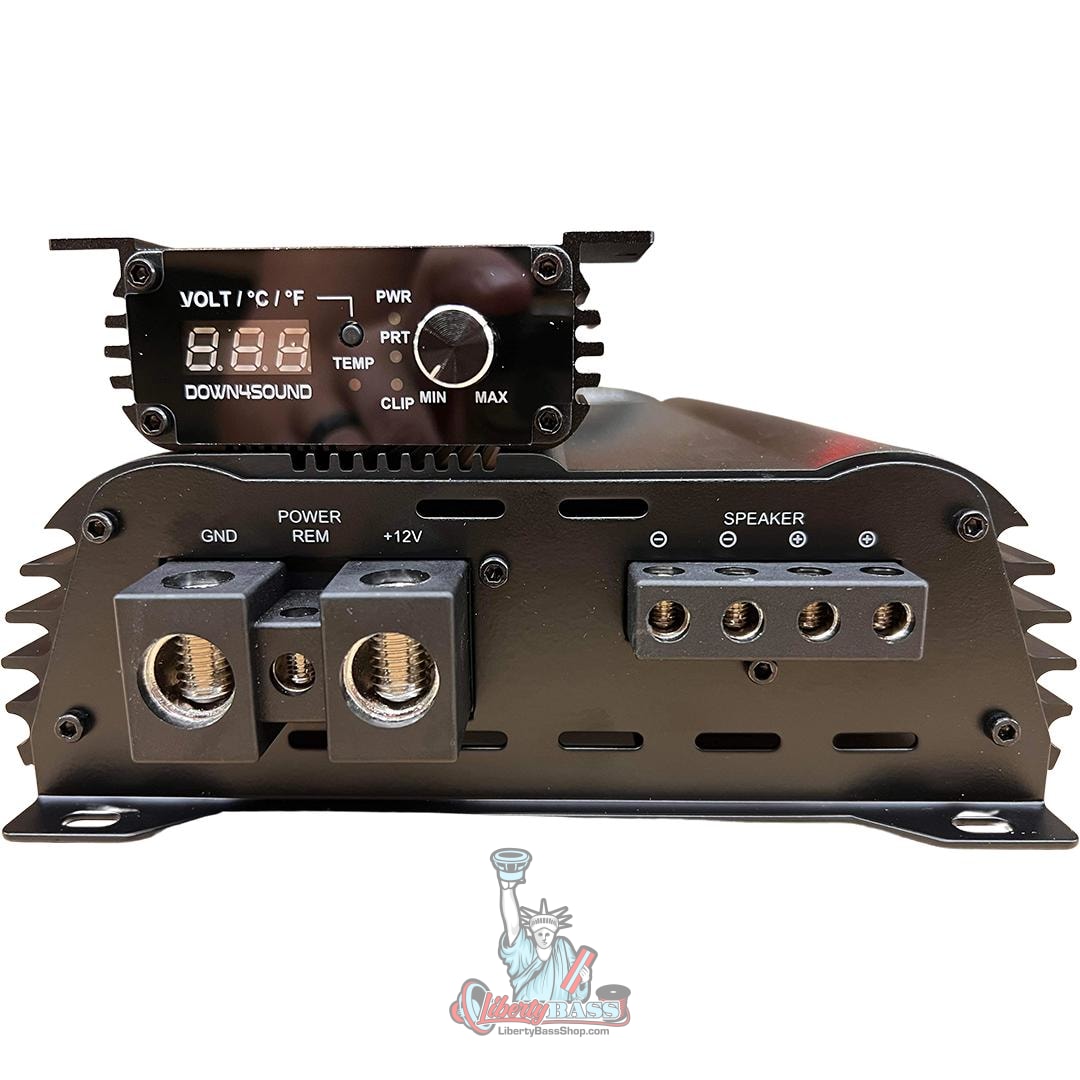

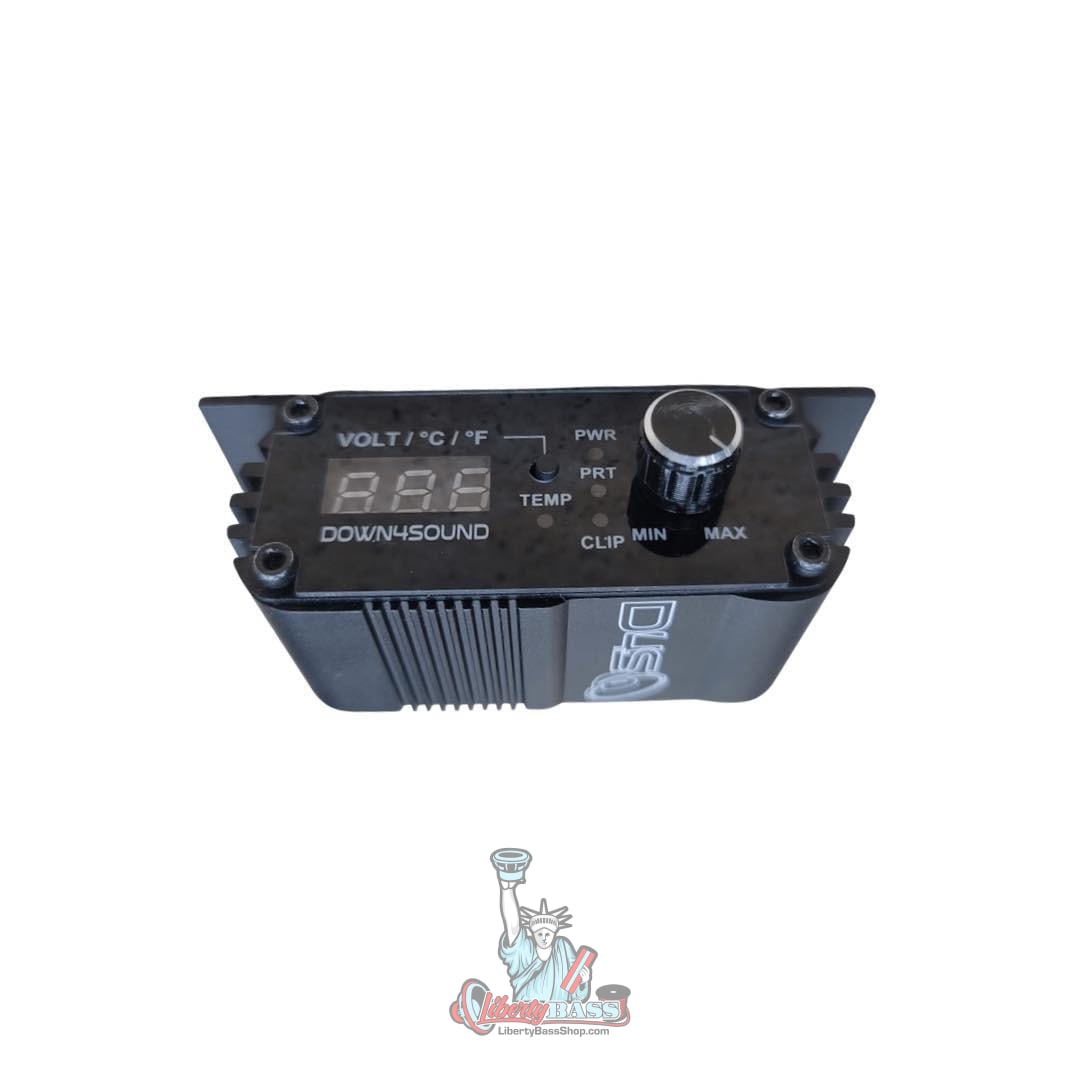

• Remote with Voltage & Temperature Display + Power, Protection & Clipping Indicators

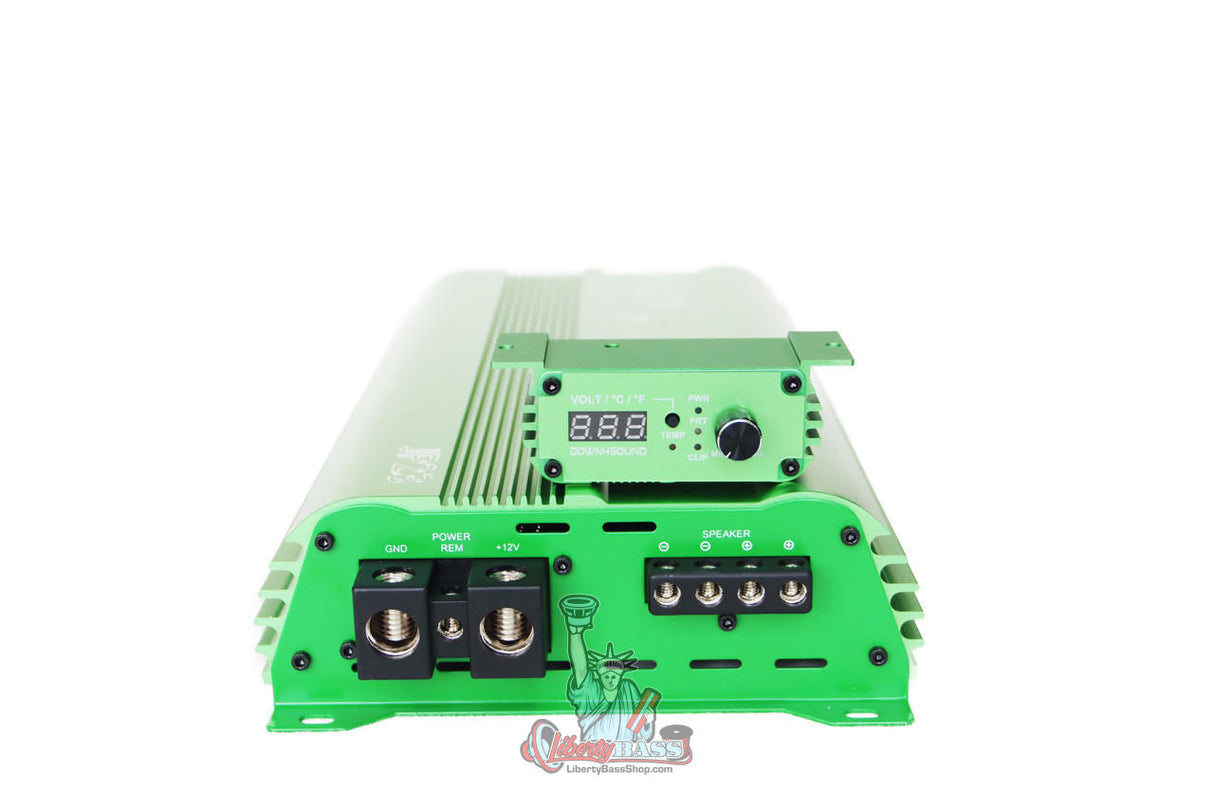

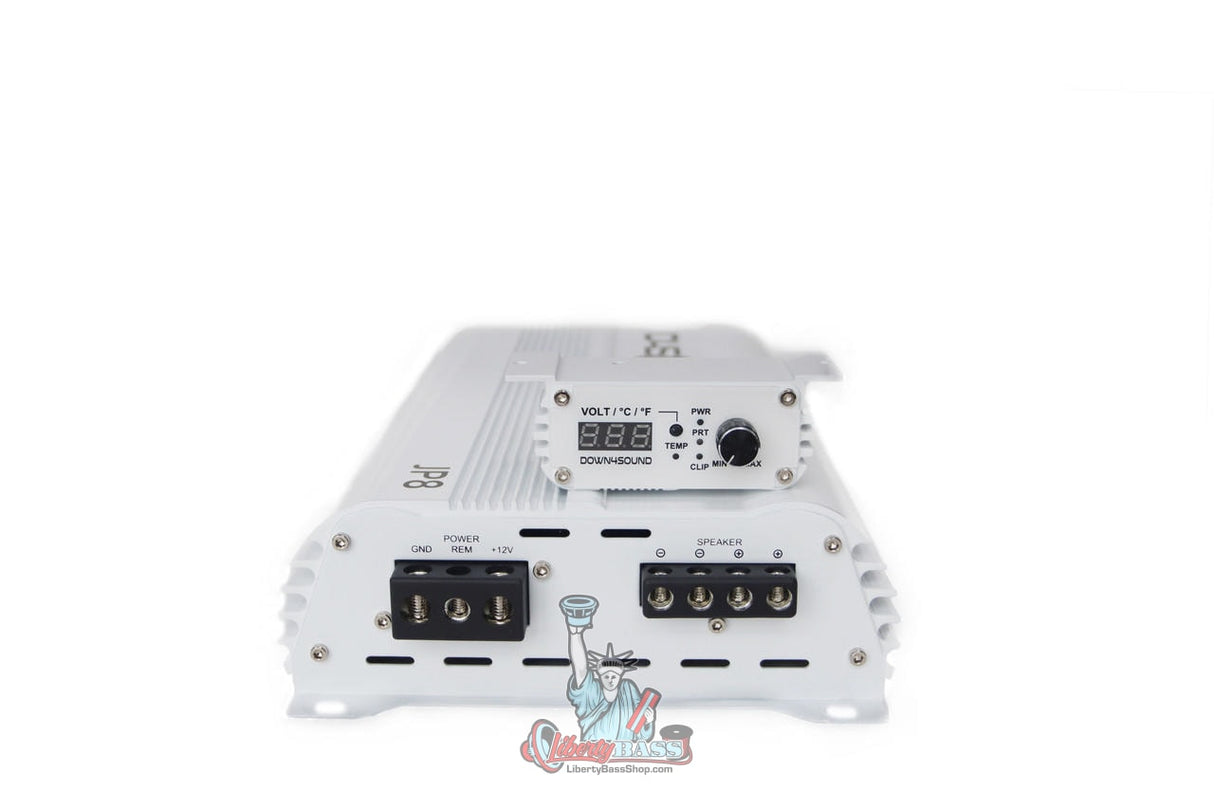

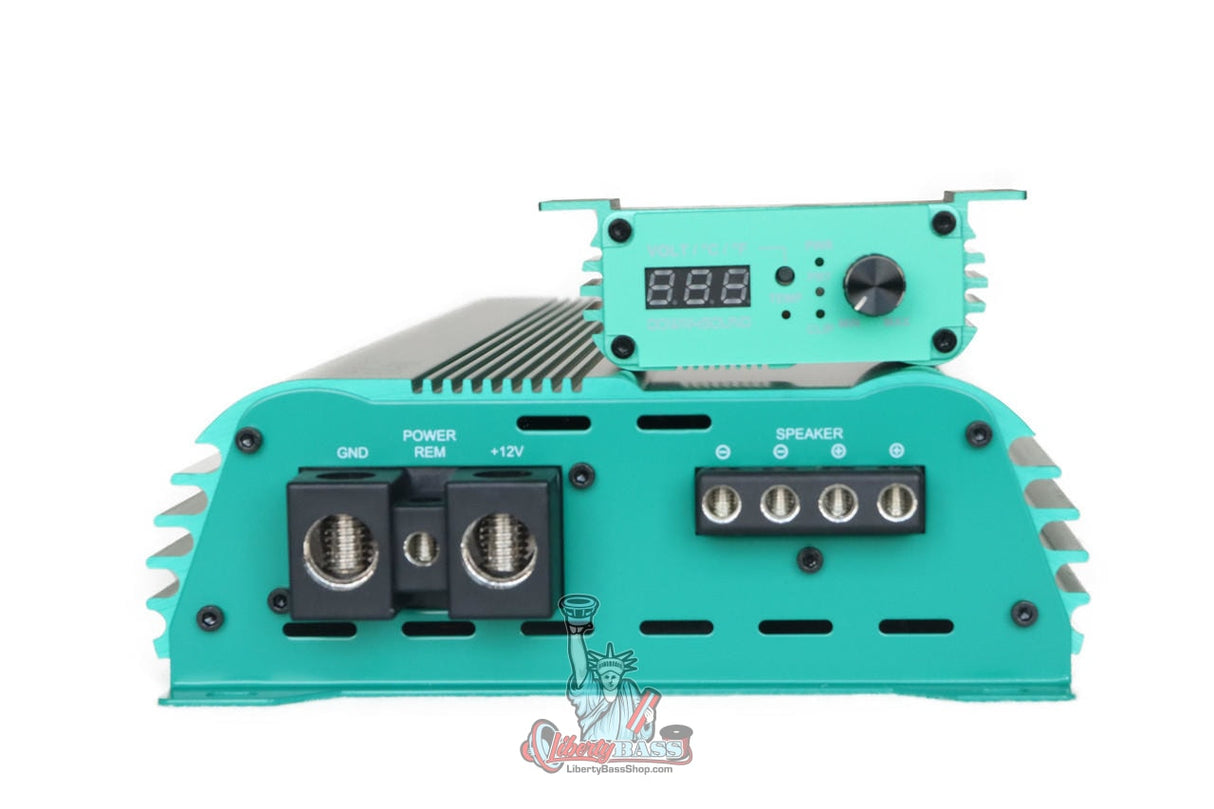

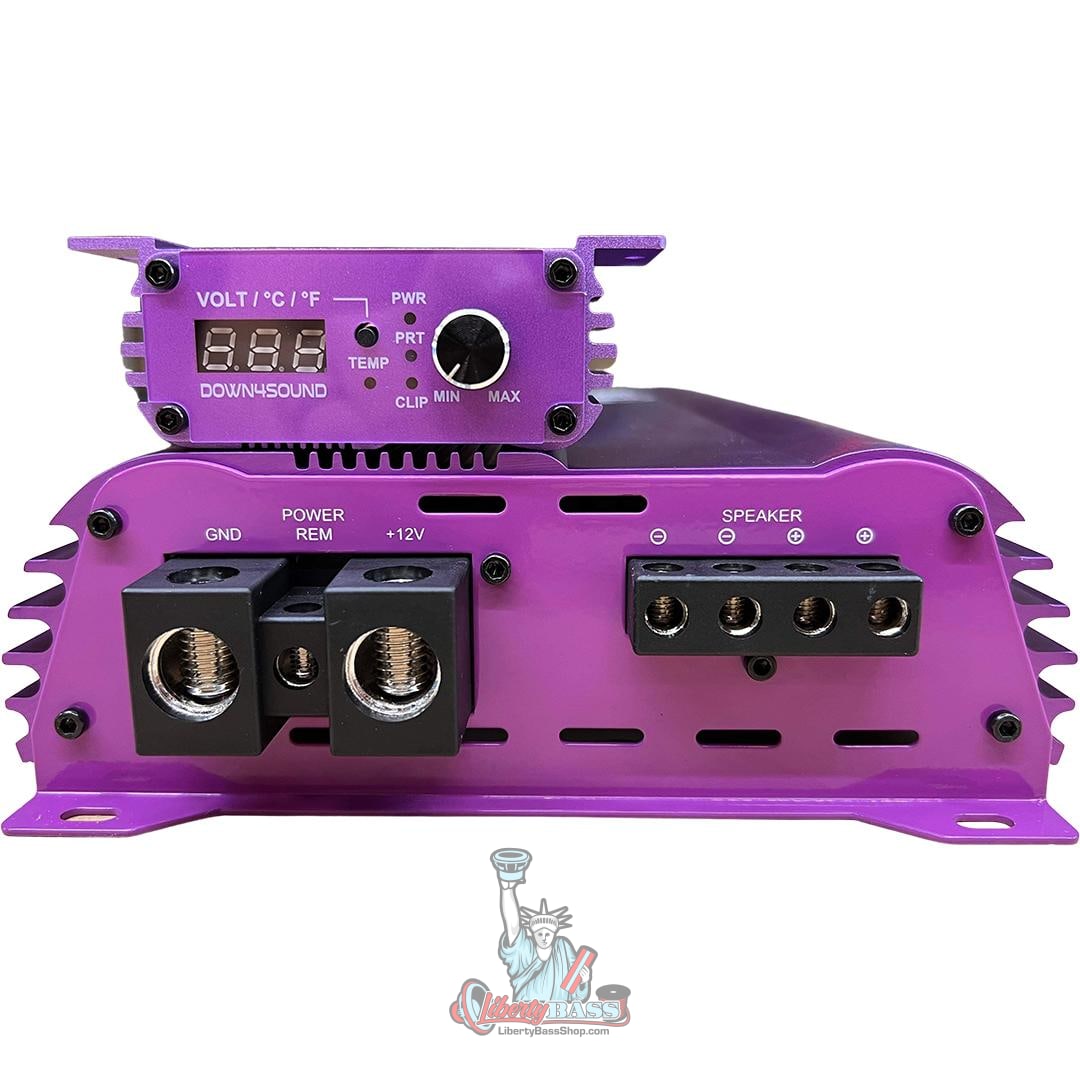

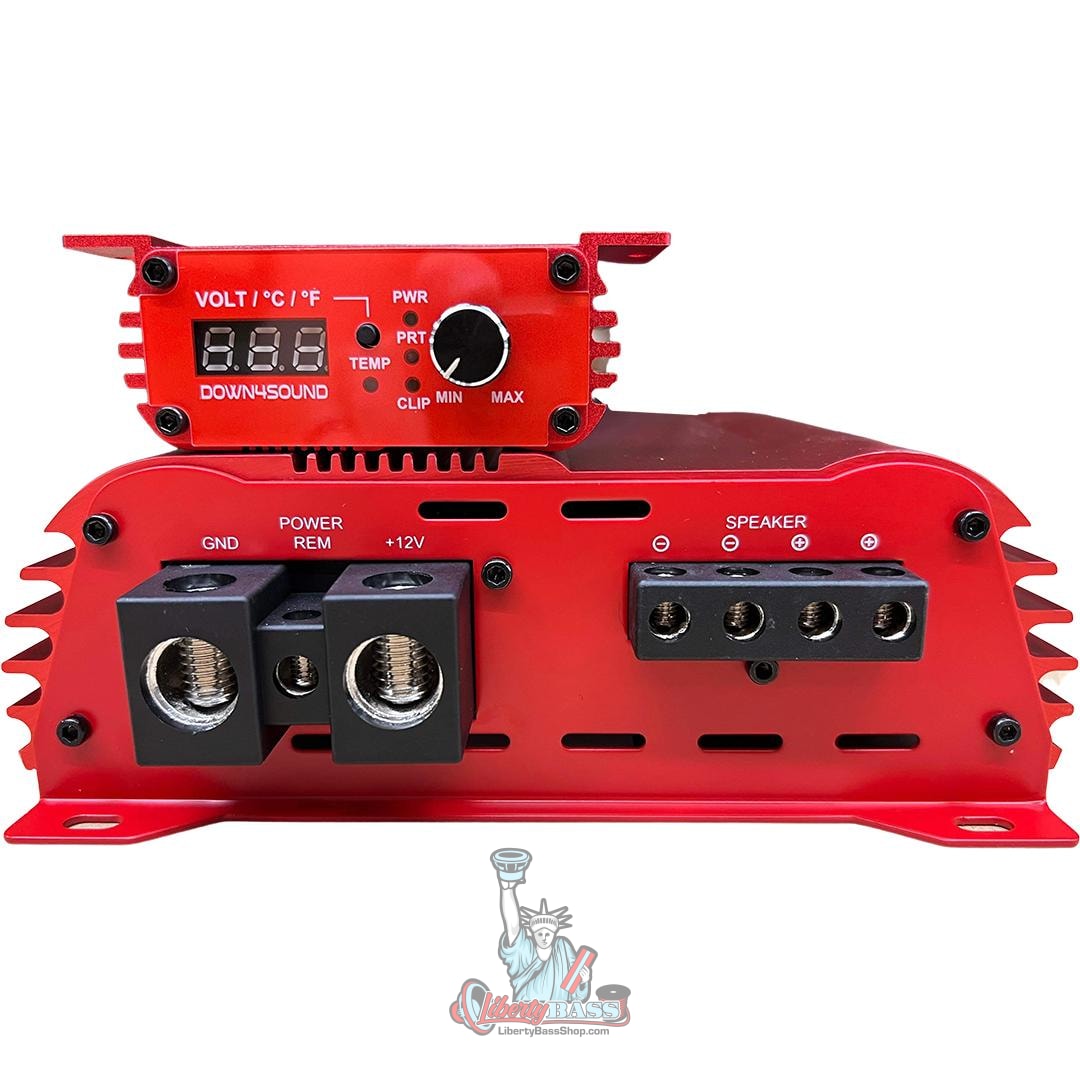

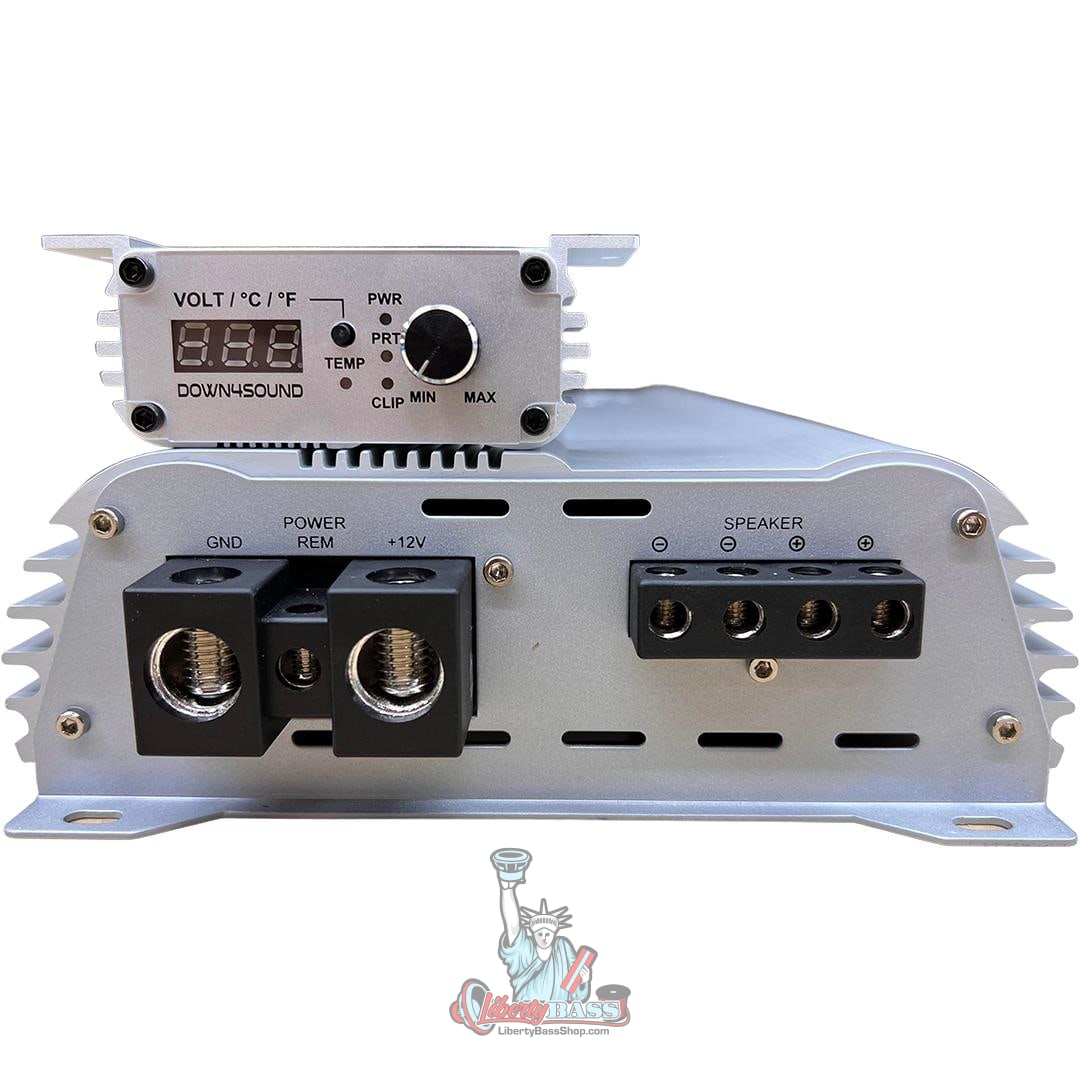

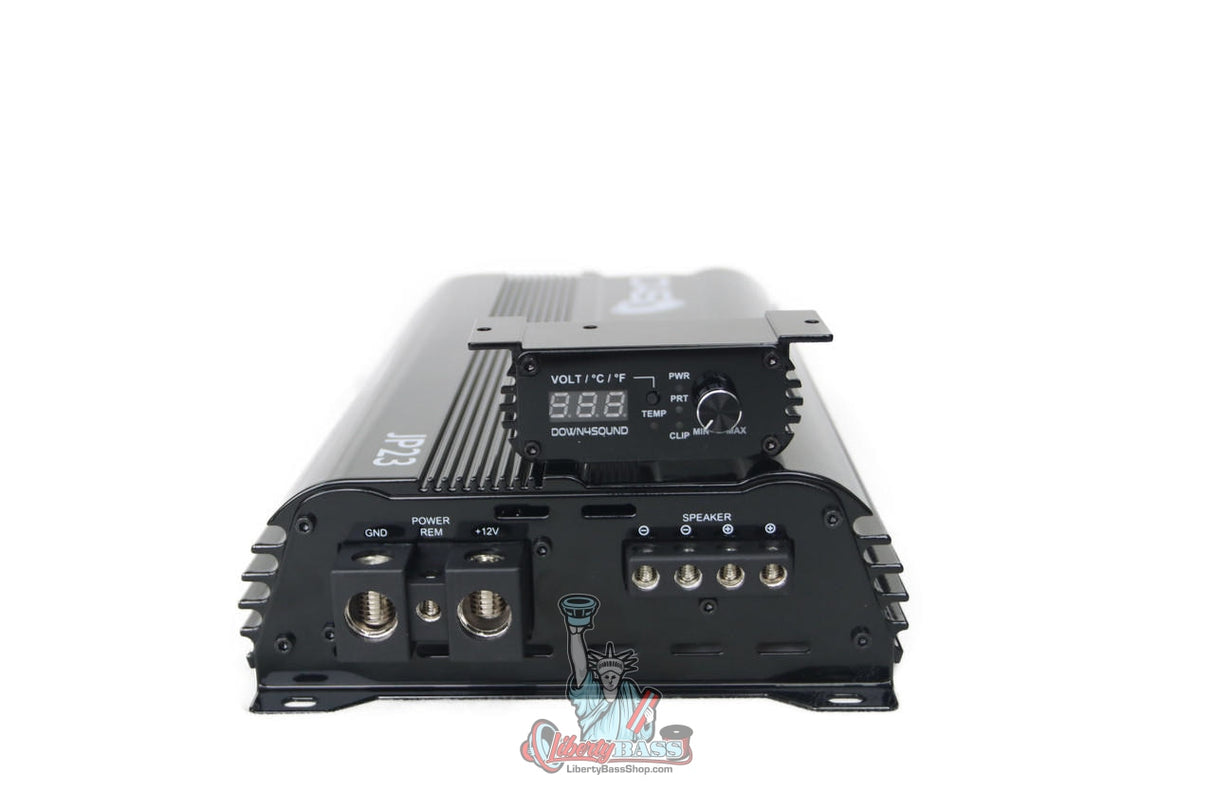

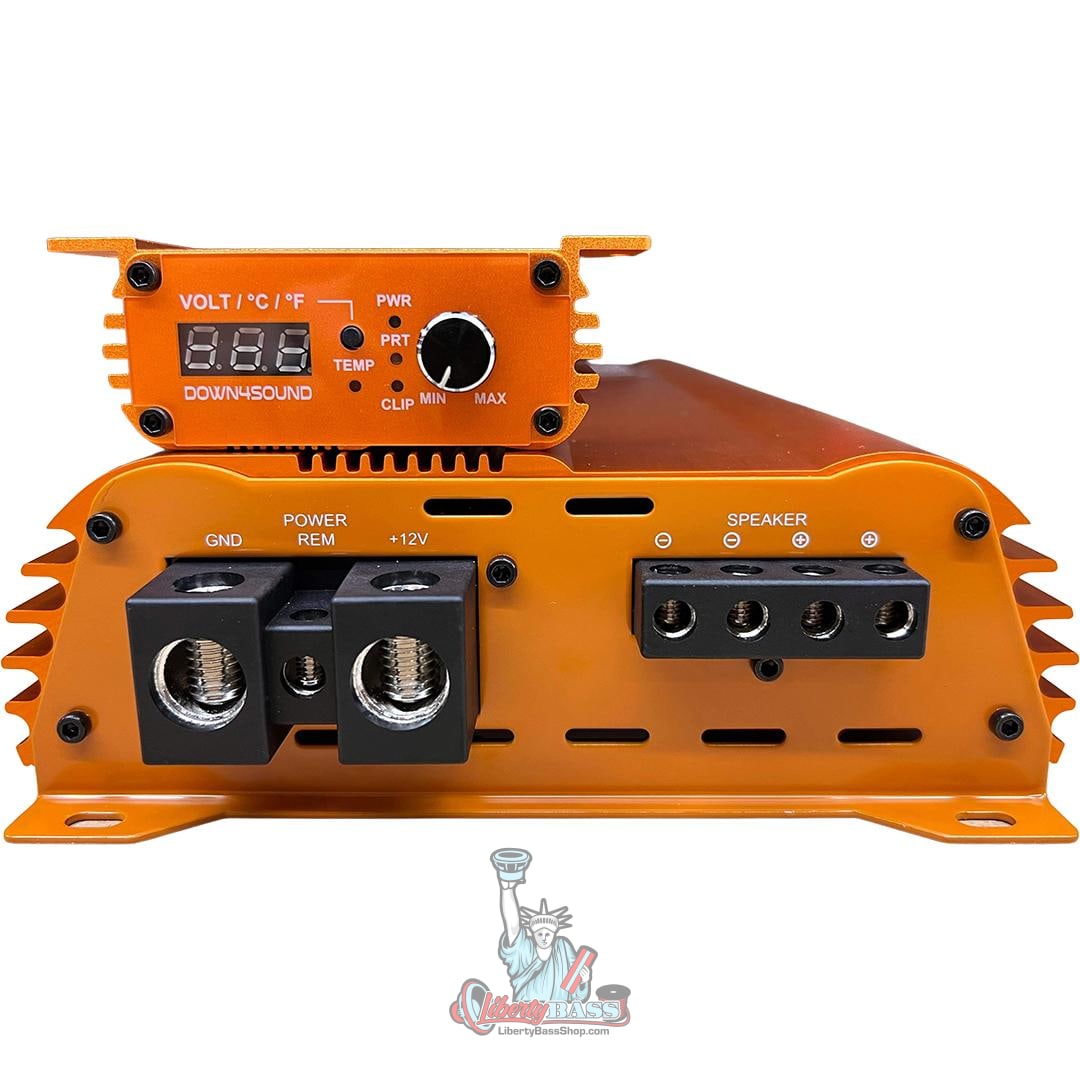

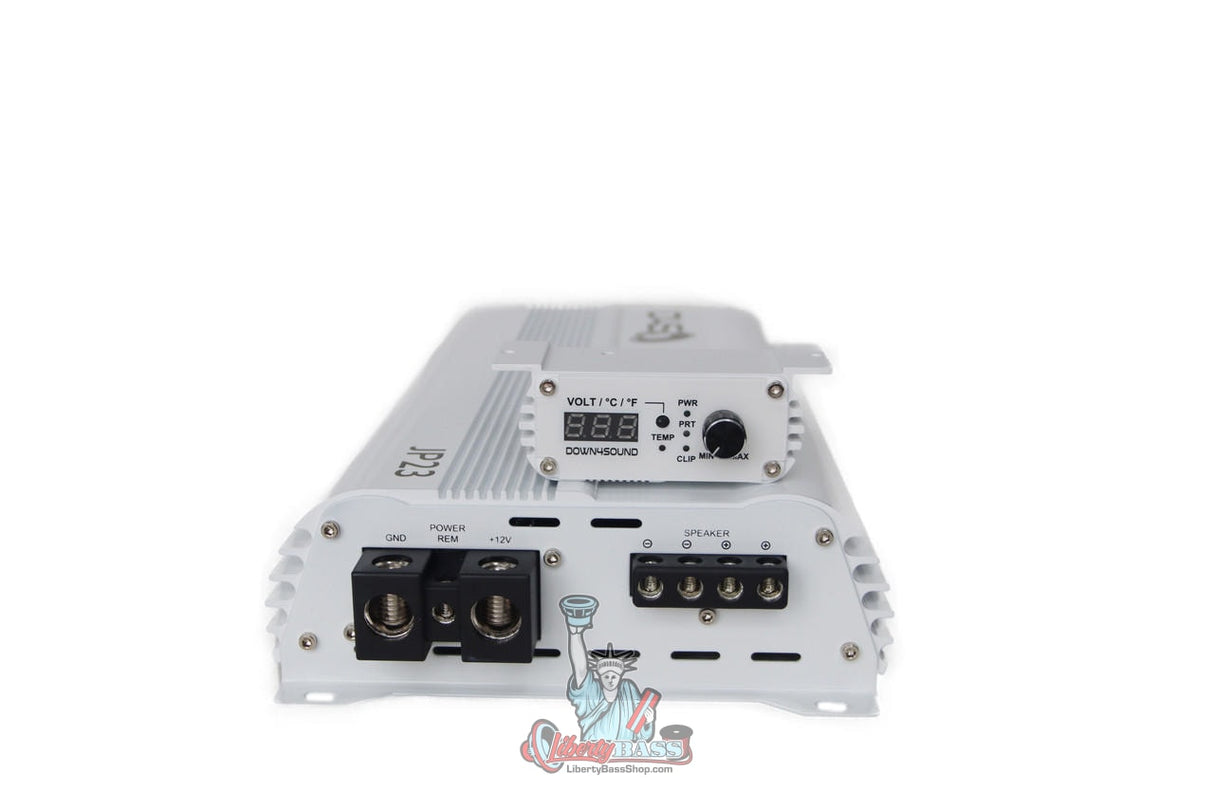

• 1/0 AWG Power & Ground Inputs
• 4-Way Protection Circuits (Thermal, Voltage, Speaker Short, DC)

Power Ratings ⚡

• Max Output (Strapped): 5,600W
• 1 Ohm RMS: 2,800W
• 2 Ohm RMS: 1,800W
• 4 Ohm RMS: 800W

Why Choose the JP23 V2? ✅

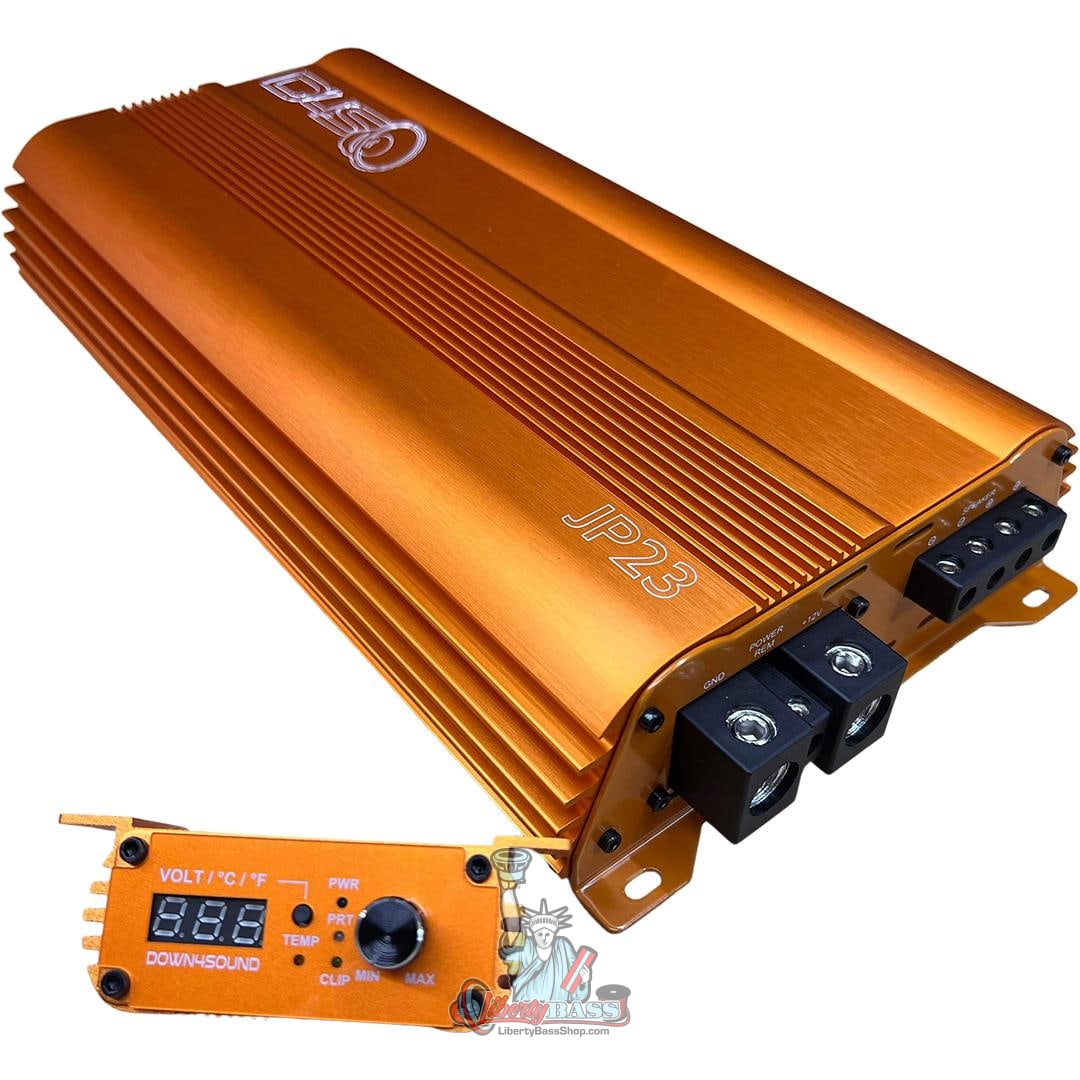

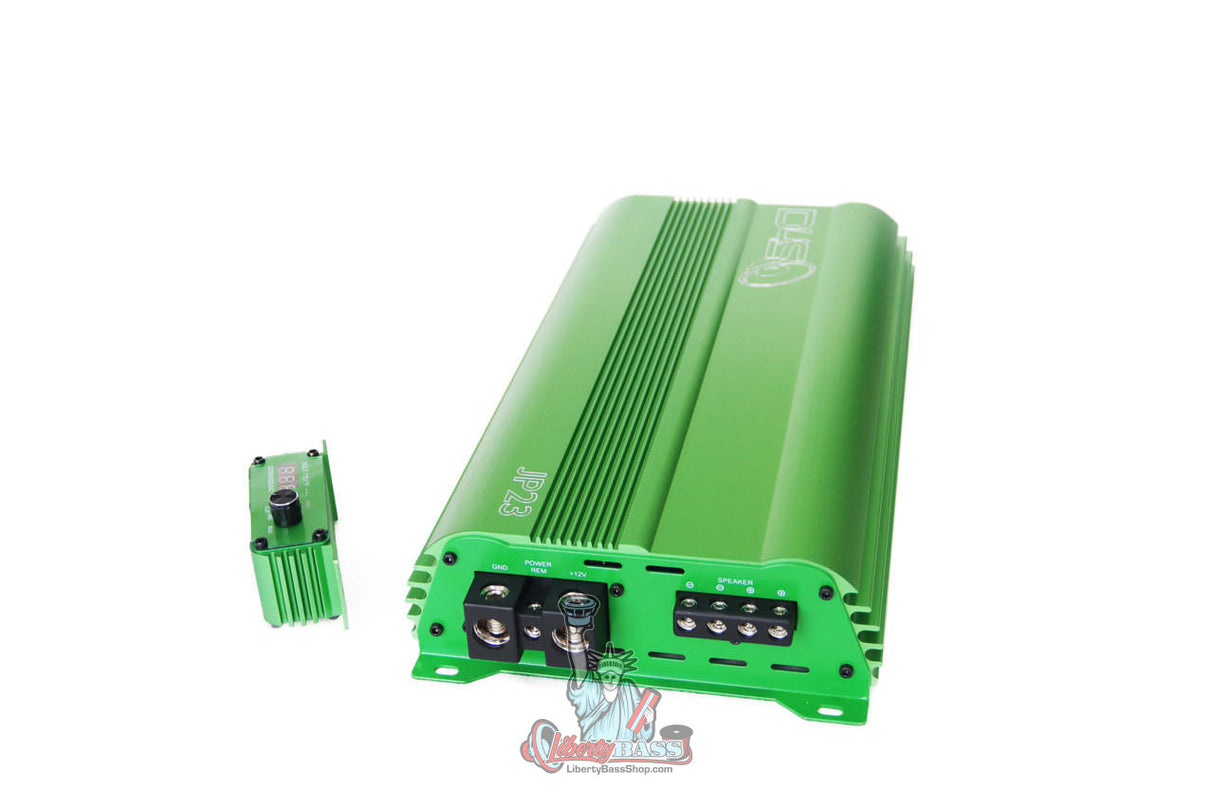

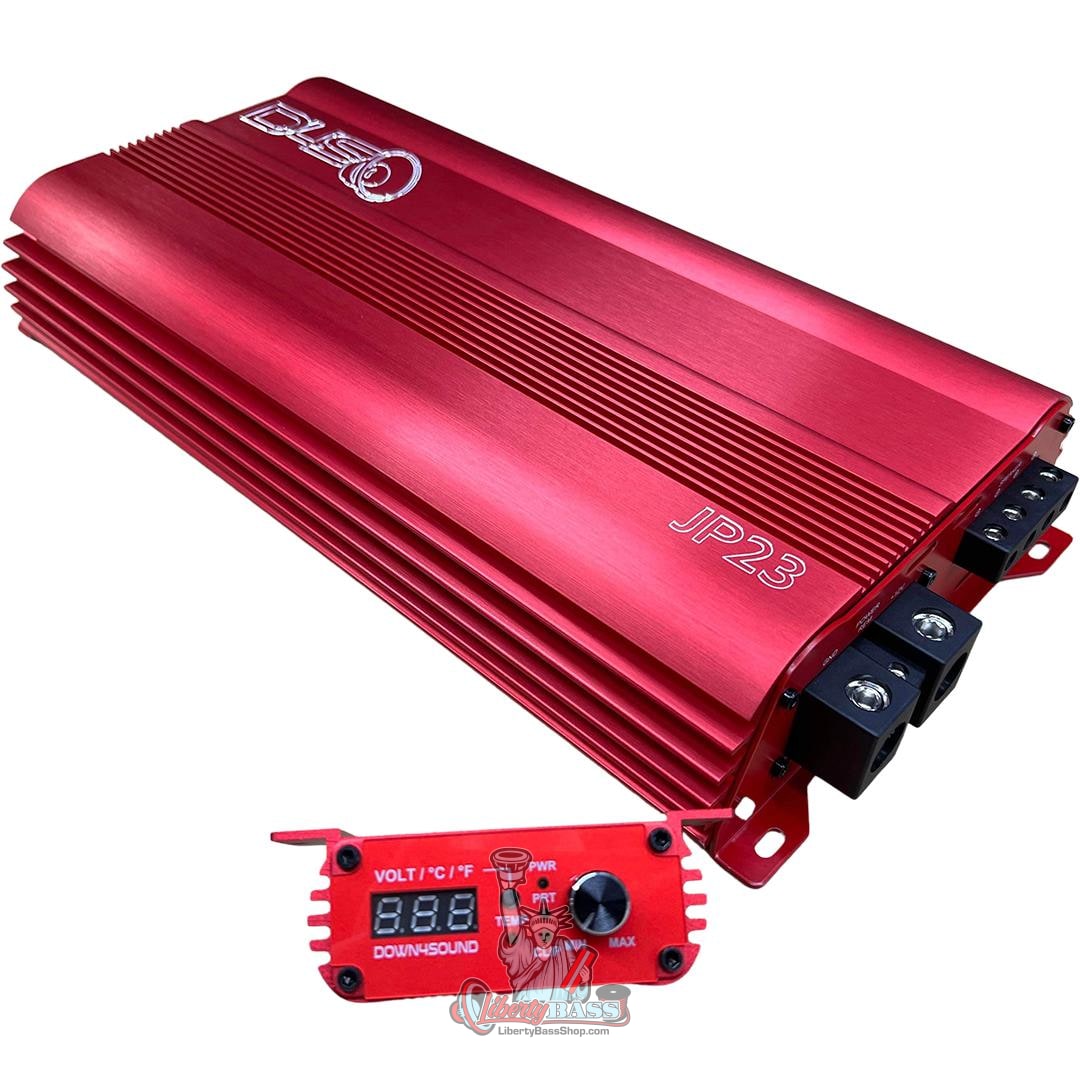

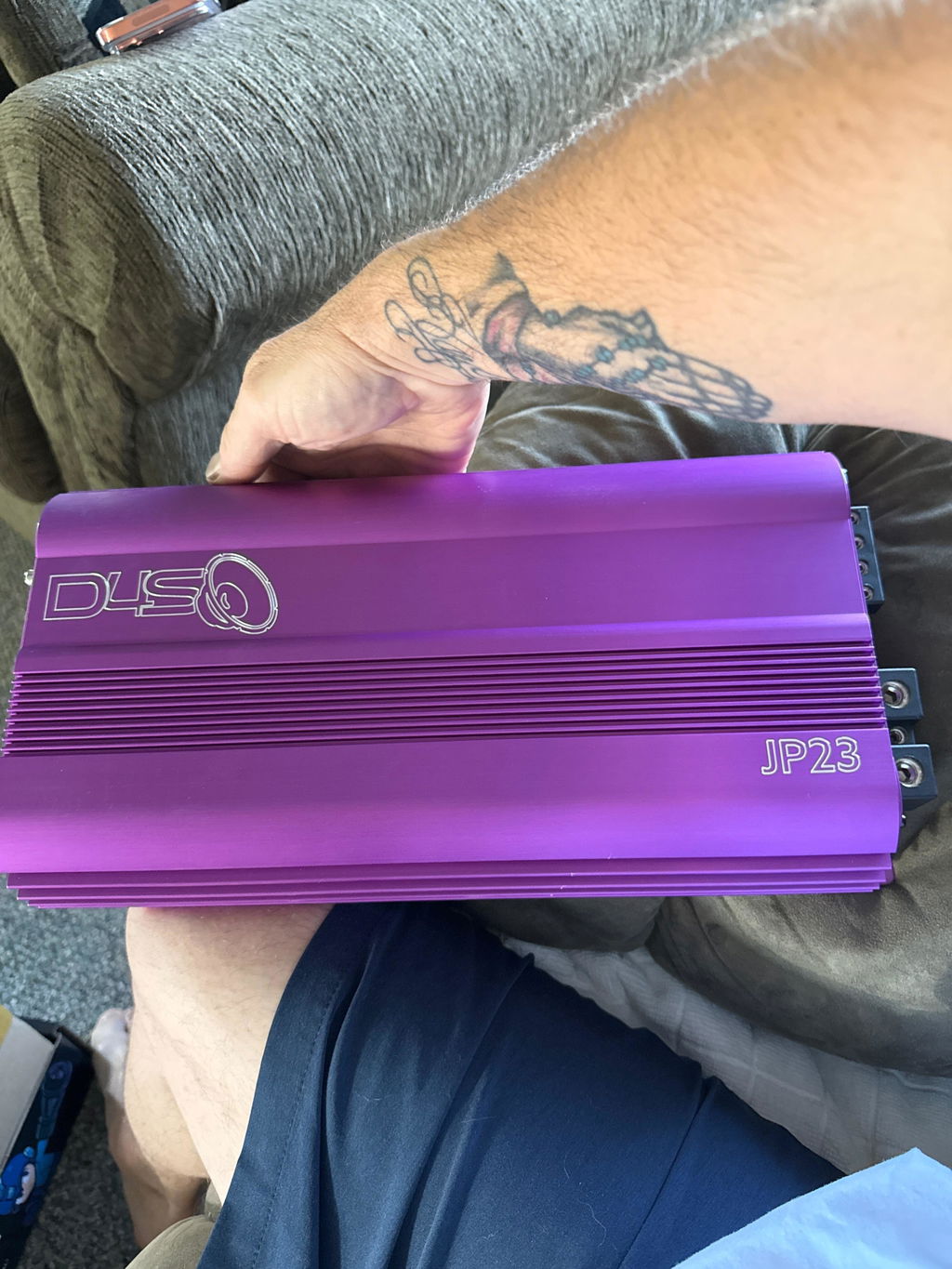

The JP23 V2 is over 20% smaller but more powerful than V1.5, capable of nearly 3,000W solo. Available in 11 vibrant colors, it features variable 9 dB bass boost, low-pass, and subsonic filters for precise control. 🎶

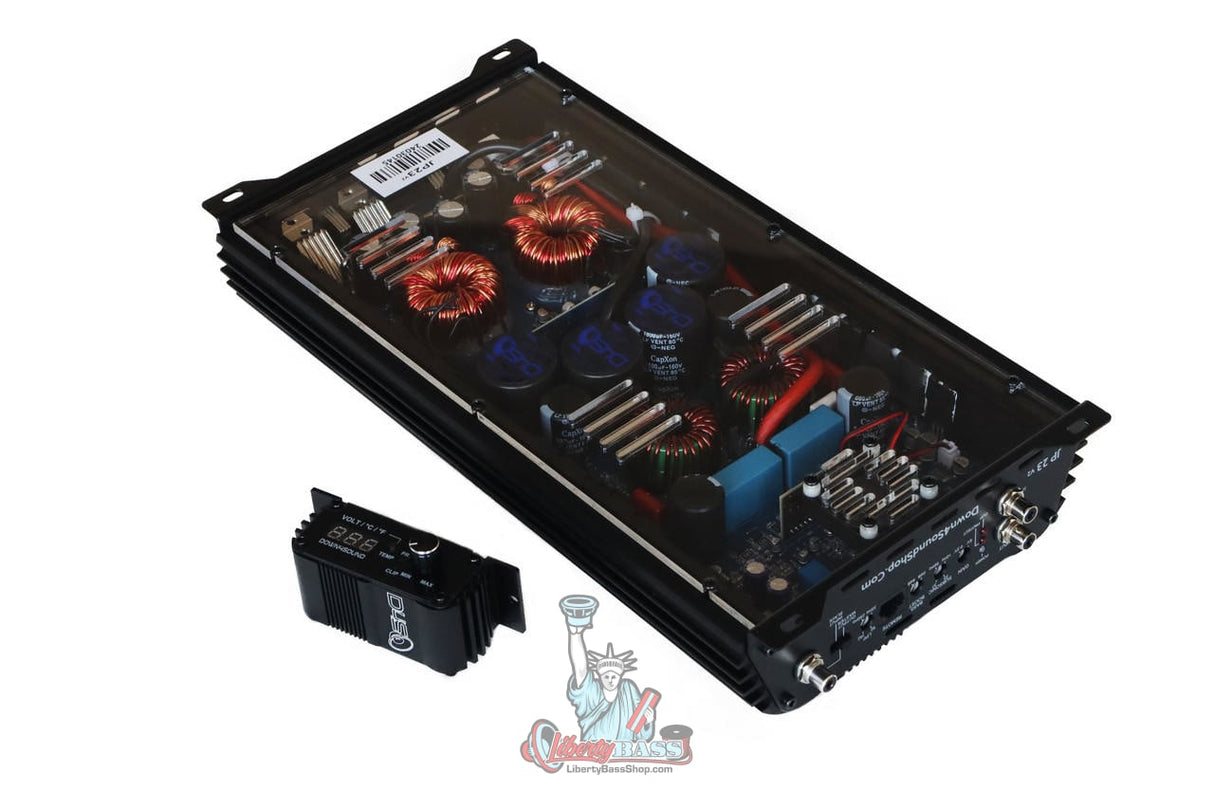

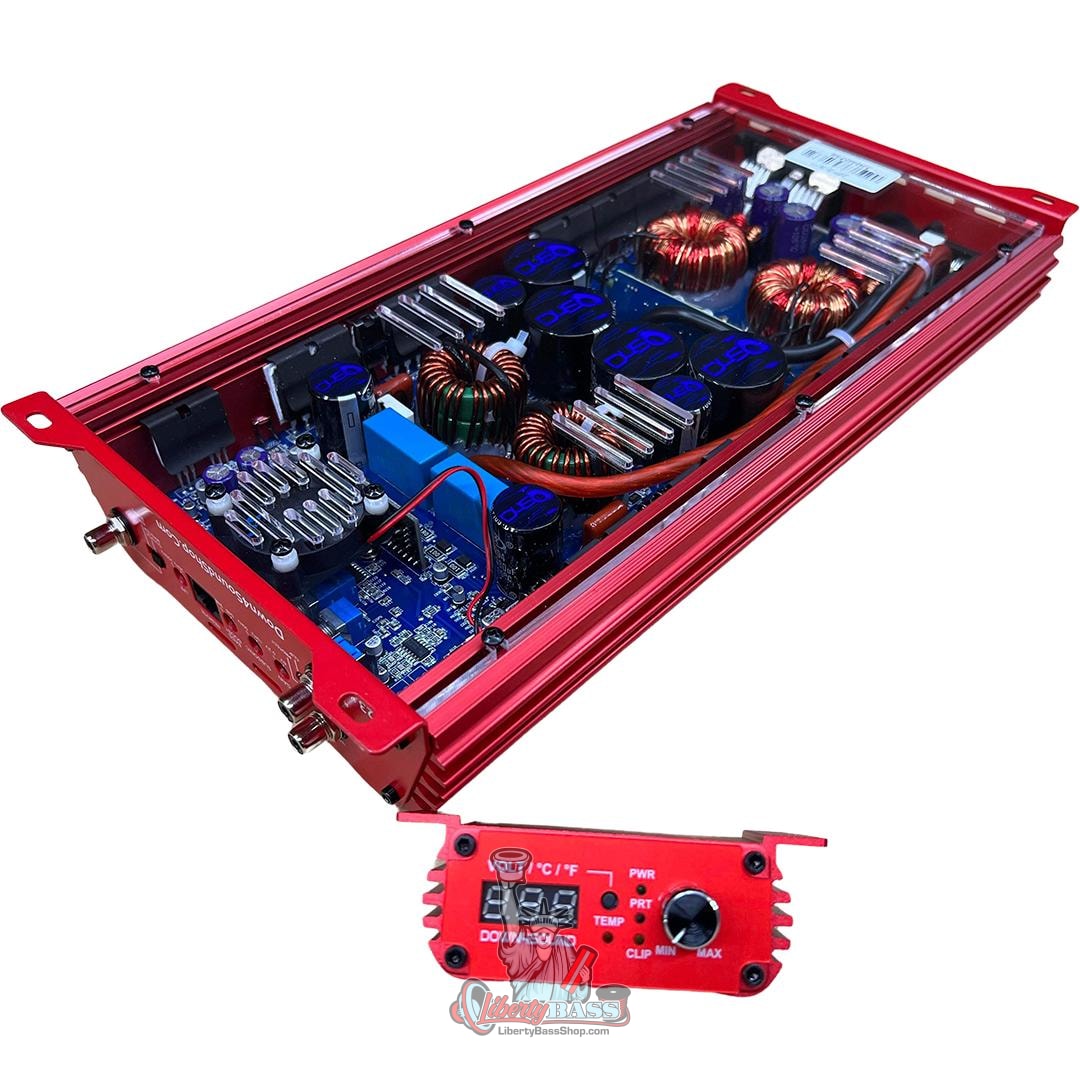

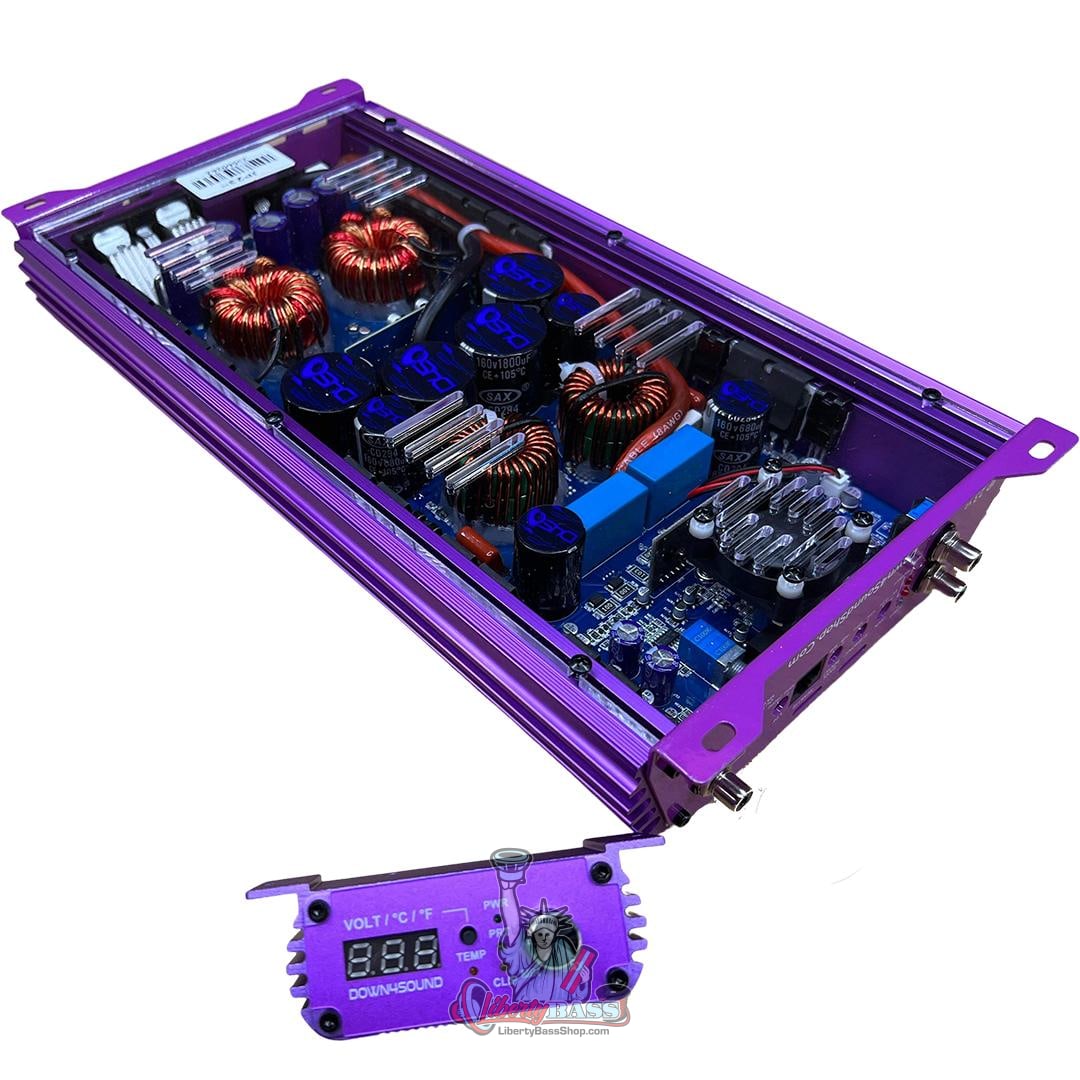

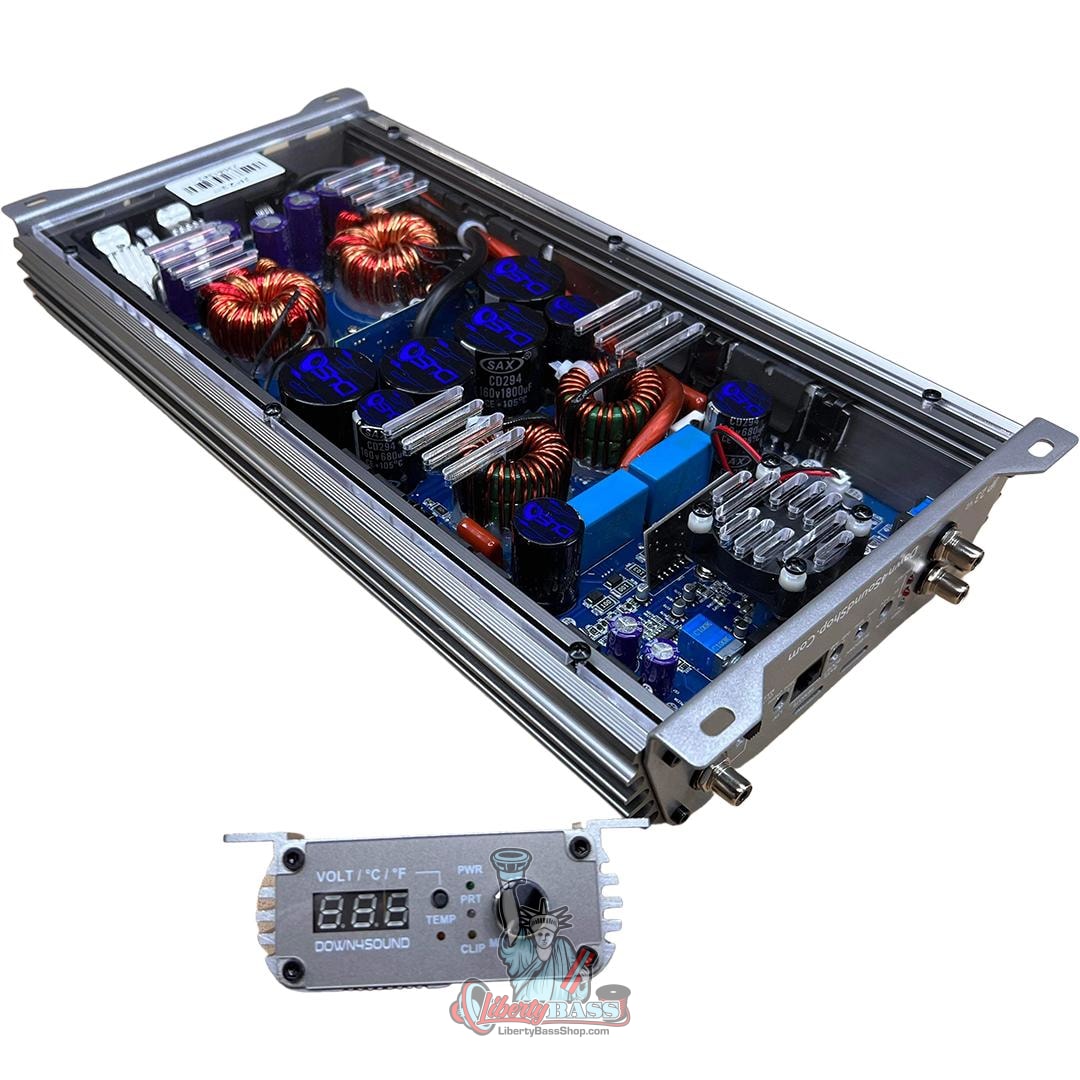

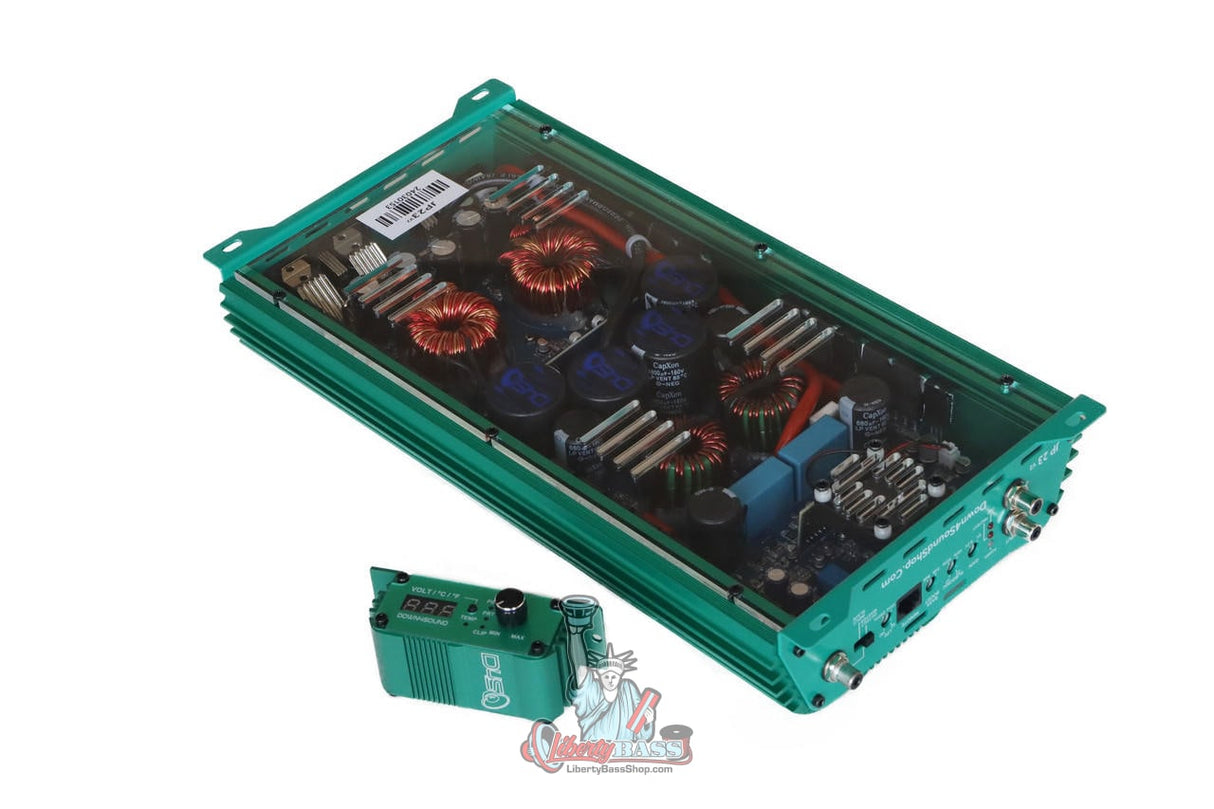

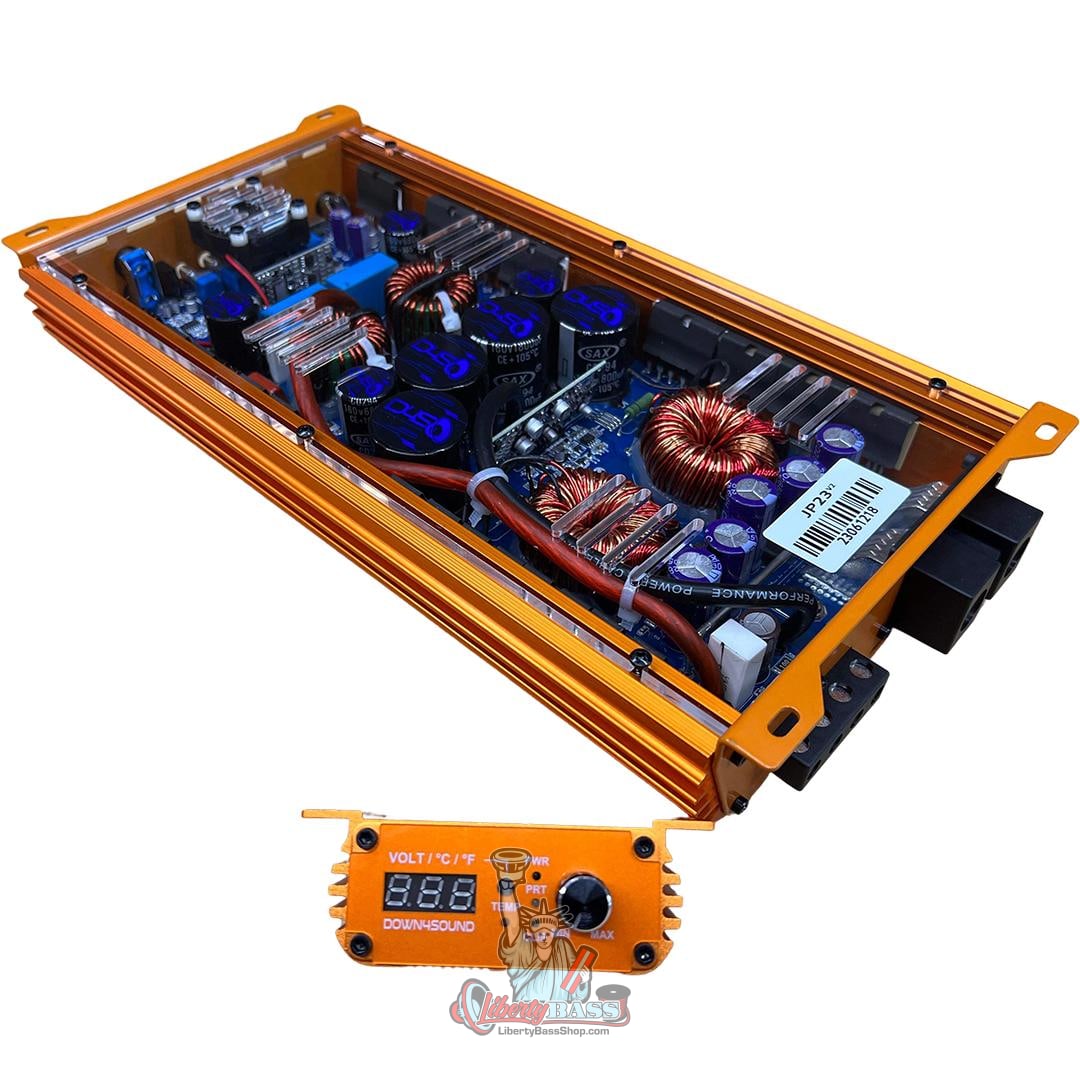

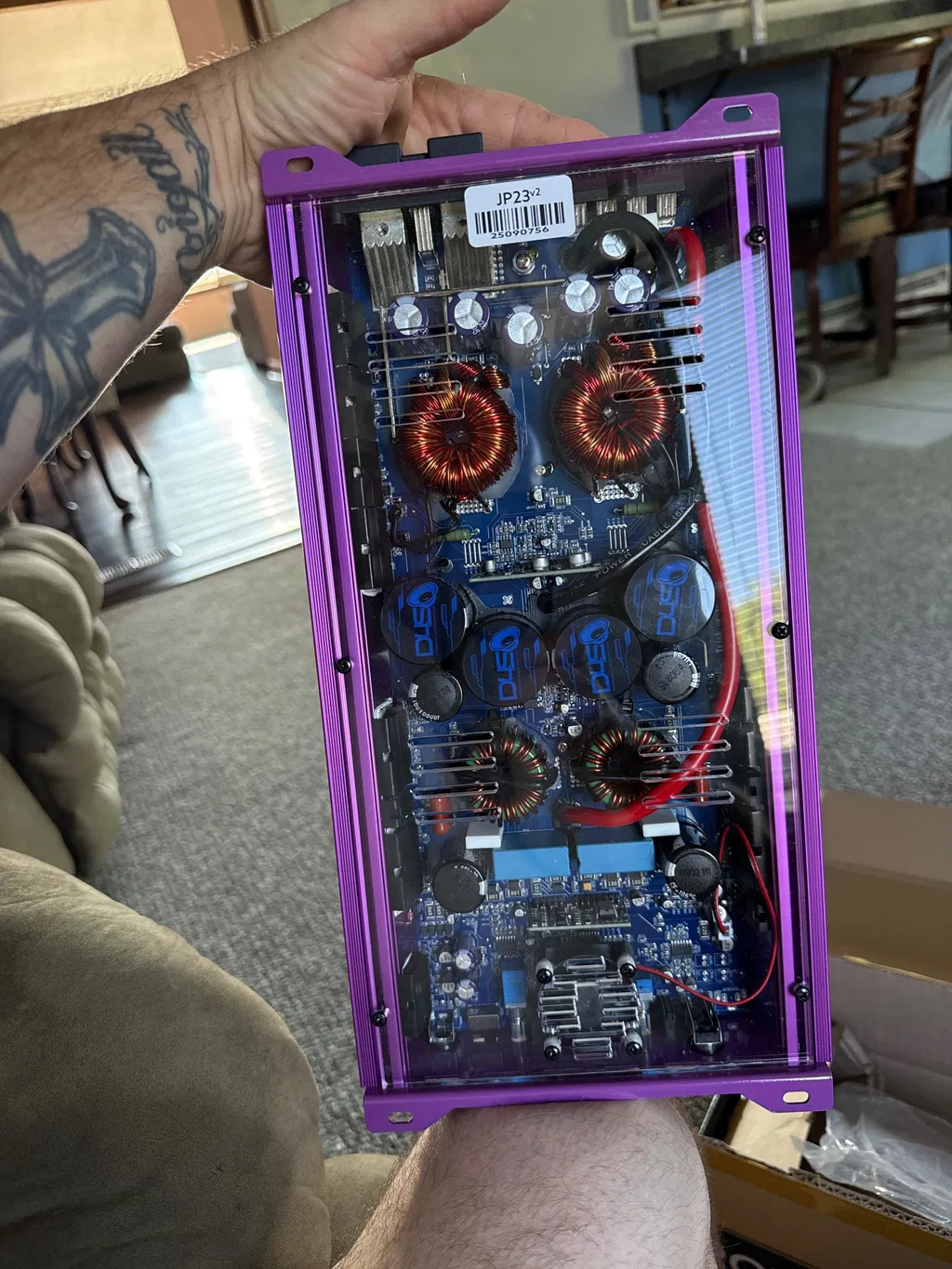

Crafted with premium components, it ensures reliability, efficiency, and massive bass performance. Flip the plexiglass base to admire the heart of the Class D design.

Specs 🛠️

• Frequency Response: 10–250Hz
• Variable Low Pass Filter: 35–270Hz
• Variable Subsonic Filter: 10–50Hz
• Variable Bass Boost: 0–9dB
• Signal-to-Noise Ratio: 97dB
• Input Sensitivity: 0.2–6V
• Battery Range: 9–15.5V
• Recommended Fuse: 300A
• Dimensions: 13.38” L × 7.4” W × 2.24” H

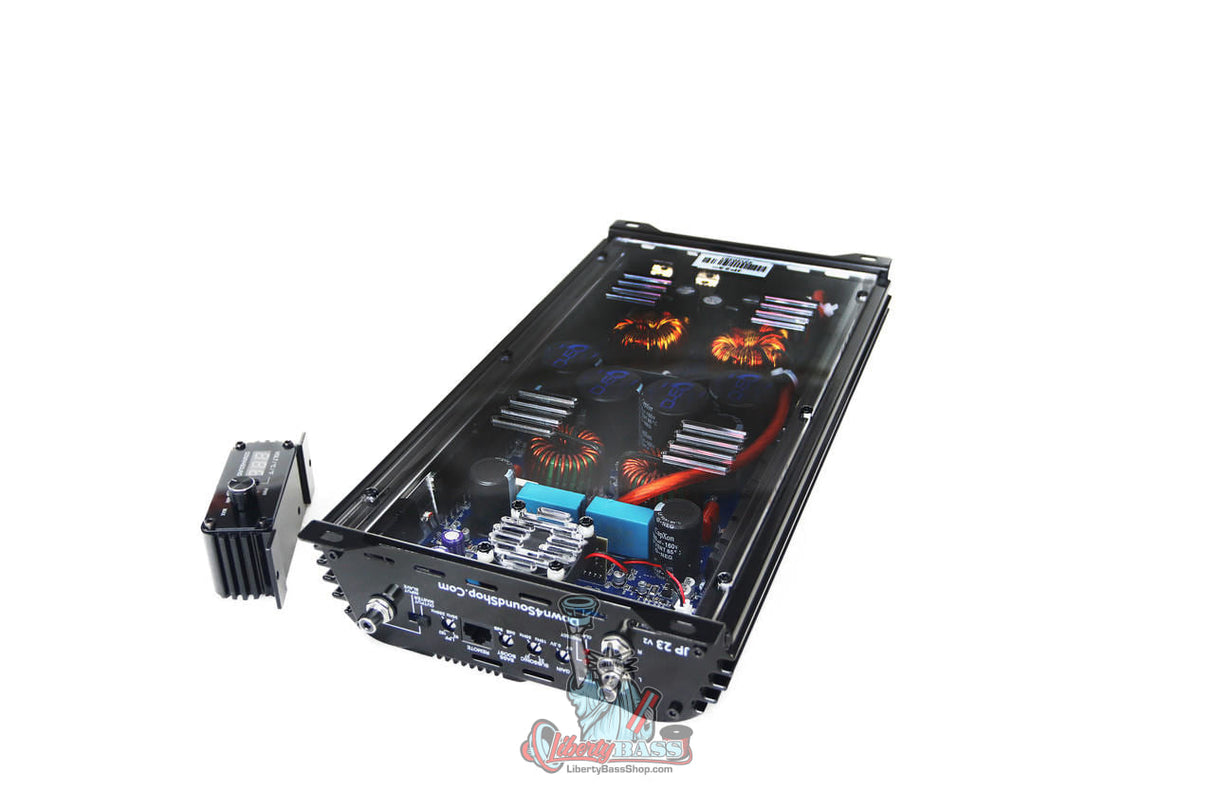

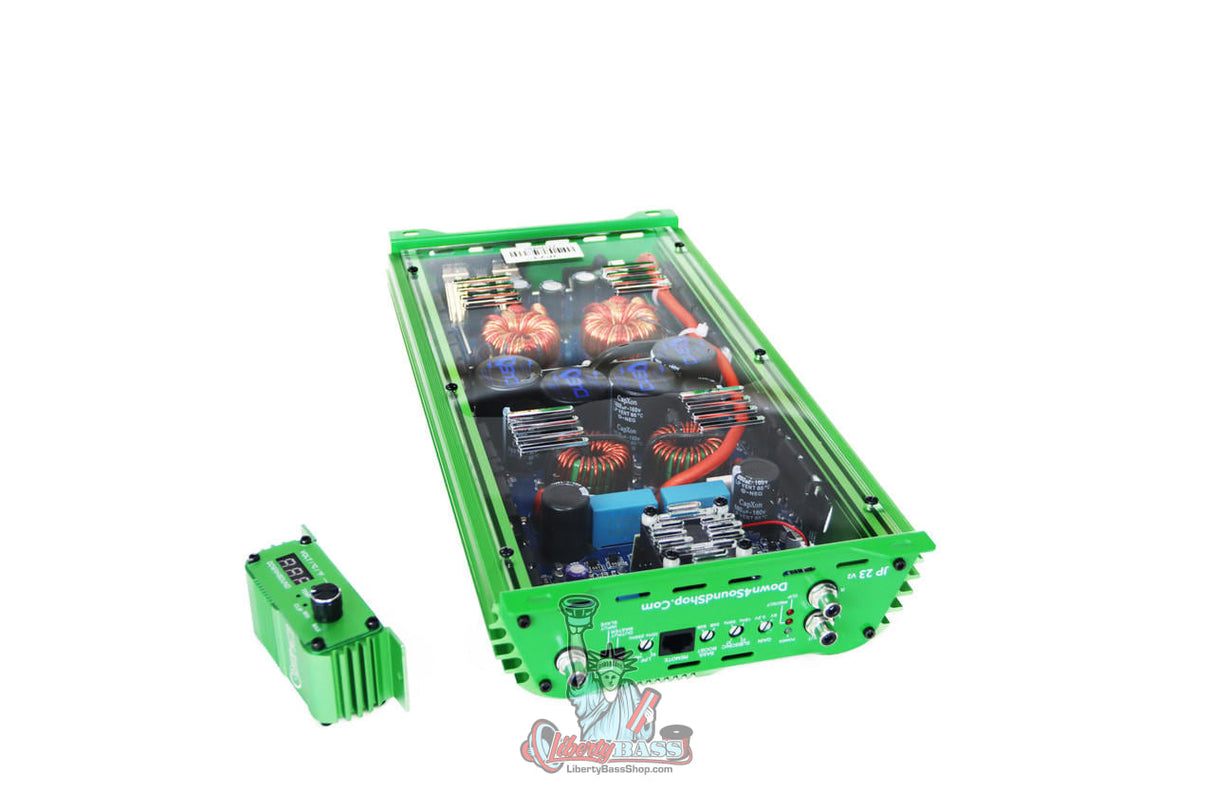

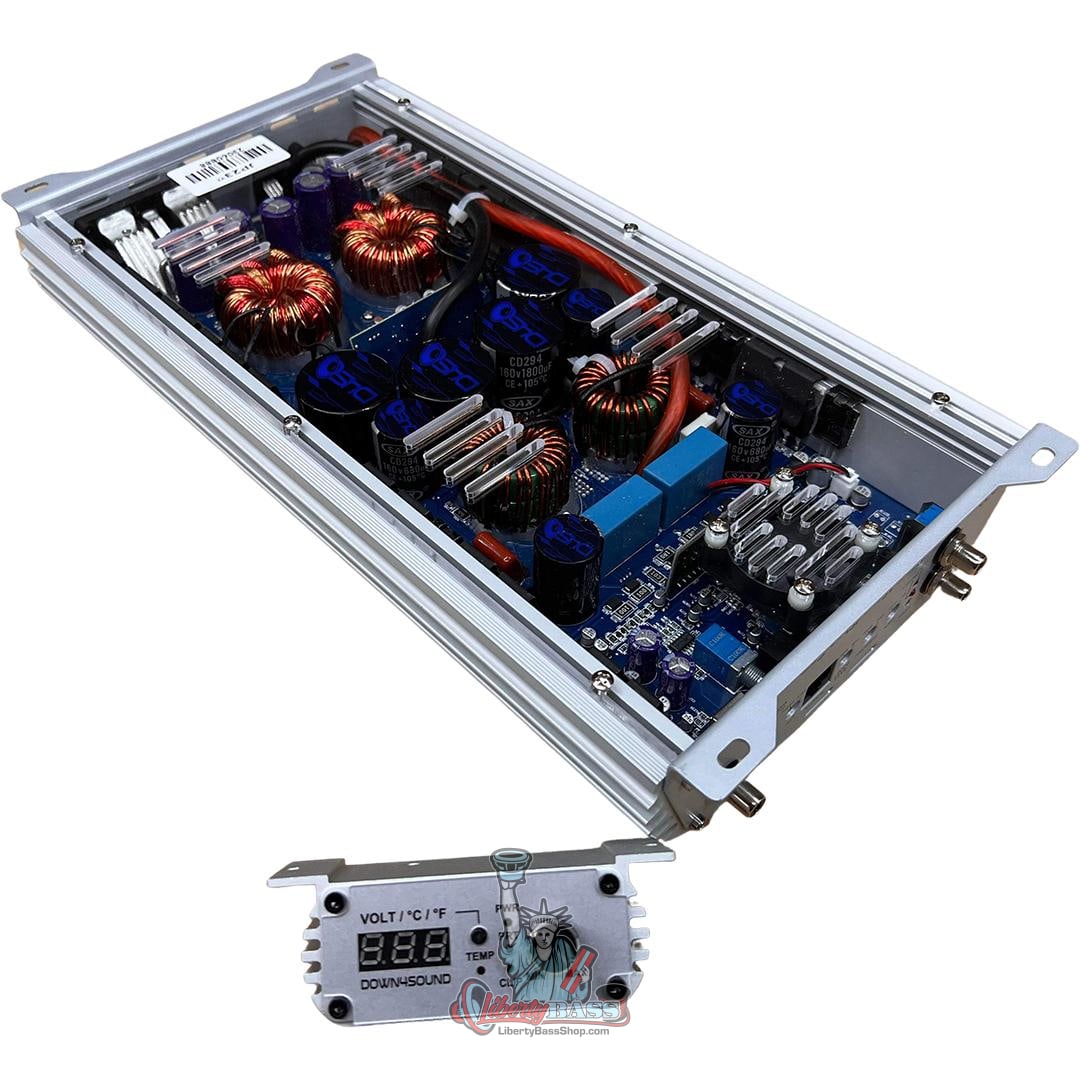

Flip the plexiglass base to see the Class D design in action! 🔧
