Sundown Audio Uv.2 15" Subwoofer
Sundown Audio Uv.2 15" Subwoofer - D2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description

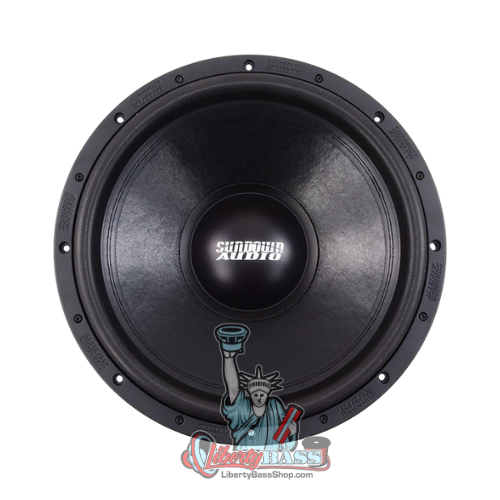

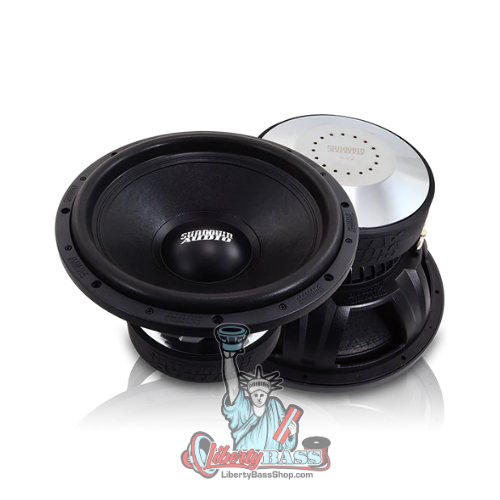

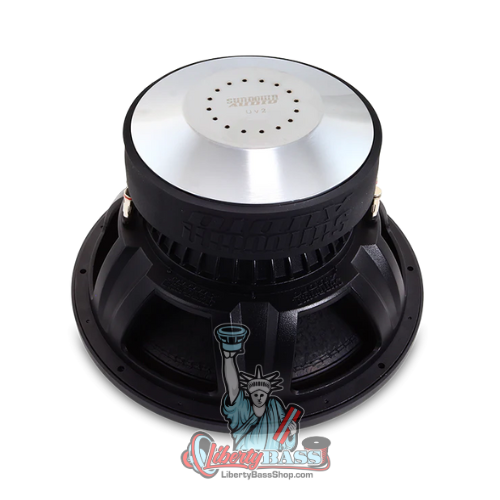

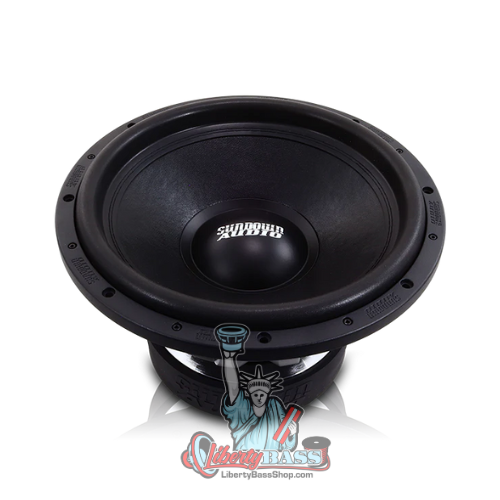

Sundown Audio U v.2 15" Subwoofer
RMS 1750 watts
Dual 2 or 4 ohm voice coils
Optimized for small ported or bandpass enclosures
Aluminum 3” voice coil former for superior heat dissipation
High-temperature copper voice coil
Double stitched surround
Heavy-duty cast basket
Spring-loaded terminals accept up to 8-gauge wire
Stitched-on heavy-duty tinsel leads
Solid pole with vent channels and aluminum shorting ring cap
Rear gap-venting
Top-Plate Cooling Channels
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom aluminum frame was designed specifically for the U Series. It’s substantially thicker and equipped with heat dissipation ribs at the bottom of the frame. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is controlled with machined, high-velocity pole channels and a series of 16 direct air-gap vents in the back plate.
U-15
T/S SPECS | U 15" D2 | U 15" D4 |
---|---|---|
RE (Ohms) | 3.8 | 6.1 |
FS (Hz) | 37.9 | 34.9 |
VAS (L) | 54.0 | 63.9 |
Qes | 0.34 | 0.39 |
Qms | 3.10 | 3.48 |
Qts | 0.31 | 0.35 |
Le (mH) | 2.44 | 3.80 |
BL (NA) | 30.7 | 34.6 |
Mms (Grams) | 355.7 | 353.0 |
Cms (uM/N) | 0.05 | 0.06 |
Sens (dB @ 1w/1m) | 91.2db | 90.2db |
U-15
Sealed Enclosure | 2.0 cu ft |
Ported Enclosure | 3.0 cu ft |
Recommended Tuning | 35Hz |
Recommended Port Area | 48 sq in |
Displacement | 0.24 cu ft |
Depth | 9.05″ |
Outside Diameter | 15.59″ |
Cut-Out | 14.01″ |
