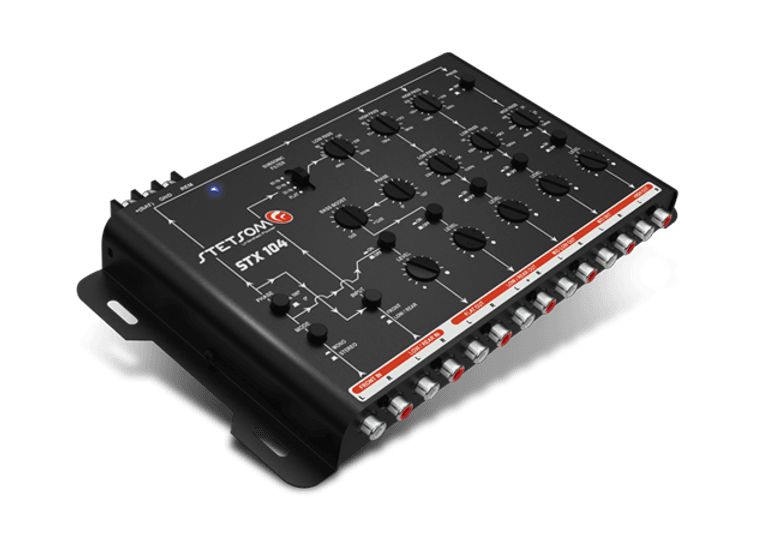

STETSOM STX104 CROSSOVER

$99.99 USD


Description

STETSOM STX104 CROSSOVER

TECHNICAL SPECIFICATIONS

CHARACTERISTICS STX104
Via High 400Hz - 10KHz (12 dB/8ª)
Via Mid 150Hz - 12,5KHz (12 dB/8ª)
Via Low 70Hz - 10KHz (12 dB/8ª)
Maximum Output Voltage 9V RMS
Maximum Input Voltage 4V RMS
Signal to Noise >90dB
Input Impedance 10K OHMS
Harmonic Distortion < 0,02% THD
Channel Separation > 80dB
Frequency Response 20Hz - 200Khz
Supply Voltage 10V - 16V DC
Current Consumption 0,25A MAX
Impedance Output 50 OHMS
Dimensions (H x W x D) mm 33 x 264 x 160 mm
Weight Kg 780g
