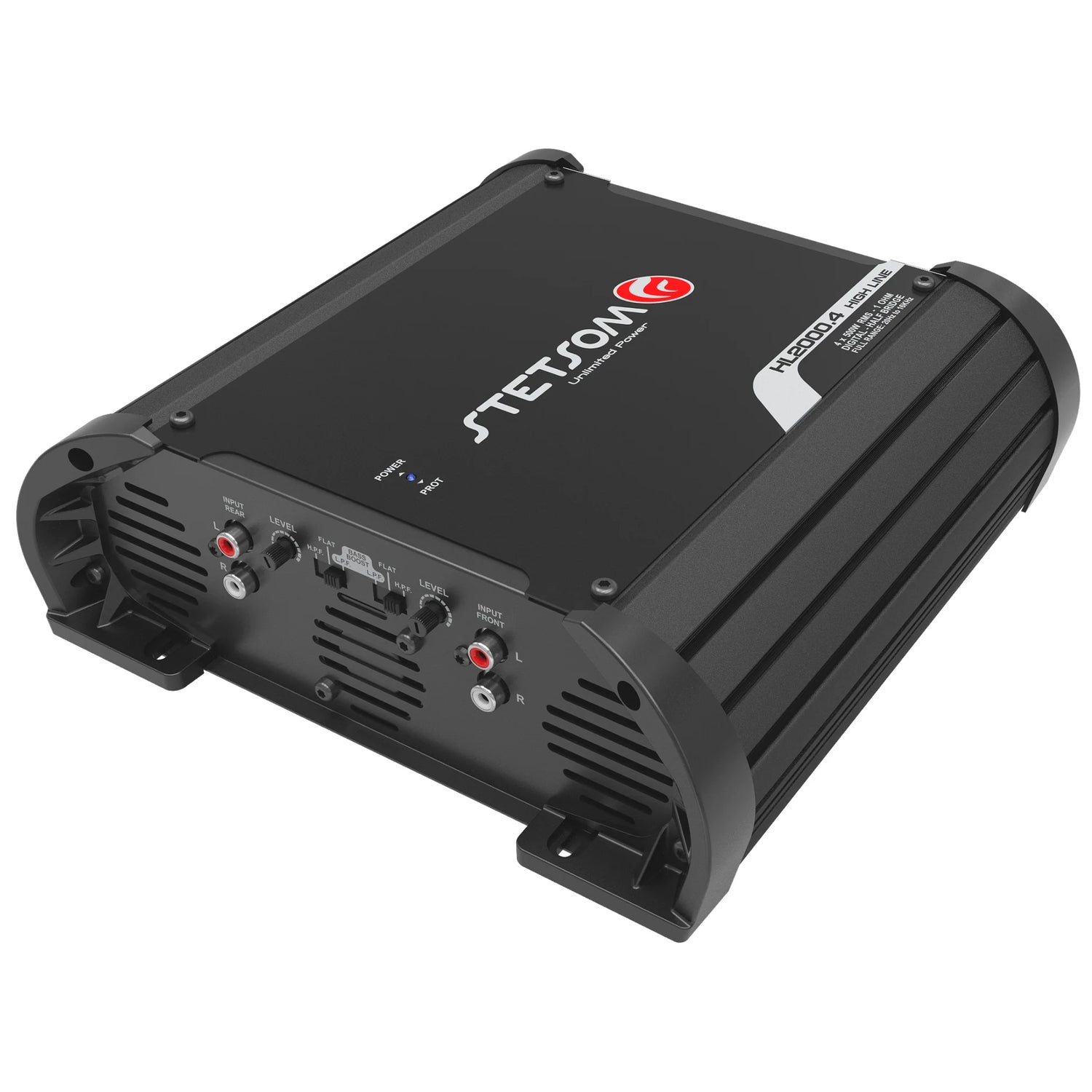

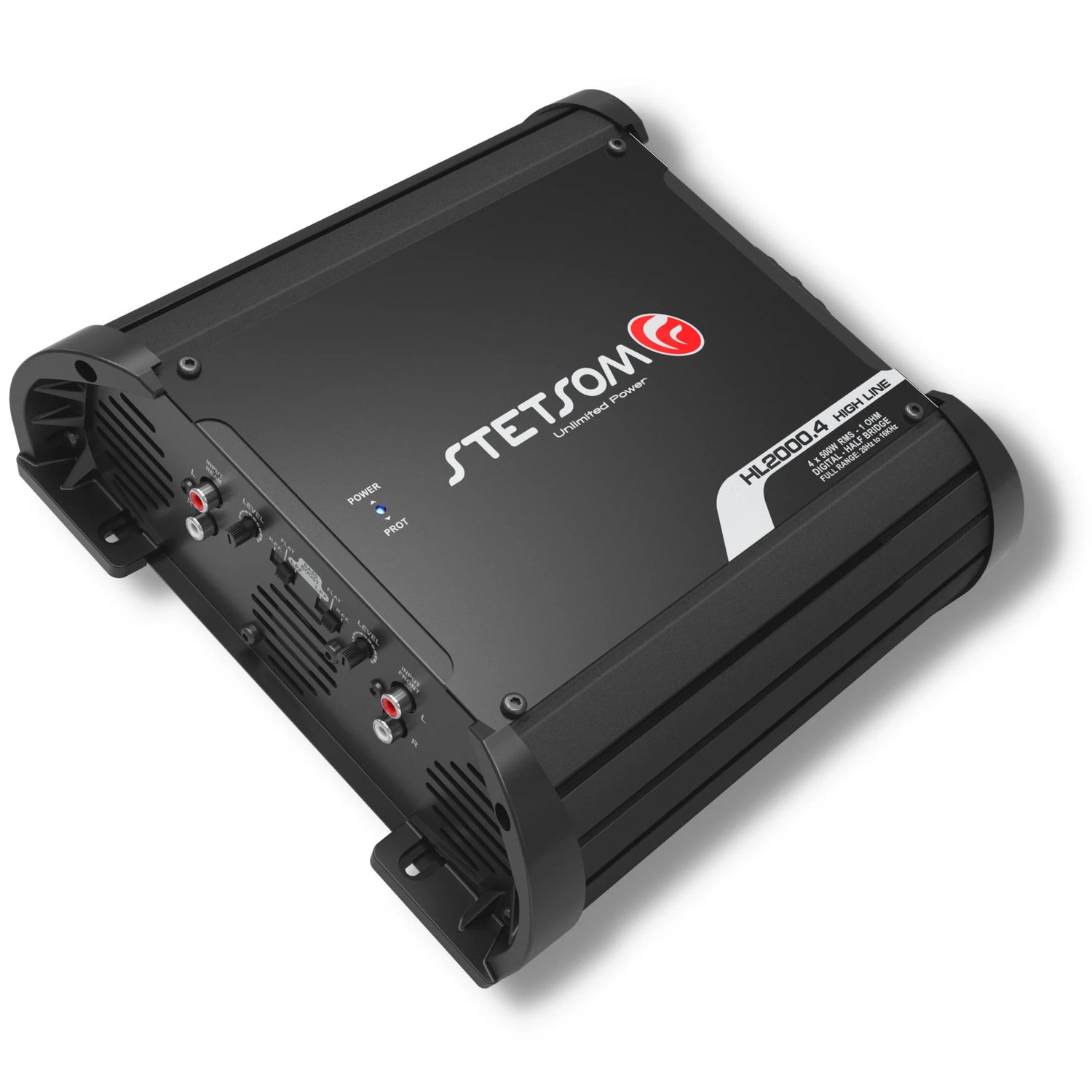

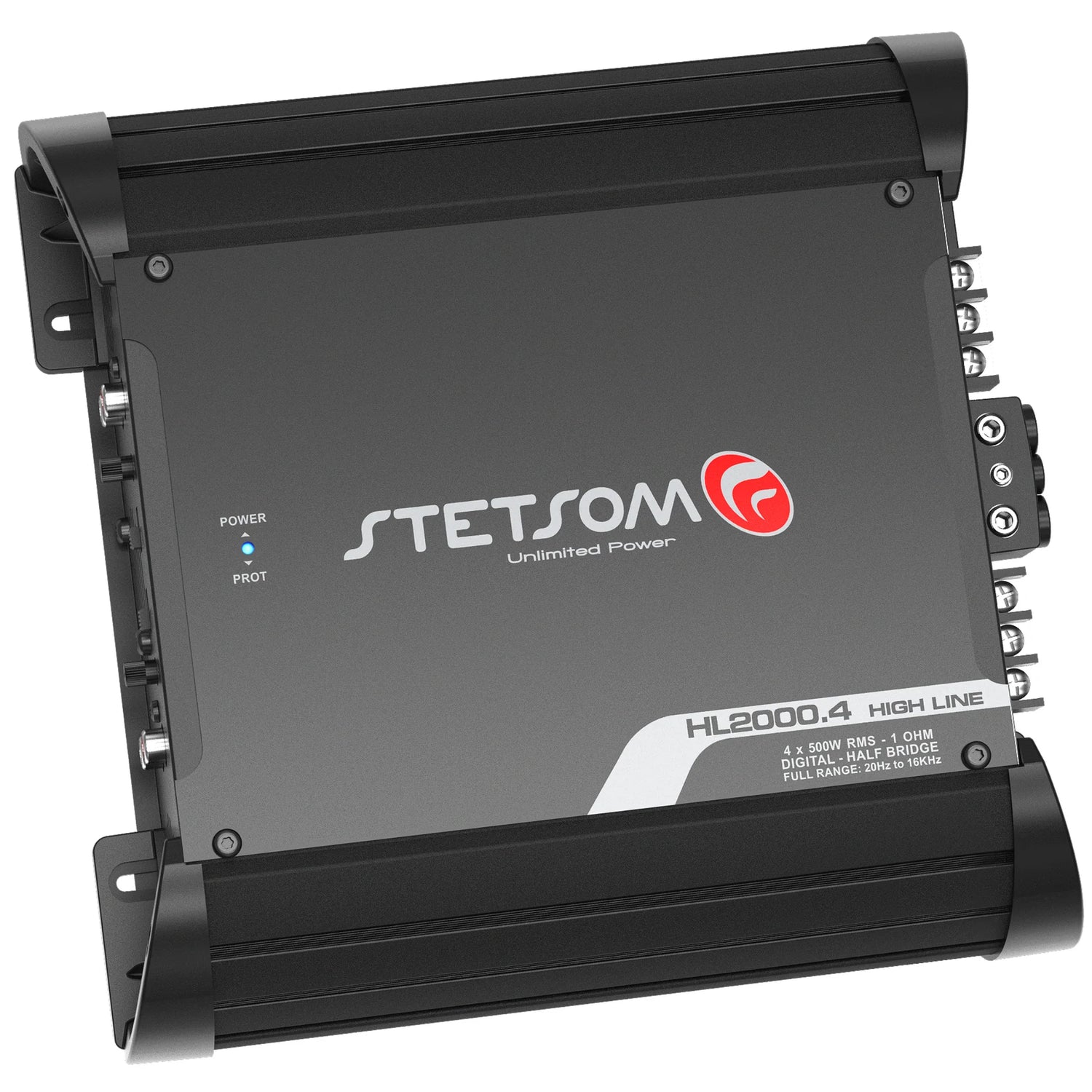

Stetsom HL 2000.4 Amplifier – 2000W RMS 4 Channel Power
The Stetsom HL 2000.4 is a 4-channel car audio amplifier engineered for those who demand power, clarity, and flexibility in their sound system. Delivering up to 2200W RMS, this amplifier is available in both 1 Ohm and 2 Ohm versions to suit your build. With advanced crossover controls, bridgeable channels, and multiple installation options, the HL 2000.4 is the perfect solution for everything from super tweeters and midrange drivers to subwoofers.
Key Features of the Stetsom HL 2000.4
- Total Power: Up to 2200W RMS
- 4 x Channels: Flexible stereo or bridged configurations
- Bridgeable Power: 2 x 1000W+ RMS (model dependent)
- Crossover Options: Low-pass, High-pass, or Full-range
- Bass Boost: Up to +12dB for deeper low-end response
- Compact Build: 3” x 9.2” x 9.4” (approx. 6 lbs)
Installation Versatility
The HL 2000.4 allows multiple wiring setups:
- Run multiple super tweeters or drivers in parallel.
- Bridge to fewer channels for high-power subwoofer use.
- 3-channel and Tri-mode configurations supported.
Technical Specifications – Stetsom HL 2000.4 1 Ohm
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| RMS Power @ 1 Ohm 12.6V | 4 x 435W |
| RMS Power @ 2 Ohm 12.6V | 4 x 280W |
| RMS Power @ 1 Ohm 14.4V | 4 x 545W |
| RMS Power @ 2 Ohm 14.4V | 4 x 365W |
| Bridge Power @ 2 Ohm (12.6V) | 2 x 870W |
| Bridge Power @ 2 Ohm (14.4V) | 2 x 1100W |
| Frequency Response | 20Hz – 26kHz |
| Bass Boost | +12dB |
| Crossover | Low Pass: 90Hz / High Pass: 90Hz |
| Signal-to-Noise Ratio | > 90 dB |
| Harmonic Distortion | < 0.3% THD |
| Input Sensitivity | 200mV |
| Input Impedance | 15k Ohms |
| Minimum Output Impedance | Stereo: 1 Ohm / Bridge: 2 Ohm |
| Power Consumption (Music) | 97A |
| Power Consumption (Bass) | 194A |
| Dimensions | 3” x 9.2” x 9.4” |
| Weight | 6.1 lbs |
Technical Specifications – Stetsom HL 2000.4 2 Ohm
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| RMS Power @ 2 Ohm 12.6V | 4 x 500W |
| RMS Power @ 4 Ohm 12.6V | 4 x 290W |
| RMS Power @ 2 Ohm 14.4V | 4 x 561W |
| RMS Power @ 4 Ohm 14.4V | 4 x 338W |
| Bridge Power @ 4 Ohm (12.6V) | 2 x 1000W |
| Bridge Power @ 4 Ohm (14.4V) | 2 x 1080W |
| Frequency Response | 20Hz – 26kHz |
| Bass Boost | +12dB |
| Crossover | Low Pass: 90Hz / High Pass: 90Hz |
| Signal-to-Noise Ratio | > 90 dB |
| Harmonic Distortion | < 0.3% THD |
| Input Sensitivity | 200mV |
| Input Impedance | 15k Ohms |
| Minimum Output Impedance | Stereo: 2 Ohm / Bridge: 4 Ohm |
| Power Consumption (Music) | 96A |
| Power Consumption (Bass) | 192A |
| Dimensions | 3” x 9.2” x 9.4” |
| Weight | 5.9 lbs |
Why Choose the Stetsom HL 2000.4?
Available in both 1 Ohm and 2 Ohm models, the Stetsom HL 2000.4 is a versatile 4-channel amplifier perfect for high SPL builds, full-range systems, or everyday audiophile use. Its ability to adapt to multiple configurations makes it one of the most flexible amps in the Stetsom HL Series.
