Sundown Audio | SKU:
SW-SML8D4

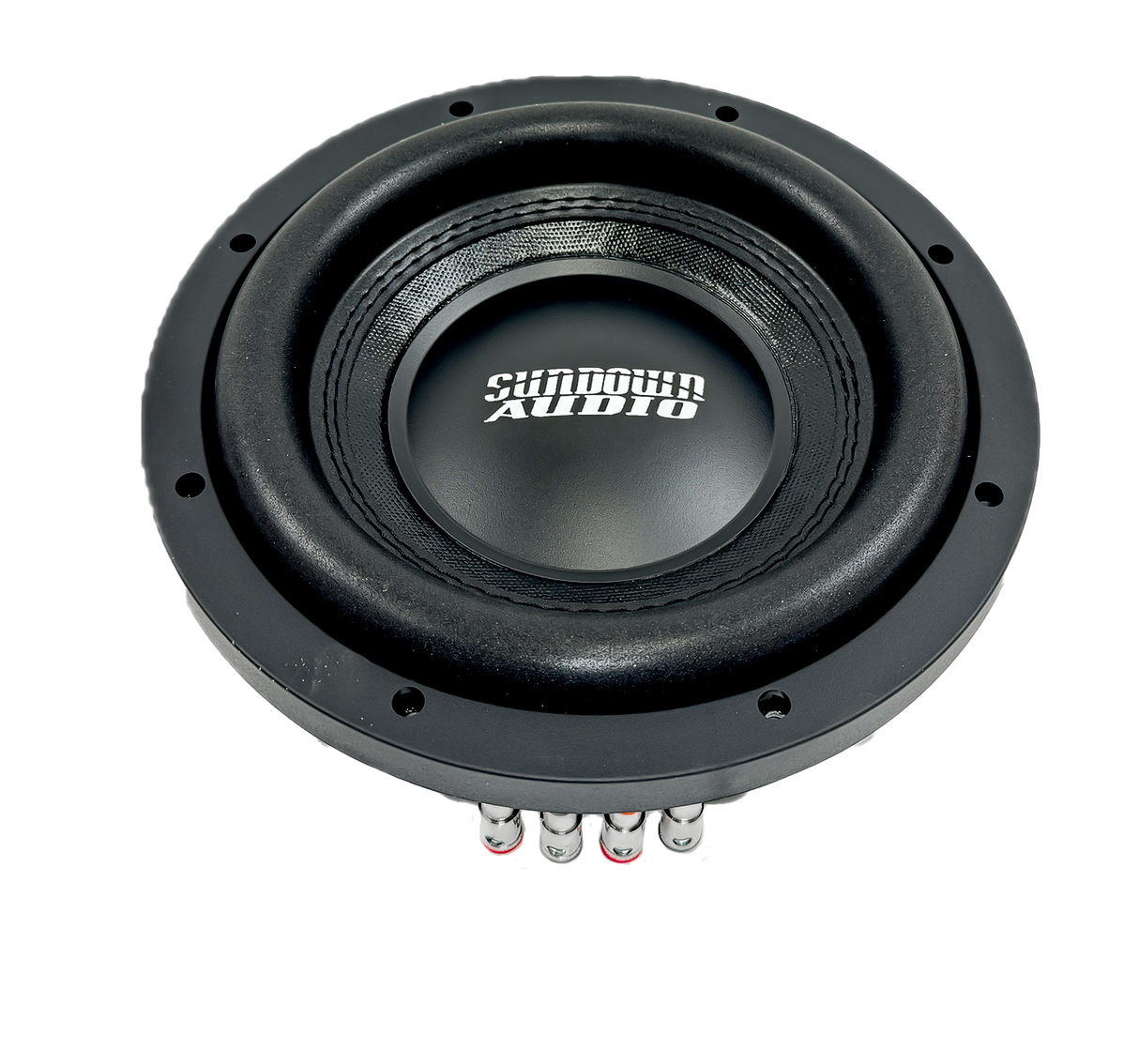

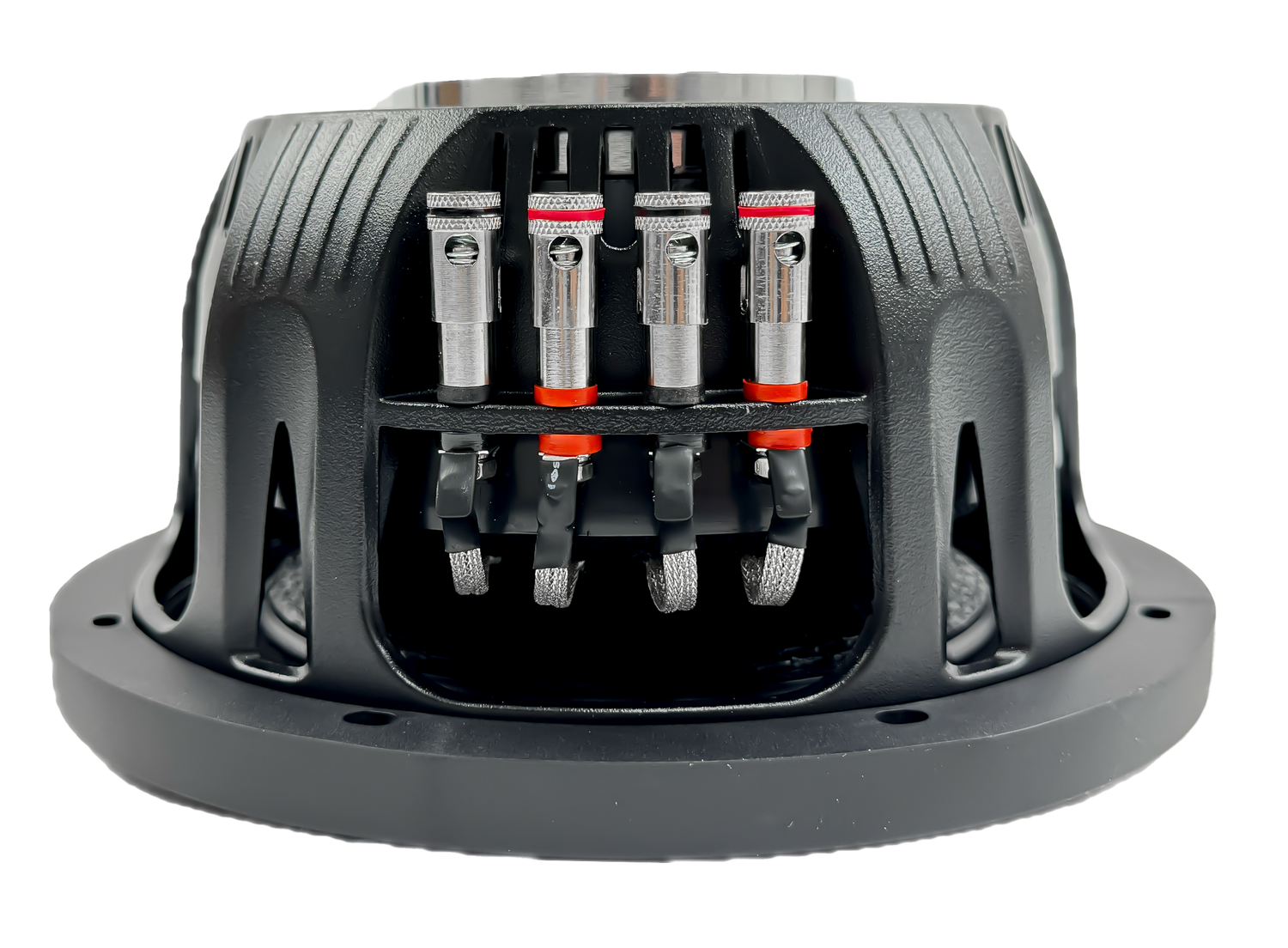

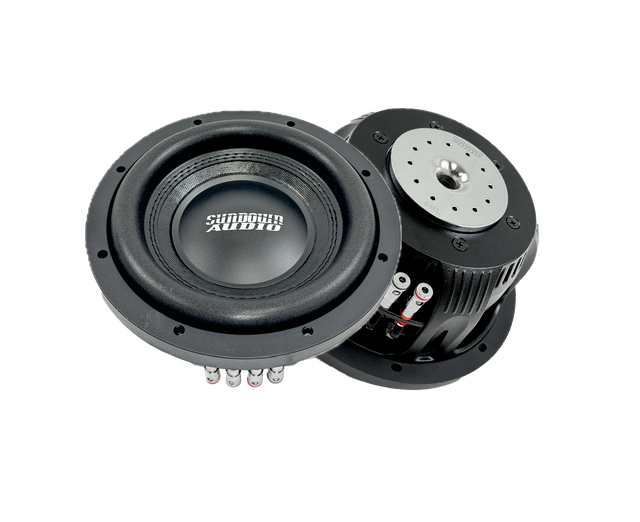

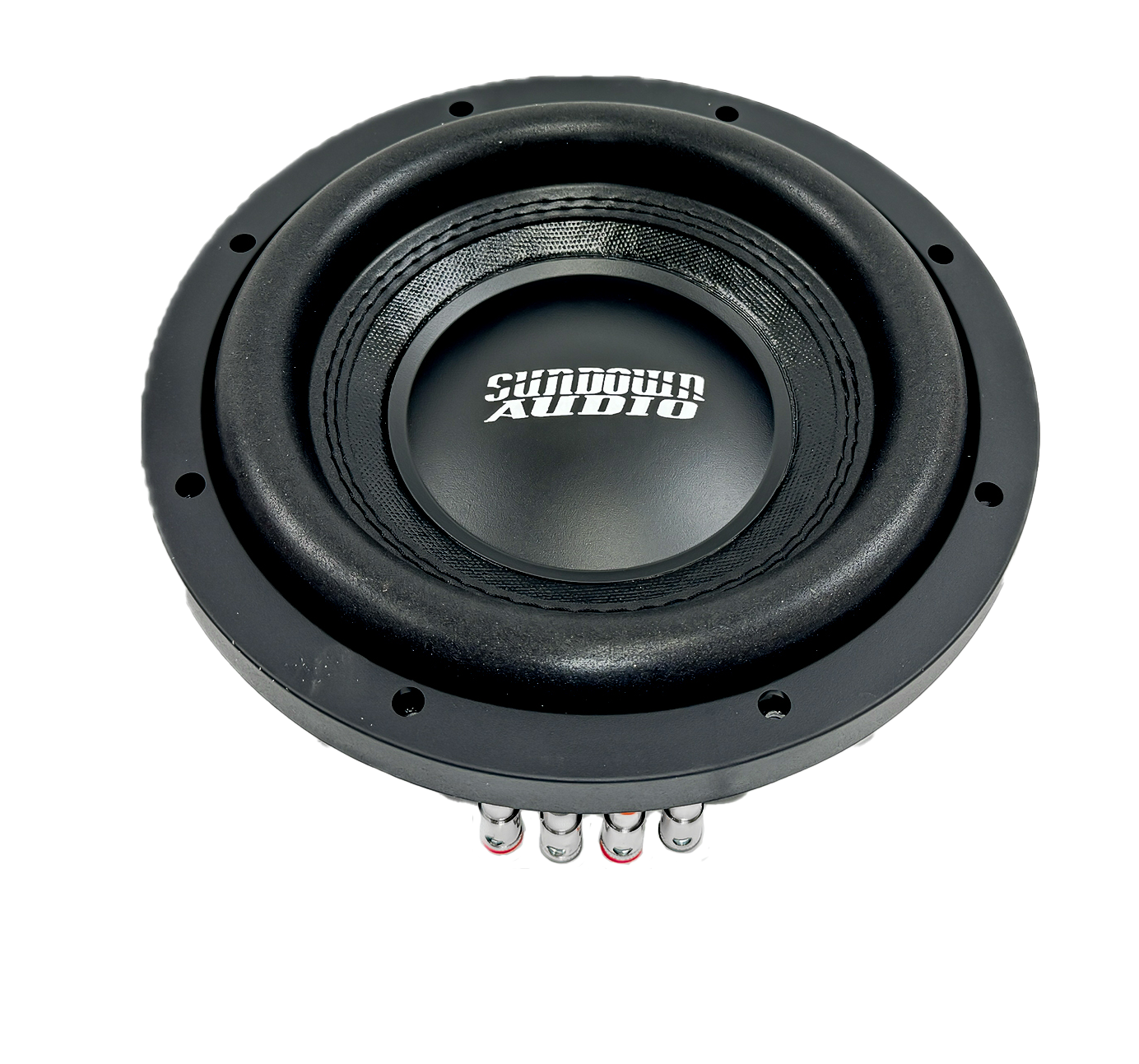

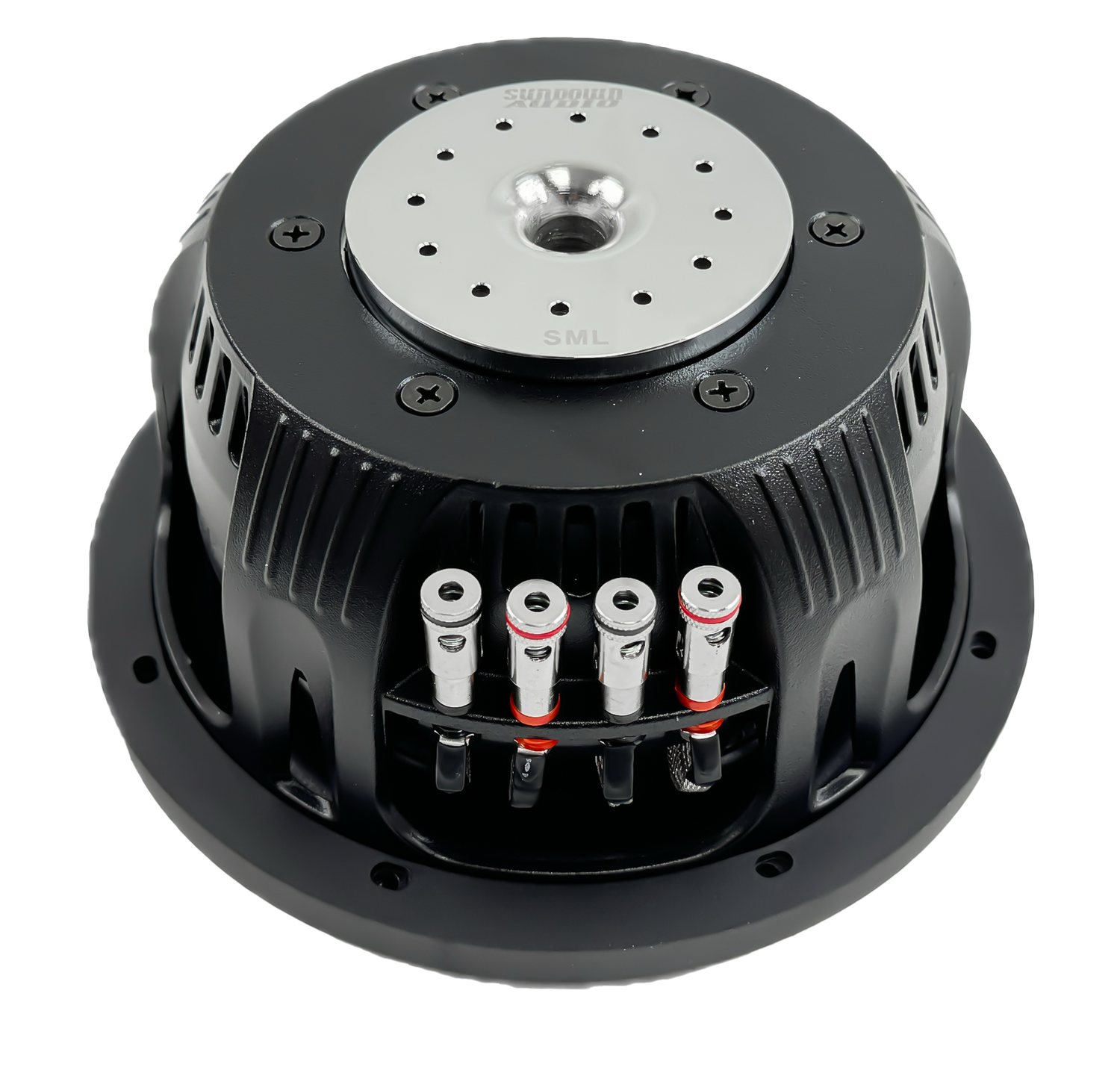

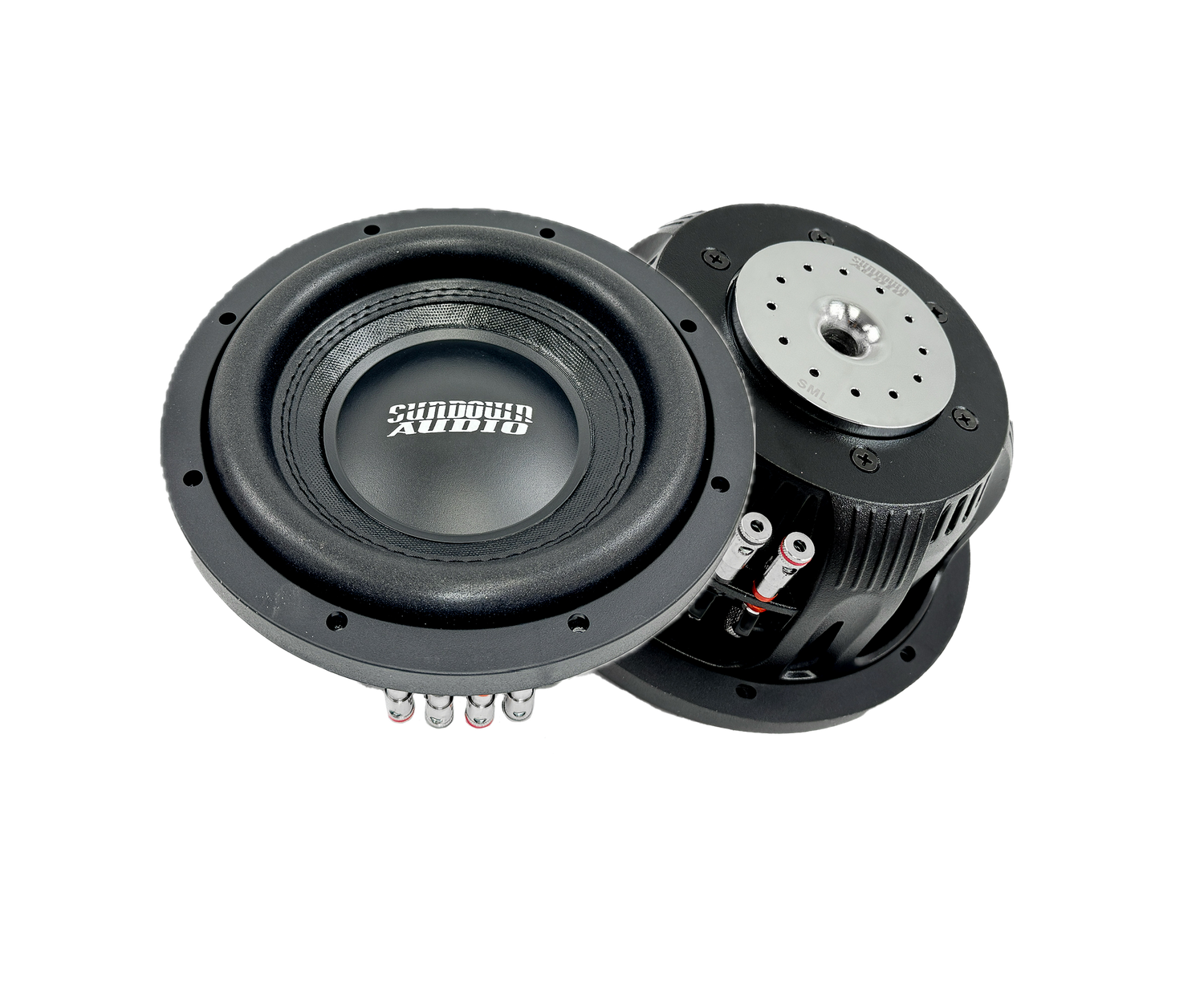

Sundown Audio SML-Series 8 Thin Subwoofer
$189.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Sundown Audio SML-Series 8 Thin Subwoofer - D4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- 400 Watts RMS/800 Watts Peak
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.25” voice coil former for superior heat dissipation
- High temperature 4-layer copper voice coil wire
- Stitched-on “Mini-XL” tinsel Leads to prevent fatigue and failure
- Vented pole-piece and vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion
- Bolt-through motor design to ensure maximum longevity and ruggedness
The SML series is a revolutionary line of subwoofers offered by Sundown Audio. An inch shallower than our SLD series, it delivers nearly the excursion, making it an ideal choice for customers seeking an extremely shallow driver with deep bass. Designed to fit under or behind your seat, the SML series performs exceptionally well in small enclosures.
Specifications
| T/S SPECS | SML 8" D2 | SML 8" D4 |
| RE (Ohms) | 3.65 | 6.85 |
| FS (Hz) | 40.038 | 43.25 |
| VAS (L) | 8.028 | 7.246 |
| Qes | 0.425 | 0.512 |
| Qms | 2.75 | 2.796 |
| Qts | 0.368 | 0.432 |
| BL (NA) | 16.634 | 21.266 |
| Mms (Grams) | 128.033 | 124.288 |
| Cms (uM/N) | 123.416 | 108.954 |
| Sens (dB @ 1w/1m) | 82.8dB | 82.5dB |
| Xmax | 14mm | 14mm |
Enclosure Specifications
| SML 8" | ||
| Sealed Enclosure | 0.2-0.35 ft^3 | |
| Displacement | 0.08cuft | |
| Cutout | 7.65" | |
| Outer Diameter |
8.5" |
|
| Mounting Depth | 3.78” | |
| Physical Dimensions | Download |
