Sundown Audio  |  SKU: SW-SAV38D4

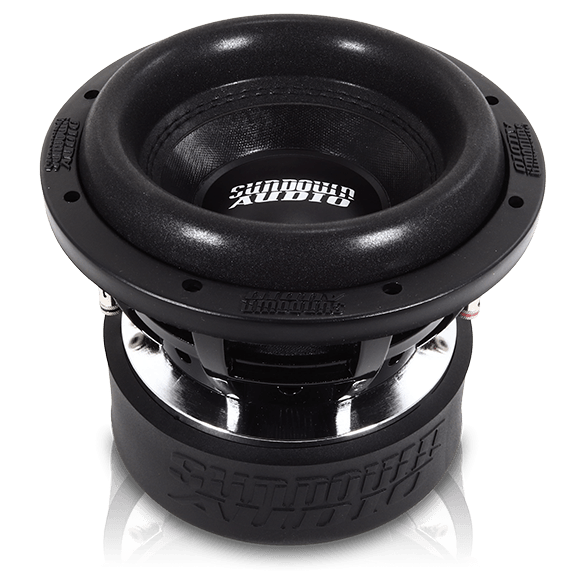

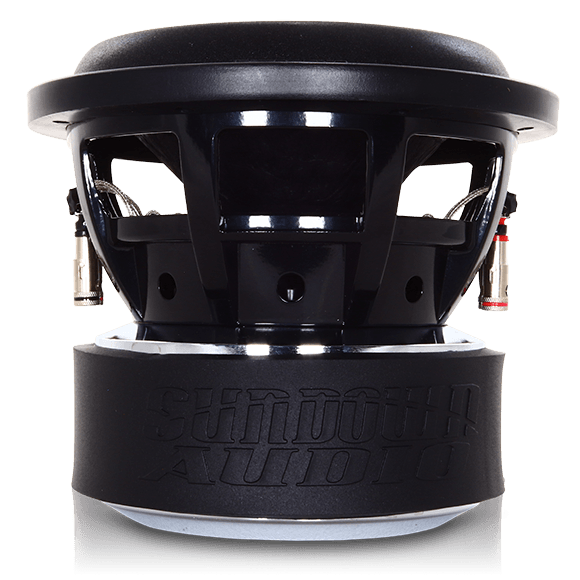

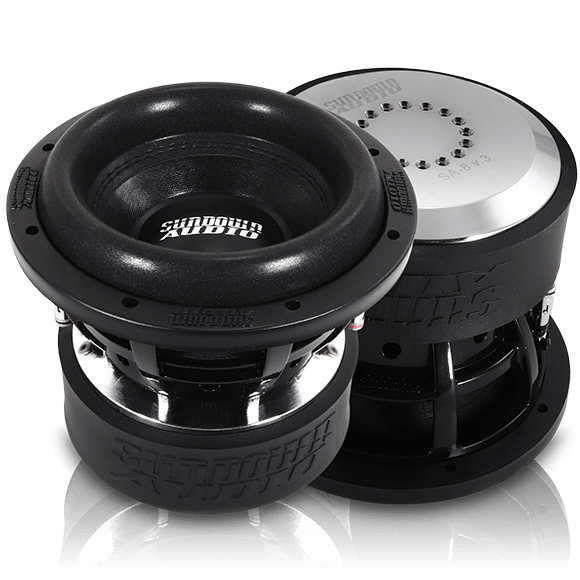

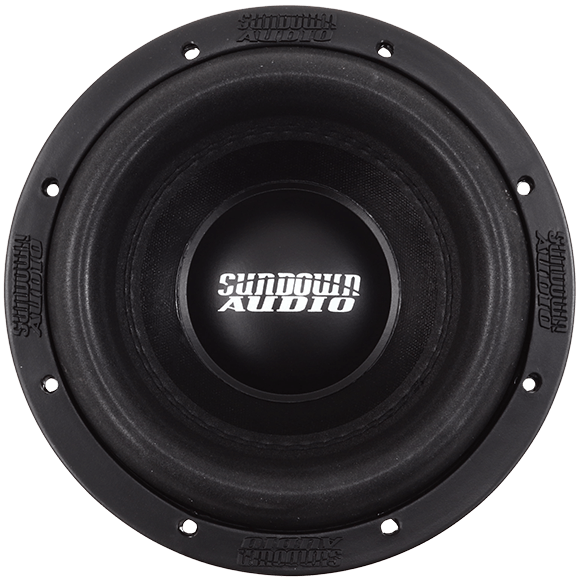

Sundown Audio SA-Series v.3 8" Subwoofer

$299.99 USD
Shipping calculated at checkout.


Impedance

$299.99

Description


  • 600 Watts RMS/1200 Watts Peak
  • Dual 2 or 4 ohm voice coils

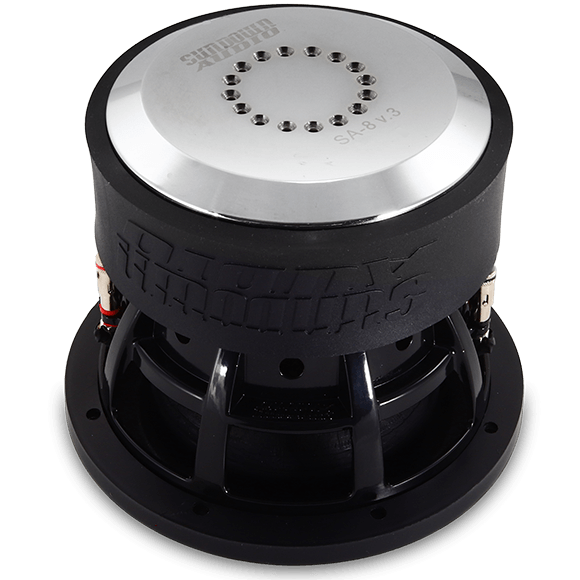

  • Vented magnetic gap with 16 chamfered vents
  • Large aluminum Faraday ring for smooth acoustic response
  • Patented high-strength cast aluminum frame
  • Low distortion motor construction
  • High-temperature voice coil wire

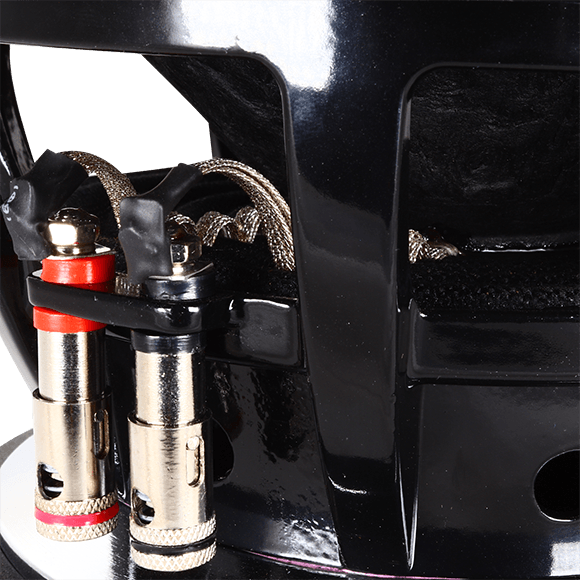

  • Spring-loaded terminals
  • Stitched-on “XL” tinsel lead wires
The pinnacle of low distortion ported box subwoofer technology, the SA 8-inch sub is completely custom tooled. It has a full 16mm of one-way linear excursion and mechanical capacity, exceeding double the linear limits, ensuring durability and low distortion. The v.3 update includes a new surround with linear geometry and improved thermal performance with the addition of 16 chamfered gap vents to keep high-velocity air flowing over the voice coil.

SA V.3 8"

RE (Ohms) 3.36 6.0
FS (Hz) 38.29 40.0
VAS (L) 6.88 7.17
Qes 0.324 0.392
Qms 6.31 4.31
Qts 0.309 0.36
Le (mH) 2.08 3.32
BL (NA) 18.94 22.06
Mms (Grams) 144 126.6
Cms (uM/N) 120 125
Sens (dB @ 1w/1m) 82.79 82.71
Xmax 16mm 16mm
T/S SPECS SAV3 8″ D2 SAV3 8″ D4

SA V.3 8"

Sealed Enclosure 0.3 cu ft
Ported Enclosure 0.65 cu ft
Recommended Tuning 35Hz
Recommended Port Area 9 sq in
Displacement 0.08 cu ft
Depth 6.625″
Outside Diameter 8.629″
Cut-Out 7.375″
Physical Dimensions Download
