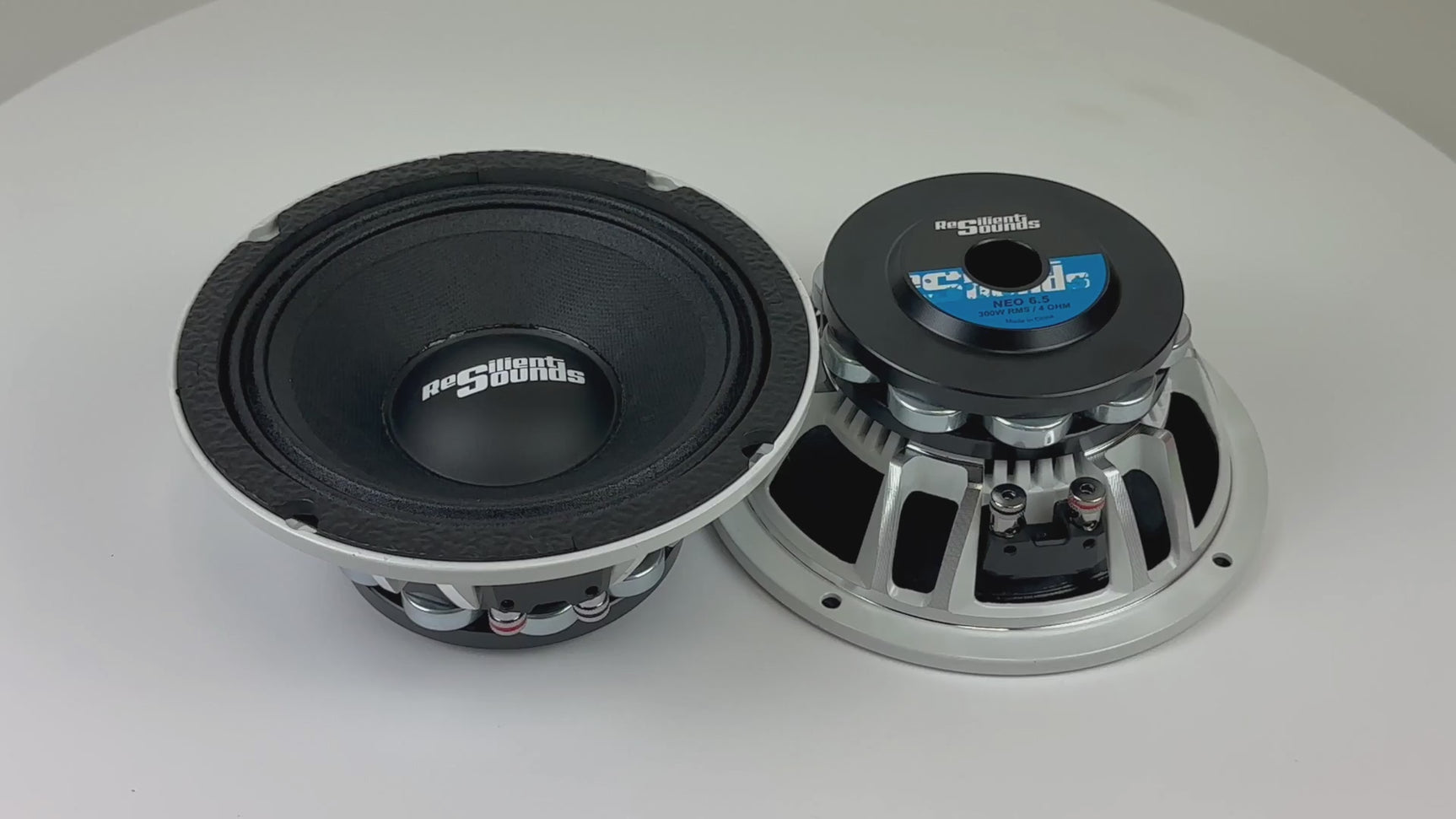

Resilient Sounds NEO 6.5 inch speaker
Resilient Sounds NEO 6.5 inch speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Subscribe to our newsletter
Sign up for exclusive offers.
Resilient Sounds NEO 6.5 inch speaker
Description
Description
Neo 6.5
600 Watts Max Power Handling
2" Voice Coil
96.5 dB Sensitivity
135HZ-12.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165mm)
Max Power Handling 600 w
RMS Power Handling 300 w
Frequency Response 135Hz-12.5KHZ
Nominal Impedance 4ohm
Sensitivity 96.5dB
Magnet Neodymium
Voice Coil Diameter 2"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 2.75 L
Free Air Resonance Fs 138 Hz
Mechanical Factor Qms 6.53
Electrical Factor Qes 0.35
Total Factor Qts 0.34
Cone Area Sd 136.8cm²
Mechanical Mass Mms 12.66 g
BI Factor BI 9.92 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.69”(210mm)
Front Mount Baffle Cutout 5.90"(186mm)
Mounting Depth 2.73"(79mm)
Overall Depth 3.01"(89.3mm)
