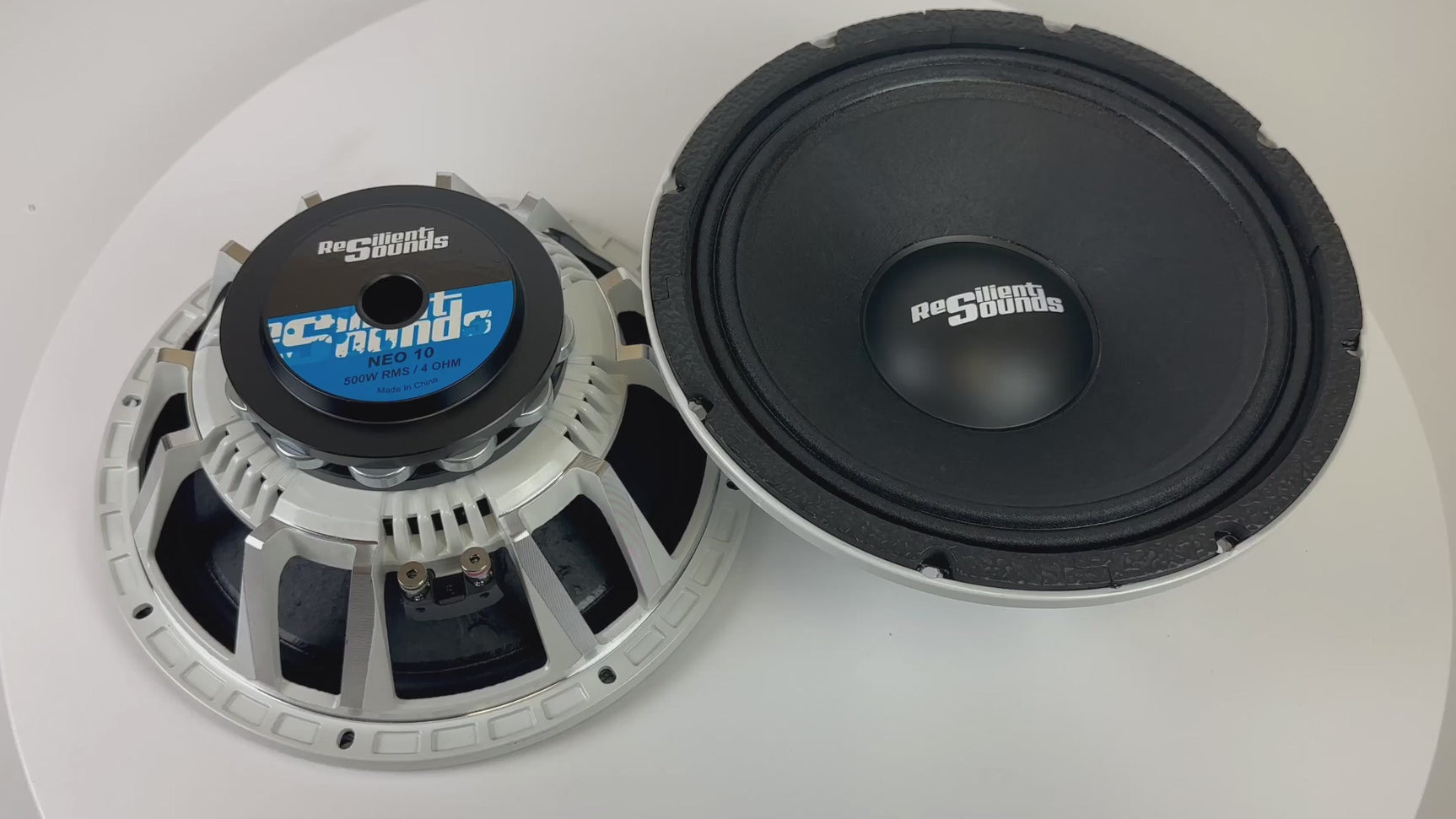

Resilient Sounds NEO 10" inch speaker

$99.99 USD $179.99


Description

Neo 10



 1000 Watts Max Power Handling



2.5" Voice Coil



98.5 dB Sensitivity



75HZ-6.5KHz of frequency response



GENERAL SPECIFICATIONS



Nominal Diameter          10” (254mm)

Max Power Handling      1000 w

RMS Power Handling     500 w

Frequency Response      75Hz-6.5KHZ

Nominal Impedance       4ohm

Sensitivity                         98.5dB

Magnet                              Neodymium

Voice Coil Diameter        2.5"

Voice Coil Wire               CCAW



THIELE-SMALL PARAMETERS



Equivalent Volume         Vas        26.8 L

Free Air Resonance        Fs           76 Hz

Mechanical Factor          Qms      4.5

Electrical Factor               Qes       0.37

Total Factor                     Qts        0.34

Cone Area                        Sd          349.6cm²

Mechanical Mass            Mms     27.96 g

BI Factor                           BI           10.77 Tm

Dc Resistance                  Re          3.2 Ohms



MOUNTING INFO



Overall Diameter                          10.31”(262mm)

Front Mount Baffle Cutout          9.25"(235mm)

Mounting Depth                           4.09"(104mm)

Overall Depth                                 4.52"(115mm)
