Resilient Sounds 8M 275w RMS 4ohm 8" speaker

$34.99 USD $64.99


Description

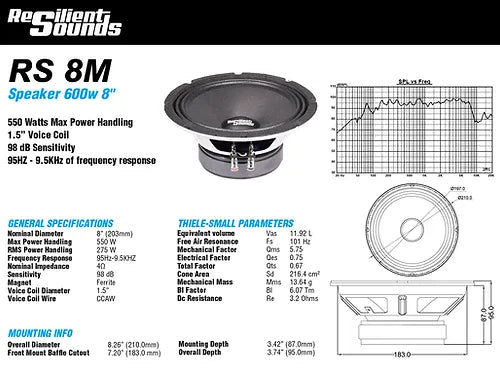

RS 8M



 550 Watts Max Power Handling



1.5" Voice Coil



98 dB Sensitivity



95HZ-9.5KHz of frequency response



GENERAL SPECIFICATIONS



Nominal Diameter          8” (203mm)

Max Power Handling      550 w

RMS Power Handling     275 w

Frequency Response      95Hz-9.5KHZ

Nominal Impedance       4ohm

Sensitivity                         98 dB

Magnet                              Ferrite

Voice Coil Diameter        1.5"

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS



Equivalent Volume         Vas        11.92 L

Free Air Resonance        Fs           101 Hz

Mechanical Factor          Qms      5.75

Electrical Factor               Qes       0.75

Total Factor                     Qts        0.67

Cone Area                        Sd          216.4cm²

Mechanical Mass            Mms     13.64 g

BI Factor                           BI           6.07 Tm

Dc Resistance                  Re          3.2 Ohms



MOUNTING INFO



Overall Diameter                          8.26”(210mm)

Front Mount Baffle Cutout          7.2"(183mm)

Mounting Depth                           3.42"(87mm)

Overall Depth                                 3.74"(95mm)
