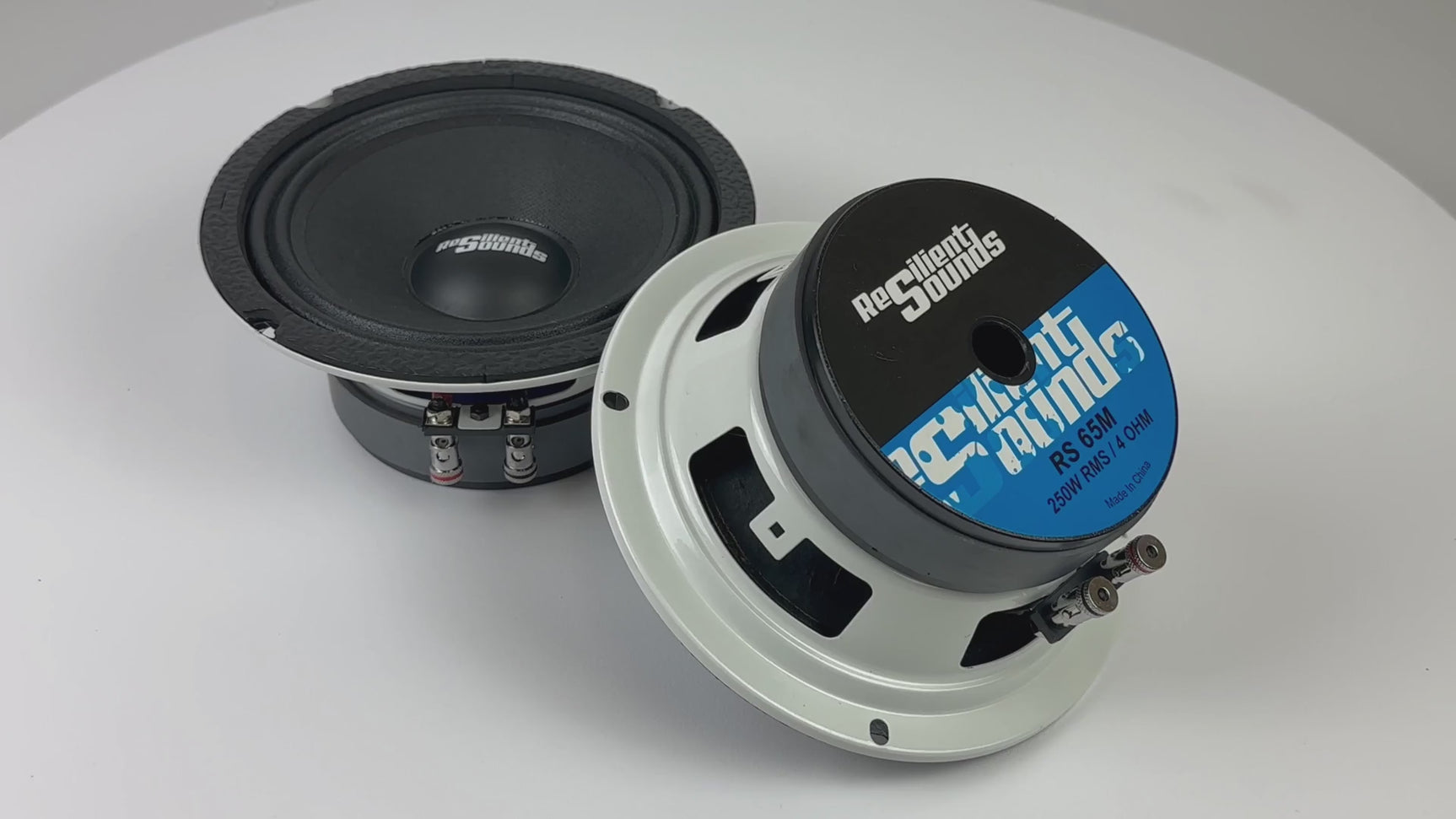

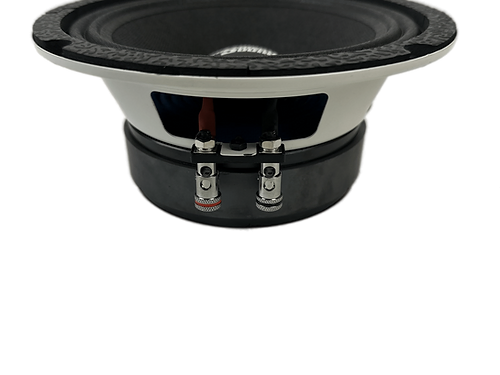

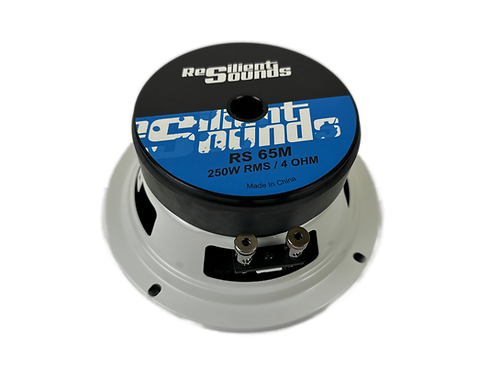

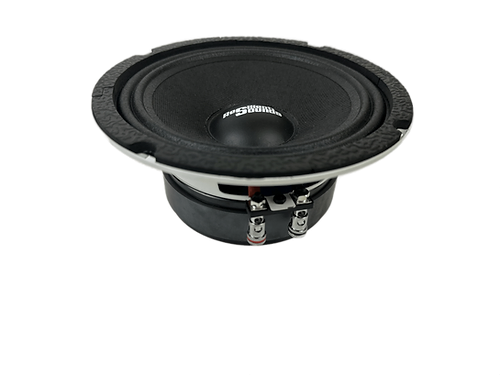

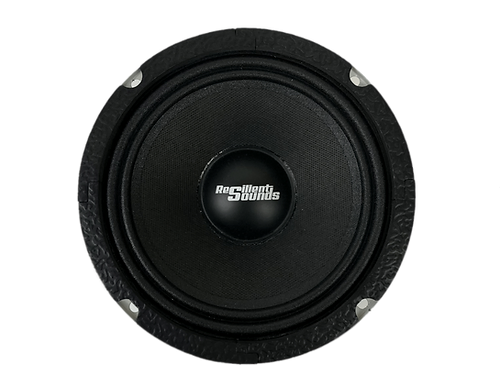

Resilient Sounds 65M 250w RMS 4ohm 6.5" speaker
Resilient Sounds 65M 250w RMS 4ohm 6.5" speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Subscribe to our newsletter
Sign up for exclusive offers.
Resilient Sounds 65M 250w RMS 4ohm 6.5" speaker
Description
Description

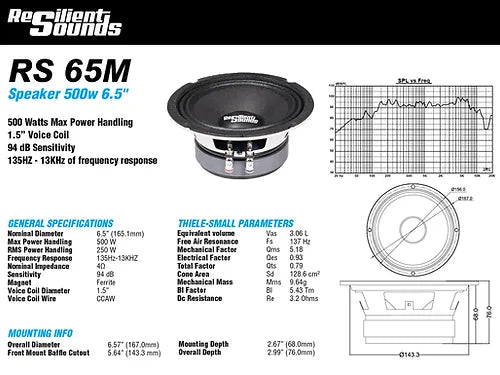

RS 65M
500 Watts Max Power Handling
1.5" Voice Coil
94 dB Sensitivity
135HZ-13KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165.1mm)
Max Power Handling 500 w
RMS Power Handling 250 w
Frequency Response 135Hz-13KHZ
Nominal Impedance 4ohm
Sensitivity 94 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 3.06 L
Free Air Resonance Fs 137 Hz
Mechanical Factor Qms 5.18
Electrical Factor Qes 0.93
Total Factor Qts 0.79
Cone Area Sd 128.6cm²
Mechanical Mass Mms 9.64 g
BI Factor BI 5.43 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.57”(167mm)
Front Mount Baffle Cutout 5.64"(143mm)
Mounting Depth 2.67"(68mm)
Overall Depth 2.99"(76mm)
