Resilient Sounds RS 10M – 10" Midrange Speaker
Resilient Sounds RS 10M – 10" Midrange Speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

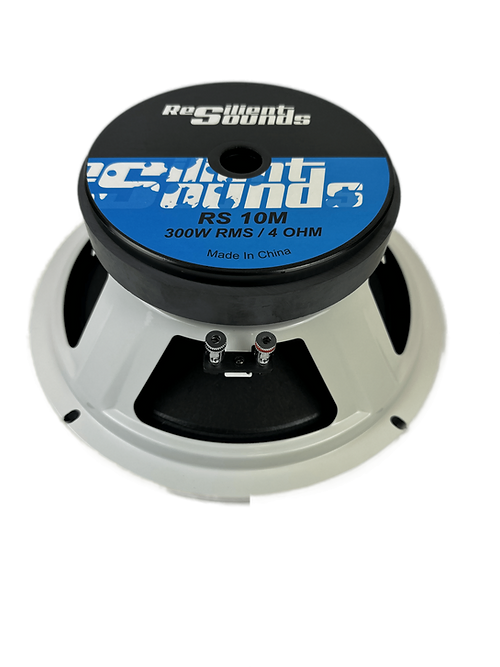

Resilient Sounds RS 10M – 10" Midrange Speaker (600W)
The Resilient Sounds RS 10M is engineered for enthusiasts who demand power, clarity, and reliability in their car audio setup. With 600W max power handling, a precision-designed 2" voice coil, and 98.5 dB sensitivity, this 10-inch midrange delivers exceptionally loud and clean performance. Covering a wide frequency response from 70Hz – 7kHz, the RS 10M ensures punchy midbass and crisp upper midrange for a truly dynamic listening experience.
Key Features
600W Max / 300W RMS – Built for high-output performance.
- 2” High-Temperature Voice Coil – Ensures durability and efficiency.
- 98.5 dB Sensitivity – Produces loud, clear sound even at lower power.
- 70Hz – 7kHz Frequency Response – Covers deep midbass through upper midrange.
- Ferrite Magnet Motor – Provides consistent strength and reliability.
- Optimized Cooling Design – Maintains performance under heavy use.
General Specifications
| Nominal Diameter | 10” (254mm) |
| Impedance | 4Ω |
| Power Handling (Max) | 600W |
| Power Handling (RMS) | 300W |
| Frequency Response | 70Hz – 7kHz |
| Sensitivity | 98.5 dB |
| Magnet Type | Ferrite |
| Voice Coil Diameter | 2” |
| Voice Coil Wire | CCAW |
Thiele-Small Parameters
| Vas | 37.94 L |
| Fs | 72 Hz |
| Qms | 5.51 |
| Qes | 0.48 |
| Qts | 0.44 |
| Sd | 349.6 cm² |
| Mms | 22.21 g |
| BL | 8.21 Tm |
| Re | 3.2 Ω |
Mounting Information
| Overall Diameter | 10.11” (257mm) |
| Baffle Cutout | 9.13” (232mm) |
| Mounting Depth | 3.85” (98mm) |
| Overall Depth | 4.21” (107mm) |
Perfect for high-powered car audio systems that demand clarity, accuracy, and volume, the Resilient Sounds RS 10M is built to withstand extreme sound pressure while maintaining long-term reliability.
