Sundown Audio | SKU:
SW-NSV612D2

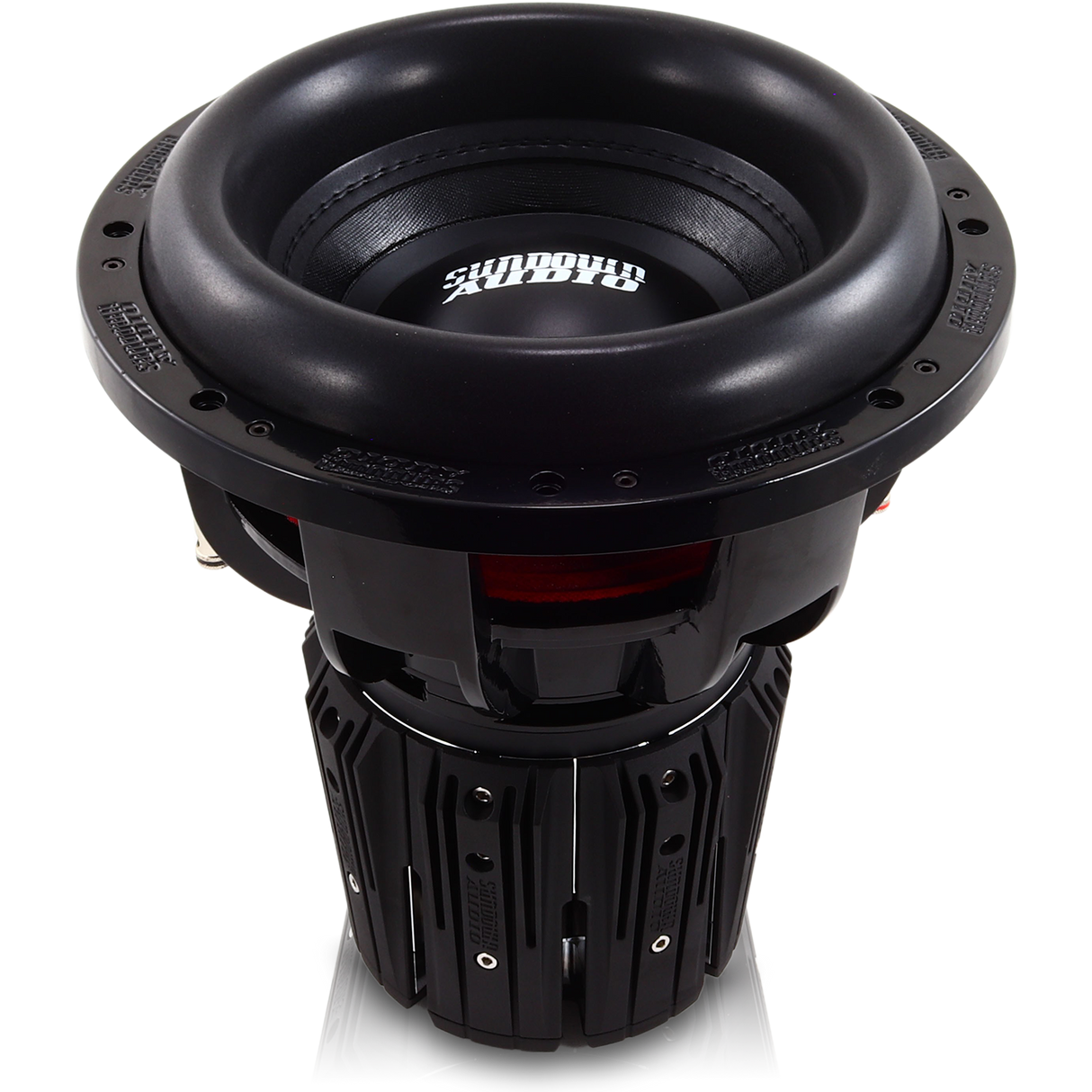

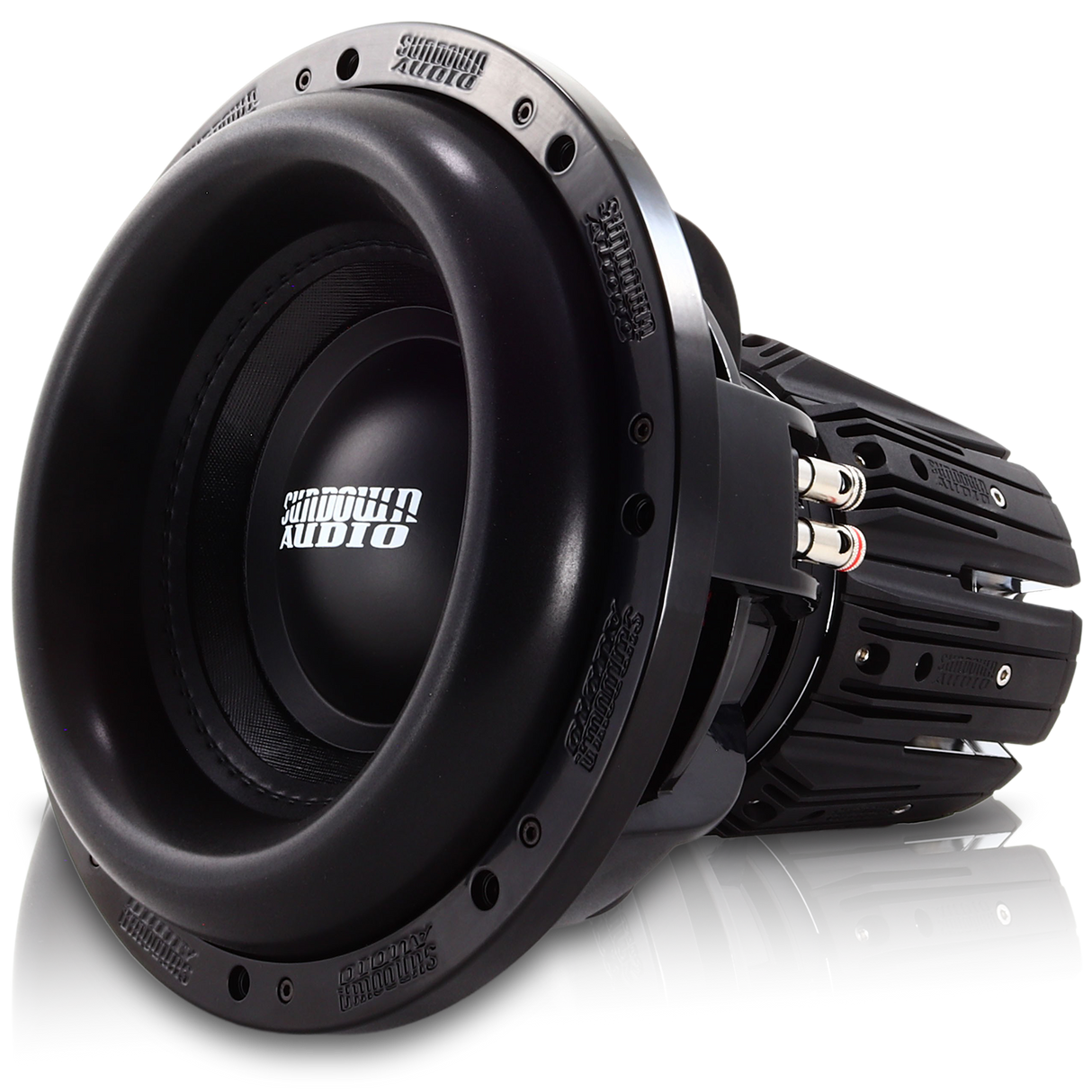

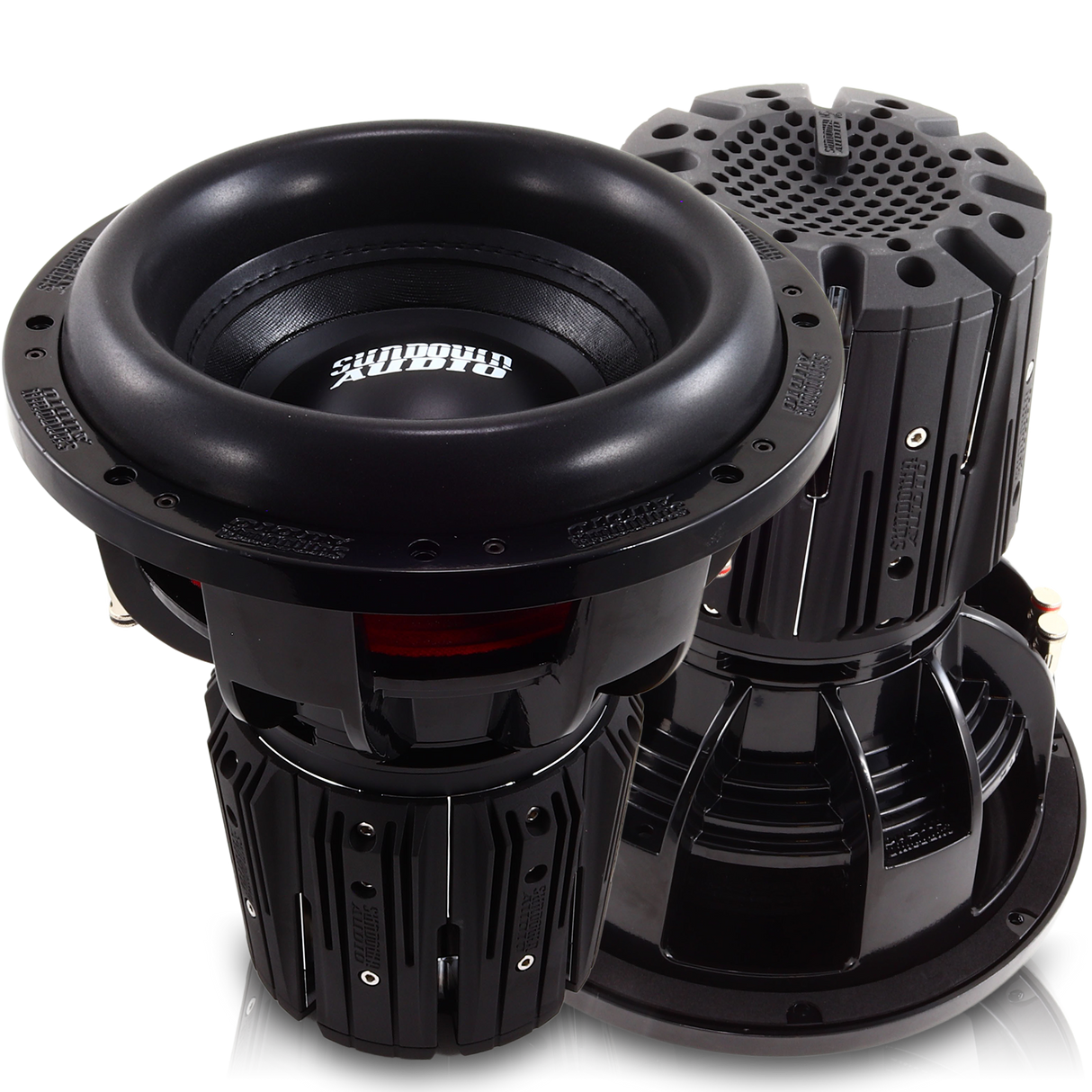

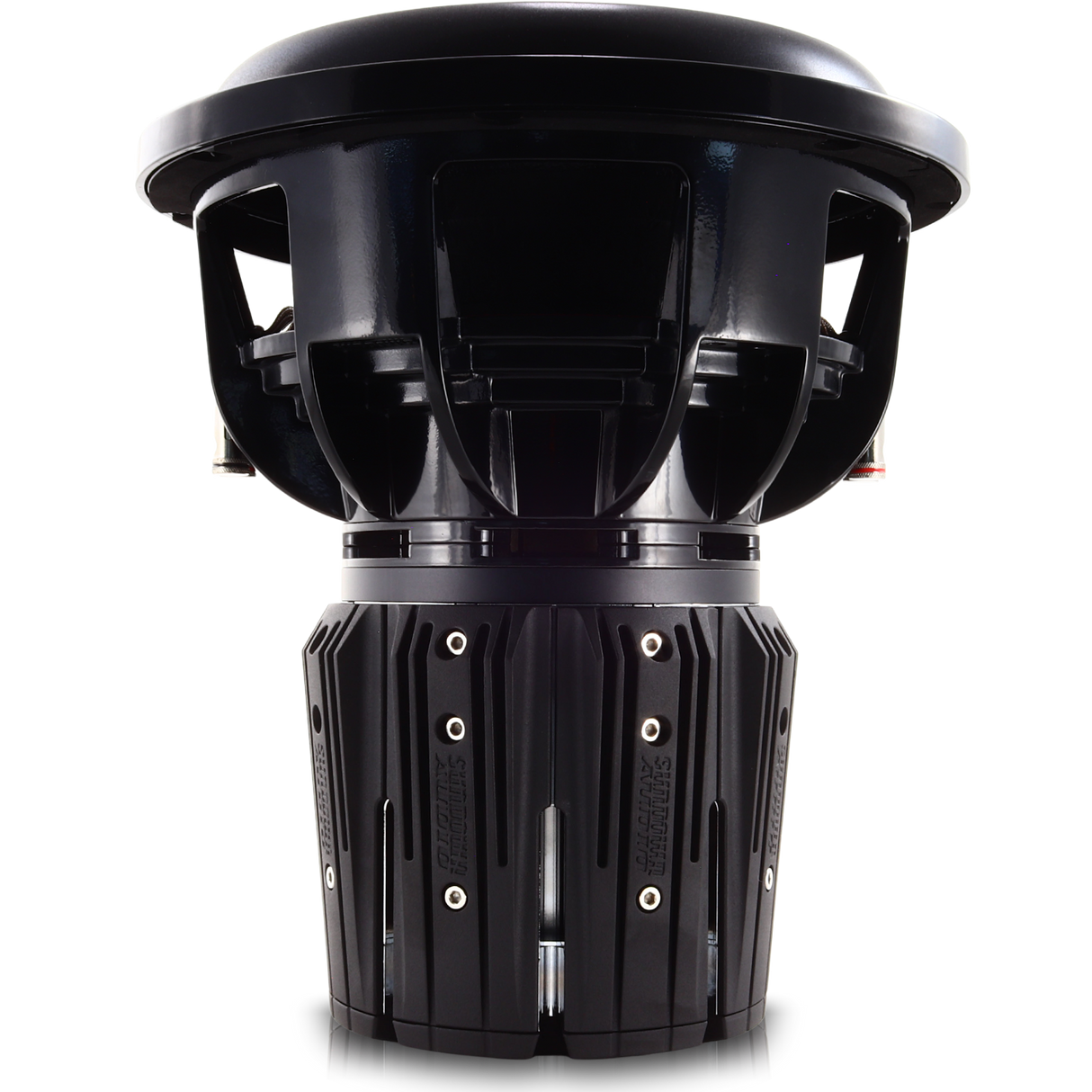

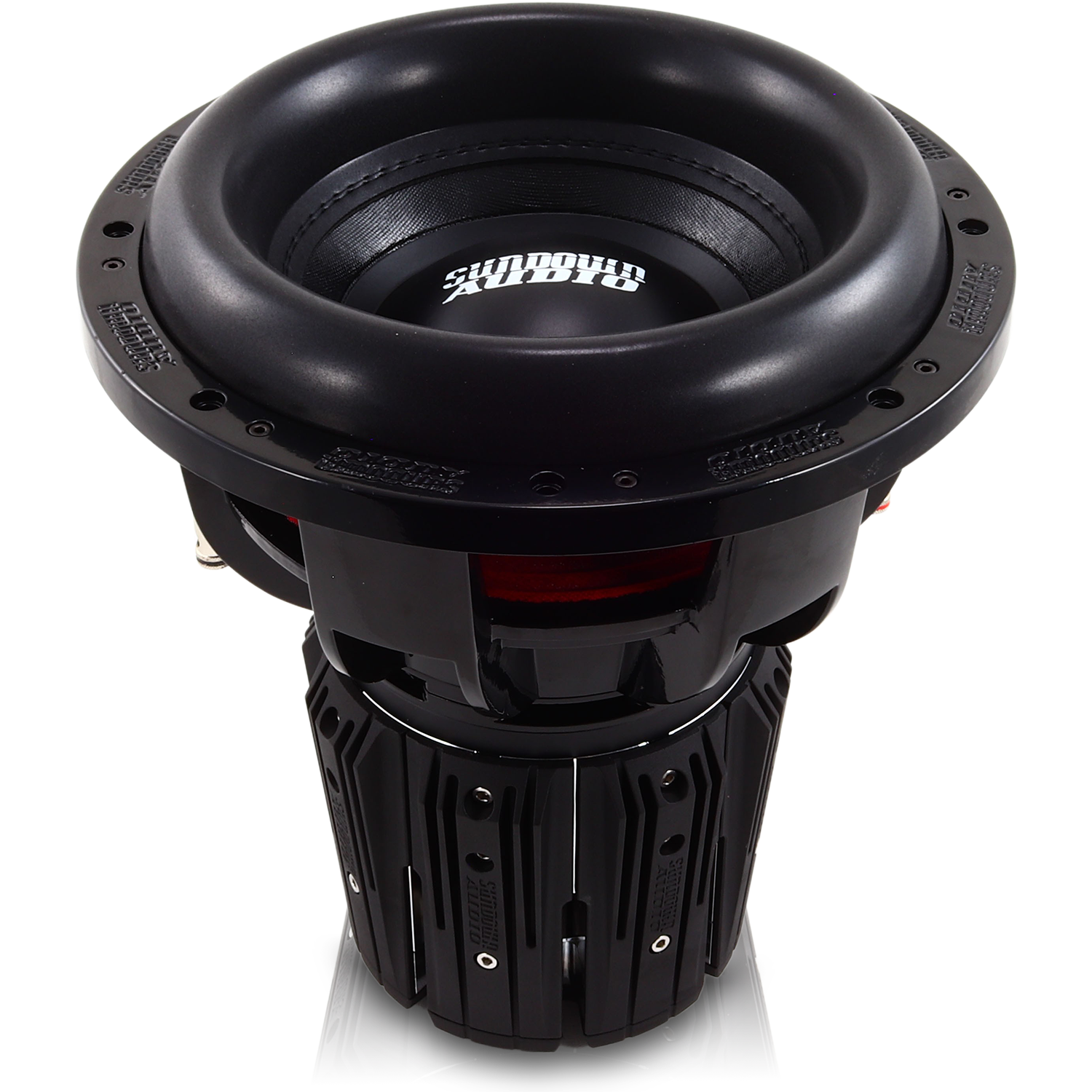

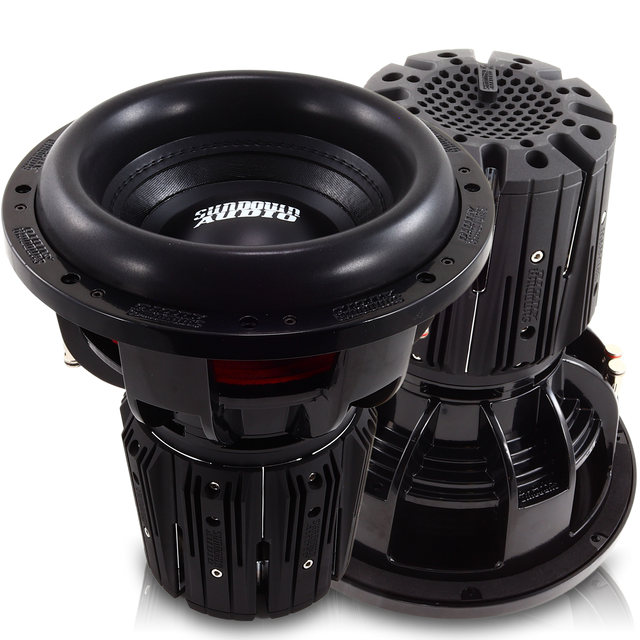

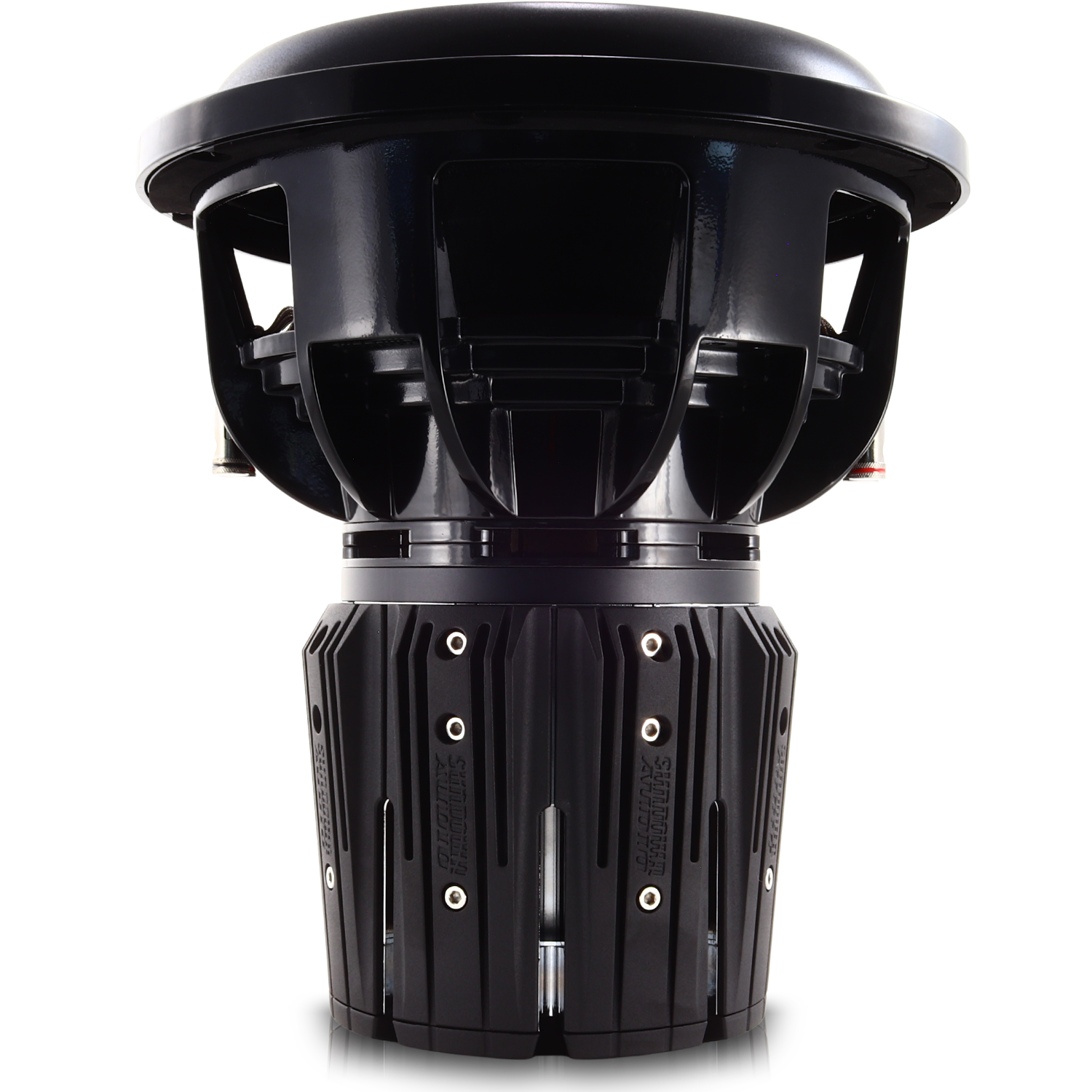

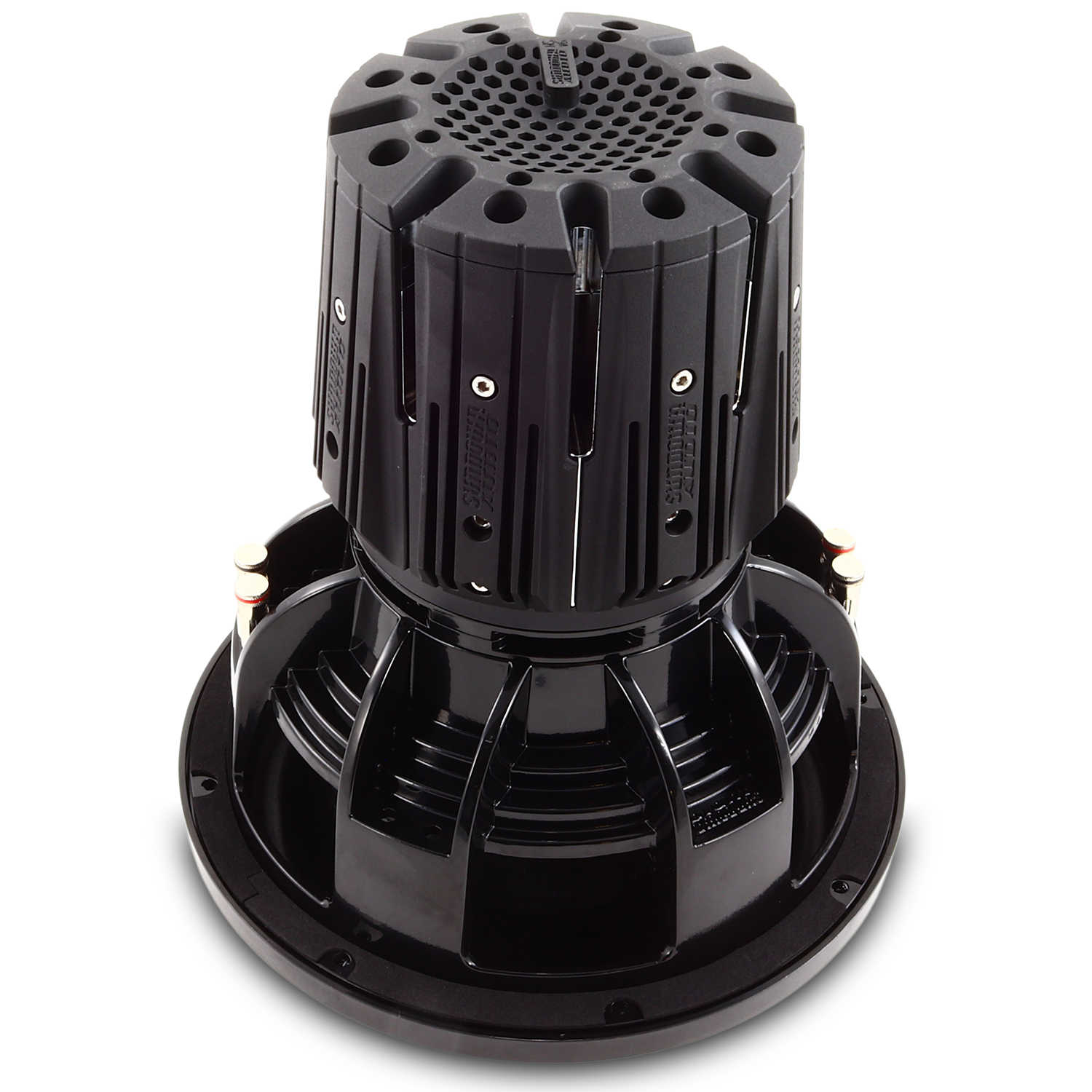

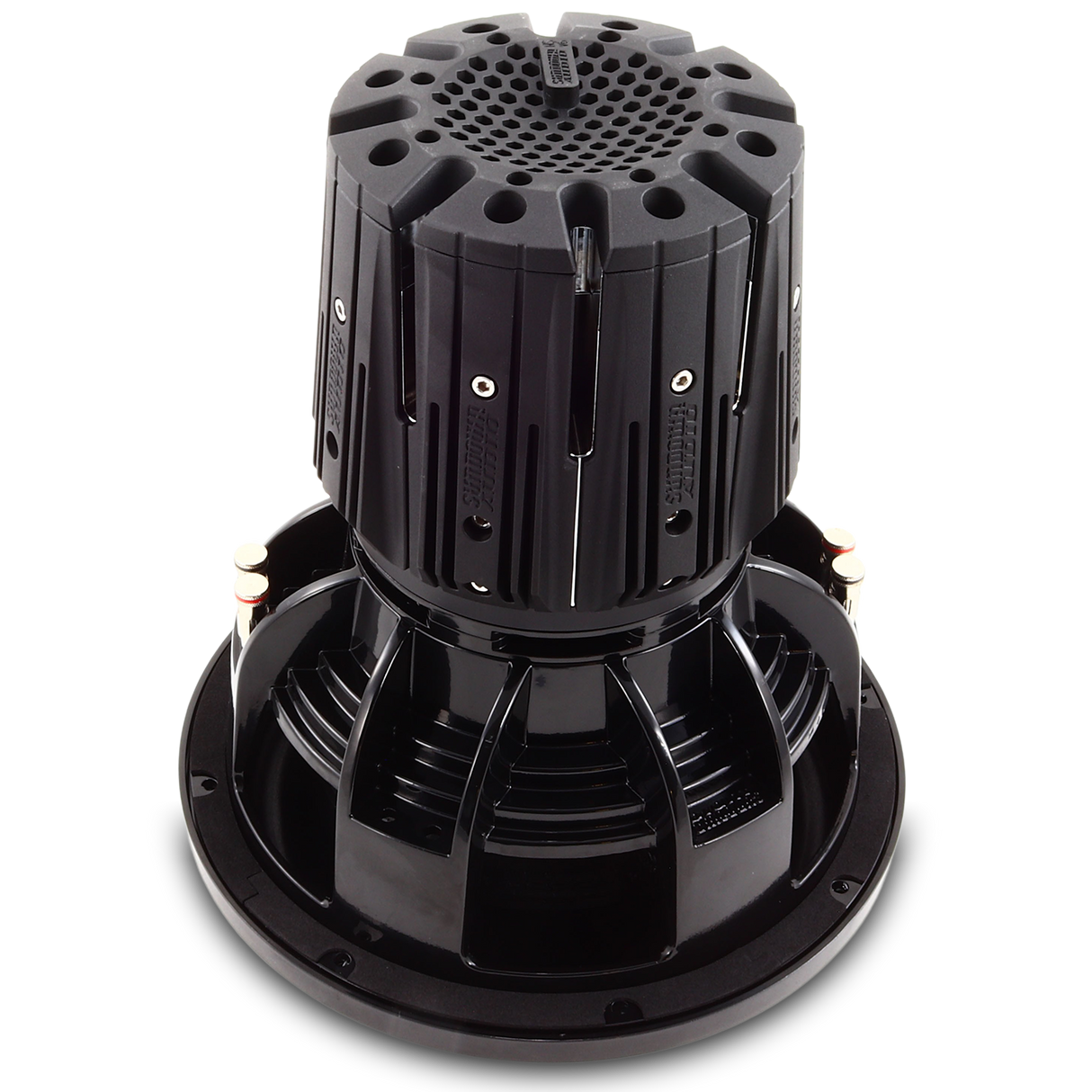

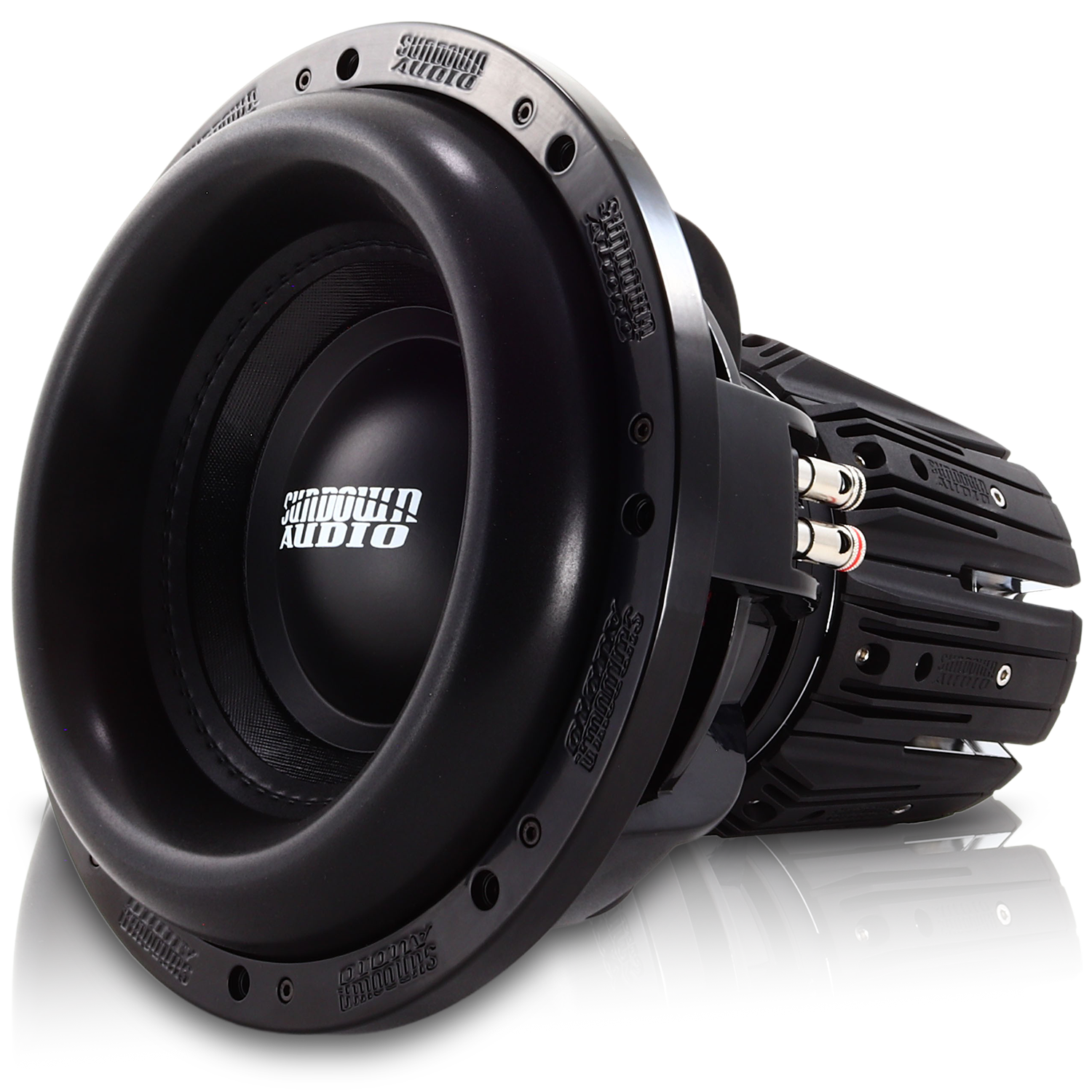

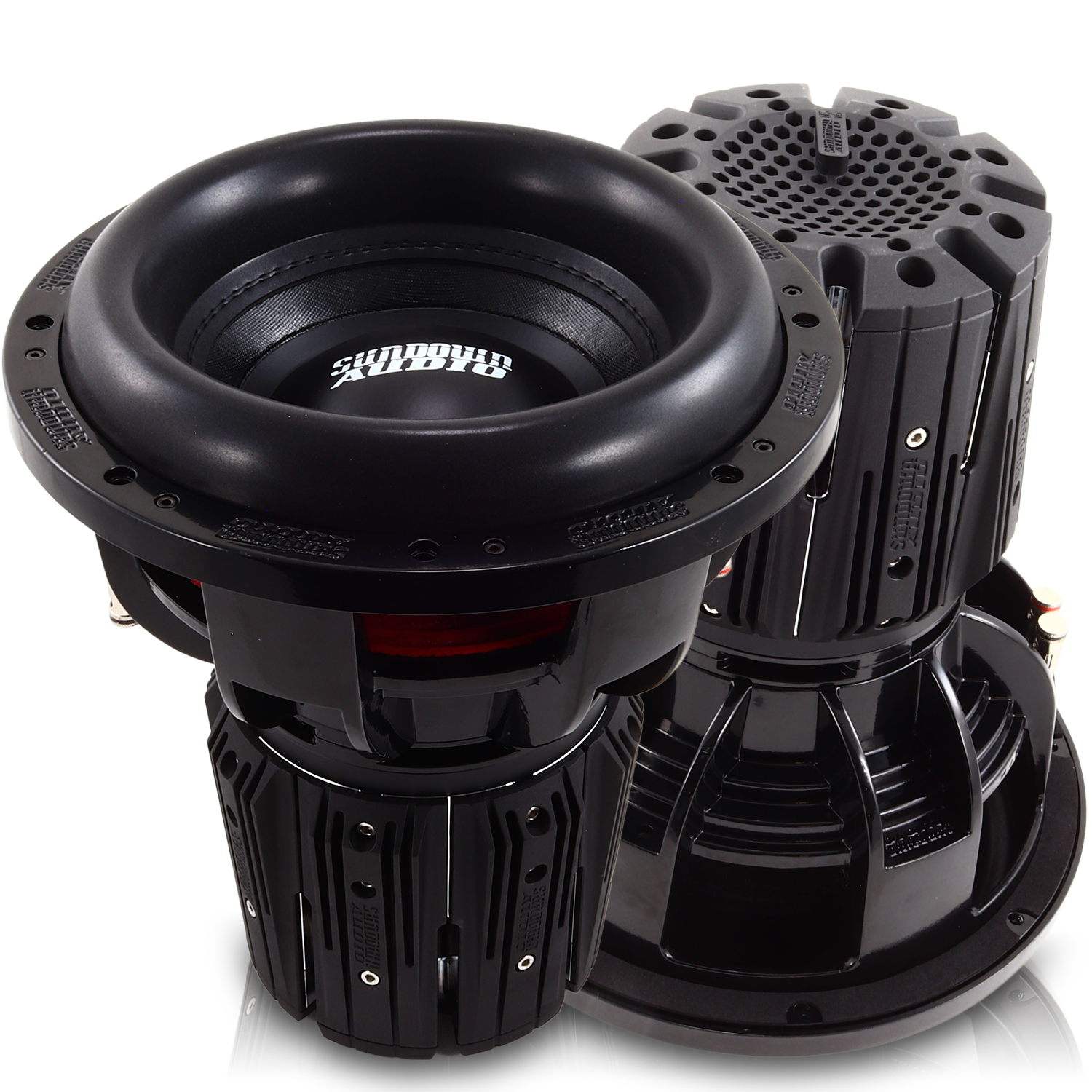

Sundown Audio Nightshade NS-Series NS6 12" 3500W Subwoofer NS v.6
$989.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Sundown Audio Nightshade NS-Series NS6 12" 3500W Subwoofer NS v.6 - D2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- 3500 Watt RMS / 7000 Watt Peak
- Dual 1 or 2 ohm voice coils
- Optional carbon cone/dustcap available
- Custom tooled basket
- Custom-tooled ultra-linear spider packs
- Extended shorting ring
- Eight-layer voice coil
- Custom tooled basket
- Cast aluminum cooling ring
- Ultra-linear spider pack
- Unique air exchanging system forces hot air out and cool air in
- Aluminum vent ring
- Ultra-linear Mega Roll V2 surround
Features:
The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Specifications:
NS V.6 12
| RE (Ohms) | 1.8468 | 3.3377 |
| FS (Hz) | 37.6157 | 37.1375 |
| VAS (L) | 11.7603 | 11.8372 |
| Qes | 0.4665 | 0.4388 |
| Qms | 5.0189 | 5.2560 |
| Qts | 0.4268 | 0.4050 |
| Le (mH) | 1.6495 | 3.1147 |
| BL (NA) | 20.5703 | 28.6043 |
| Mms (Grams) | 452.2261 | 460.9337 |
| Cms (uM/N) | 39.5864 | 39.8452 |
| Sens (dB @ 1w/1m) | 83.0242 | 83.1522 |
| Xmax | 35mm | 35mm |
| T/S SPECS | NS V.6 12″ D1 | NS V.6 12″ D2 |
|---|
ENCLOSURE SPECIFICATIONS
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 2.5 cu.ft. net |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 38 sq.in. |
| Displacement | .24 cu. ft. |
| Depth | 12.75" |
| Outside Diameter | 12.81" |
| Cut-Out | 11.19" |
| Physical Dimensions | Download |
