Description
Description

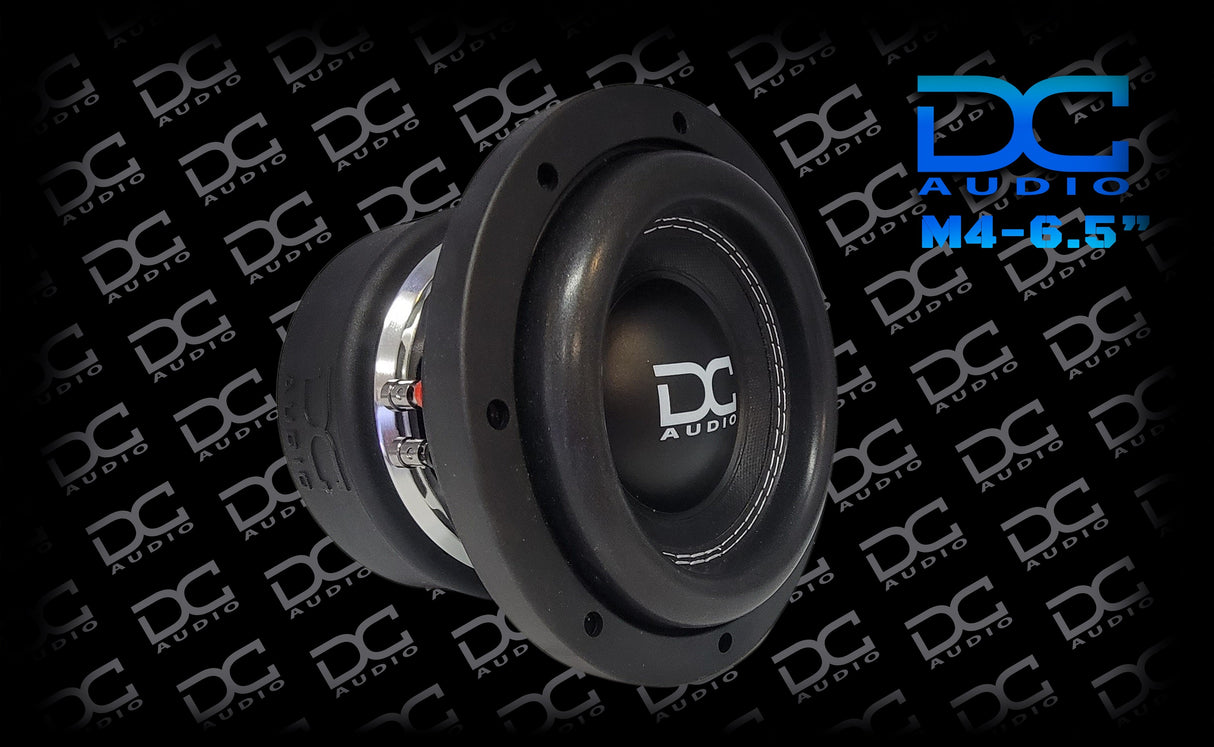

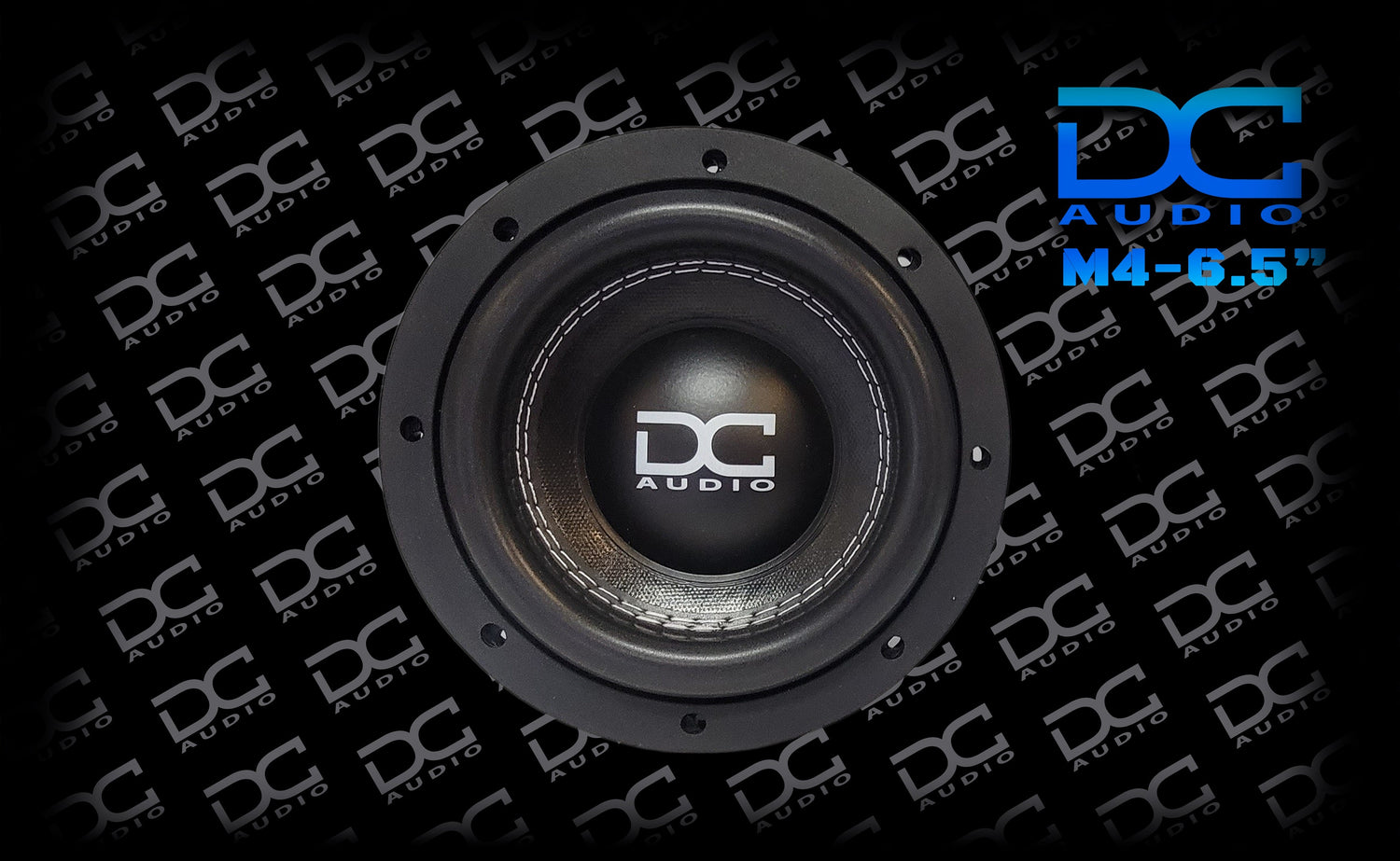

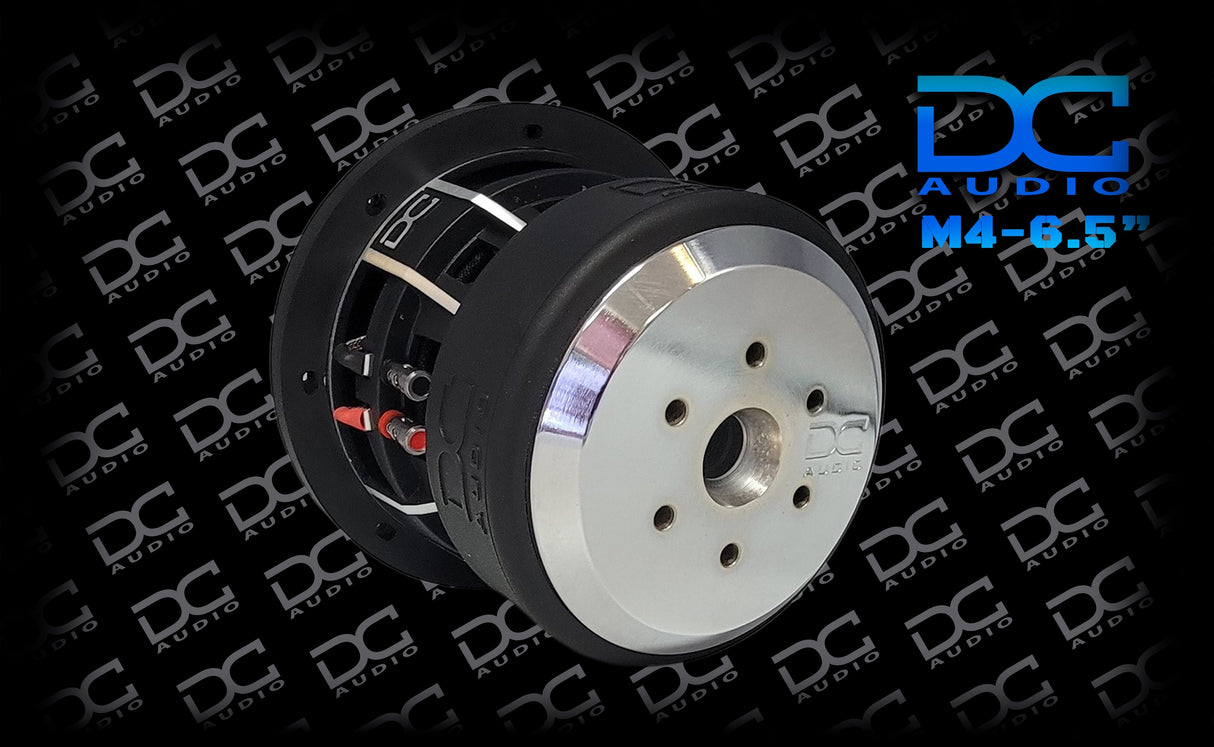

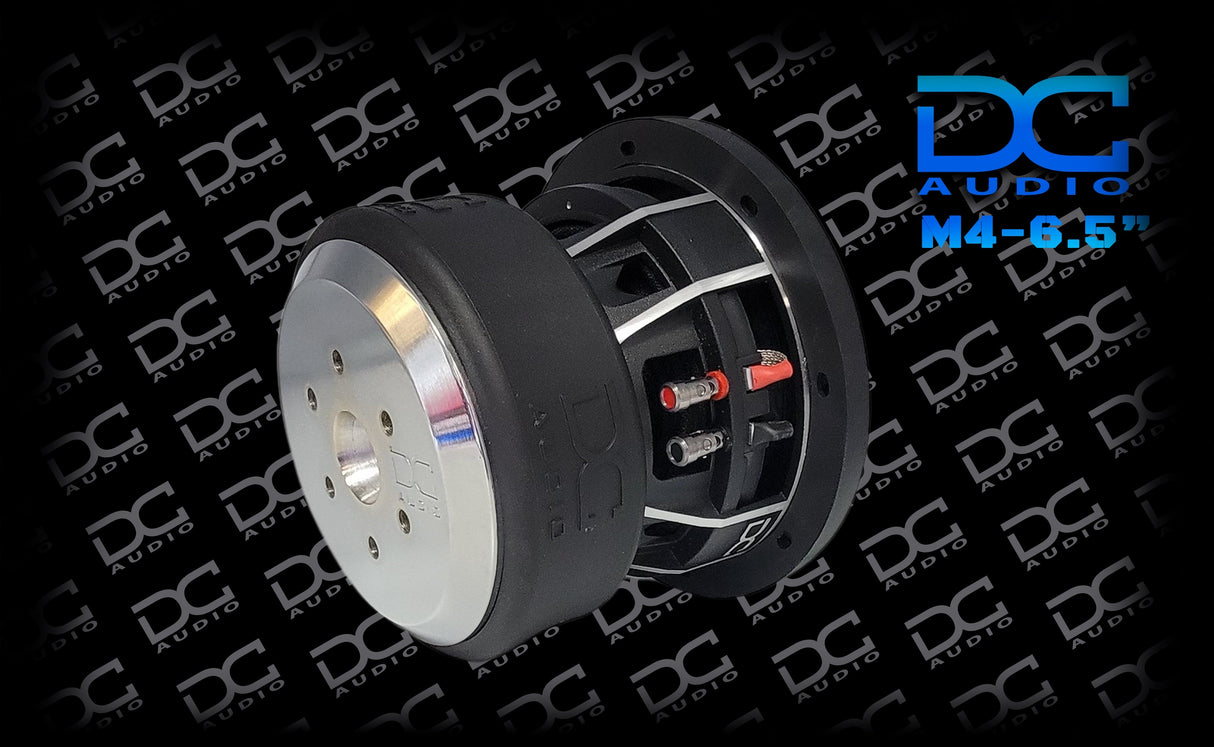

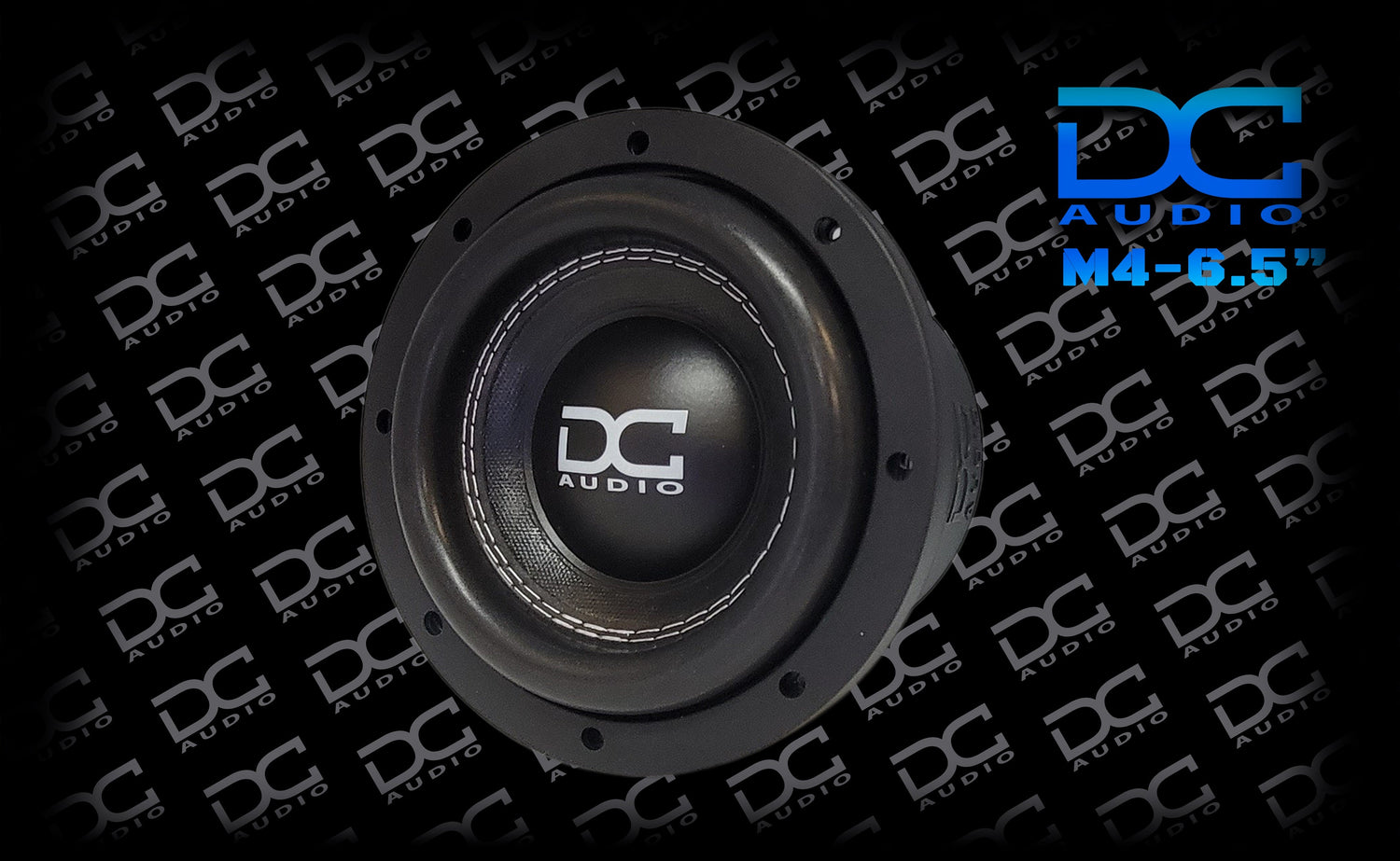

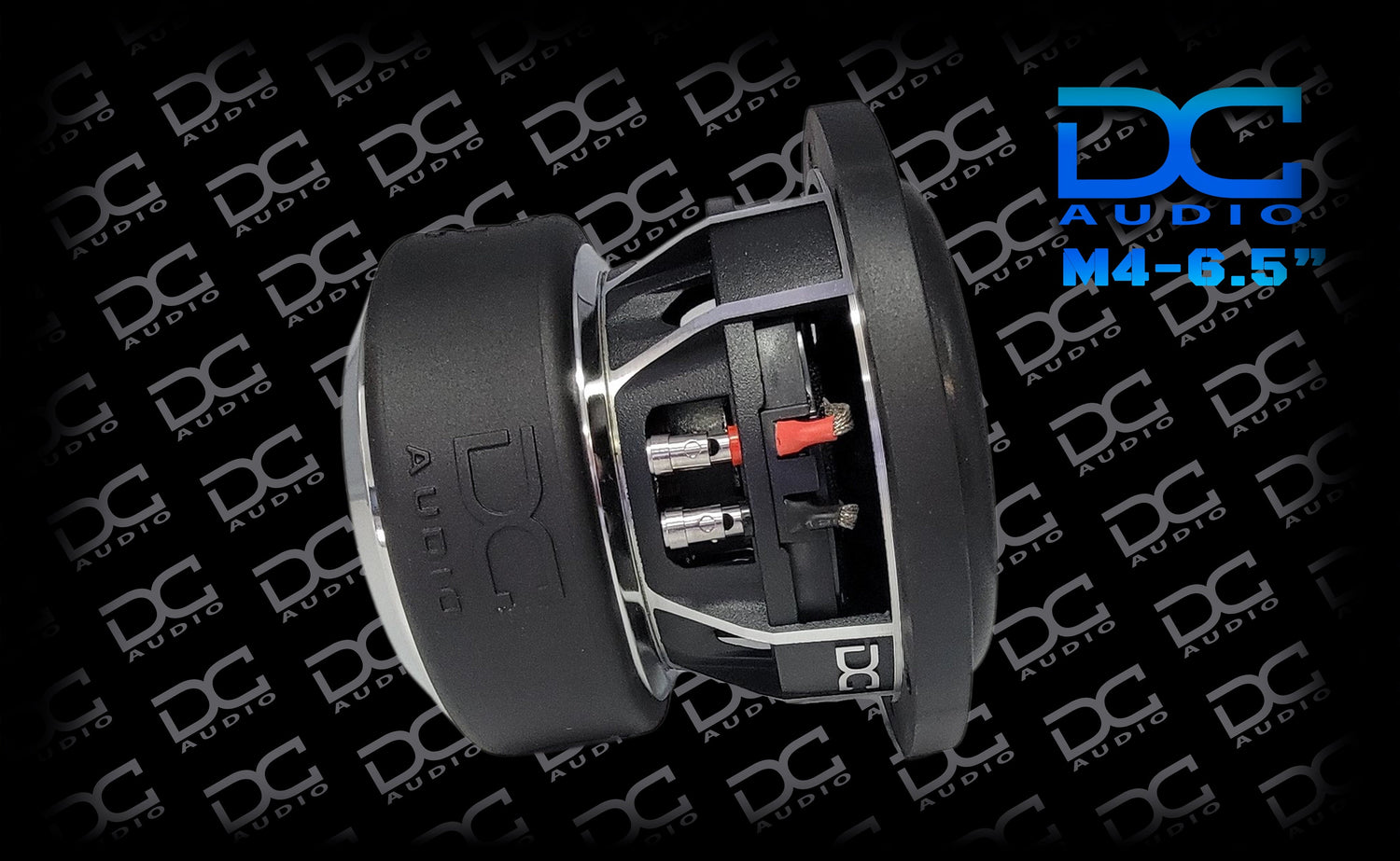

DC Audio M4 6.5" Subwoofer
Available in D2 & D4 Models
Power Handling
- 300 Watts RMS
- 600 Watts Peak
Product Overview
As newer cars and trucks are being designed with less space for traditional audio setups, the demand for compact, high-output subwoofers has grown rapidly. The DC Audio M4 6.5" Subwoofer is built to meet this demand—delivering powerful low-end bass in tight spaces. Designed for extremely small enclosure volumes, this compact subwoofer brings serious output where most others can't.
Key Features
- Extremely rigid non-pressed paper cone assembly
- High-roll stitched multilayered reinforced polymer foam surround
- Rigid polypropylene dust cap with White DC logo
- Laminated Nomex spiders
- Sewn flat heavy-duty tinsel lead wire
- Die-cast aluminum black DC frame (non-inverted mount)
- FEA-analyzed and optimized motor – Fully CNC machined
- Rubber mounting gasket and motor boot
- 2.0" DVC copper voice coil
Mounting Specifications
- Mounting Depth: 5"
- Mounting Hole Diameter: 6.02"
- Outside Diameter: 7.25"
- Displacement: 0.05 ft³
Box Recommendations
- Sealed Enclosure: 0.15 ft³
- Ported Enclosure: 0.3 ft³
Technical Parameters
| Parameter | D2 | D4 |
|---|---|---|
| Sd | 143.14 cm² | 143.14 cm² |
| Vas | 3.464 L | 3.712 L |
| Cms | 0.119 mm/N | 0.127 mm/N |
| Mms | 92.57 g | 92.15 g |
| Fs | 47.9 Hz | 46.41 Hz |
| Bl | 14.4 N/A | 20.89 N/A |
| Re | 4 Ω | 8 Ω |
| Le | 1.86 mH | 3.71 mH |
| Qms | 3.126 | 3.610 |
| Qes | 0.537 | 0.554 |
| Qts | 0.456 | 0.490 |
| Xmax | 16 mm | 16 mm |
| Sensitivity (1W/1M) | 80.4 dB | 80.1 dB |
