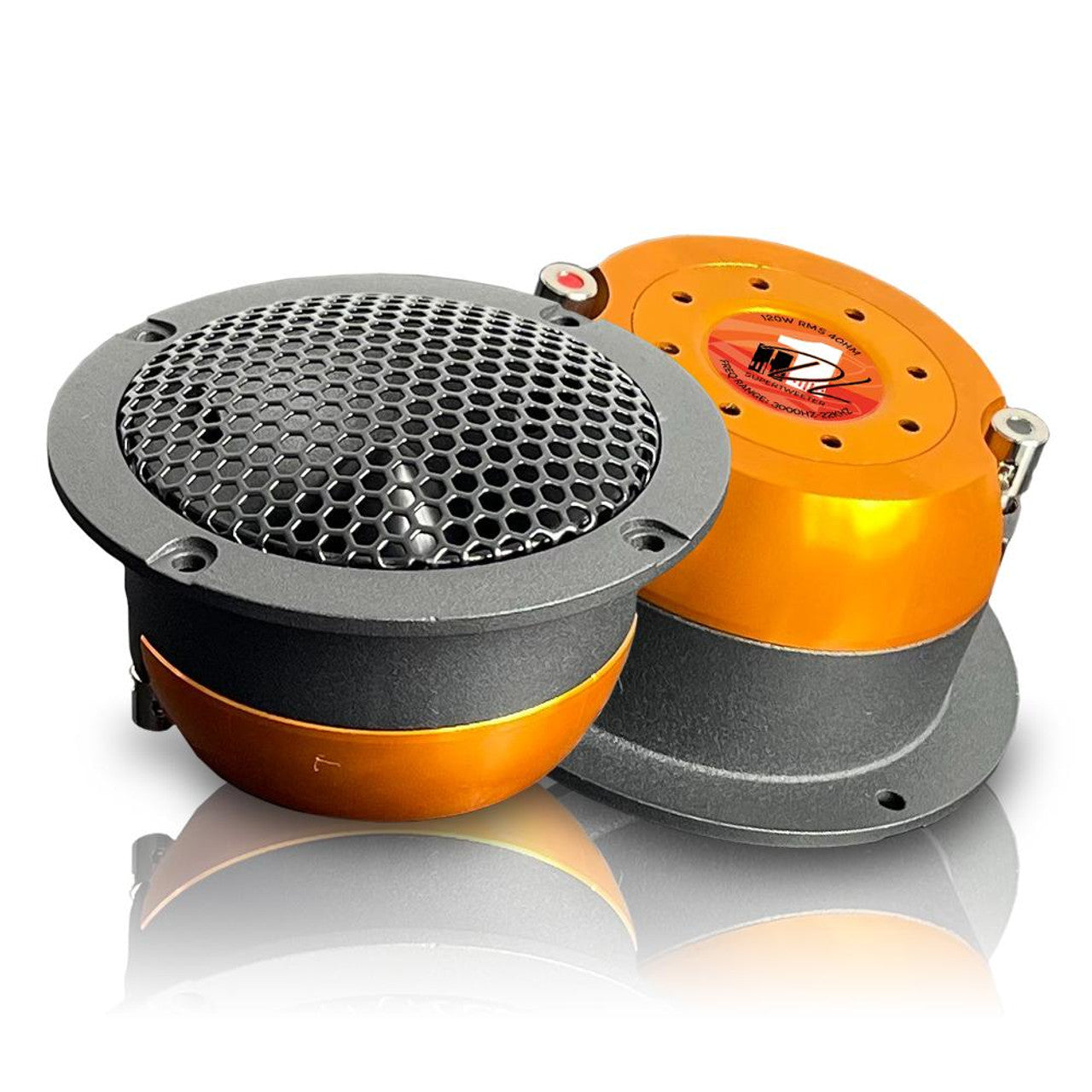

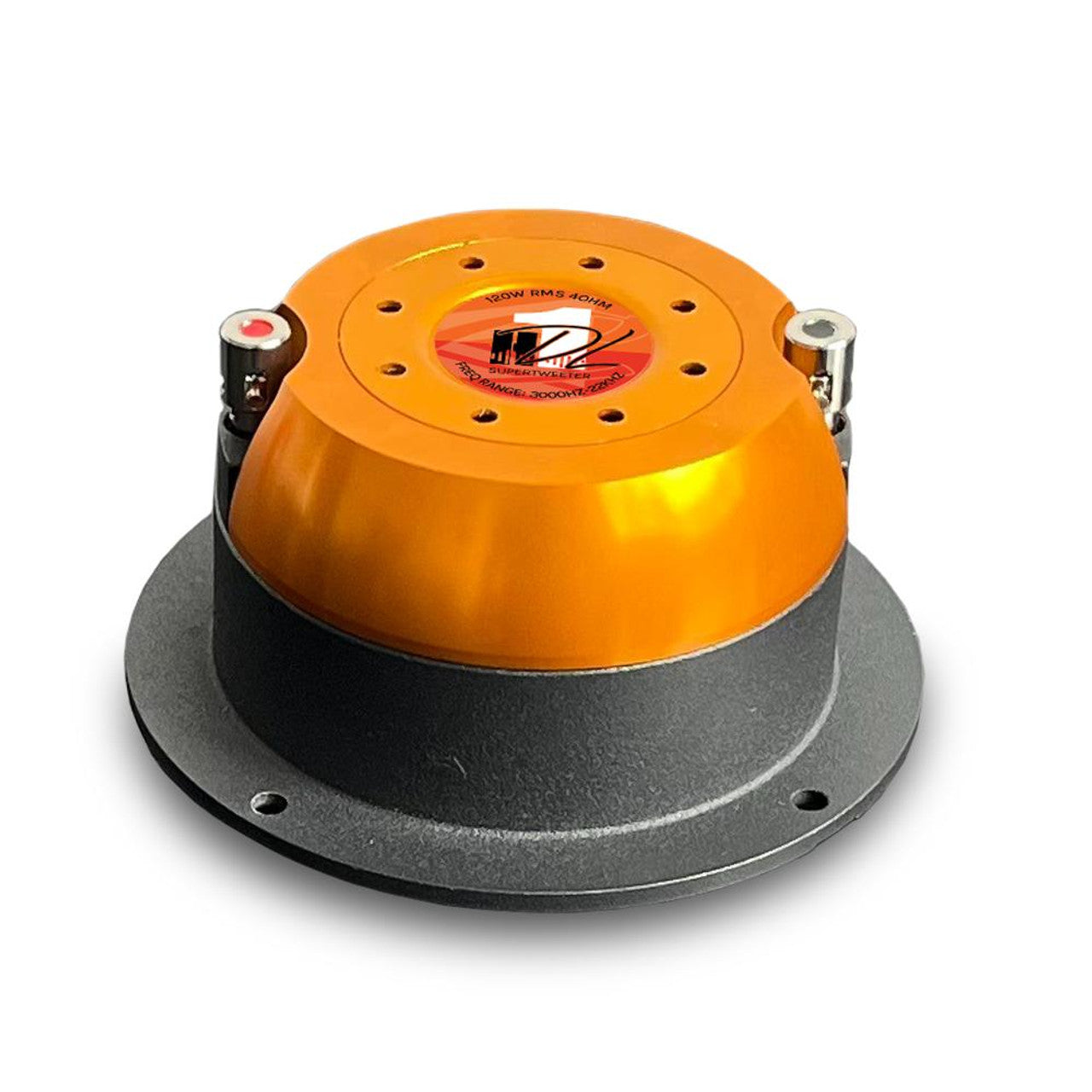

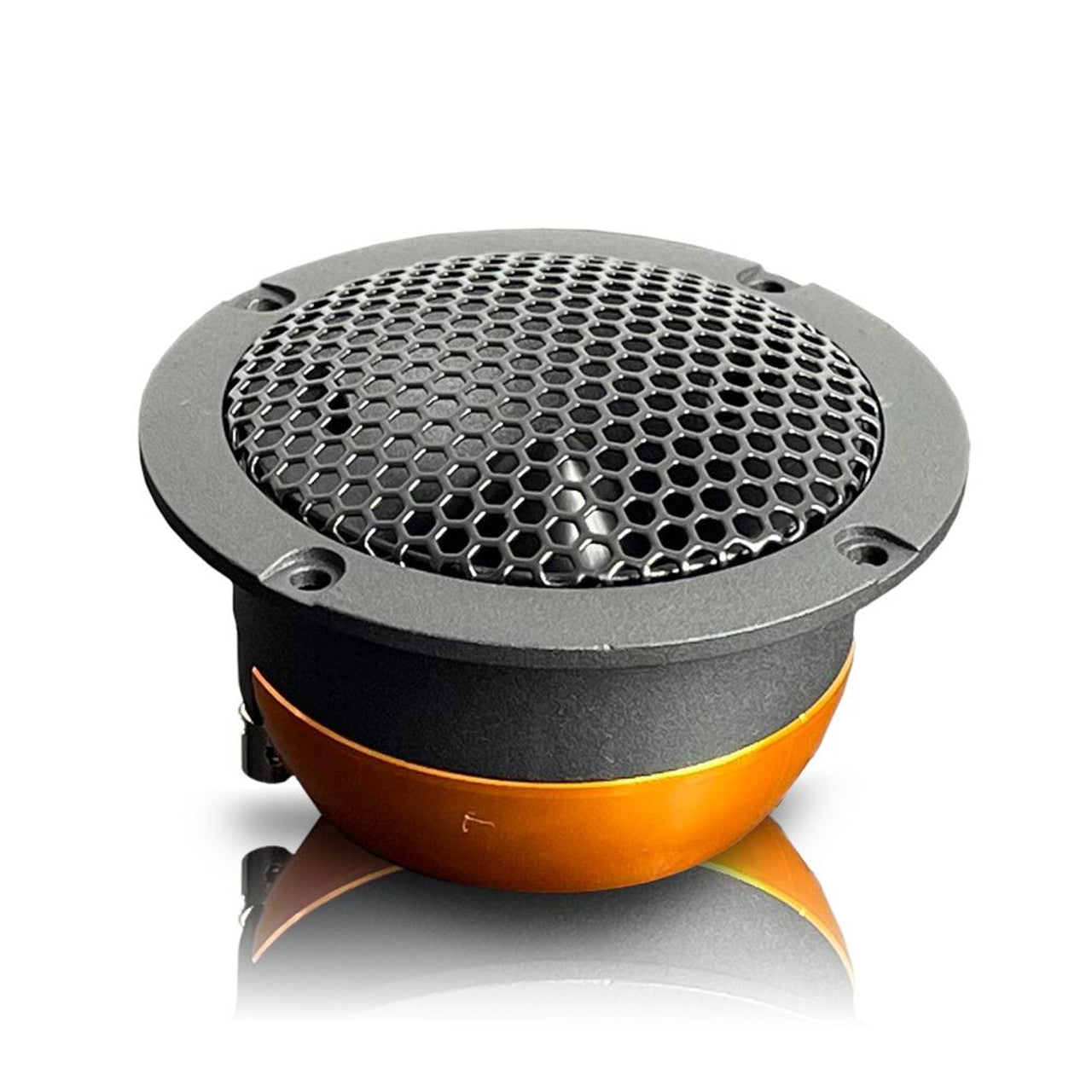

Crescendo HDL-1 Supertweeter - 4Ω

The Crescendo HDL-1 is part of the new HD series, replacing the legendary FT1 tweeter with a magnesium alloy–coated titanium diaphragm that delivers smoother, more extended high frequencies. Featuring a neodymium motor and a CNC-lathed heatsink housing, the HDL-1 is built for thermal efficiency and precision, providing high-definition, hi-fidelity treble response that cuts through the mix without harshness. Sharing the same sound signature as the HD-1 but in a slightly larger format, the HDL-1 is ideal for applications that demand even higher output.

Key Features

• Magnesium alloy–coated titanium diaphragm for clean, extended highs
• Neodymium motor with CNC-lathed heatsink housing for superior thermal management
• Controlled dispersion for smooth and accurate treble
• High sensitivity: 106 dB (1W/1m) for maximum output
• 4Ω impedance for versatile amplifier pairing
• Sold individually

Specifications

• RMS Power: 120W
• Diaphragm Size: 35 mm
• Sensitivity: 106 dB (1W/1m)
• Usable Frequency Range: 3,500 Hz – 22,000 Hz
• Recommended Frequency Range: 4,500 Hz – 22,000 Hz
• Impedance: 4Ω

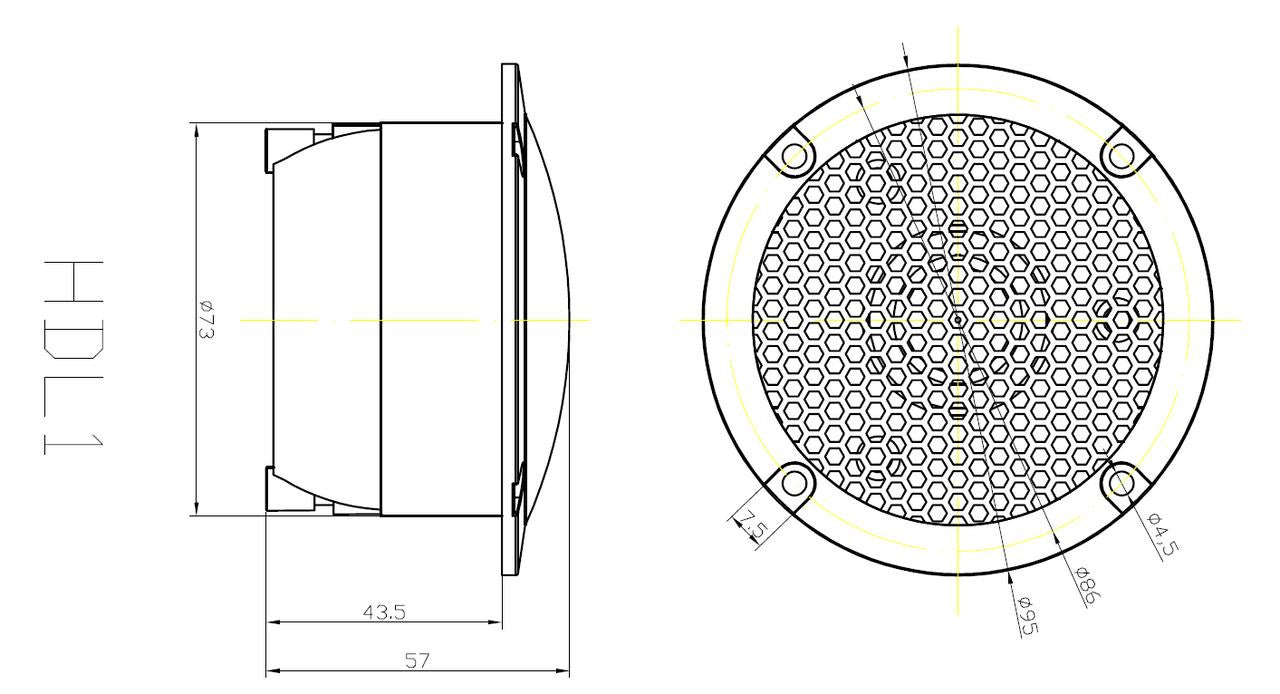

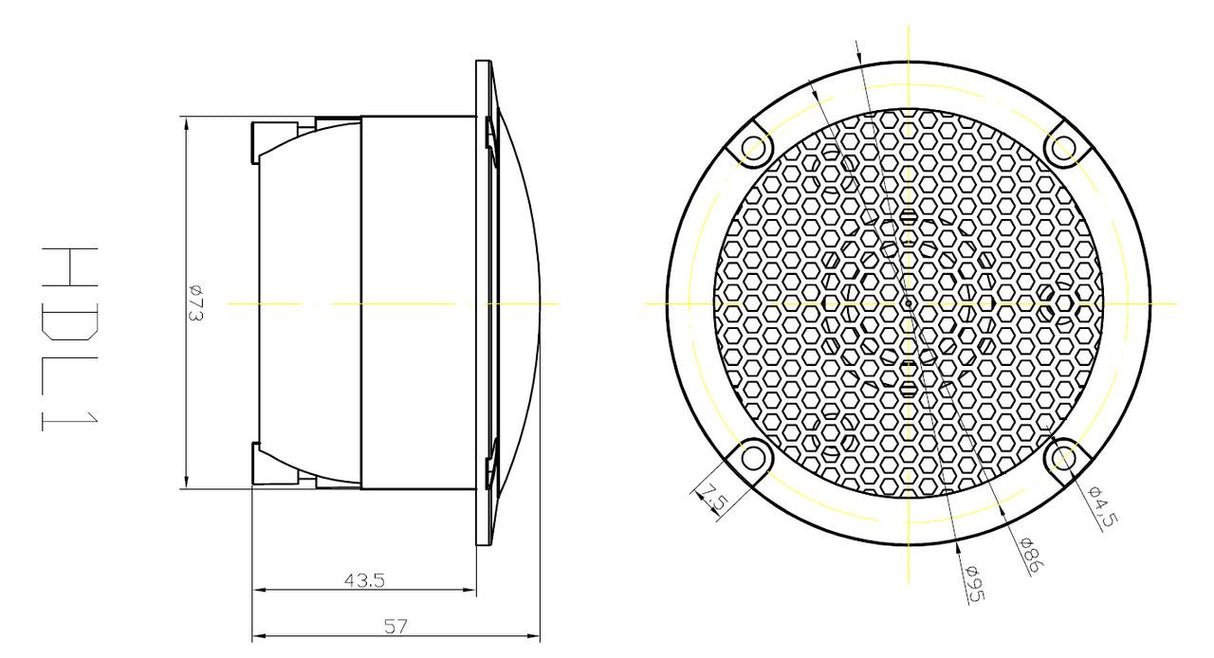

Mounting Dimensions

• Mounting Depth: 1.67"
• Hole Cutout: 2.88"
• Overall Width: 3.74"
• Flush-Mount Depth: 1/5"

Why Choose the HDL-1?

Built to outperform its predecessor, the HDL-1 Supertweeter offers the clarity, output, and reliability demanded by today’s SQ/SPL hybrid and pro-audio systems. Whether you’re upgrading your current setup or designing a new build, the HDL-1 delivers crisp, powerful highs with refined control.
