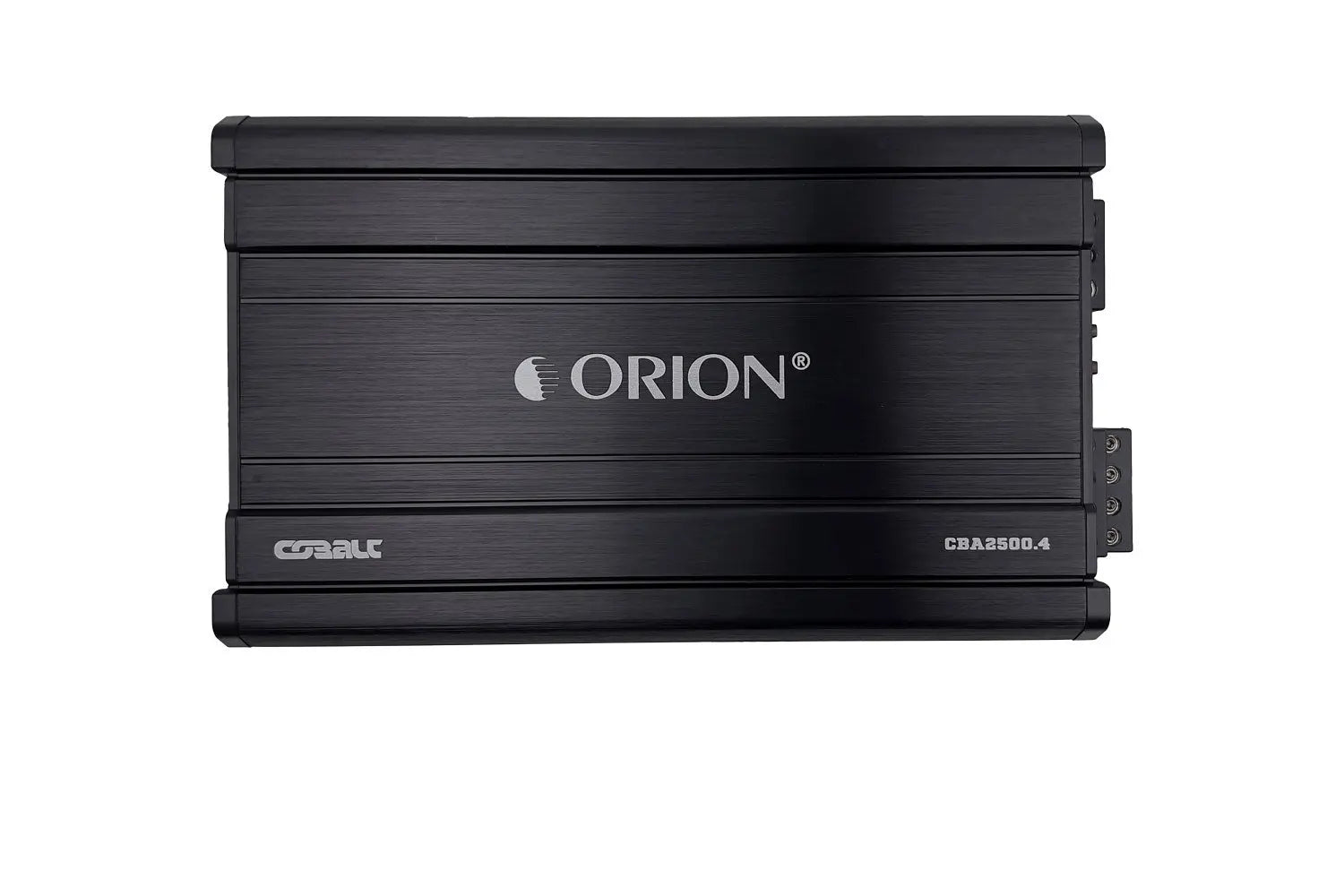

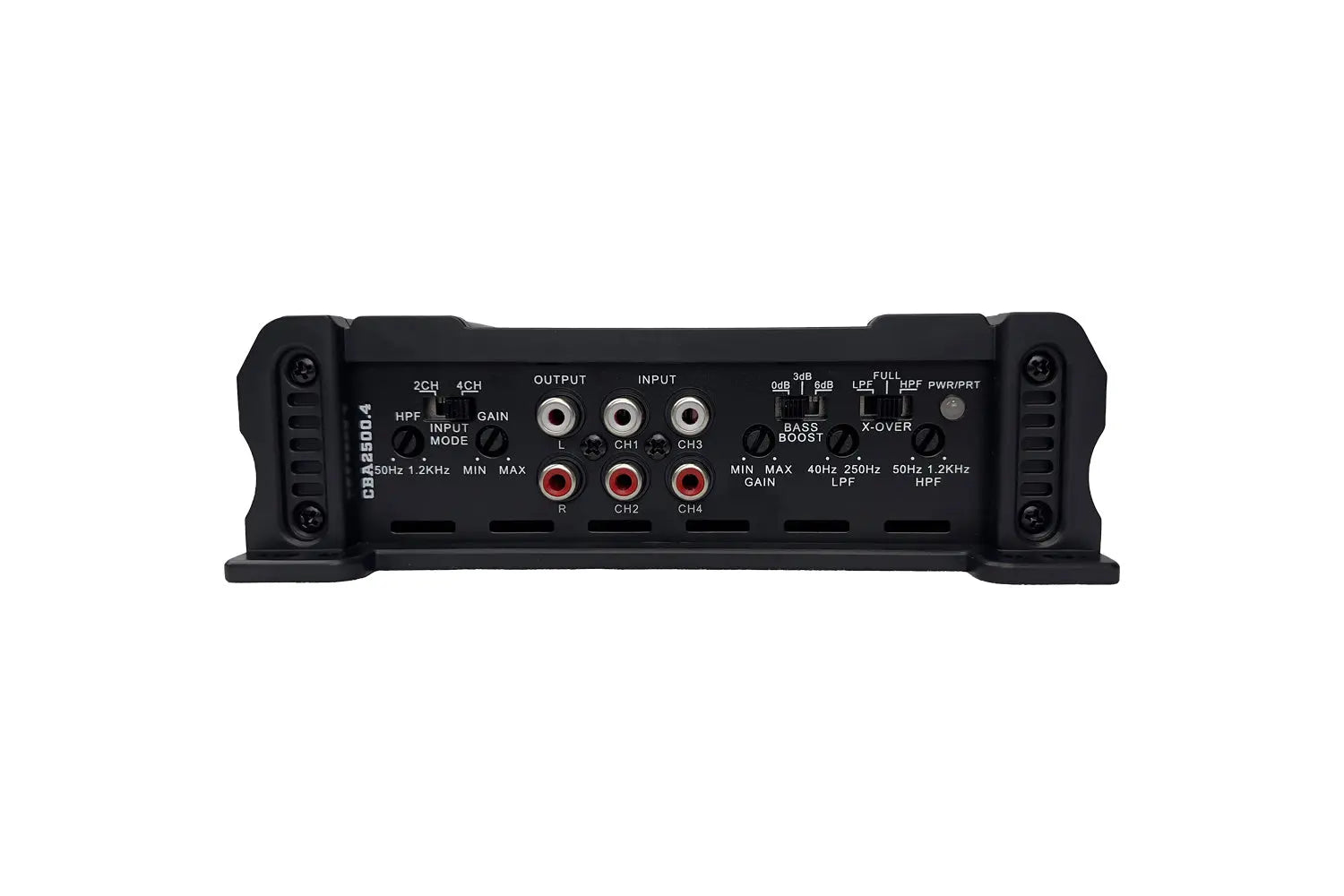

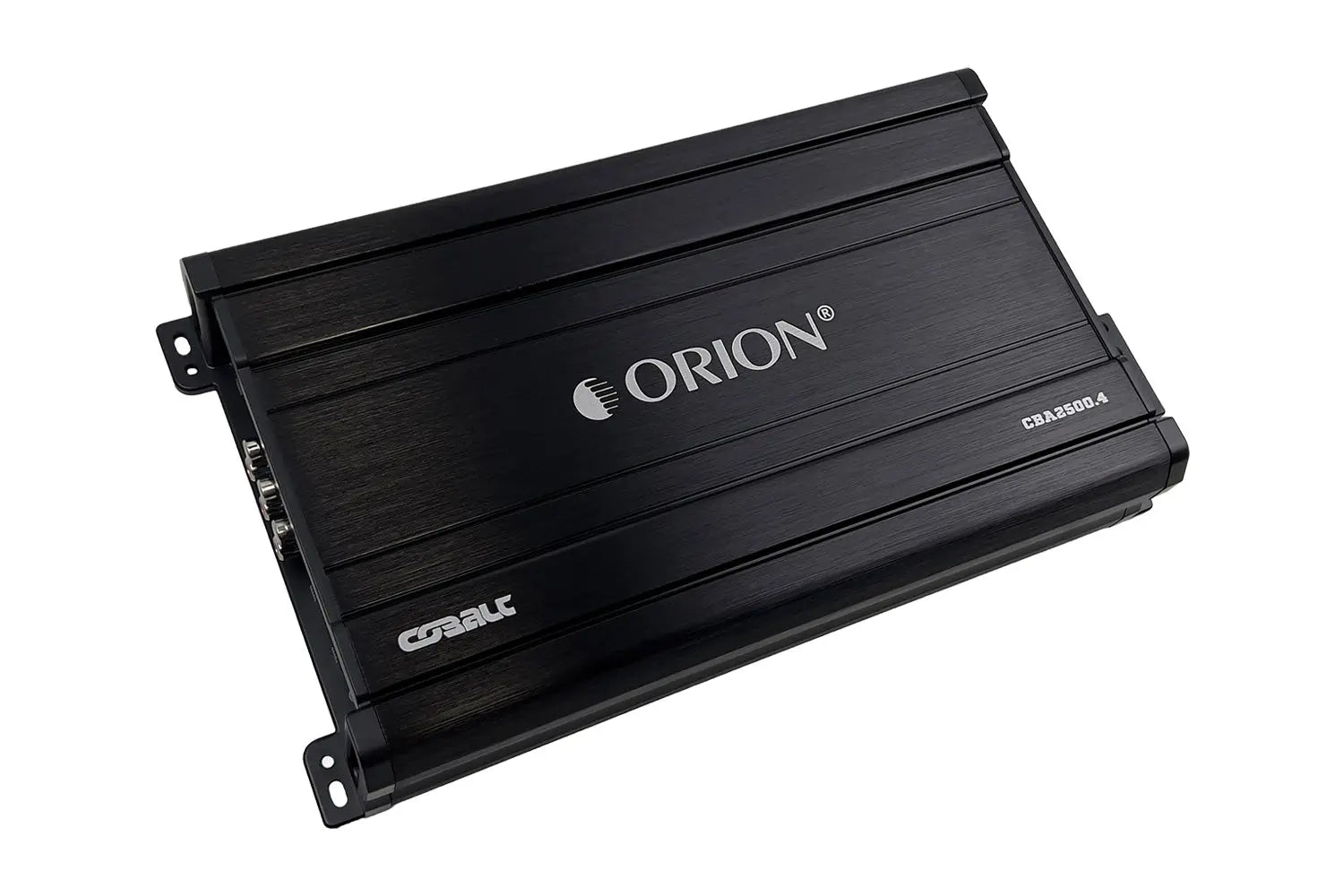

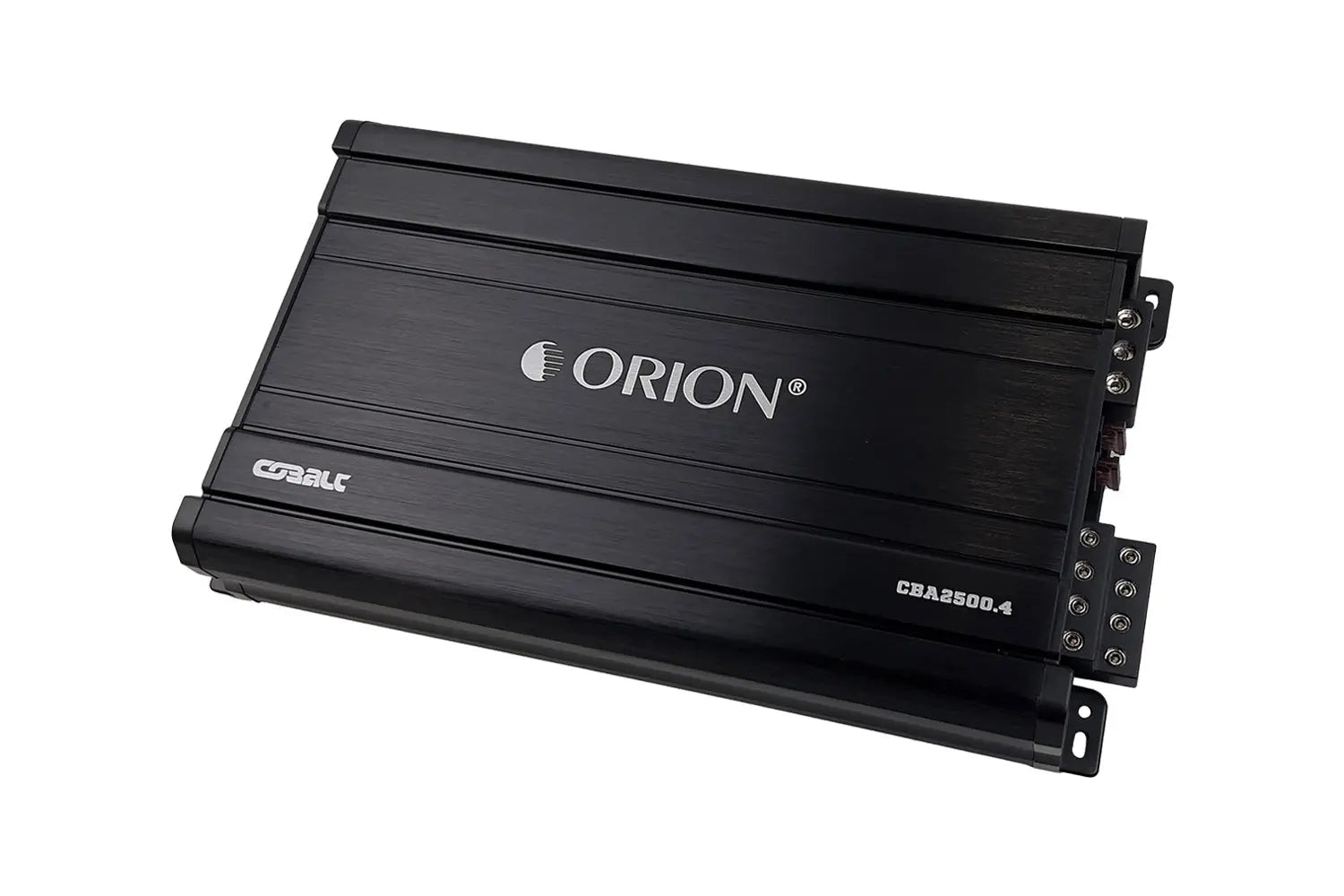

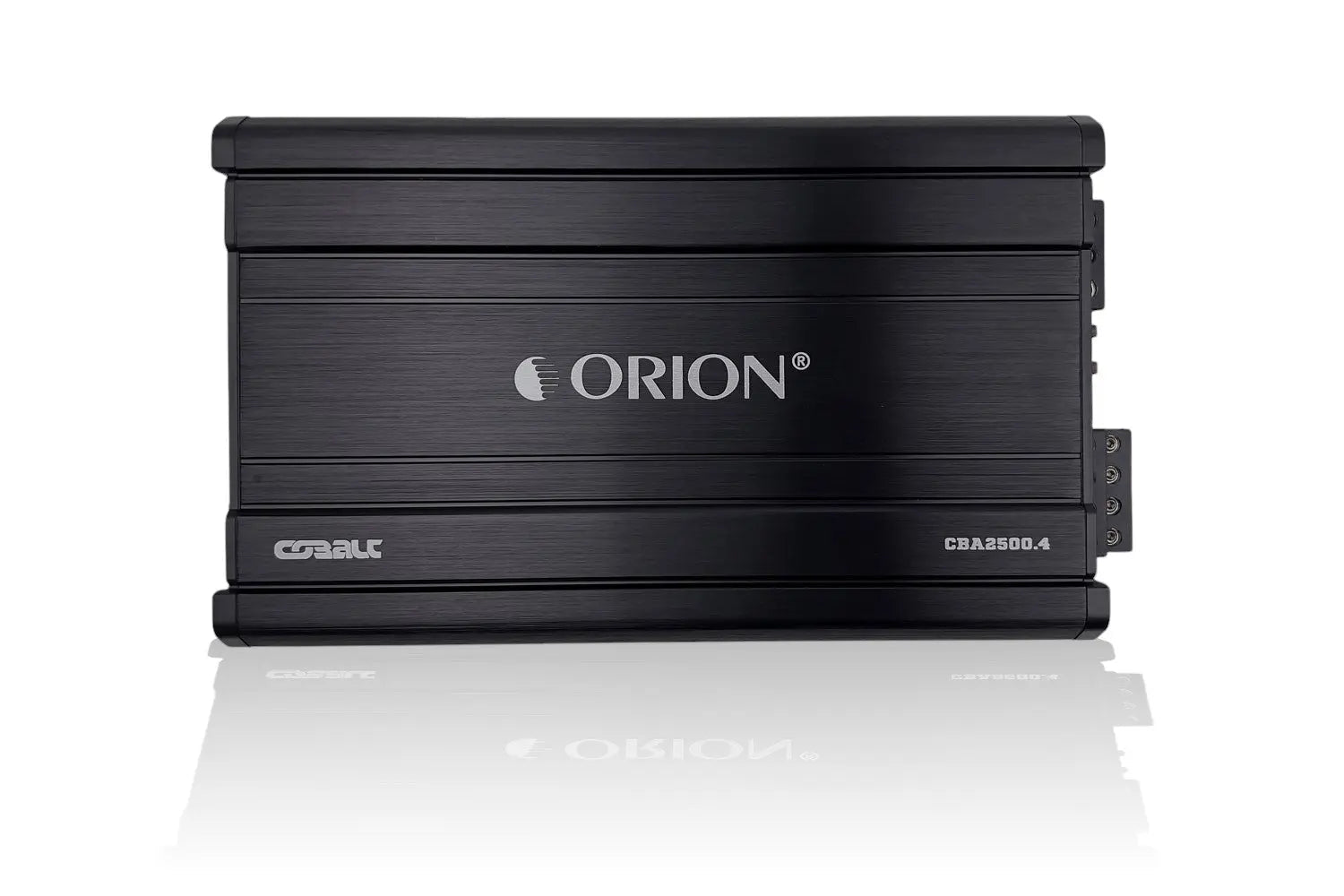

Orion CBA2500.4 COBALT Series 2500-Watt MAX 4-Channel Class A/B Amplifier

Overview

Ready to rock your ride and leave a trail of envy? The ORION CBA2500.4 COBALT Series is your new best friend for jaw-dropping sound and serious style points. If you’re tired of weak, tinny audio that just doesn’t cut it, this amplifier is here to change the game. With a massive 2500 watts of peak power, it transforms your car audio into an immersive, powerful experience. Crisp, clear, and punchy—this amp is all about turning every drive into an audio adventure.

Performance Meets Control

The ORION CBA2500.4 isn’t just about raw power—it’s about precision control. With adjustable high- and low-pass crossovers and a customizable bass boost, you can fine-tune your sound to fit your exact preferences. Whether you're building for deep bass, clear vocals, or sharp highs, this amp is your personal sound engineer.

Built for Reliability

This amp is made to last. Featuring a heavy-duty MOSFET power supply, oversized terminals, and 4-way protection circuits, it’s ready to handle heat, voltage drops, short circuits, and anything else you throw at it. With soft start and turn-on delay built in, it ensures smooth operation every time.

Key Features

• Class A/B Amplification: Delivers high-efficiency and premium sound clarity.
• 2500W MAX Output: Immersive sound experience for every drive.
• High & Low-Pass Filters: Continuously variable crossovers for frequency control.
• Bass Boost: 0/3/6dB switchable boost for low-end customization.
• 4-Way Protection: Includes thermal, DC offset, short circuit, and over/under voltage.
• MOSFET Power & Output Stage: Consistent, clean power delivery.
• Soft Turn-On/Off & Delay: Prevents pops and surges during startup/shutdown.

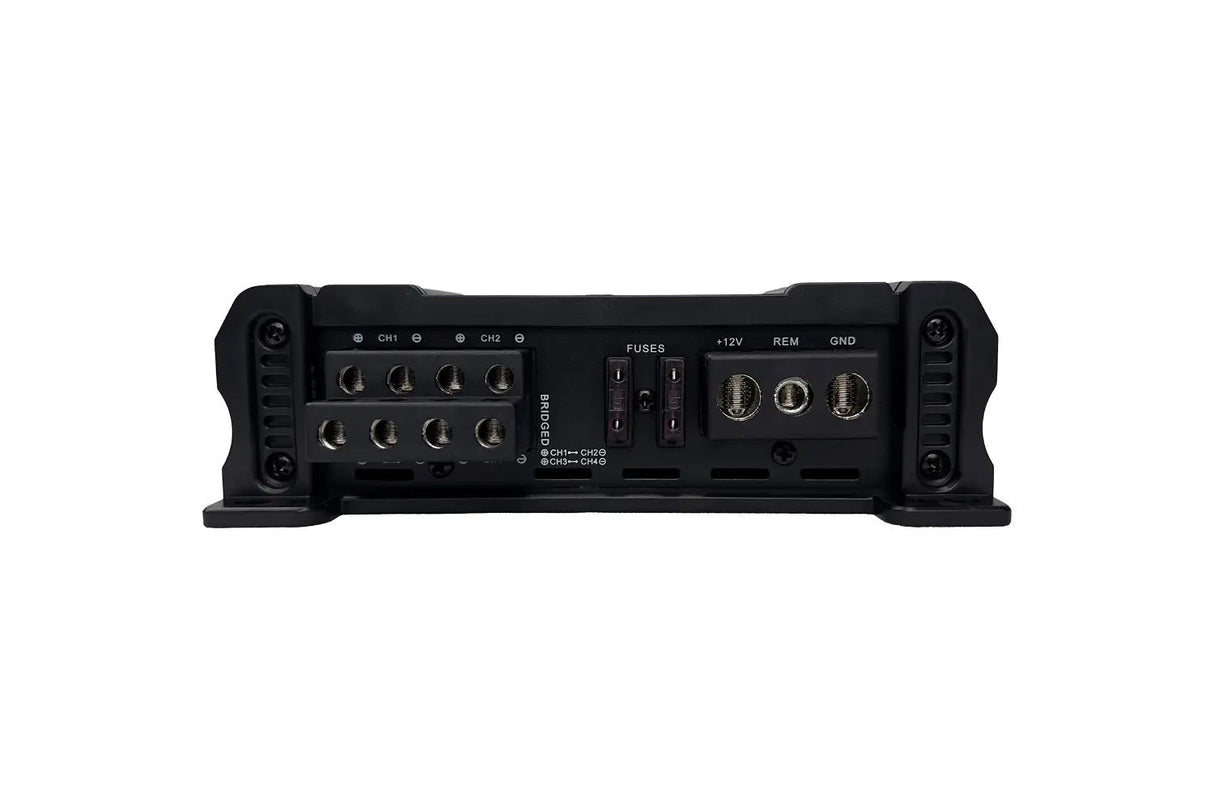

Power Terminal Management

• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG

Specifications

• MAX Power: 2500W
• Frequency Response: 10Hz – 30kHz
• High-Pass Crossover: 50Hz – 1.2kHz (continuously variable)
• Low-Pass Crossover: 40Hz – 250Hz (continuously variable)
• Bass Boost: Switchable (0/3/6dB)
• Supply Voltage: 10V – 16V
• Input Impedance: 22kΩ
• Signal to Noise Ratio: >90dB
• Variable Input Level: 0.2V – 6.0V
• Recommended Fuse: 80A (2 x 40A ATC)
• Dimensions (L x W x H): 16.5" x 7.09" x 2.13" (419 x 180 x 54mm)
