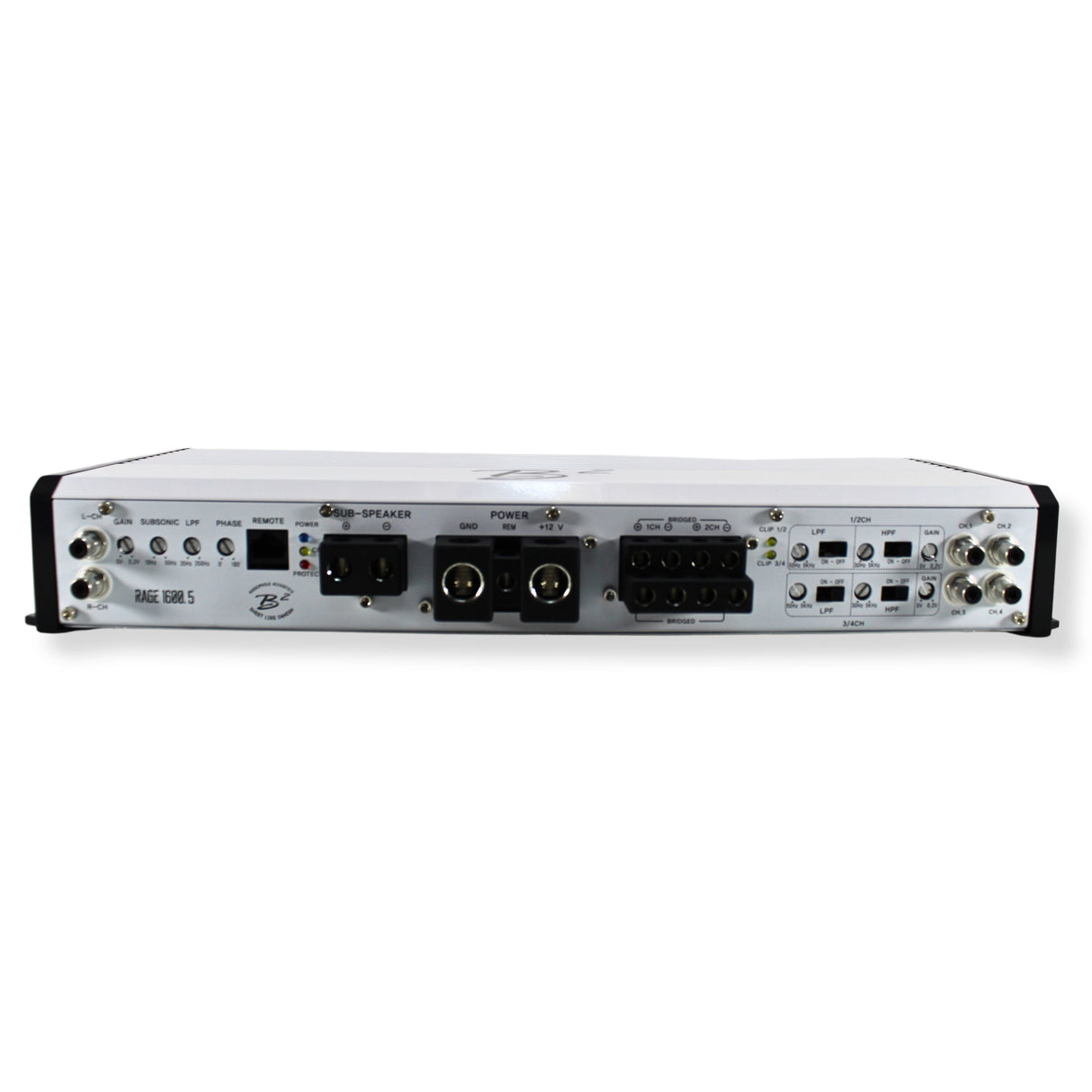

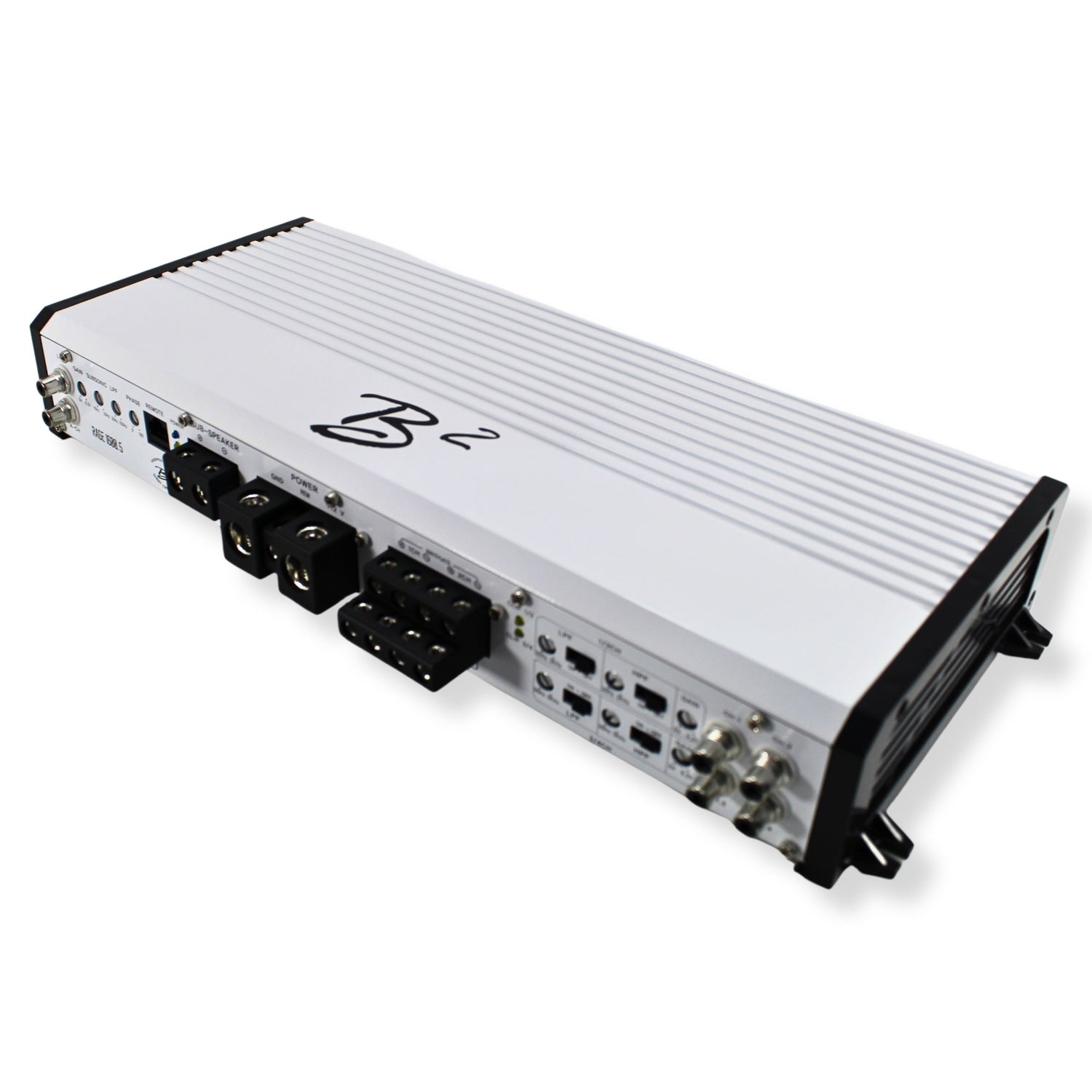

B2 Audio RAGE 5 Channel 1.6k Watt 4-Ohm Half Bridge Class-D Amplifier

• High-Performance Amplification: Delivers 1600W of total power for a superior audio experience.
• Versatile Configuration: Bridgeable Class D amplifier with 5 channels, perfect for custom car audio setups.
• Precise Controls: Includes a bass knob/volt meter with LED indicators for easy monitoring and adjustment.
• Robust Construction: Comes with mounting hardware for secure installation in your vehicle.
• Wide Frequency Response: Ensures accurate sound reproduction across the audible spectrum.

B2 Audio RAGE 5 Channel 1.6k Watt 4-Ohm Half Bridge Class-D Amplifier

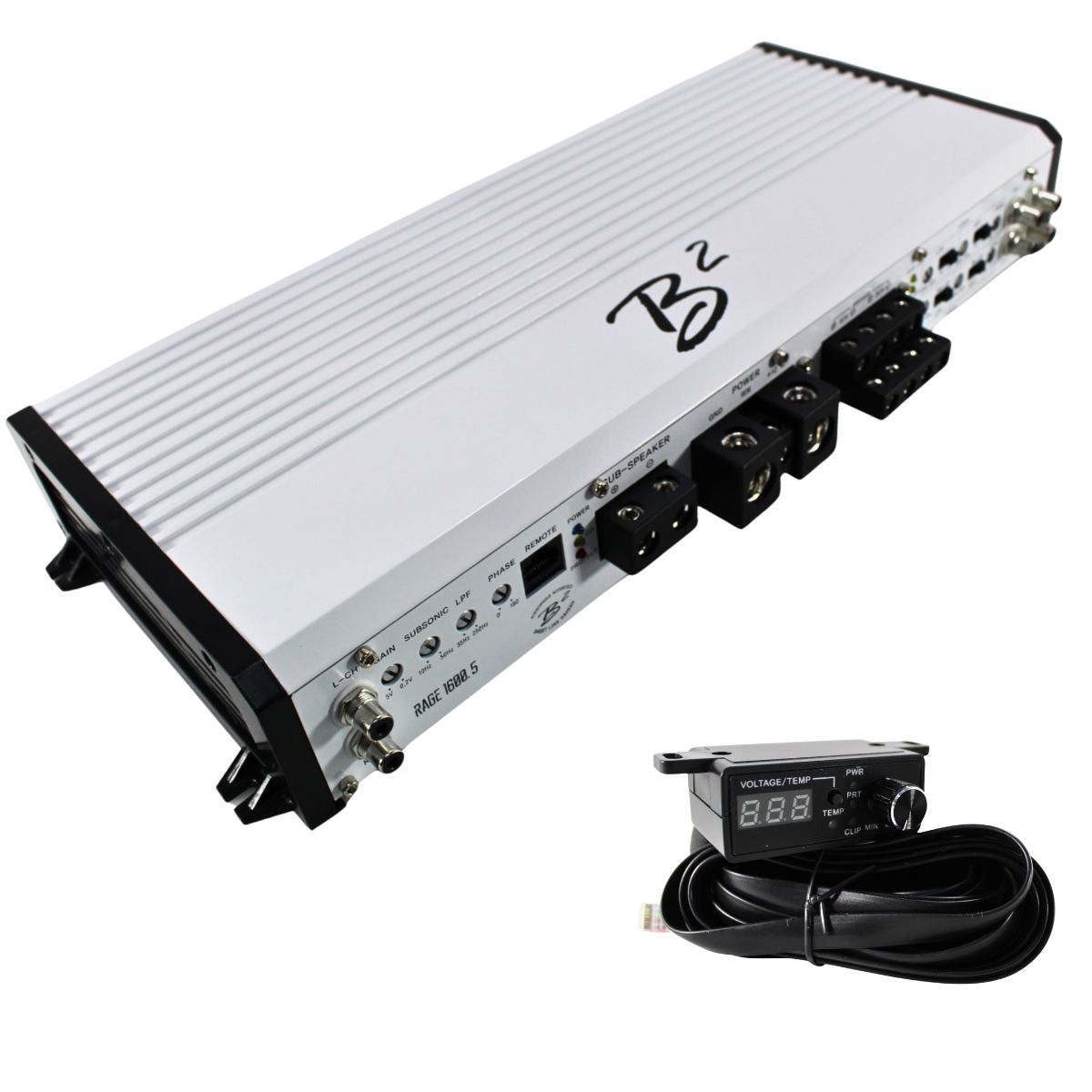

This Listing Includes:

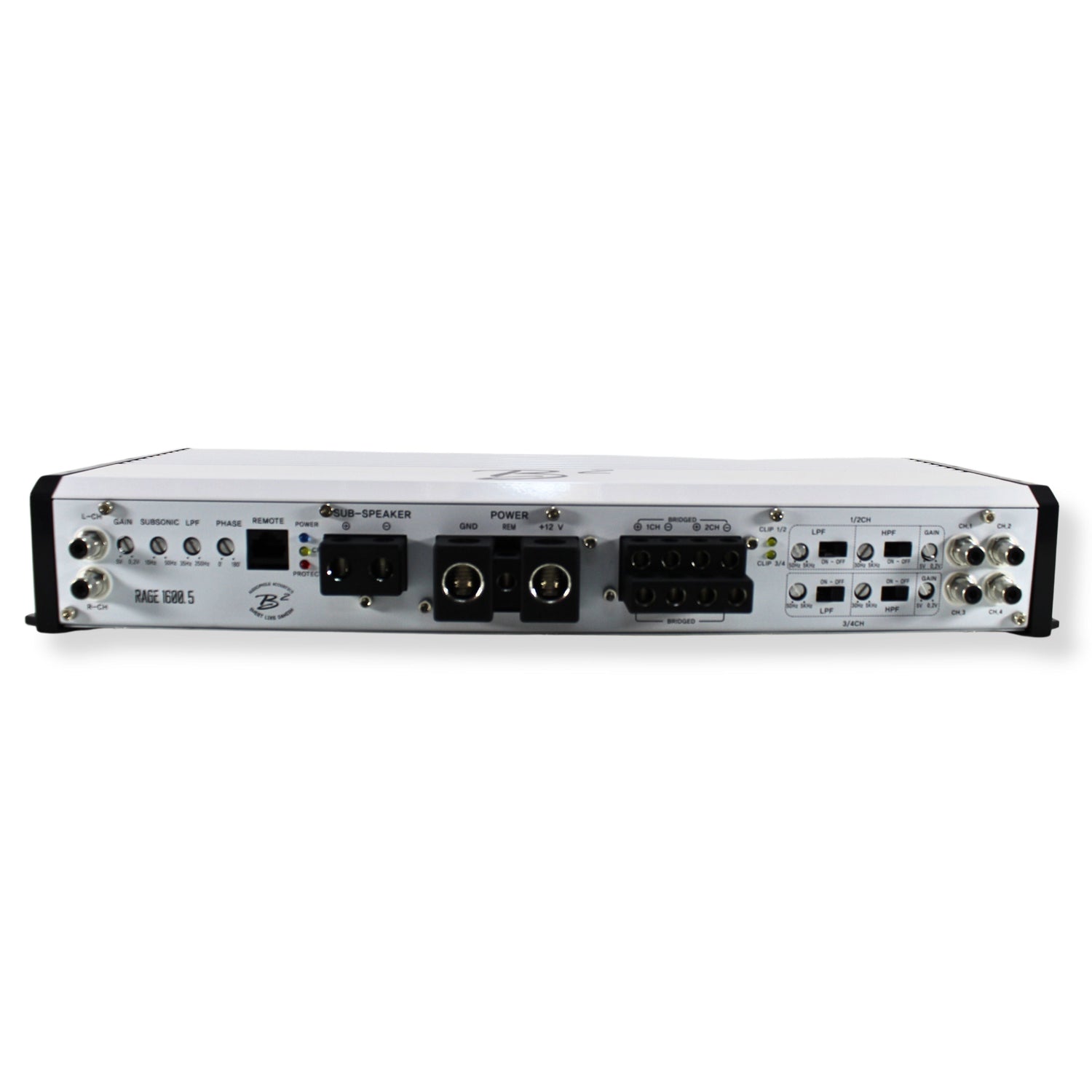

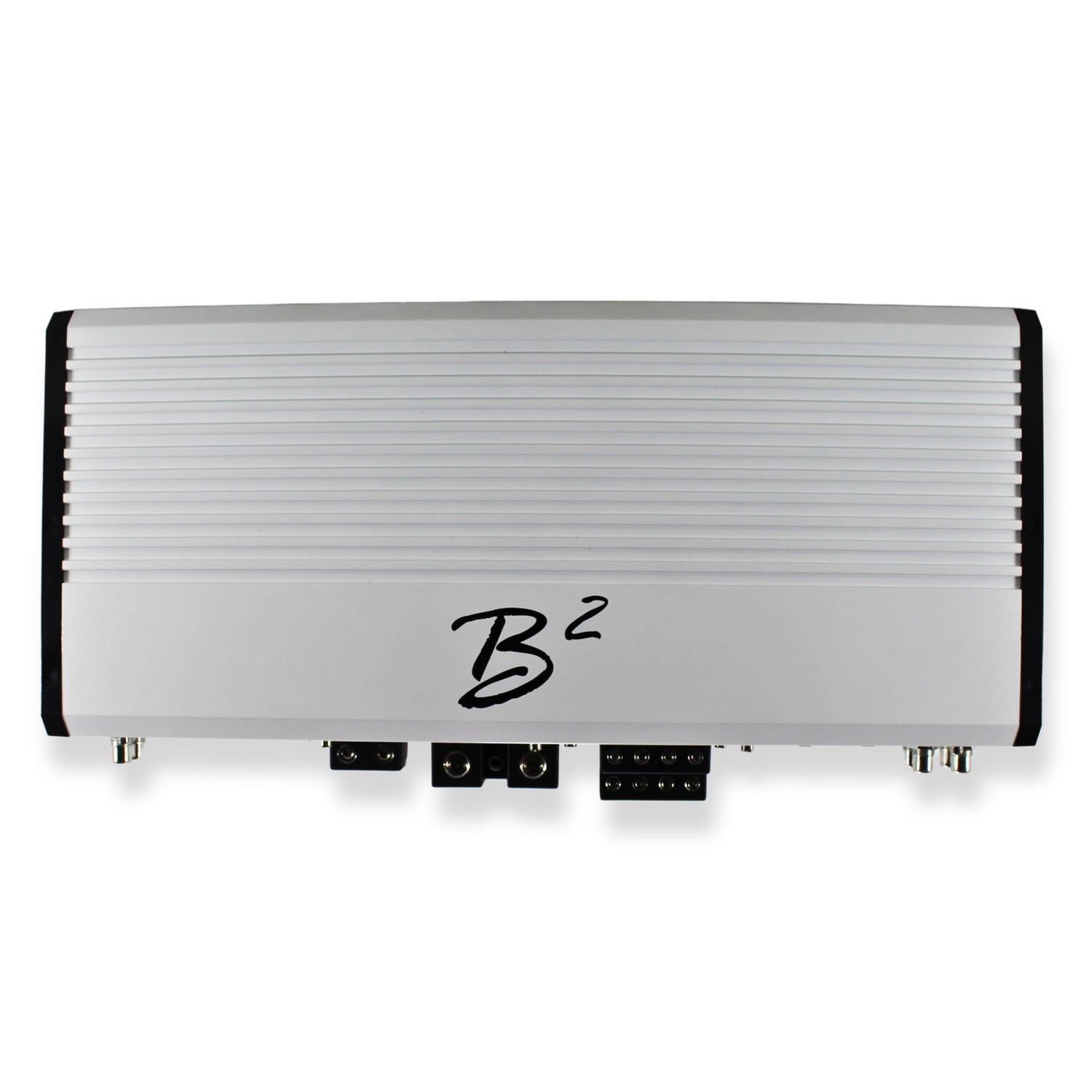

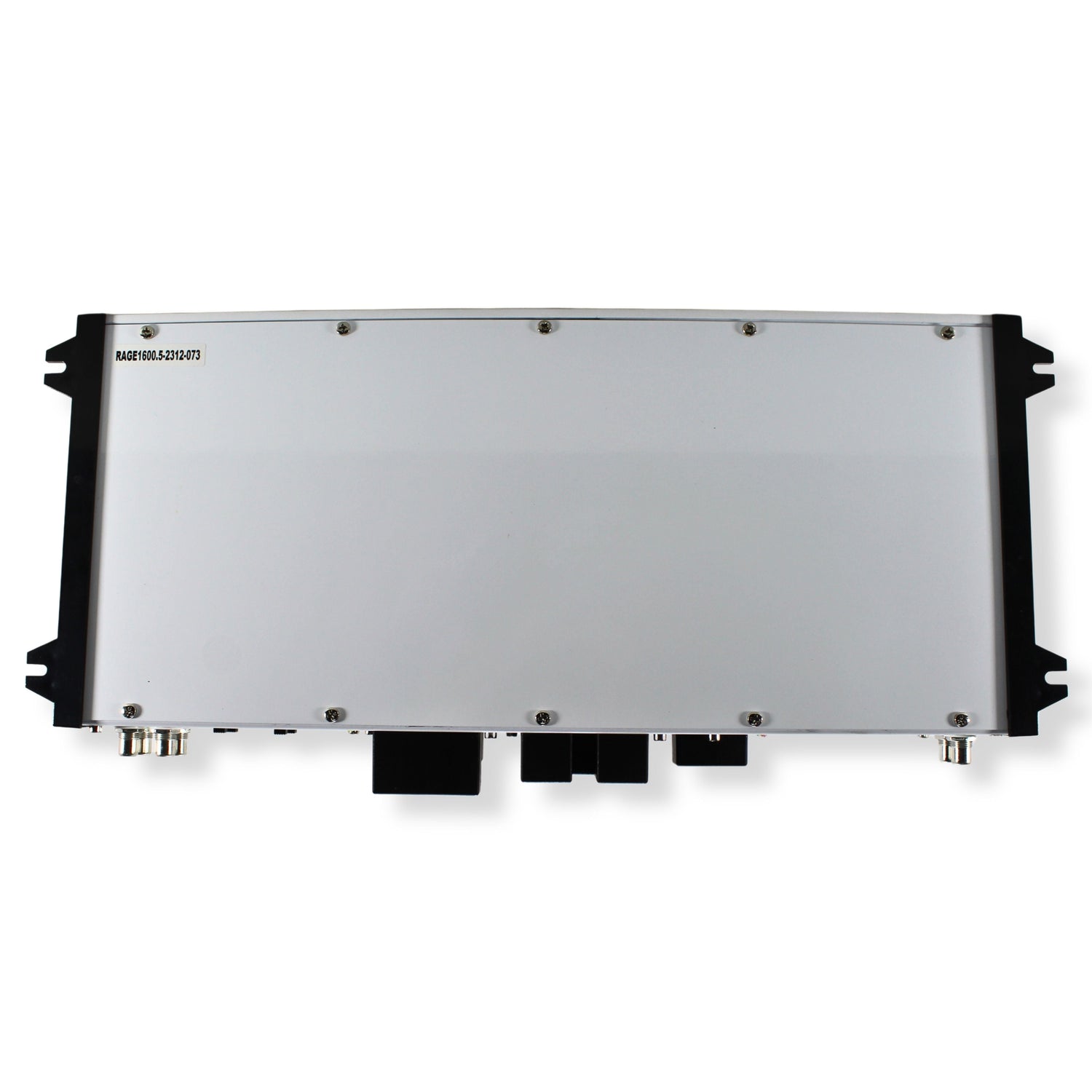

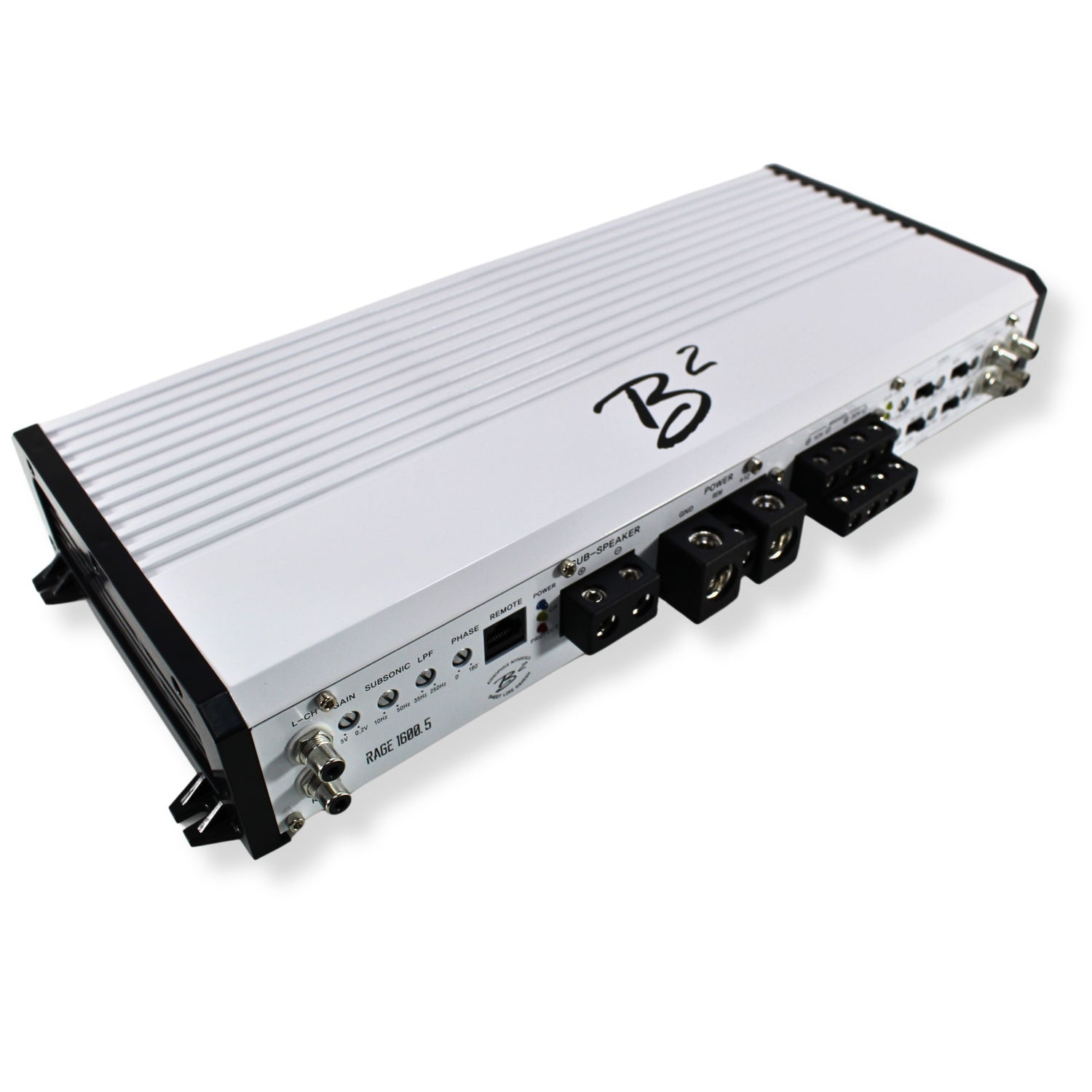

• (1) 1.6k Watt 2 Ohm 5CH Class D Amplifier

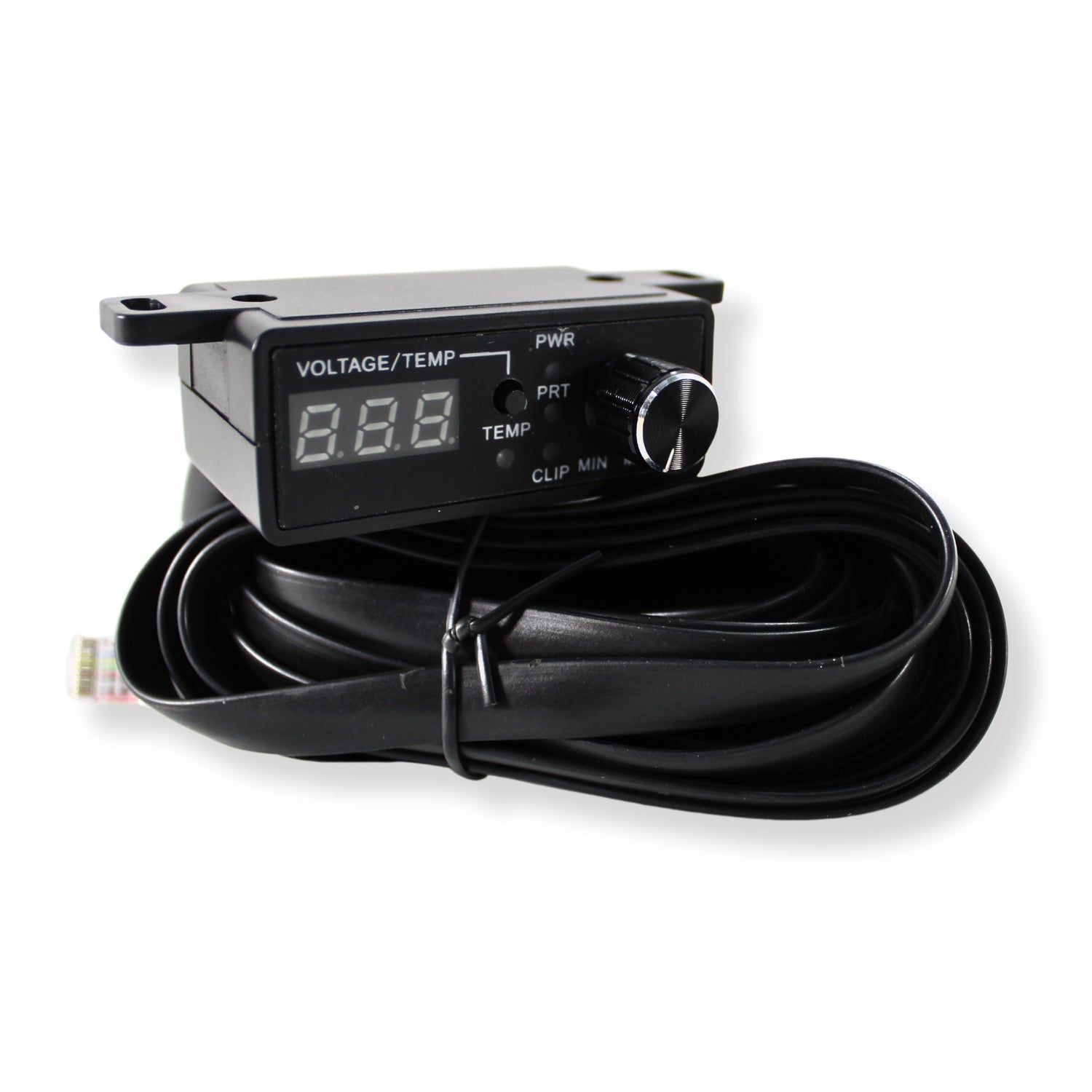

• (1) Bass Knob/ Volt Meter With PWR/CLP/PRT/TEMP LED


• (1) Set of Mounting Hardware

Unleash the fury of the B2 Audio RAGE 5-Channel 1.6k Watt Amplifier and dominate your car audio landscape with relentless power and precision. This Class D amplifier doesn't just deliver sound  it unleashes a sonic onslaught, boasting an uncompromising total output of 1600W that'll have your speakers trembling with anticipation. With RMS power ranging from 670W to 1600W, it's not just about power; it's about versatility and flexibility, allowing you to configure your speakers for maximum impact. And with the included bass knob/volt meter, you'll have total command over your audio domain, effortlessly fine-tuning your settings on the fly.

Specifications:

• Total Watts: 1600W


• RMS Power @ 4 ohm: 670W (4 x 80W + 1 x 350W)


• RMS Power @ 2 ohm: 1100W (4 x 125W + 1 x 600W)


• RMS Power Bridged: 1600W (2 x 250 @ 4-Ohm + 1 x 1100 @ 1 Ohm)


• Circuit Configuration: Hi-EF Class D


• Frequency Response: (CH 1-4: 10 Hz ~ 27 KHz) ( Ch5: 35Hz ~ 250 Hz)


• Signal to Noise Ratio: 95 DB


• Input Sensitivity: 0.2V ~ 5V


• Crossover Circuit: 24 dB / Octave


• Low Pass Crossover: (CH 1-4: 50 Hz ~ 5 KHz) ( Ch5: 35Hz ~ 250 Hz)


• High Pass Crossover: 30 Hz ~ 5 KHz


• Power Terminal Guage: 0 AWG


• Fuse Rating: 150 A

Measurements:

• Length: 16.73" / 425mm


• Width: 7.87" / 200mm


• Height: 2.75" / 70mm
