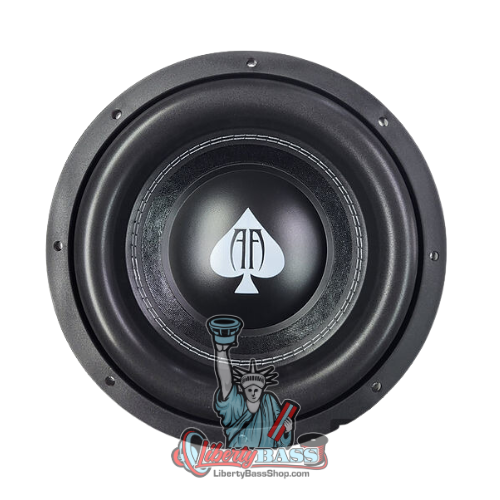

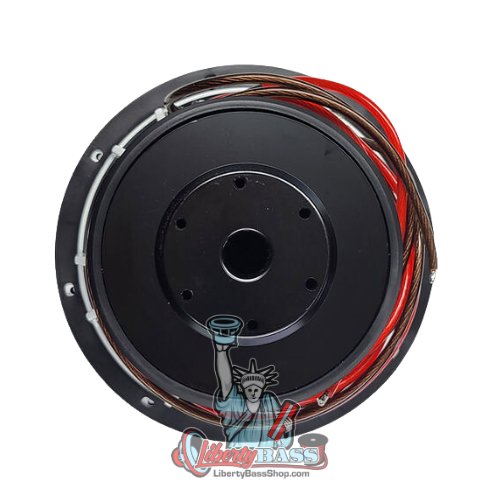

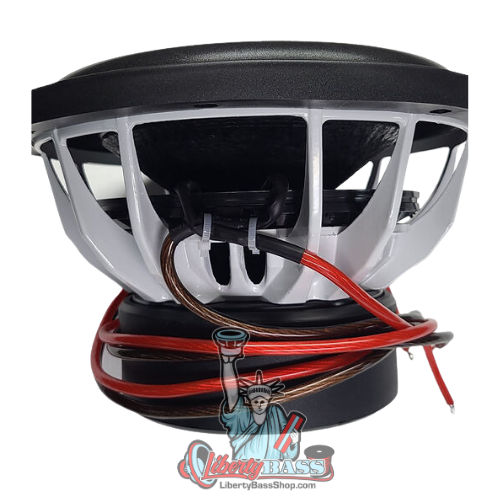

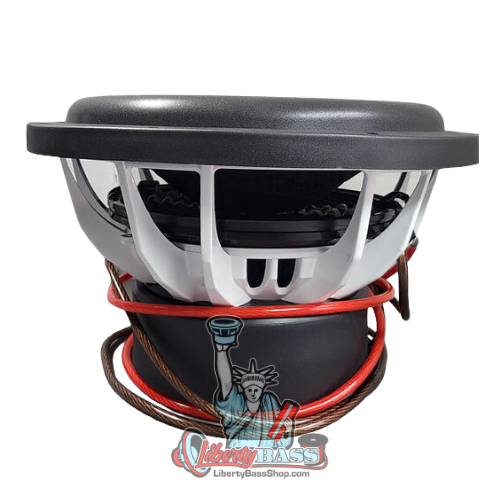

Joker 12" Subwoofer – 1000W RMS | Dual 4 Ohm

Don’t let the name fool you—the Joker 12" Subwoofer is no joke. Known as one of the most popular and best-performing subs in its class, the Joker delivers ground-pounding bass and dependable performance. Rated at a conservative 1000 watts RMS, this subwoofer is built to exceed expectations and deliver performance far beyond its price point.

Key Features

• Size: 12 Inches
• RMS Power Handling: 1000W (very conservative)
• Voice Coil: 3" 4-layer epoxy-coated high-temp coil
• Magnet: 168 oz FEA-optimized high-efficiency motor
• Surround: Wide-roll surround for high excursion
• Impedance: Dual 4 Ohm
• Mounting Depth: 7.0 inches
• Cutout Diameter: 11.181 inches

Box Recommendations

• Sealed: 1.0 cubic foot
• Ported: 1.5 – 1.75 cubic feet
• Port Area: 12–14 sq in per cubic foot
• Tuning: 30 – 36 Hz
• Enclosure Compatibility: Sealed, Ported, 4th Order, and 6th Order Bandpass

TS Parameters

Electrical

• Re: 3.81 Ω
• Le: 3.889 mH
• L2: 7.185 mH
• R2: 19.98 Ω
• Cmes: 680.55 µF
• Lces: 45.07 mH
• Res: 35.60 Ω
• Fs: 28.7 Hz

Mechanical

• Mms: 376.26 g
• Mmd: 364.47 g
• Rms: 15.532 kg/s
• Cms: 0.082 mm/N
• Kms: 12.27 N/mm
• Bl: 23.513 T·m

Loss Factors

• Qtp: 0.431
• Qms: 4.374
• Qes: 0.468
• Qts: 0.422

Miscellaneous

• Vas: 25.638 liters
• n₀ (Efficiency): 0.125%
• Sensitivity (1W/1m): 83.17 dB
• Lnom: 83.39 dB

From Mild to Wild

The Joker 12" subwoofer is versatile enough for daily builds, demo setups, or even SPL projects on a budget. Its robust motor structure and coil design deliver clean bass with punch and depth across all enclosure types.

Reliable, Custom-Ready, and Fun to Play

Whether you're running sealed for control, ported for output, or experimenting with a 4th or 6th order setup, the Joker 12" Subwoofer can take it. With a cone that's also suitable for custom dyeing, it can stand out in both performance and presentation.

Order your Joker 12" Subwoofer today and experience why this legendary model continues to outshine expectations in bass lanes everywhere.
