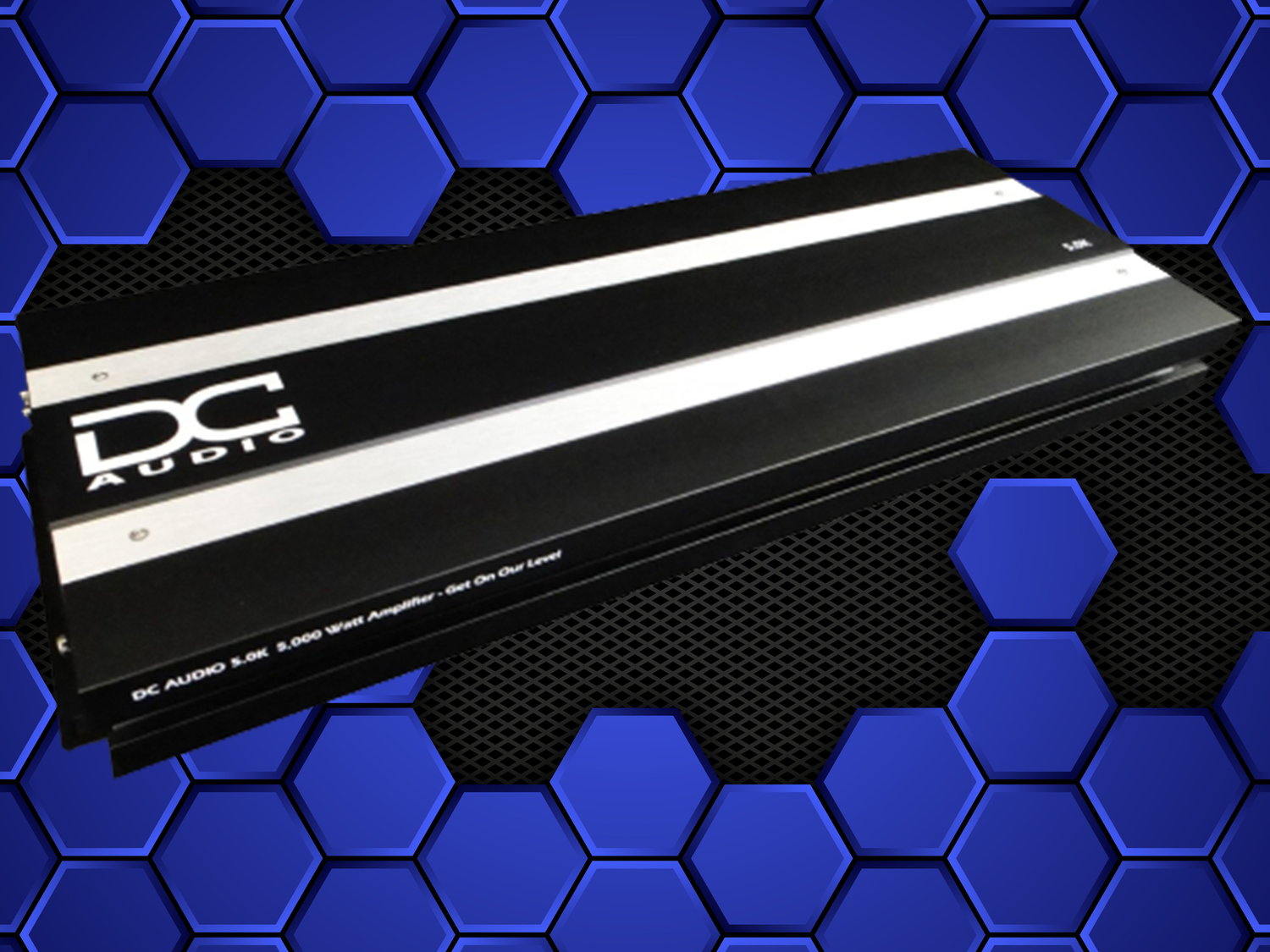

DC Audio 5.0k Amplifier
The DC Audio 5.0k Amplifier is a 5,000 watt competition monoblock that’s fully linkable—run 1Ω per amp or 2Ω when linked to unleash up to ~14,600 watts per pair (at 18V). Includes a wired bass knob with a clipping indicator for precise control and safe power at the edge of performance.
Linking guidance: Use 2Ω final load when linking a pair. Observe manufacturer voltage guidelines and ensure your electrical system (batteries/alternator/wiring) can support current draw at your target voltage.
DC Audio 5.0k — Output Power (RMS)
- 900W x1 @ 4Ω (14.4V)
- 2,300W x1 @ 2Ω (14.4V)
- 5,000W x1 @ 1Ω (14.4V)
- 10,000W x1 @ 2Ω (14.4V) — Linked
- 6,000W x1 @ 1Ω (16.0V)
- 12,000W x1 @ 2Ω (16.0V) — Linked
- 7,300W x1 @ 1Ω (18.0V)
- 14,600W x1 @ 2Ω (18.0V) — Linked

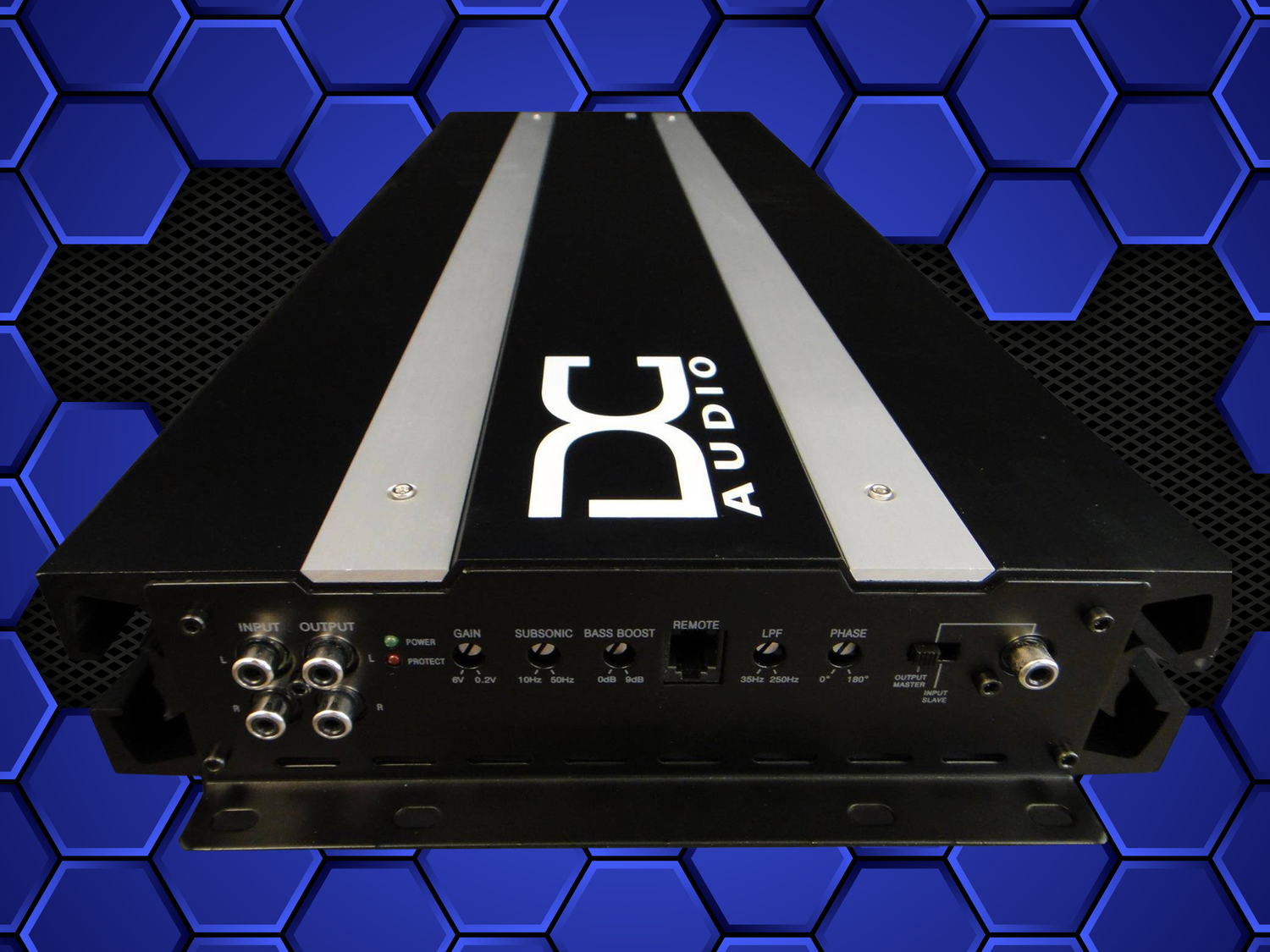

Key Features — DC Audio 5.0k Competition Monoblock
- 1Ω stable architecture for maximum output
- Linkable (Master/Slave) for high-power multi-amp setups
- Variable low-pass filter (35Hz–250Hz)
- Variable subsonic filter (10Hz–50Hz)
- Variable bass boost @45Hz (0–9dB)
- Phase shift (0–180°)
- RCA pass-thru for easy system expansion

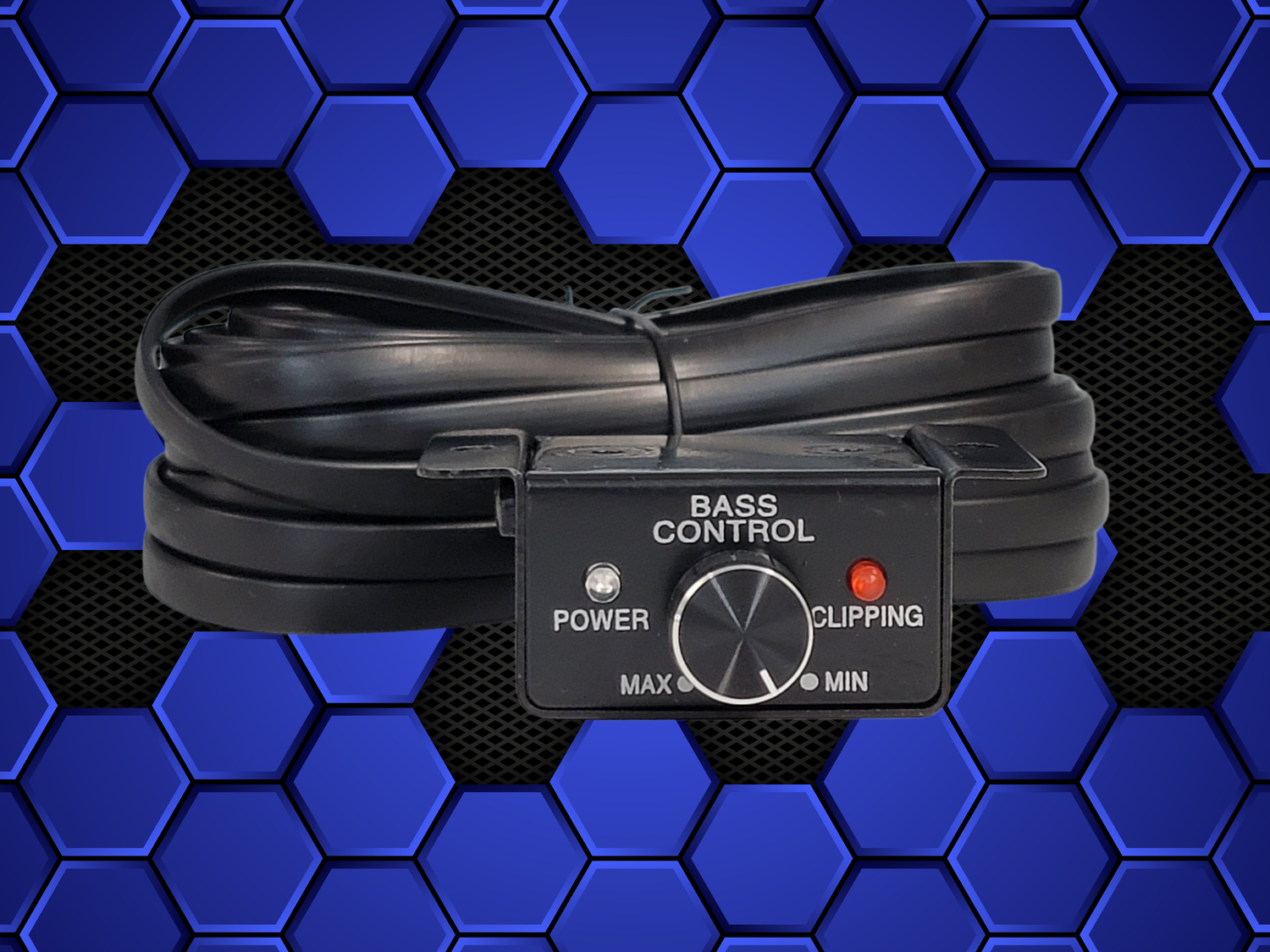

- Wired remote control with clipping indicator
- 8 AWG speaker terminals

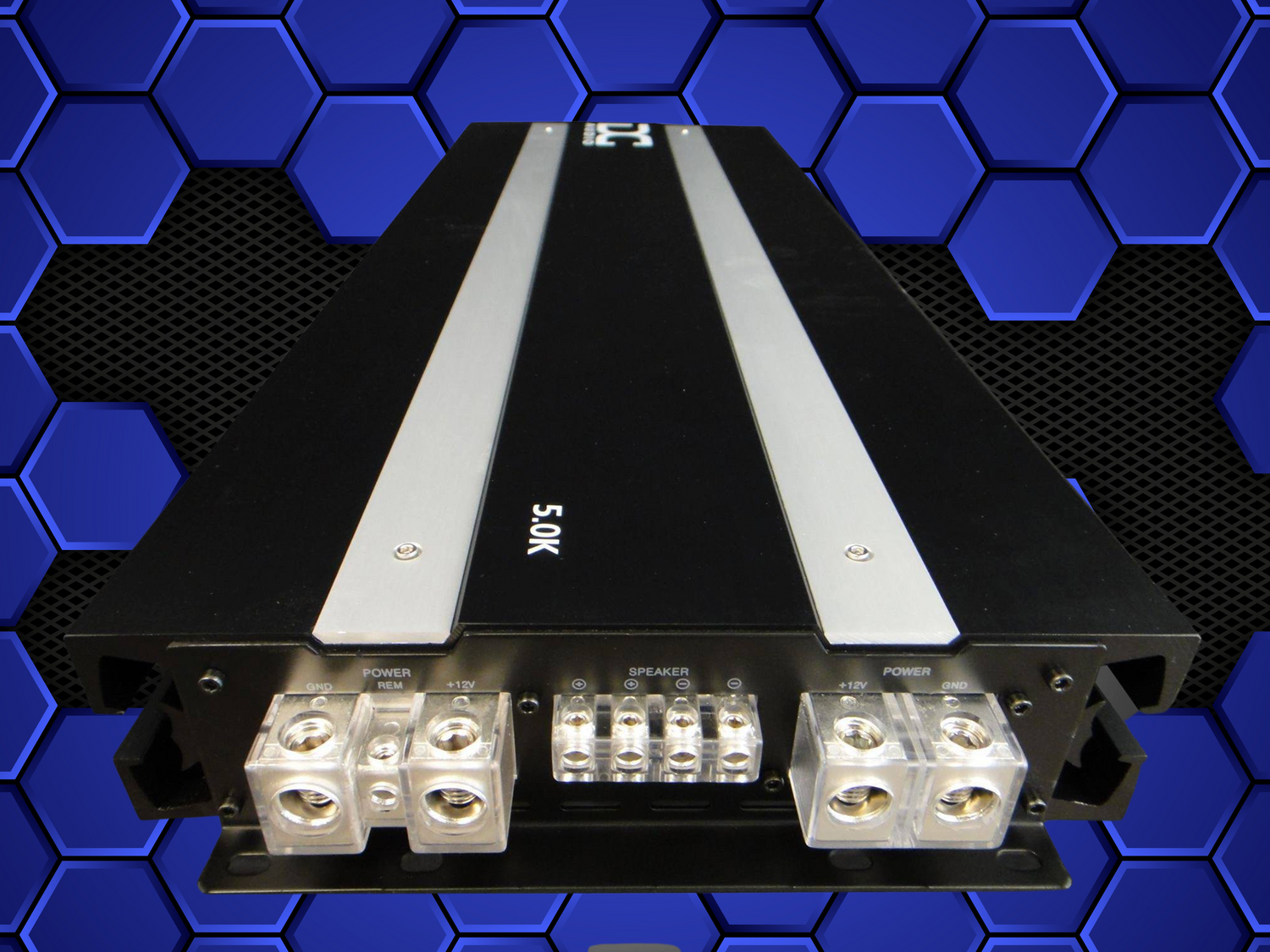

- Dual 1/0 AWG power and ground inputs
DC Audio 5.0k — Full Specifications
| Model | 5.0k |
|---|---|
| Input Sensitivity | 6V ~ 0.2V |
| Frequency Response | 20Hz ~ 250Hz |
| Crossover Slope | 24dB / Octave |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz ~ 50Hz |
| Bass Boost | 0 ~ 9dB @ 45Hz |
| Phase Shift | 0 ~ 180° |
| Remote Control | Yes — with Clipping Indicator |
| Signal-to-Noise Ratio | 100 dB |
| Damping Factor | >200 |
| THD @ 4Ω | < 0.1% |
| Fuse Rating | External 250A × 2 |
| LED Status | Power & Protect |
| Master/Slave | Yes (Linkable) |
| Heatsink (L × W × H) | 25.596" × 9.38" × 2.35" (650 × 238 × 59.6 mm) |
Why Choose the DC Audio 5.0k Amplifier?
Perfect for serious SPL competitors and high-output daily builds, the DC Audio 5.0k blends compact size with massive power. With dual 1/0 inputs, precise filtering, and a clip-indicating bass knob, it’s tuned for reliability and control when you’re pushing heavy subwoofer loads.
Install Tips for Linkable High-Power Amps
- Use true OFC 1/0 AWG power/ground cable with proper fusing at the source.
- When linking, maintain a 2Ω final load across the pair and equalize gains carefully.
- Grounds should be short, solid, and matched; verify voltage stability before wide-open demos.
