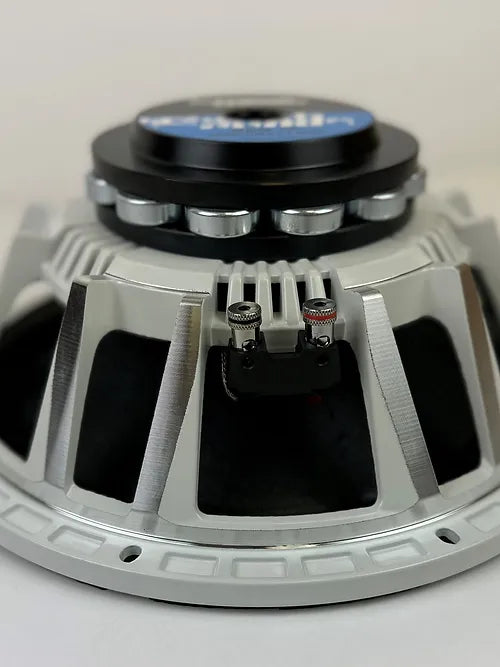

Resilient Sounds NEO 10 – 1000W 10" Midrange Speaker
Resilient Sounds NEO 10 – 1000W 10" Midrange Speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Resilient Sounds NEO 10 – 1000W 10" Midrange Speaker
The Resilient Sounds NEO 10 is engineered for enthusiasts who demand precision, clarity, and power in their midbass and midrange performance. Featuring a lightweight neodymium motor and a robust 2.5” CCAW voice coil, this 10” pro-style driver delivers high efficiency and impactful sound reproduction. With 1000W max power handling and 98.5 dB sensitivity, the NEO 10 is purpose-built for serious car audio systems where output and accuracy matter most.
Designed for both competitive builds and high-performance daily setups, the NEO 10 covers a wide frequency response of 75Hz – 6.5kHz, ensuring dynamic midbass punch and detailed upper midrange projection.
🔑 Key Features
- 1000W Max / 500W RMS – Handles serious power with ease.
- 98.5 dB Sensitivity – Loud and efficient output for high SPL.
- Neodymium Magnet – Lightweight yet powerful motor system.
- 2.5” CCAW Voice Coil – High-temp design for long-term durability.
- 75Hz – 6.5kHz Frequency Response – Strong midbass and clear mids.
- Lightweight Build – Optimized for high-performance use without added bulk.
📊 General Specifications
| Nominal Diameter | 10” (254mm) |
| Impedance | 4Ω |
| Power Handling | 1000W Max / 500W RMS |
| Sensitivity | 98.5 dB |
| Magnet Material | Neodymium |
| Voice Coil Diameter | 2.5” |
| Voice Coil Wire | CCAW |
⚙️ Thiele-Small Parameters
| Vas | 26.8 L |
| Fs | 76 Hz |
| Qms | 4.5 |
| Qes | 0.37 |
| Qts | 0.34 |
| Sd | 349.6 cm² |
| Mms | 27.96 g |
| BL | 10.77 Tm |
| Re | 3.2Ω |
📐 Mounting Information
| Overall Diameter | 10.31” (262mm) |
| Baffle Cutout | 9.25” (235mm) |
| Mounting Depth | 4.09” (104mm) |
| Overall Depth | 4.52” (115mm) |
⚡ The Resilient Sounds NEO 10 is the ultimate choice for anyone looking to add precise, efficient, and powerful midbass/midrange performance to their car audio system. Built for reliability and clarity, it is the perfect solution for competition-level builds or high-performance daily drivers.
