Sundown Audio | SKU:
SW-SAV38D4
25% off
25% off

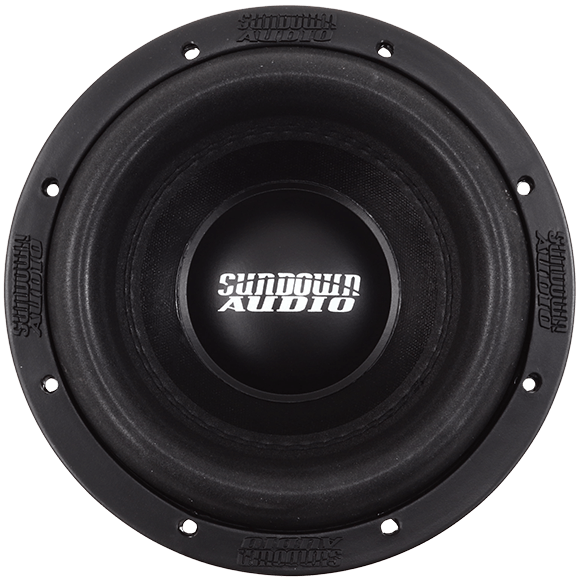

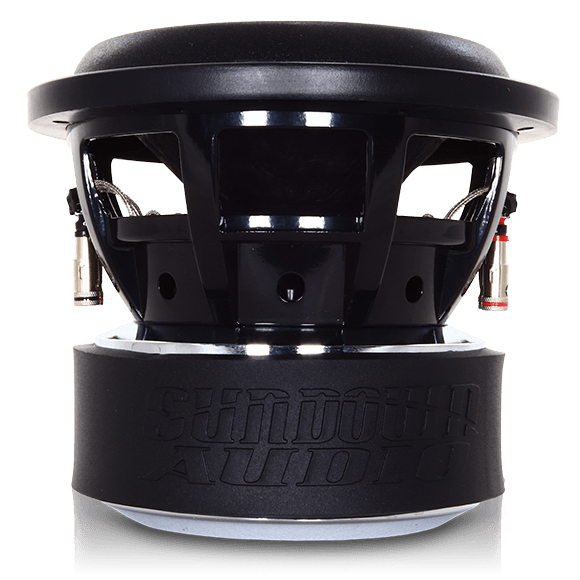

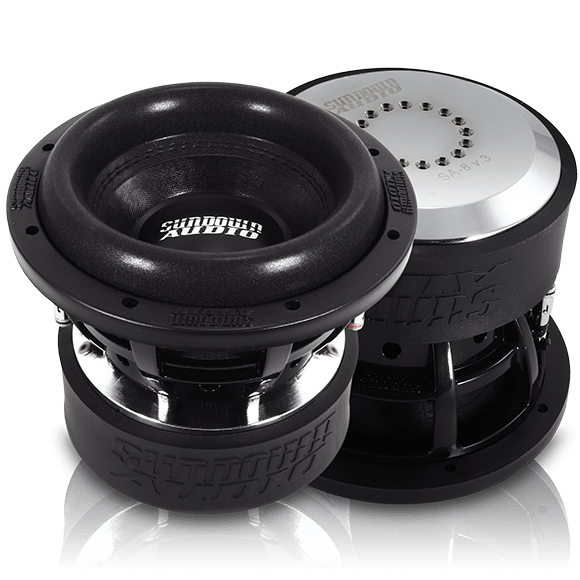

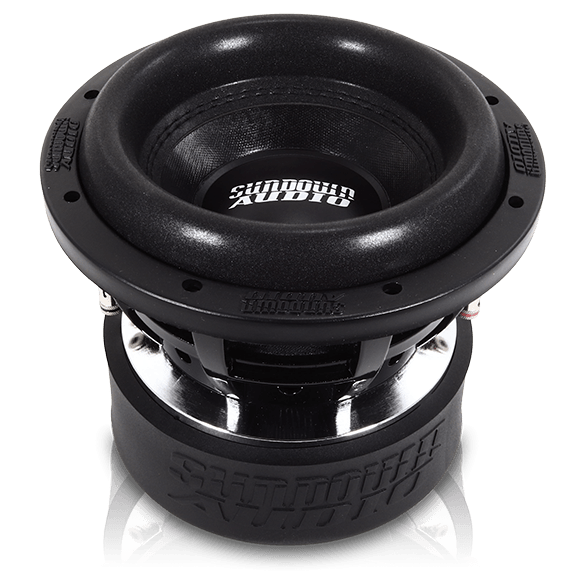

Sundown Audio SA-Series v.3 8" Subwoofer
$299.99 USD
$397.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Sundown Audio SA-Series v.3 8" Subwoofer - D4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- 600 Watts RMS/1200 Watts Peak
- Dual 2 or 4 ohm voice coils

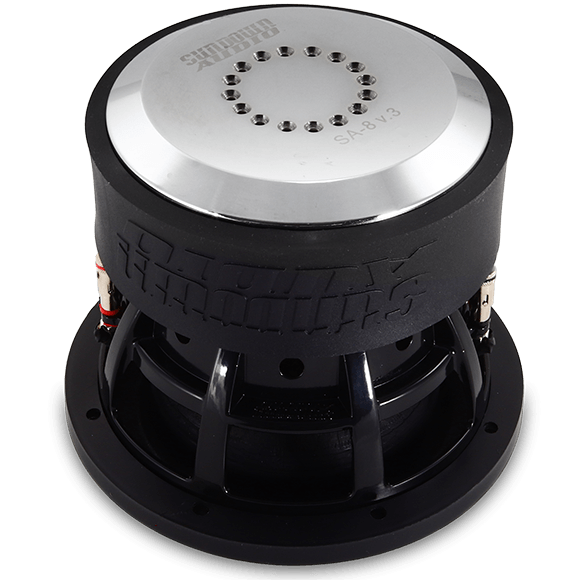

- Vented magnetic gap with 16 chamfered vents
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire

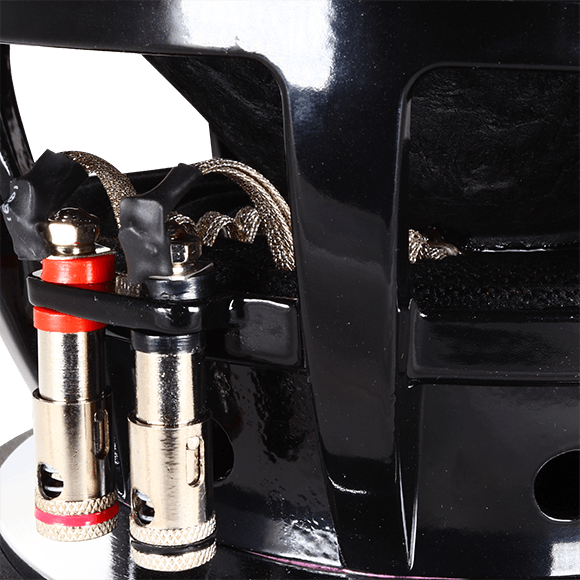

- Spring-loaded terminals
- Stitched-on “XL” tinsel lead wires
SA V.3 8"
| RE (Ohms) | 3.36 | 6.0 |
| FS (Hz) | 38.29 | 40.0 |
| VAS (L) | 6.88 | 7.17 |
| Qes | 0.324 | 0.392 |
| Qms | 6.31 | 4.31 |
| Qts | 0.309 | 0.36 |
| Le (mH) | 2.08 | 3.32 |
| BL (NA) | 18.94 | 22.06 |
| Mms (Grams) | 144 | 126.6 |
| Cms (uM/N) | 120 | 125 |
| Sens (dB @ 1w/1m) | 82.79 | 82.71 |
| Xmax | 16mm | 16mm |
| T/S SPECS | SAV3 8″ D2 | SAV3 8″ D4 |
|---|
SA V.3 8"
| Sealed Enclosure | 0.3 cu ft |
| Ported Enclosure | 0.65 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 9 sq in |
| Displacement | 0.08 cu ft |
| Depth | 6.625″ |
| Outside Diameter | 8.629″ |
| Cut-Out | 7.375″ |
| Physical Dimensions | Download |
