DC Audio | SKU:
DC Pitbull 20k
14% off
DC Audio "PITBULL 20k" 20,000 watt Mono Block Amplifier
$3,324.99 USD
$3,849.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DC Audio "PITBULL 20k" 20,000 watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Subscribe to our newsletter
Sign up for exclusive offers.
DC Audio "PITBULL 20k" 20,000 watt Mono Block Amplifier
$3,324.99 USD
$3,849.99
Unit price
/
Unavailable
Description
Description

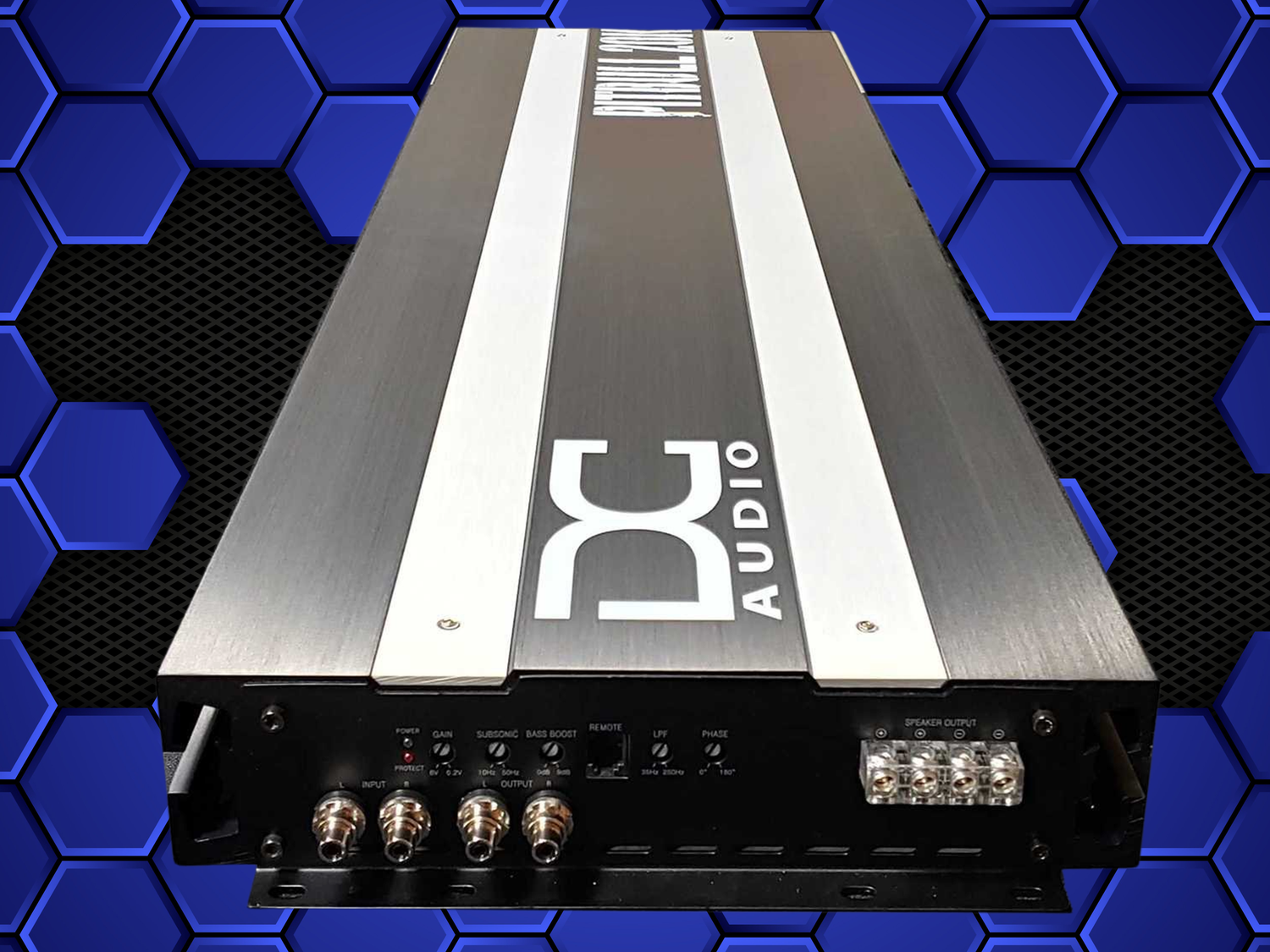

DC Audio Pitbull 20k Amplifier
The Pitbull 20k competition series amplifier is rated as a 20,000 watt mono block. It comes with a bass knob that has a built in Clipping indicator. It is designed for 12-volt systems and will not function over 16.0 volts. Charging over 16.0 or running below 1 ohm will void your warranty.
Output Power (RMS):
- 7,500x1 @ 4 ohms 14.4 volts
- 13,000x1 @ 2 ohms 14.4 volts
- 20,000x1 @ 1 ohms 14.4 volts
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru

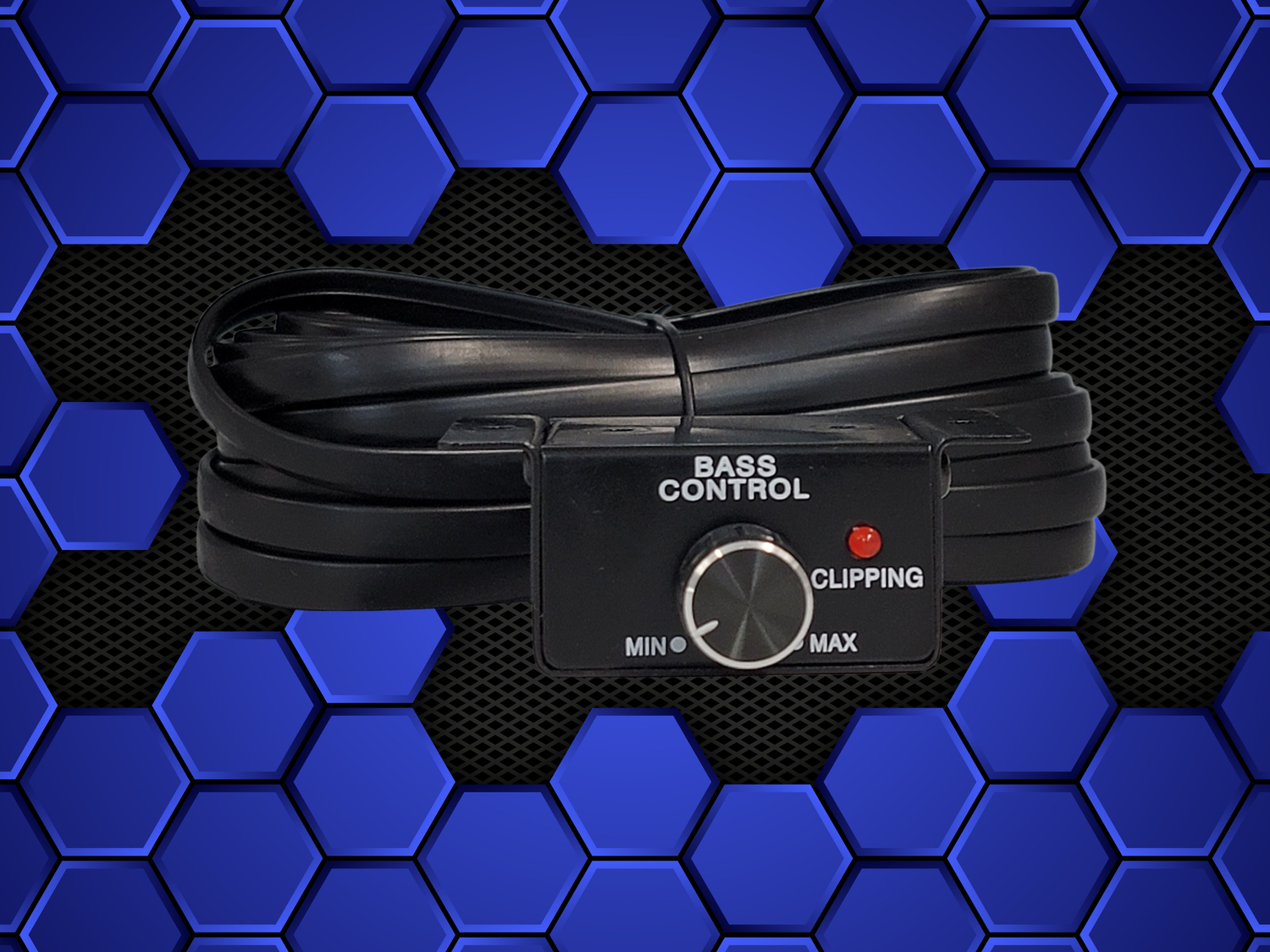

- Wired remote control
- Clipping Indicator
- 8awg Speaker Terminals

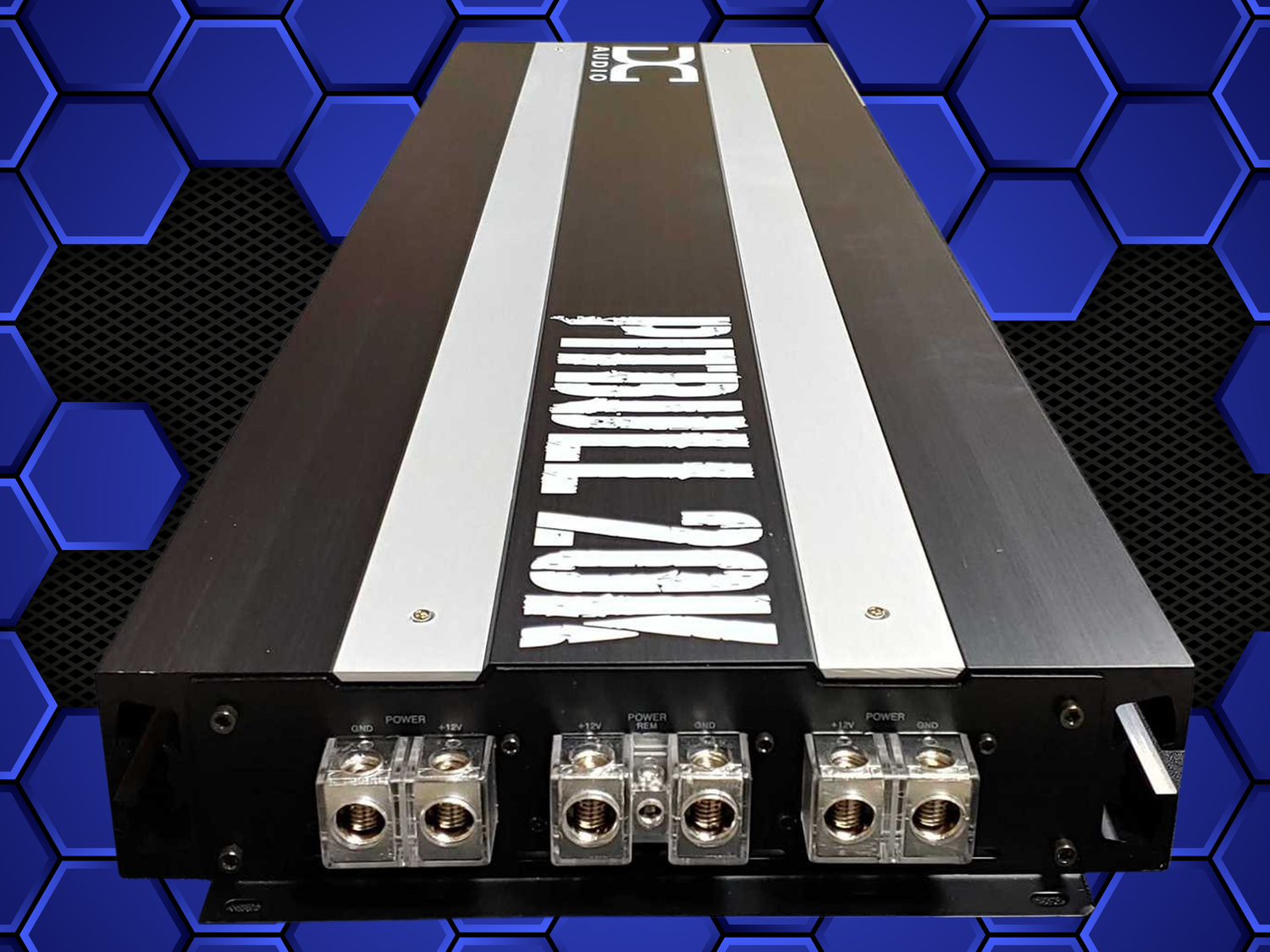

- Triple 1/0awg Power and Ground Inputs
- Tiffany Style RCA jacks
- HD End Plates
Full Specs:
| DC Amp Model: | Pitbull 20k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 15Hz~270Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 150< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 660 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | No |
| Heatsink Length | 37.75"/958mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |
Output Graph:
