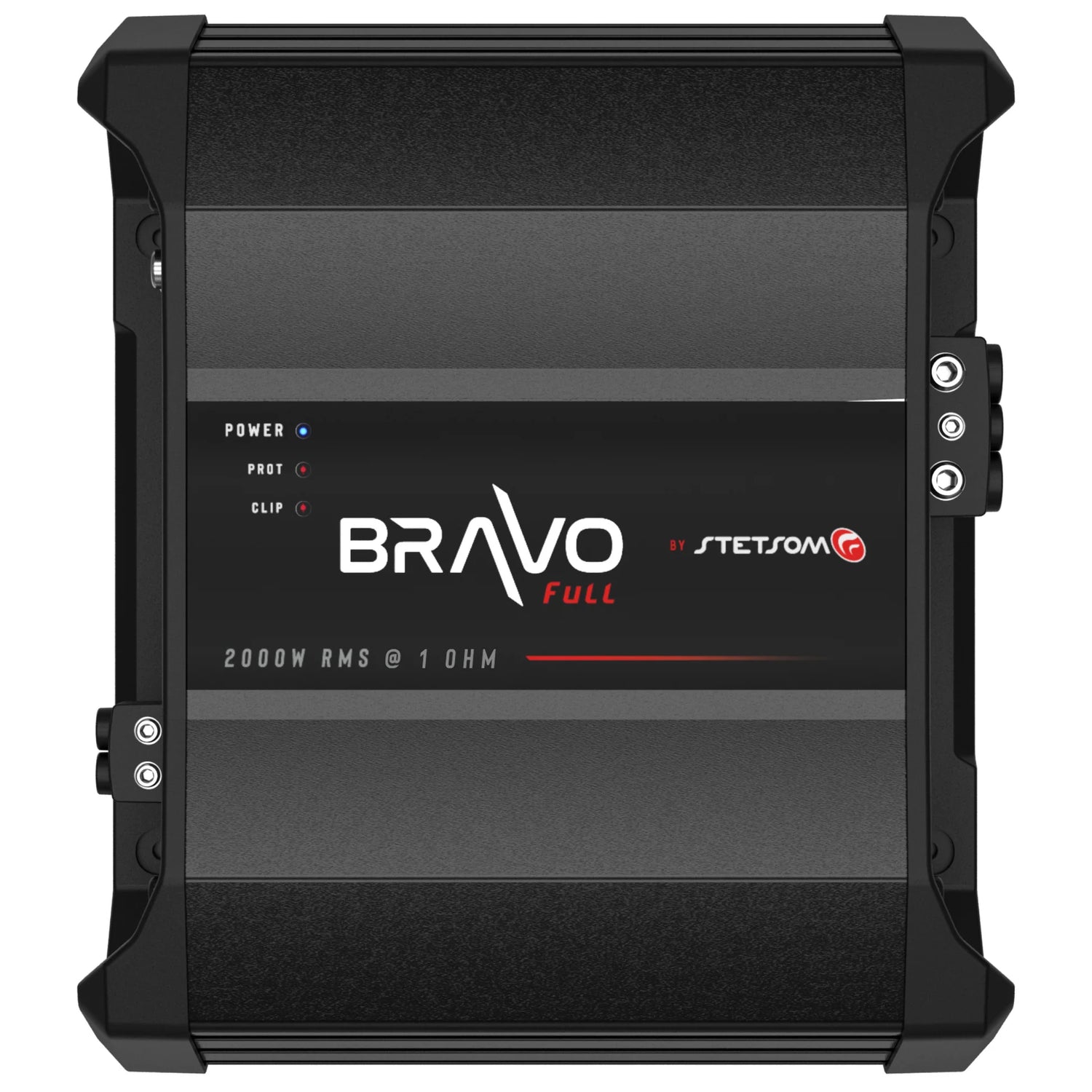

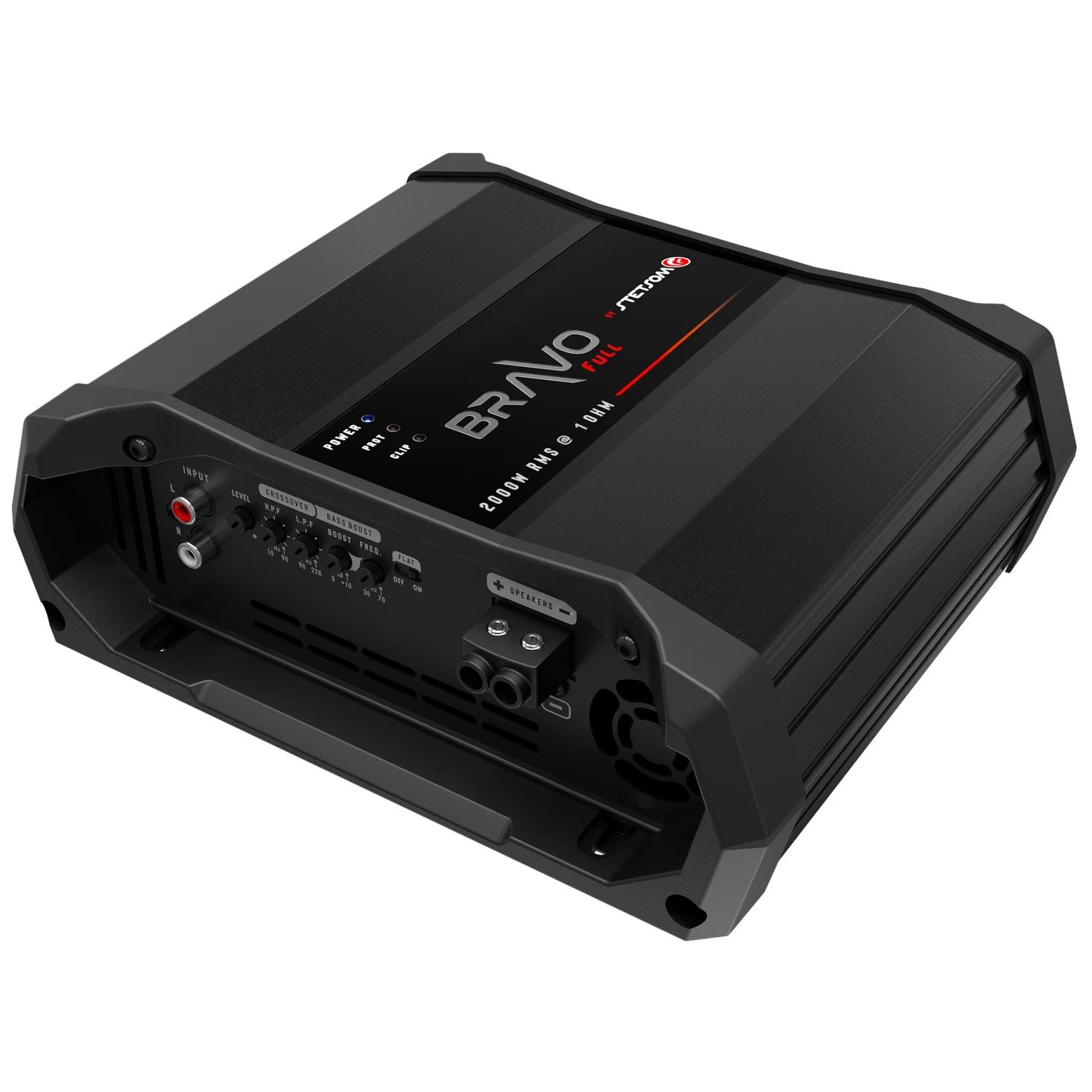

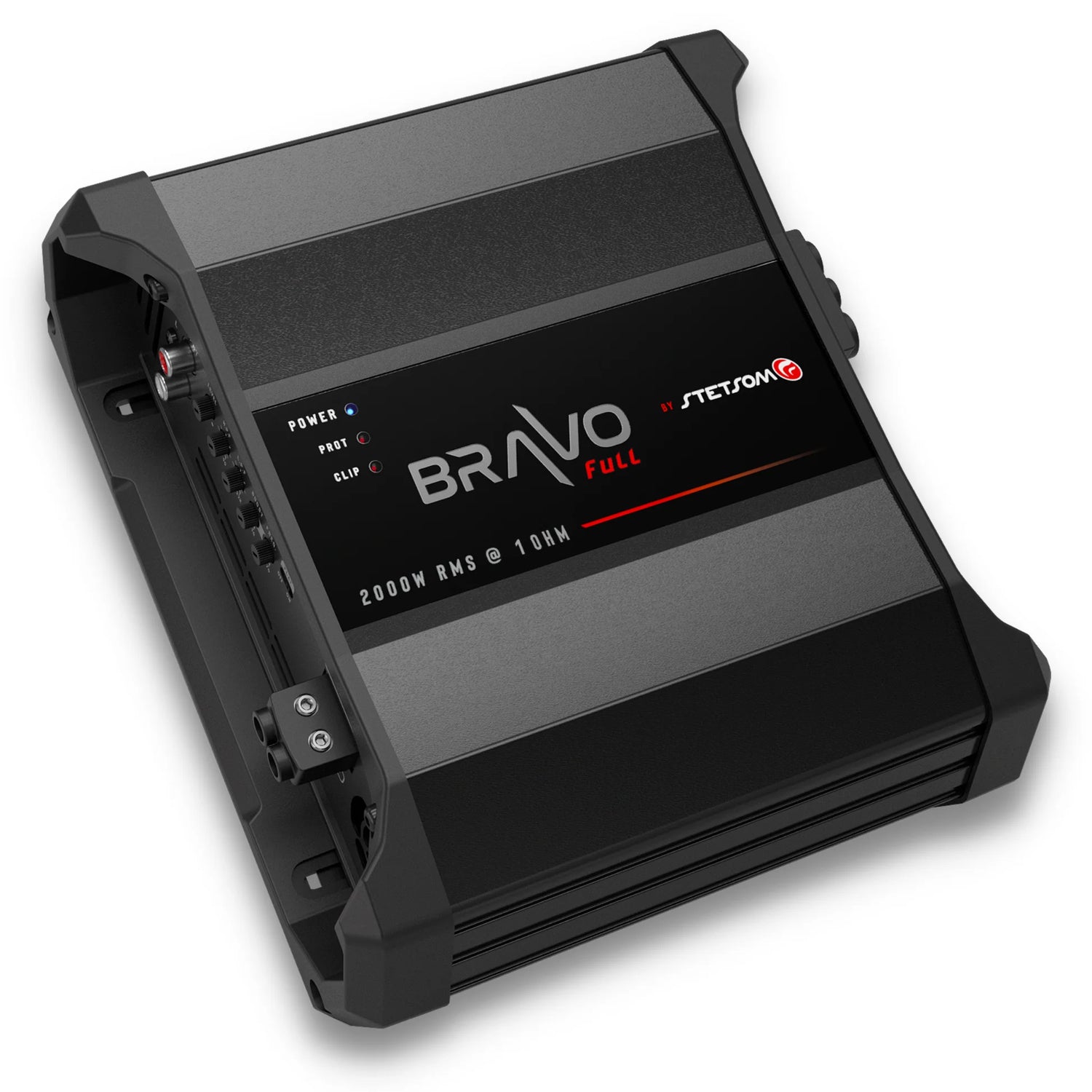

Stetsom Bravo Full 2000 – 2Ω Full‑Range Amplifier
The Stetsom BRAVO FULL 2000 (2Ω) is a compact Class D mono amplifier developed for automotive sound lovers who want maximum full‑range performance. With a broad 10Hz–22kHz response and precise HP/LP filters, it drives subwoofers, woofers, drivers, and tweeters with clean power and control.
Topology
Class D • Mono (1 channel)
Class D • Mono (1 channel)
Frequency Response
10Hz – 22kHz (full‑range)
10Hz – 22kHz (full‑range)
Filters
HPF 10Hz–90Hz • LPF 90Hz–22kHz • Bass Boost 30–70Hz (0–+10dB)
HPF 10Hz–90Hz • LPF 90Hz–22kHz • Bass Boost 30–70Hz (0–+10dB)
S/N Ratio
> 90dB
> 90dB
Operating Voltage
9V – 16V DC
9V – 16V DC
Form Factor
Compact & lightweight
Compact & lightweight
Key Features
- Full‑Range Flexibility: One amp to run subs, mids, and highs with a wide 10Hz–22kHz response.
- Precision Tuning: Variable HPF/LPF and selectable bass boost (30–70Hz, 0–+10dB).
- Clean Output: High signal‑to‑noise performance (>90dB) for clarity at volume.
- Compact Class D Design: Efficient, cool‑running power that fits tight installs.
Technical Specifications – BRAVO FULL 2000 (1Ω reference)
| Number of Channels | 1 (Mono) |
|---|---|
| RMS @ 1Ω (14.4V) | 3500W |
| RMS @ 2Ω (14.4V) | 2100W |
| RMS @ 1Ω (12.6V) | 3100W |
| RMS @ 2Ω (12.6V) | 2000W |
| Minimum Input Sensitivity | 200mV |
| Signal‑to‑Noise Ratio | > 90dB |
| Frequency Response (‑3dB) | 10Hz – 22kHz |
| Low‑Pass Crossover (LPF) | 90Hz – 22kHz |
| High‑Pass Crossover (HPF) | 10Hz – 90Hz |
| Bass Boost | 30Hz – 70Hz / 0 – +10dB |
| Input Impedance | 18K Ω |
| Supply Voltage | 9V – 16V DC |
| Current Draw (Music / Bass) | 160A / 320A |
| Dimensions (H × W × L) | 3.14″ × 9.11″ × 9.29″ |
| Weight | 6.39 lb |
Technical Specifications – BRAVO FULL 2000 (2Ω)
| Number of Channels | 1 (Mono) |
|---|---|
| RMS @ 2Ω (14.4V) | 2750W |
| RMS @ 4Ω (14.4V) | 1600W |
| RMS @ 2Ω (12.6V) | 2115W |
| RMS @ 4Ω (12.6V) | 1140W |
| Minimum Input Sensitivity | 200mV |
| Signal‑to‑Noise Ratio | > 90dB |
| Frequency Response (‑3dB) | 10Hz – 22kHz |
| Low‑Pass Crossover (LPF) | 90Hz – 22kHz |
| High‑Pass Crossover (HPF) | 10Hz – 90Hz |
| Bass Boost | 30Hz – 70Hz / 0 – +10dB |
| Input Impedance | 10K Ω |
| Supply Voltage | 9V – 16V DC |
| Current Draw (Music / Bass) | 108A / 217A |
| Dimensions (H × W × L) | 3.14″ × 9.11″ × 7.75″ |
| Weight | 4.96 lb |
Note: Values shown reflect the provided specifications for both 1Ω (reference) and 2Ω versions of the BRAVO FULL 2000.
