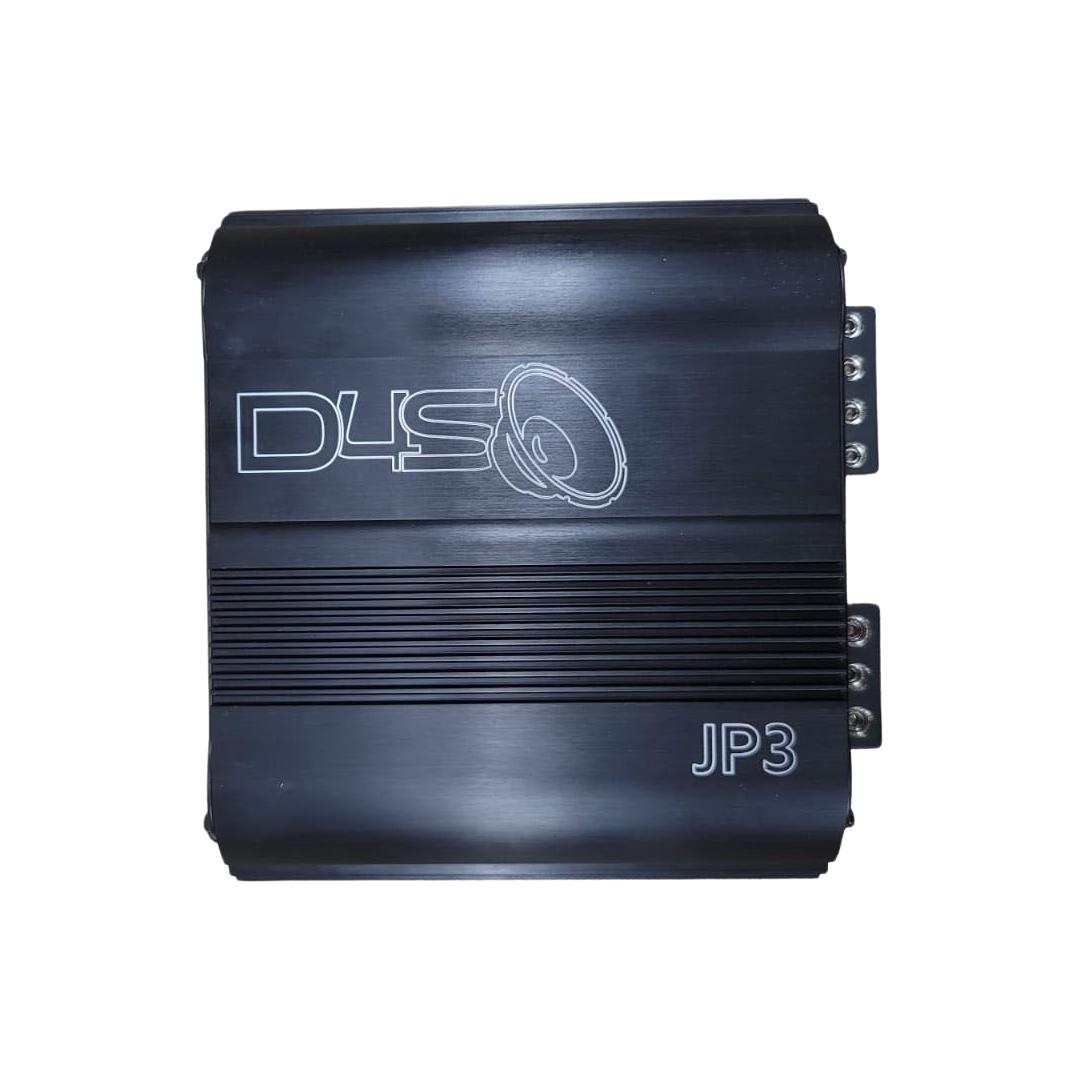

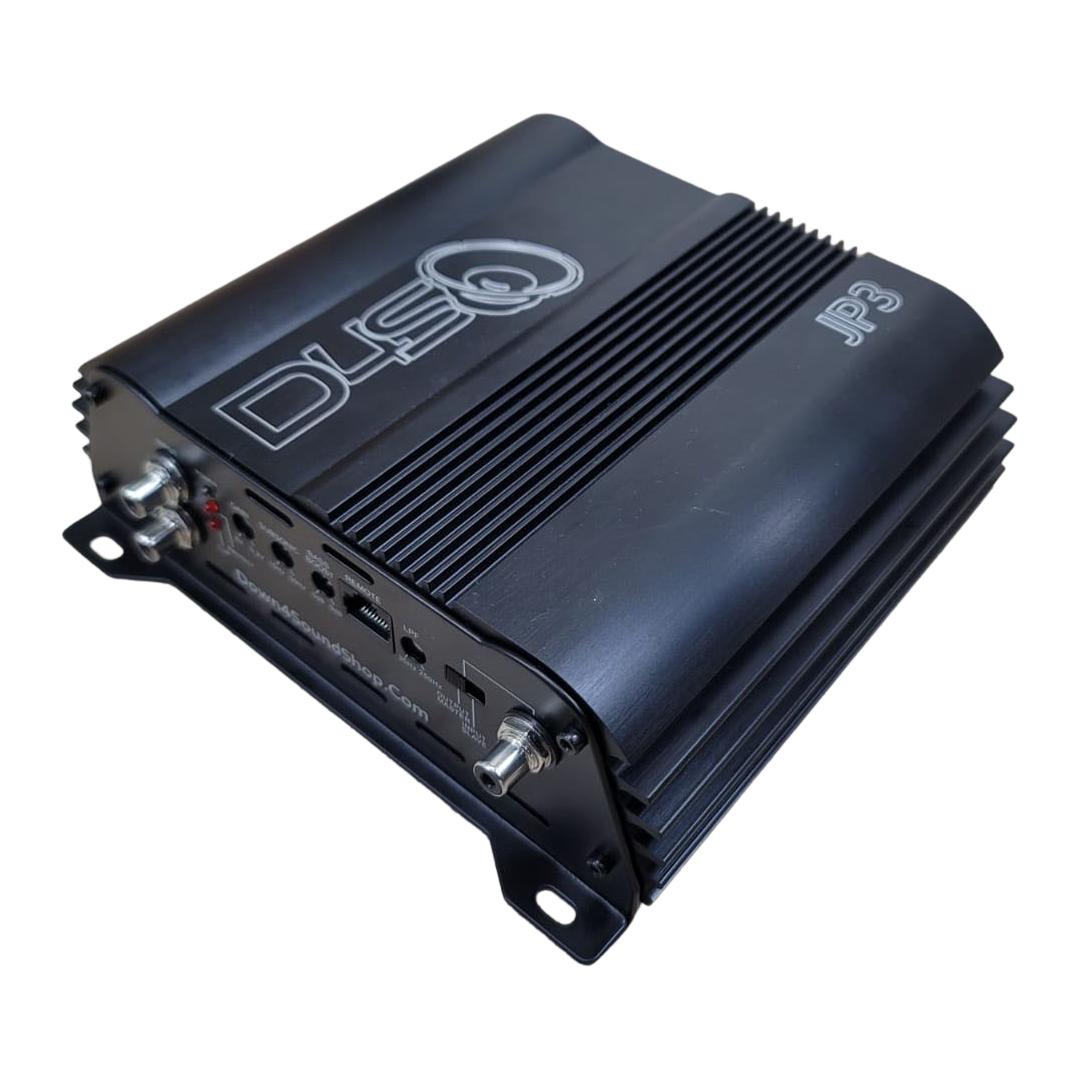

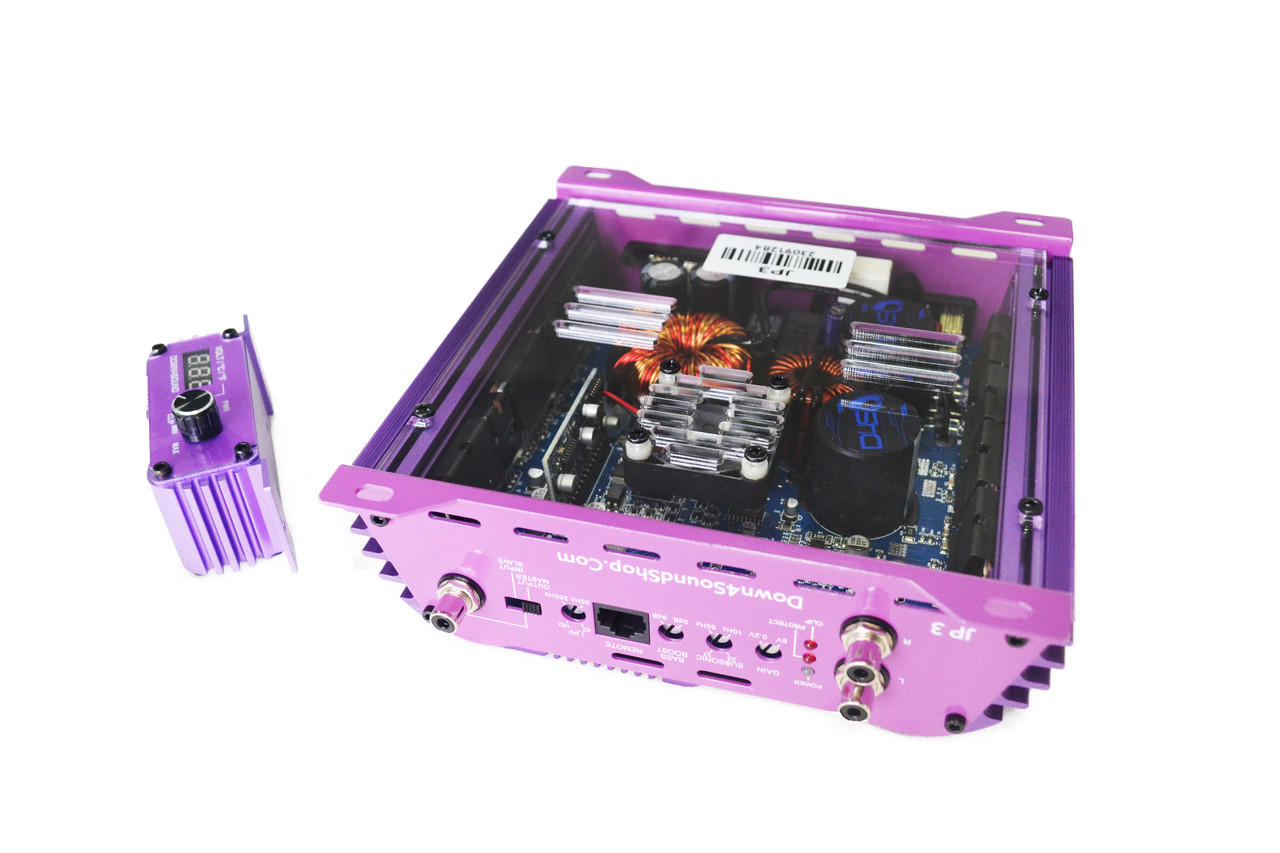

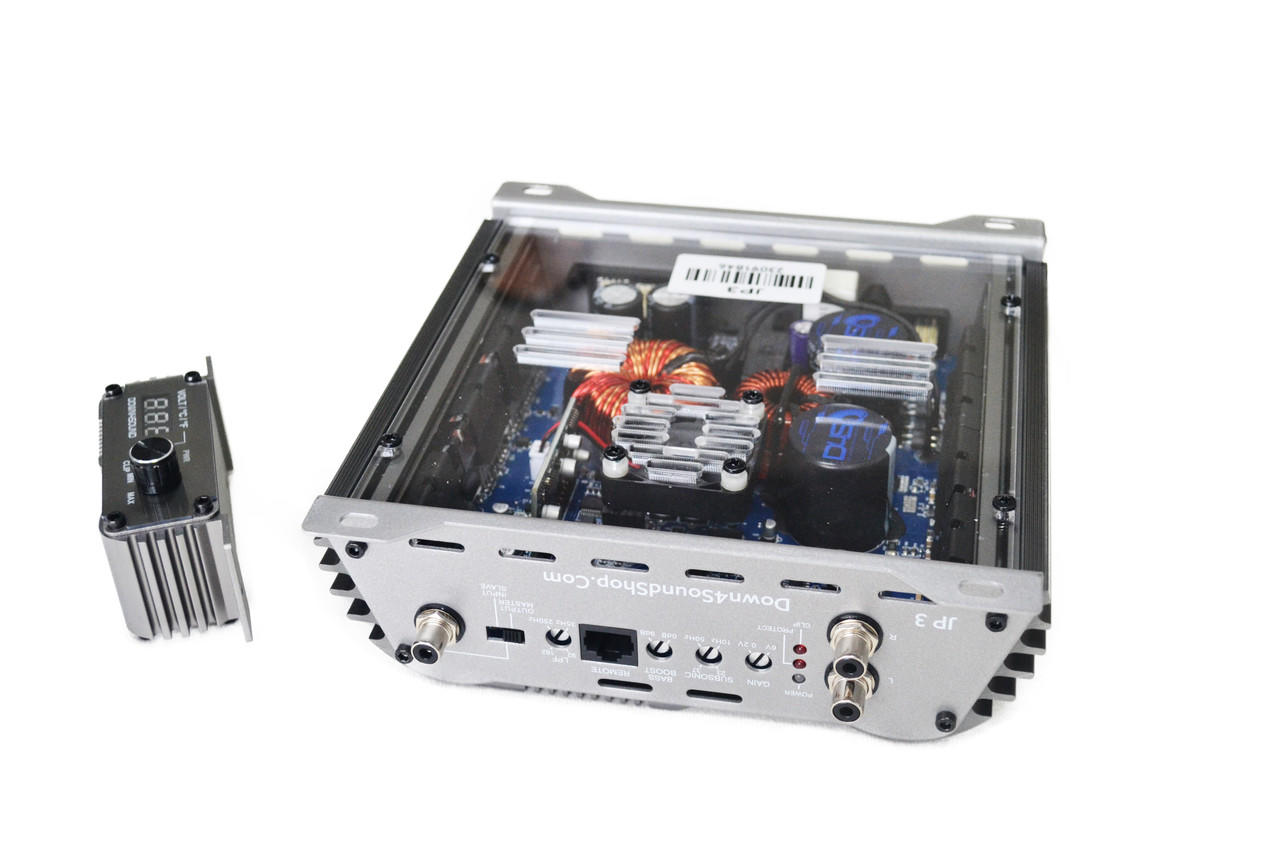

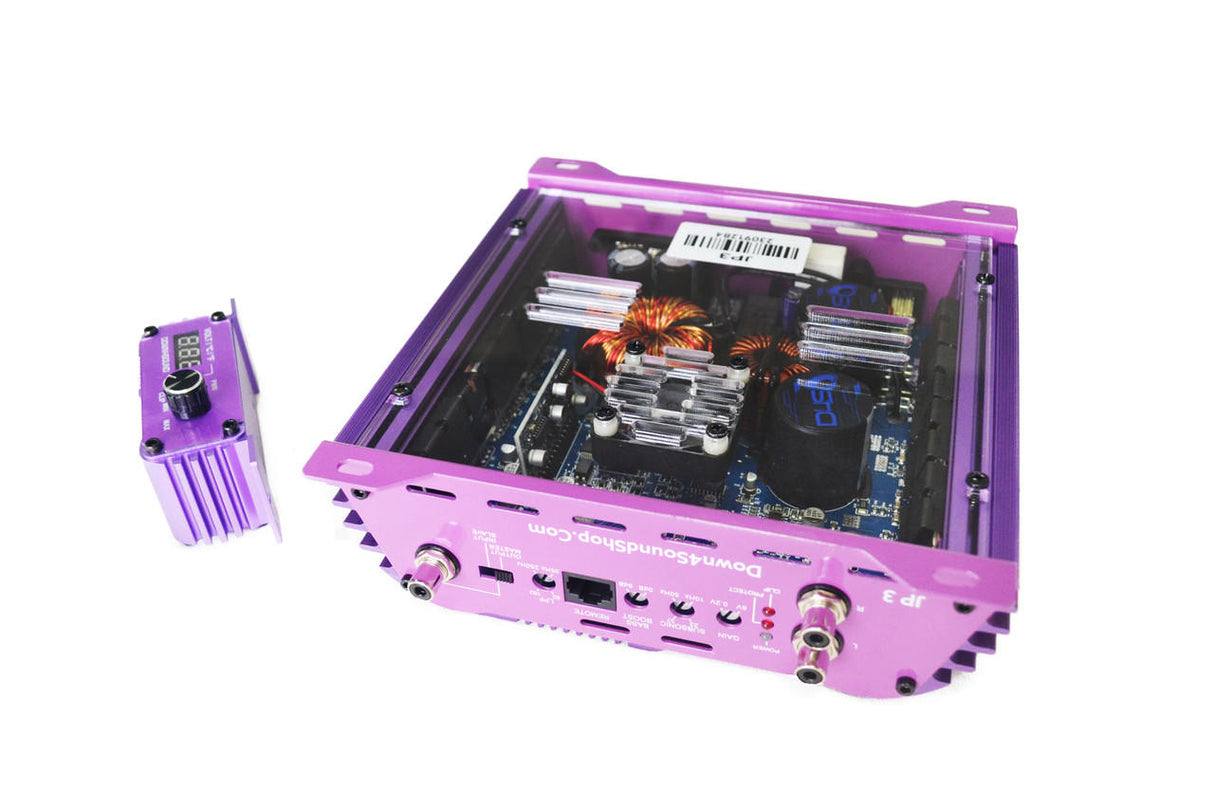

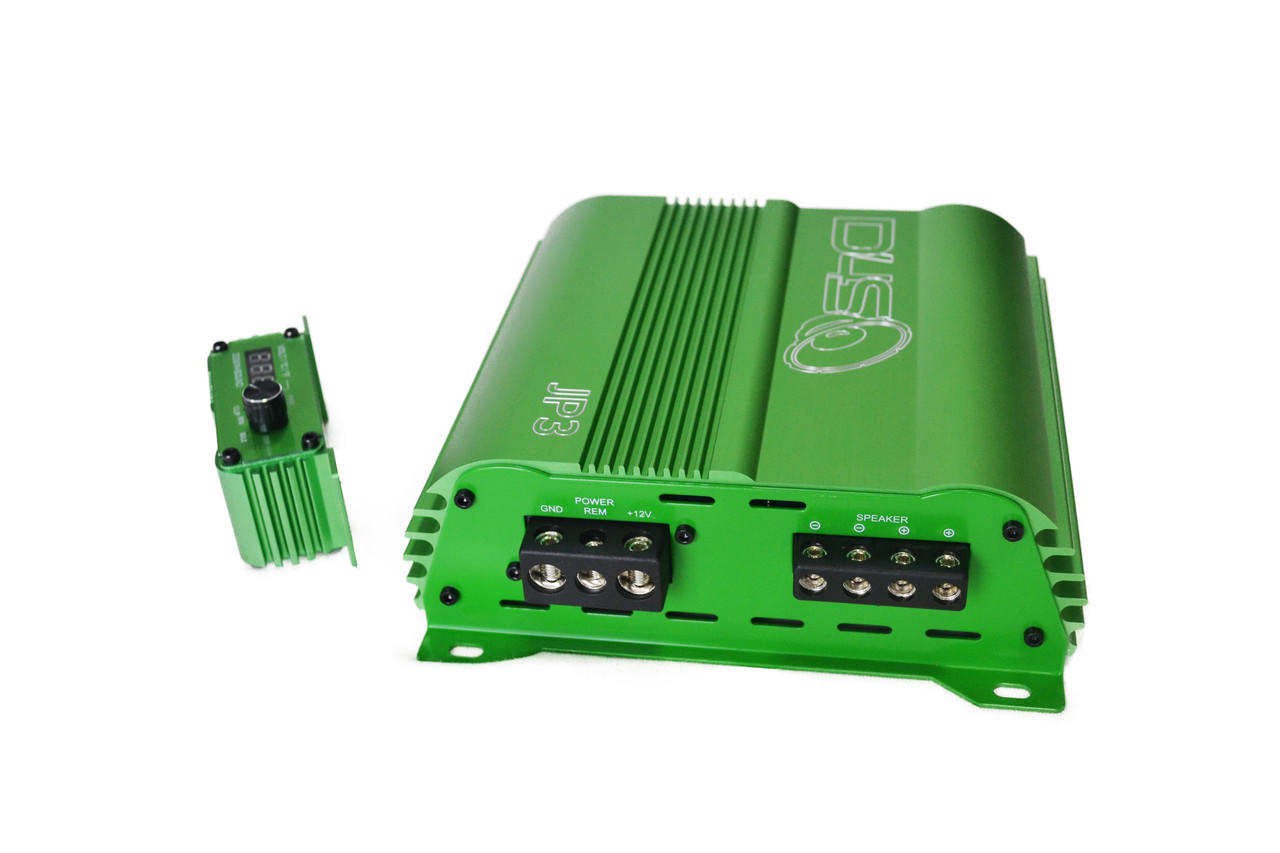

Down4Sound JP3 CPT Bass Amp

Mono Class D Amplifier

Delivers 555 Watts at 1/2/4 Ohms

On Board Power, Protection & Clip Indicators

Strappable Design

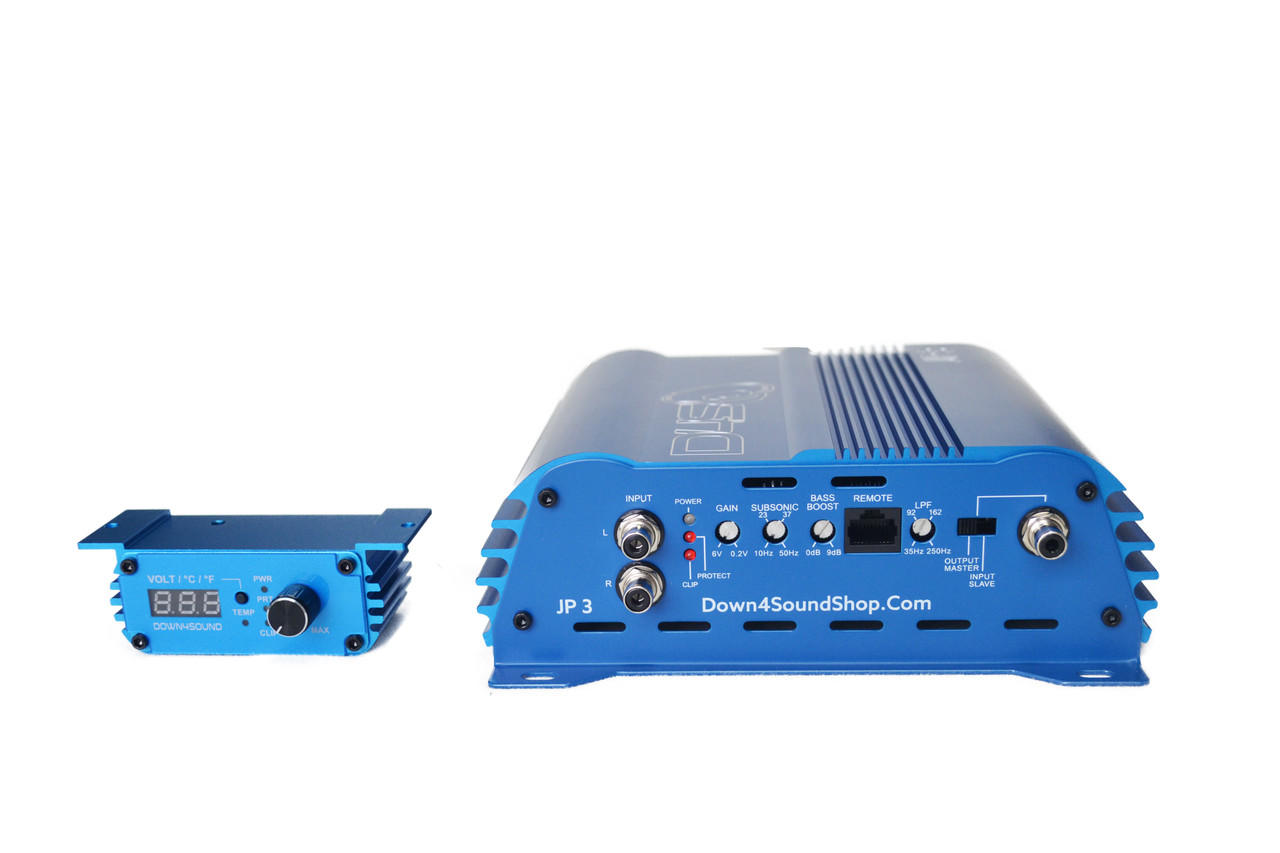

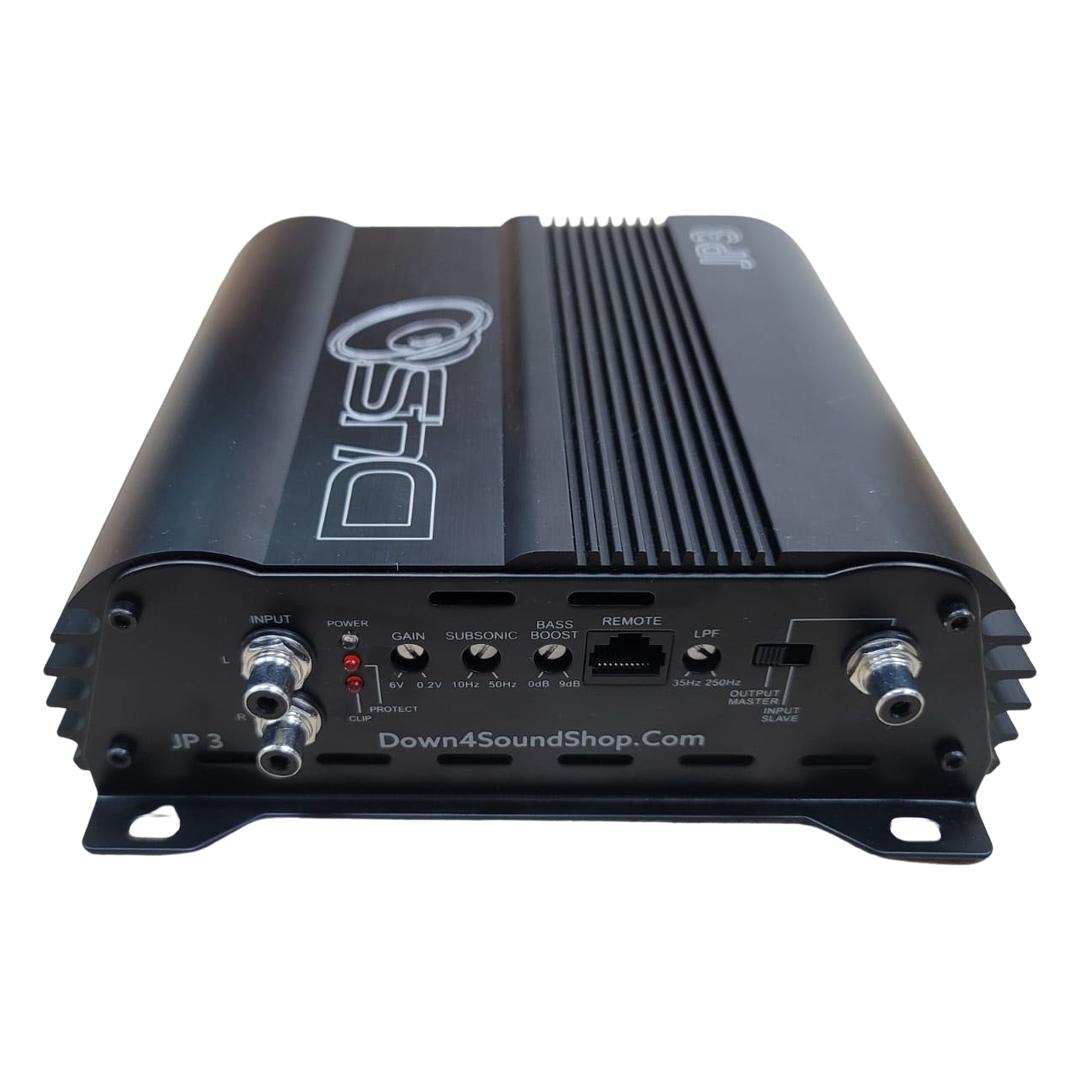

Variable Low-Pass, Bass Boost & Subsonic Filters

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

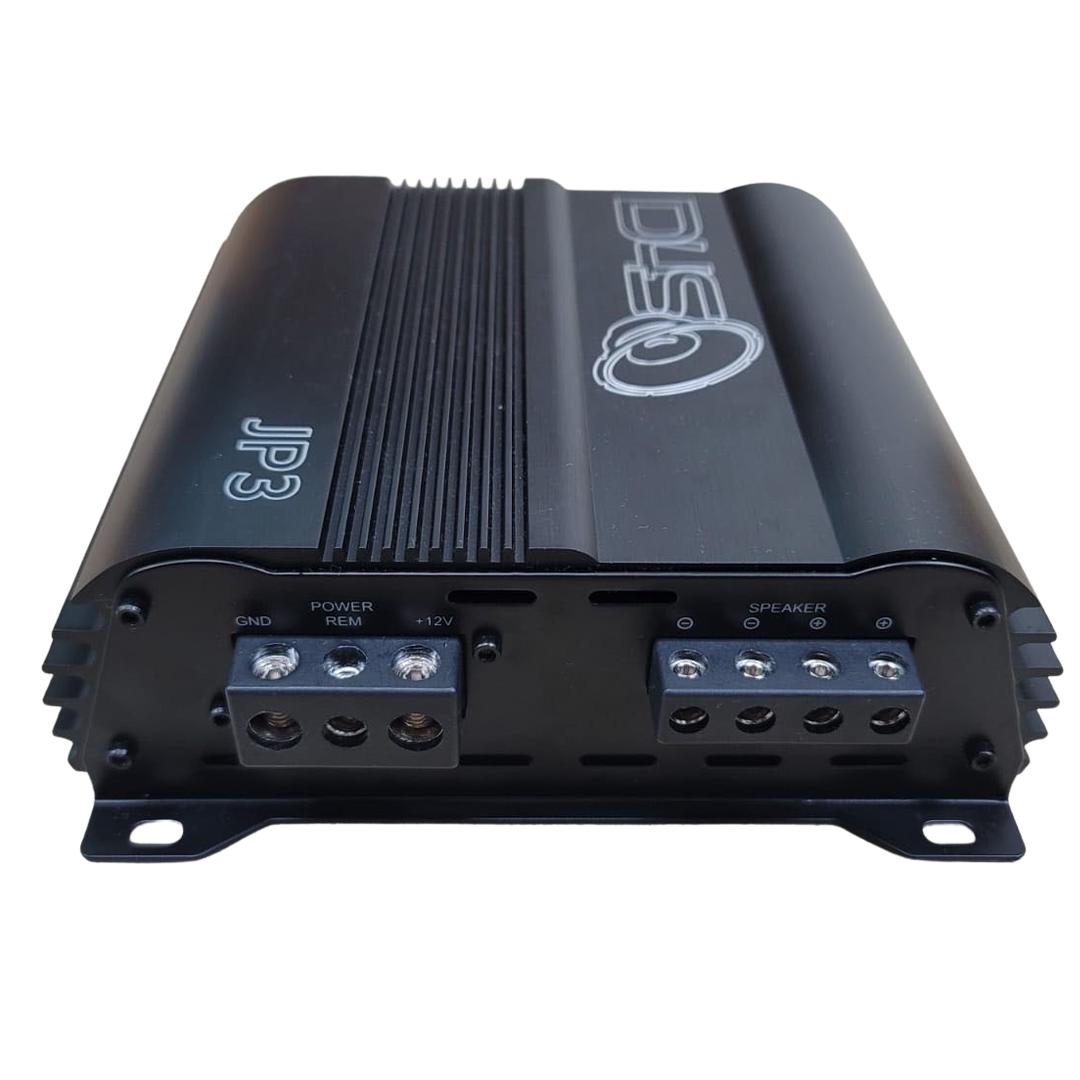

4 AWG Power & Ground Inputs

4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC

Power

Max Rated Output (Strapped to a second JP3 CPT): 1,110 Watts

1 Ohm RMS: 555W

2 Ohm RMS: 555W

4 Ohm RMS: 555W

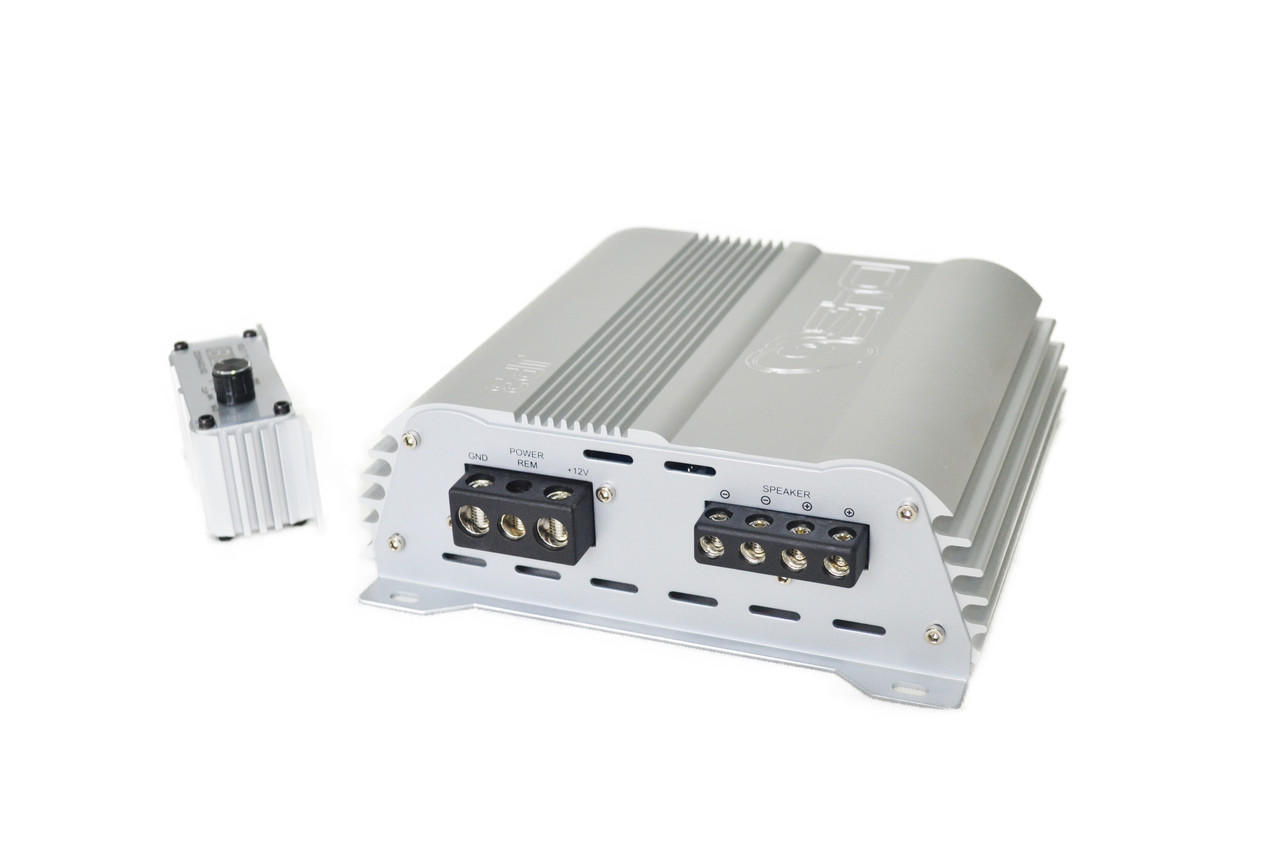

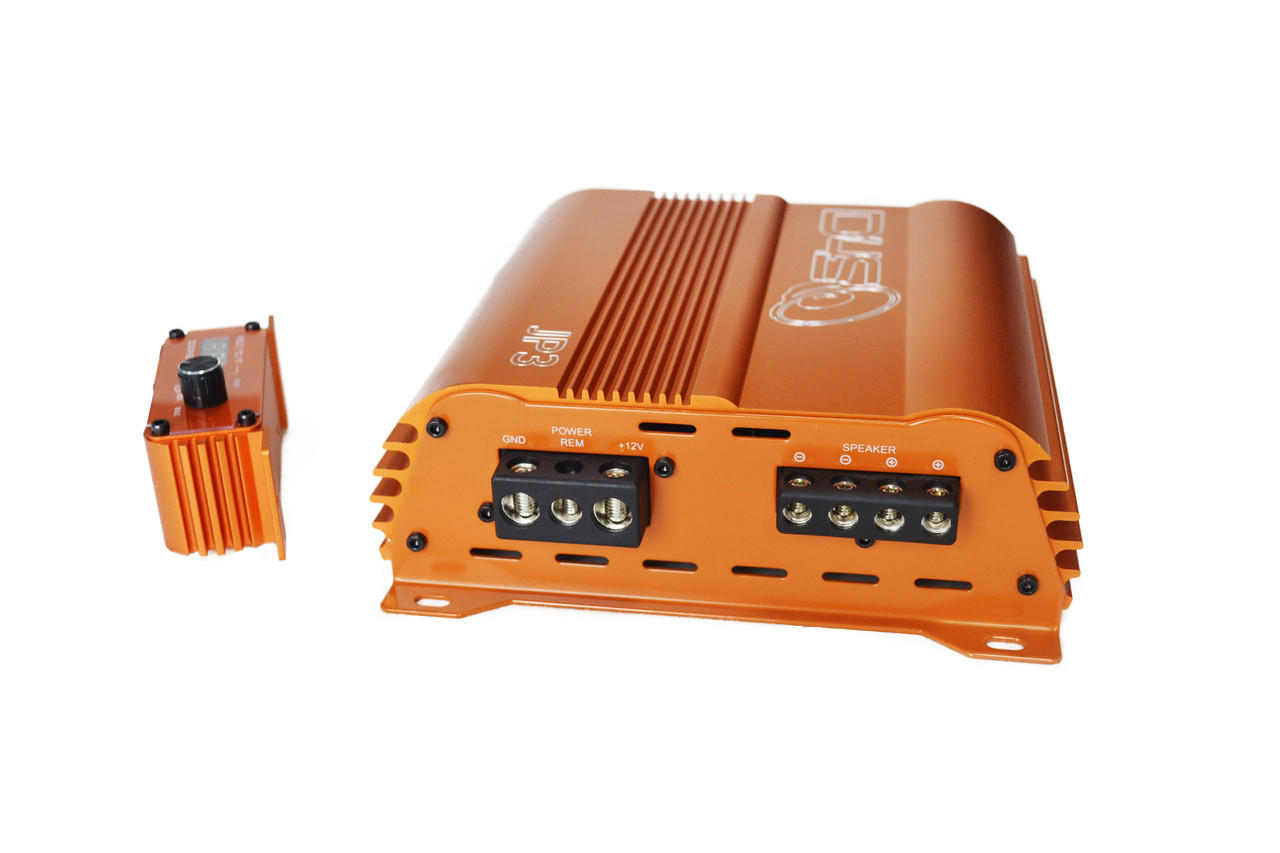

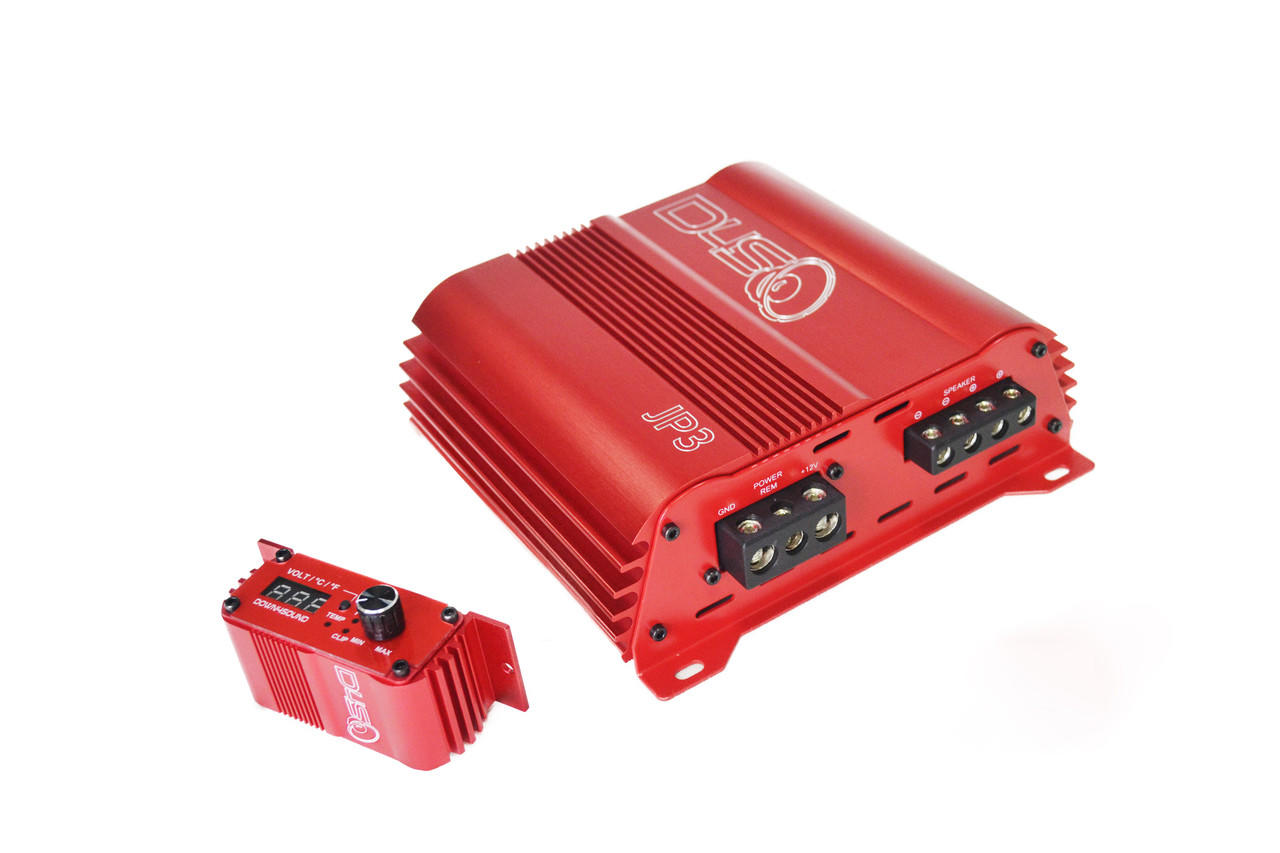

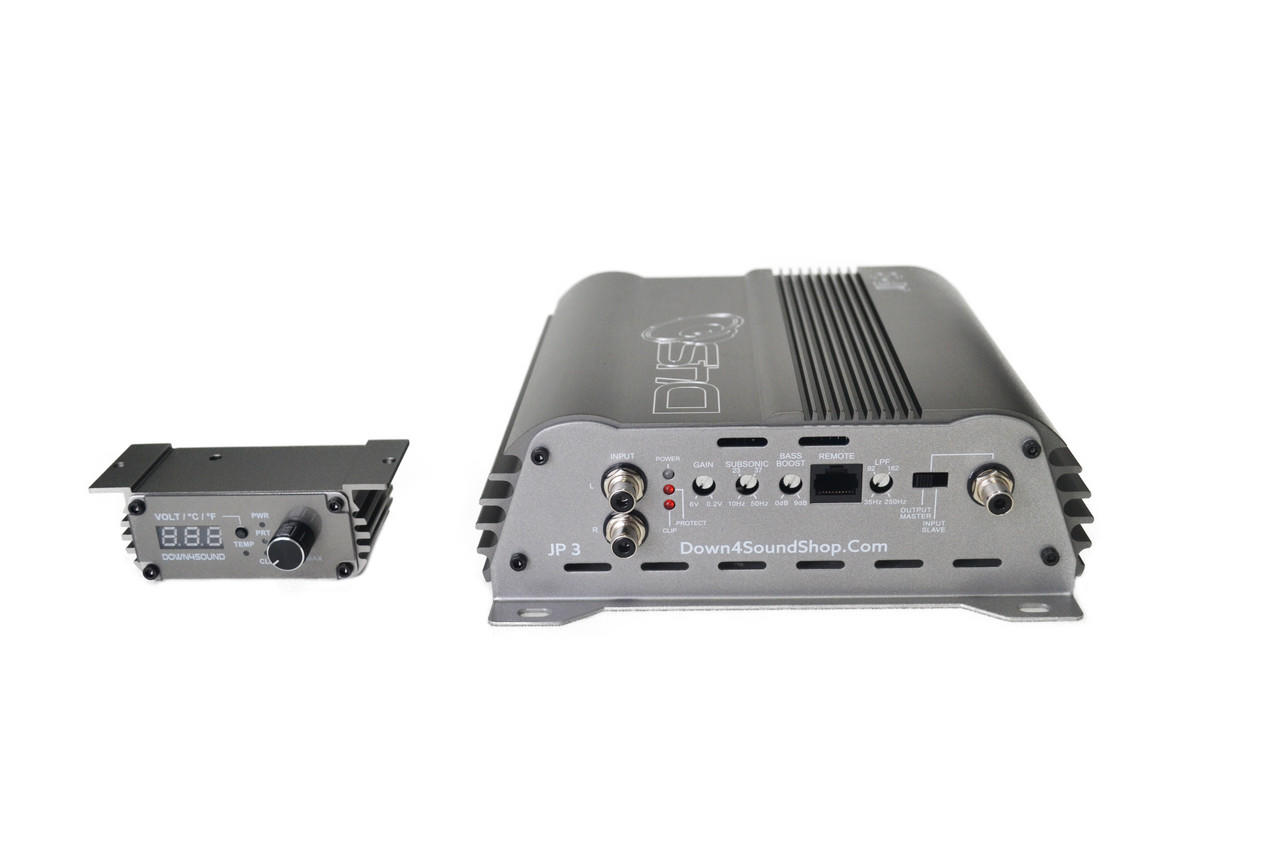

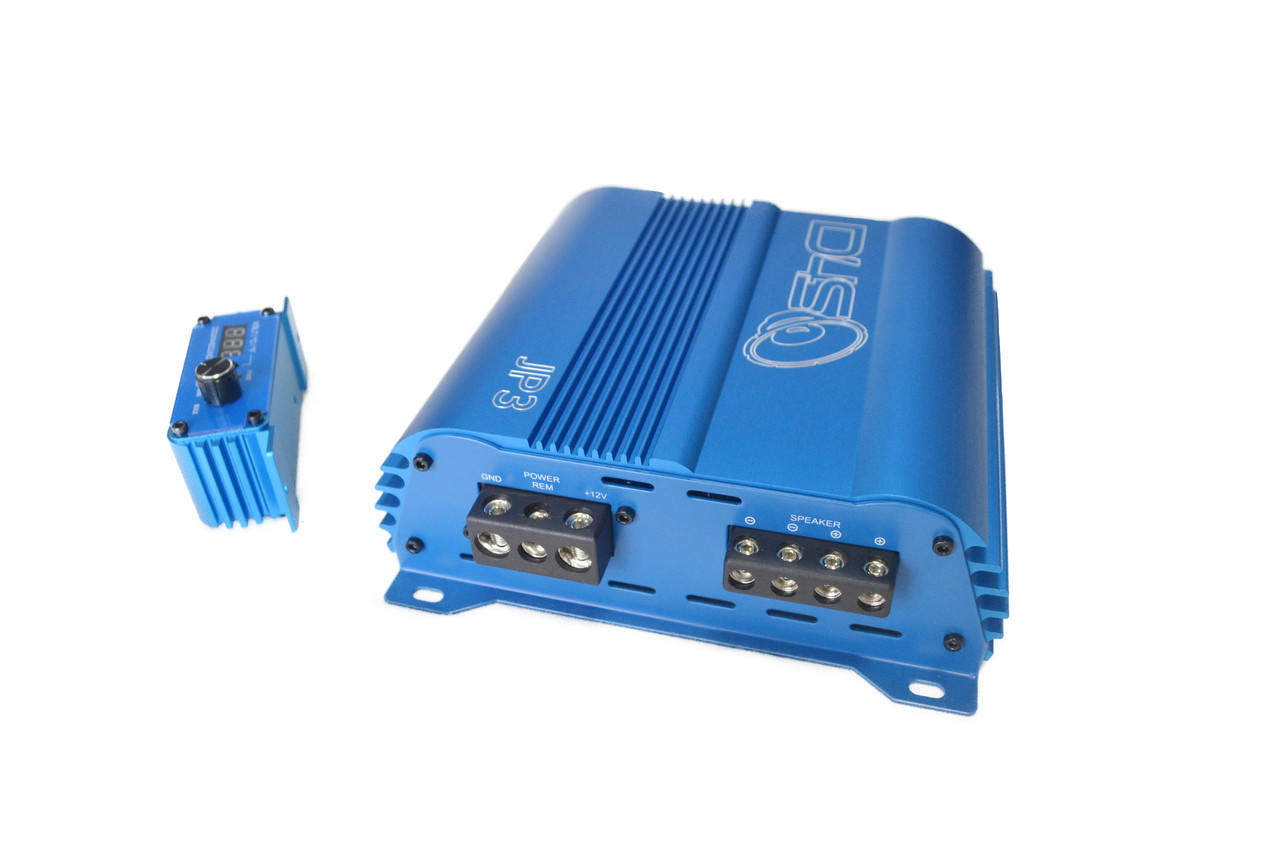

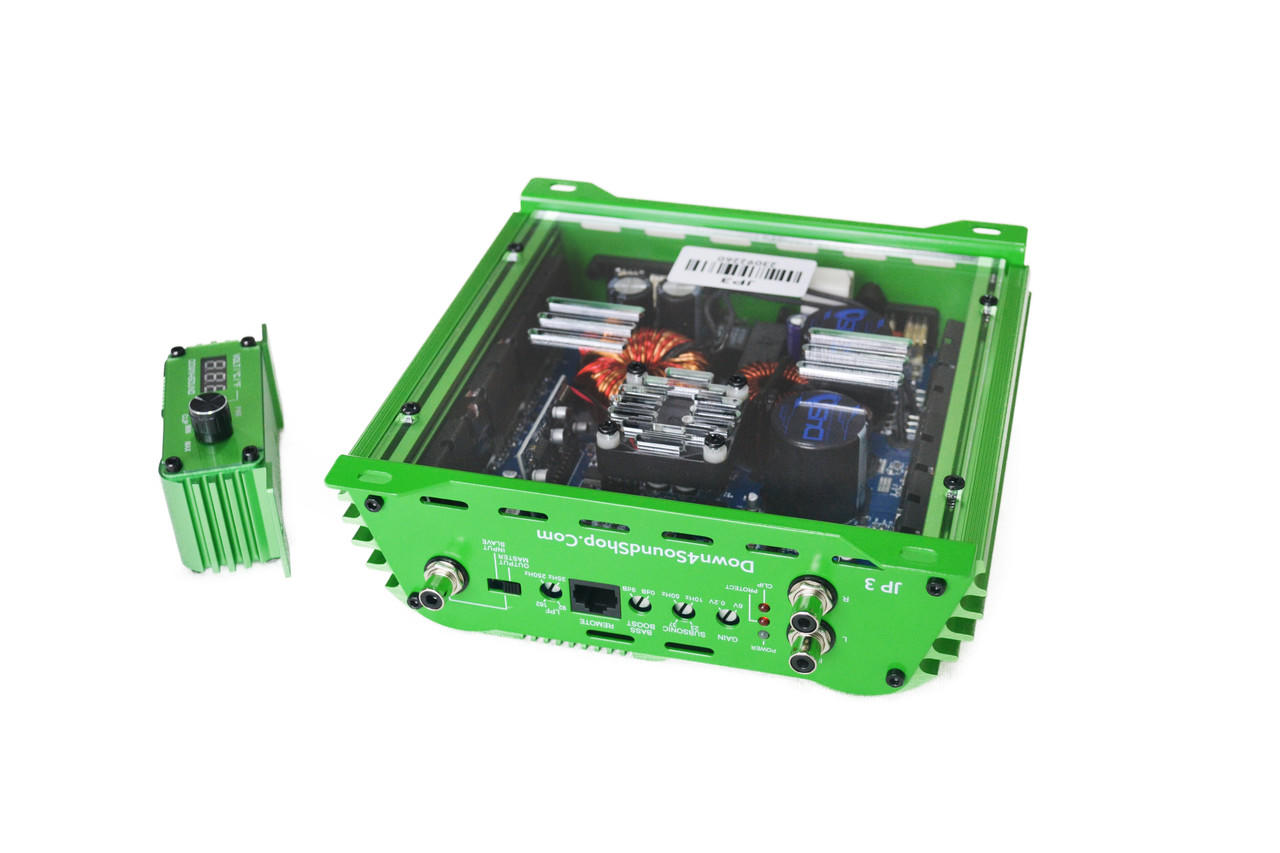

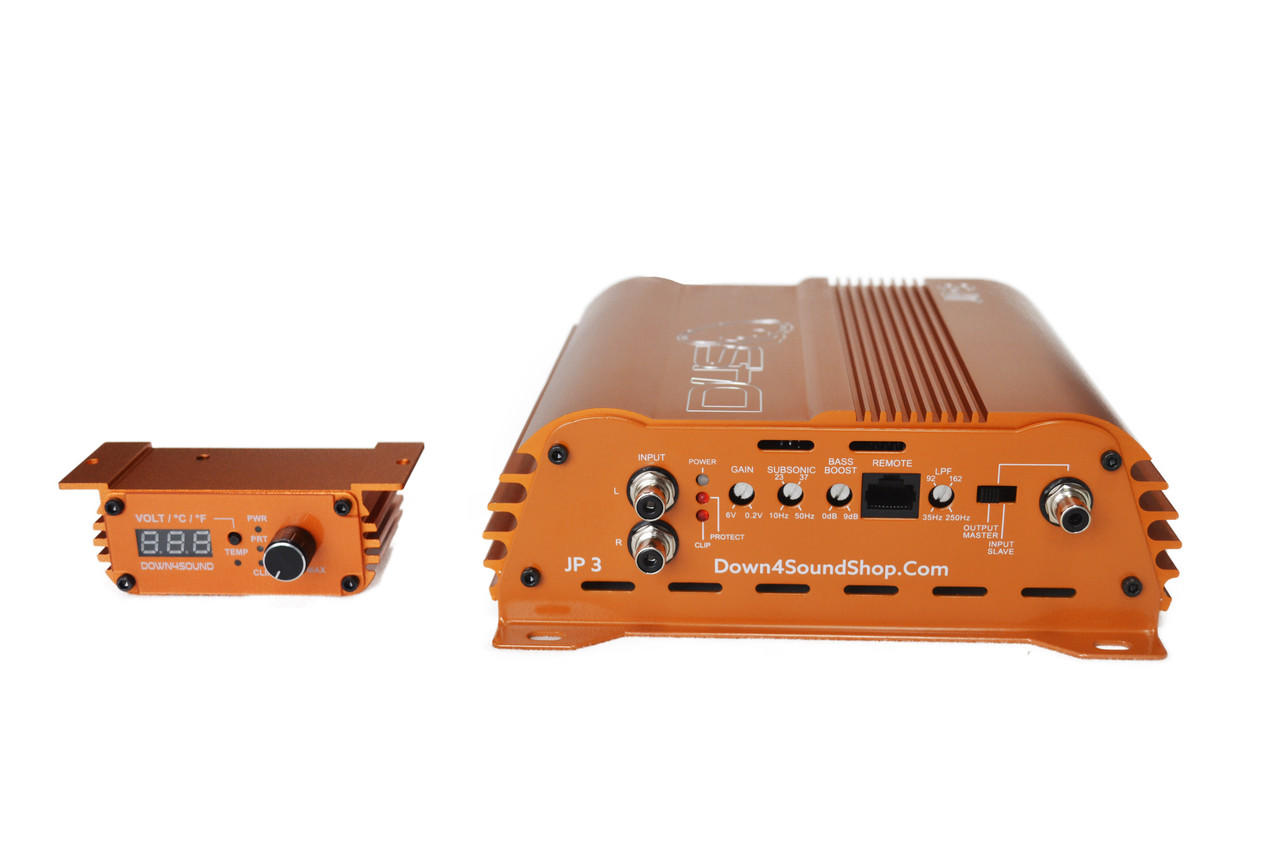

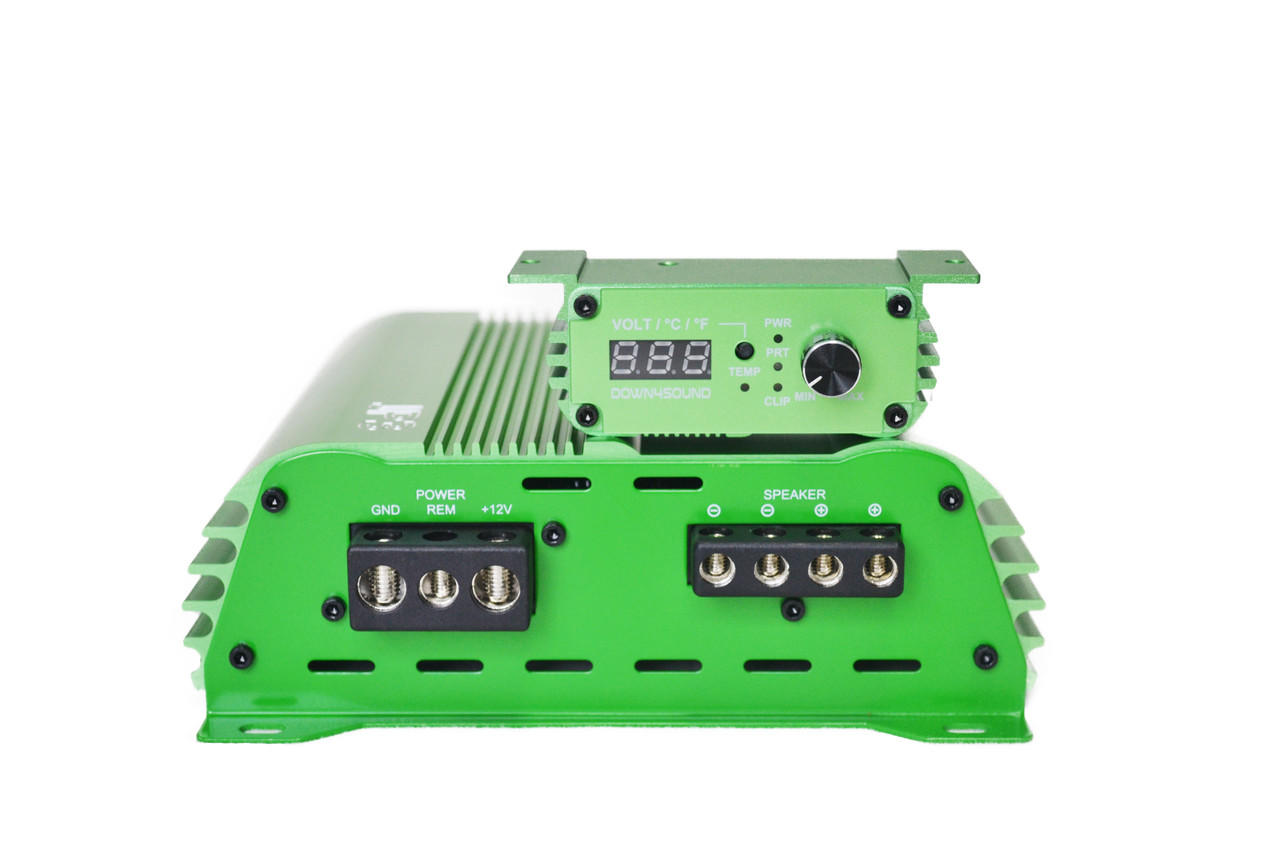

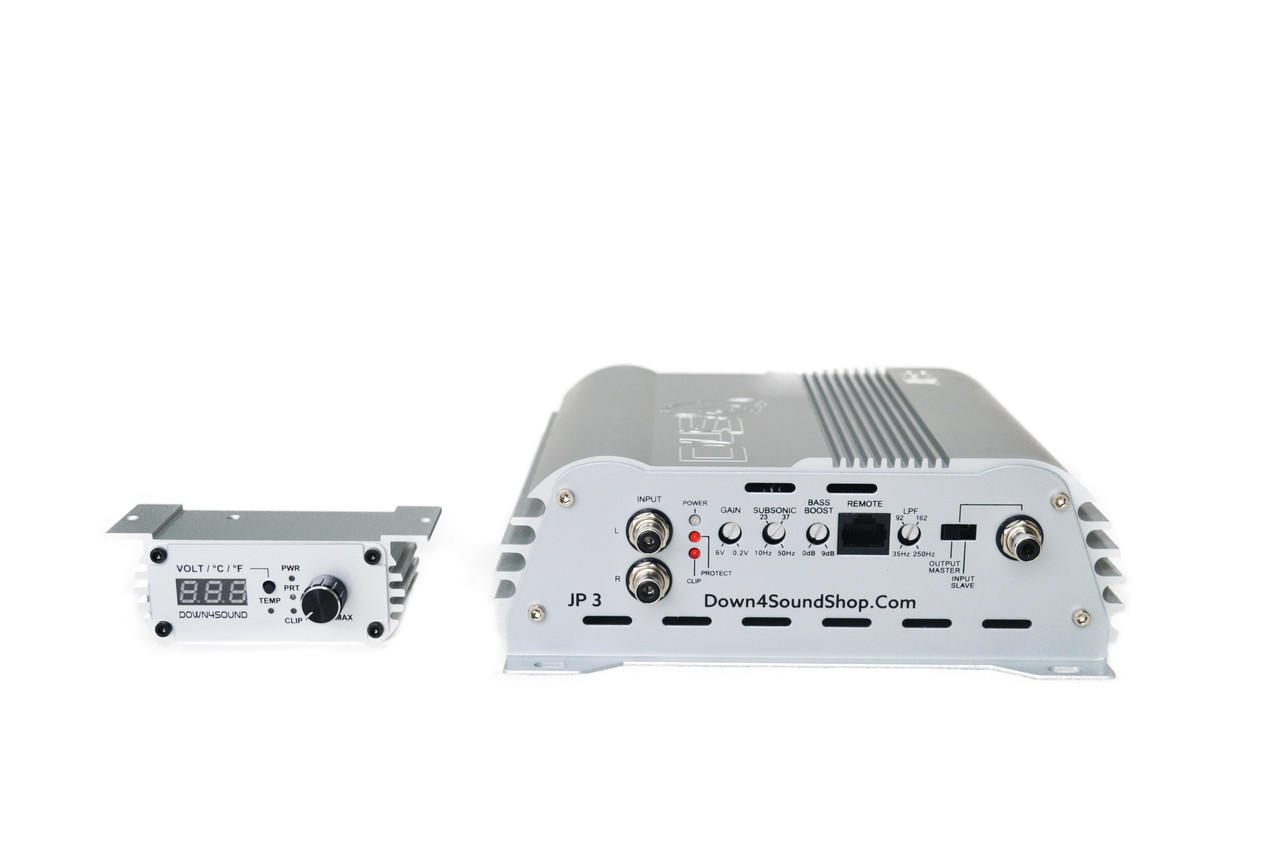

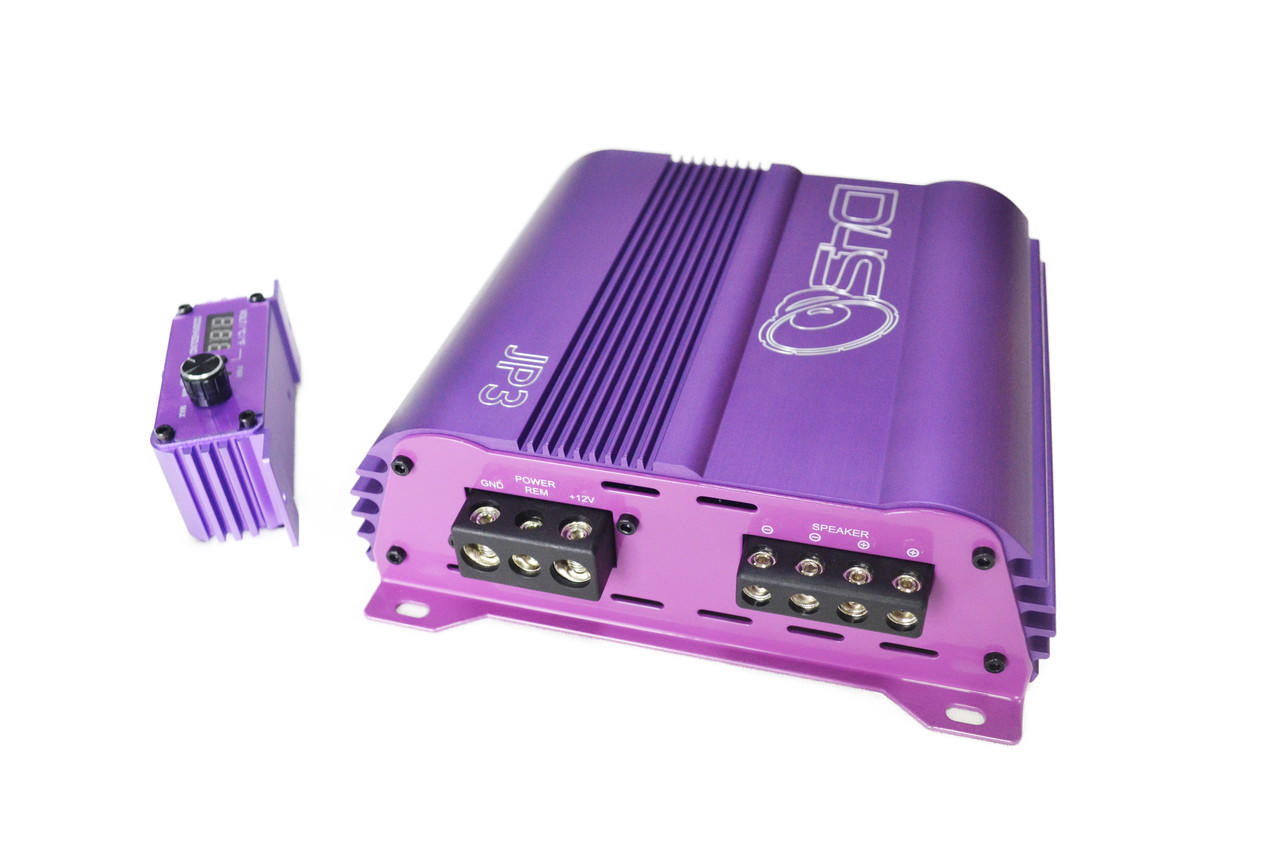

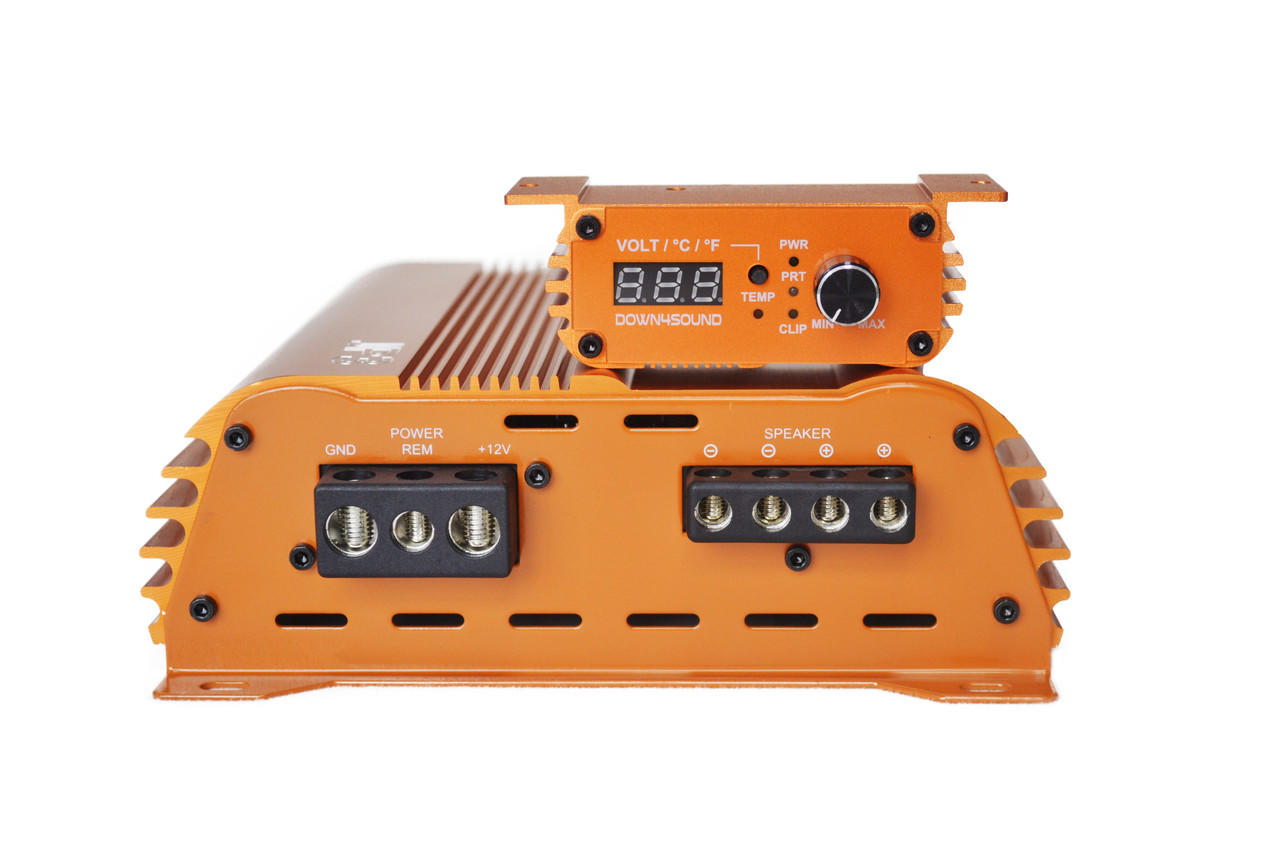

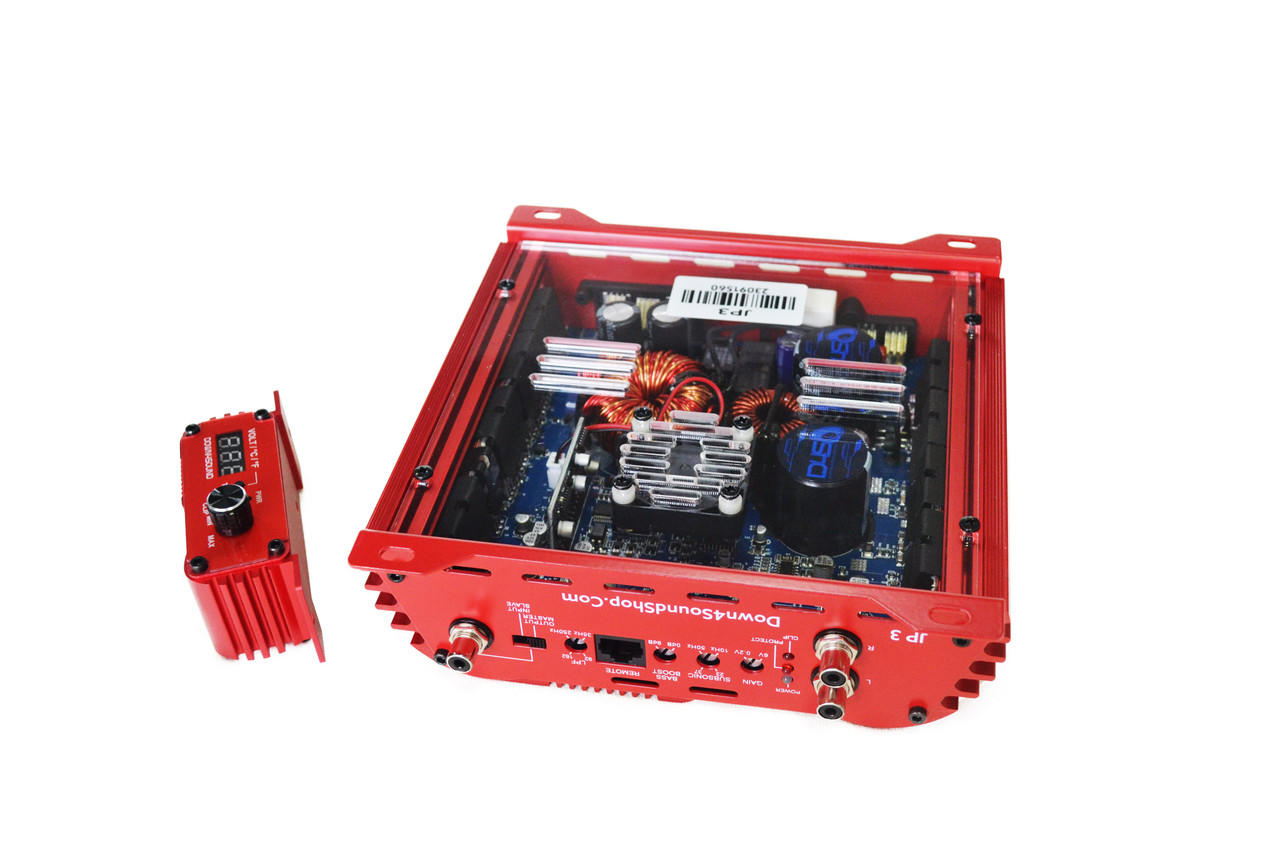

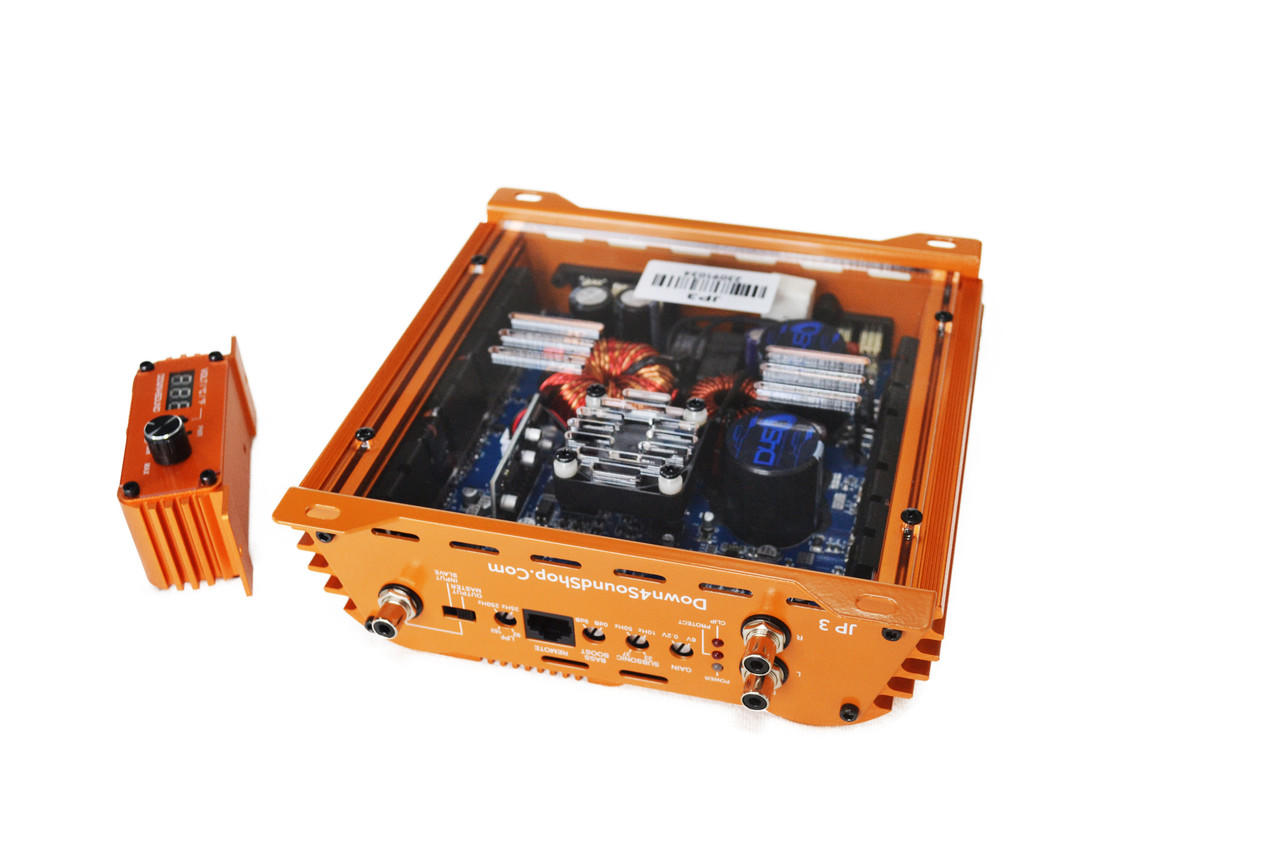

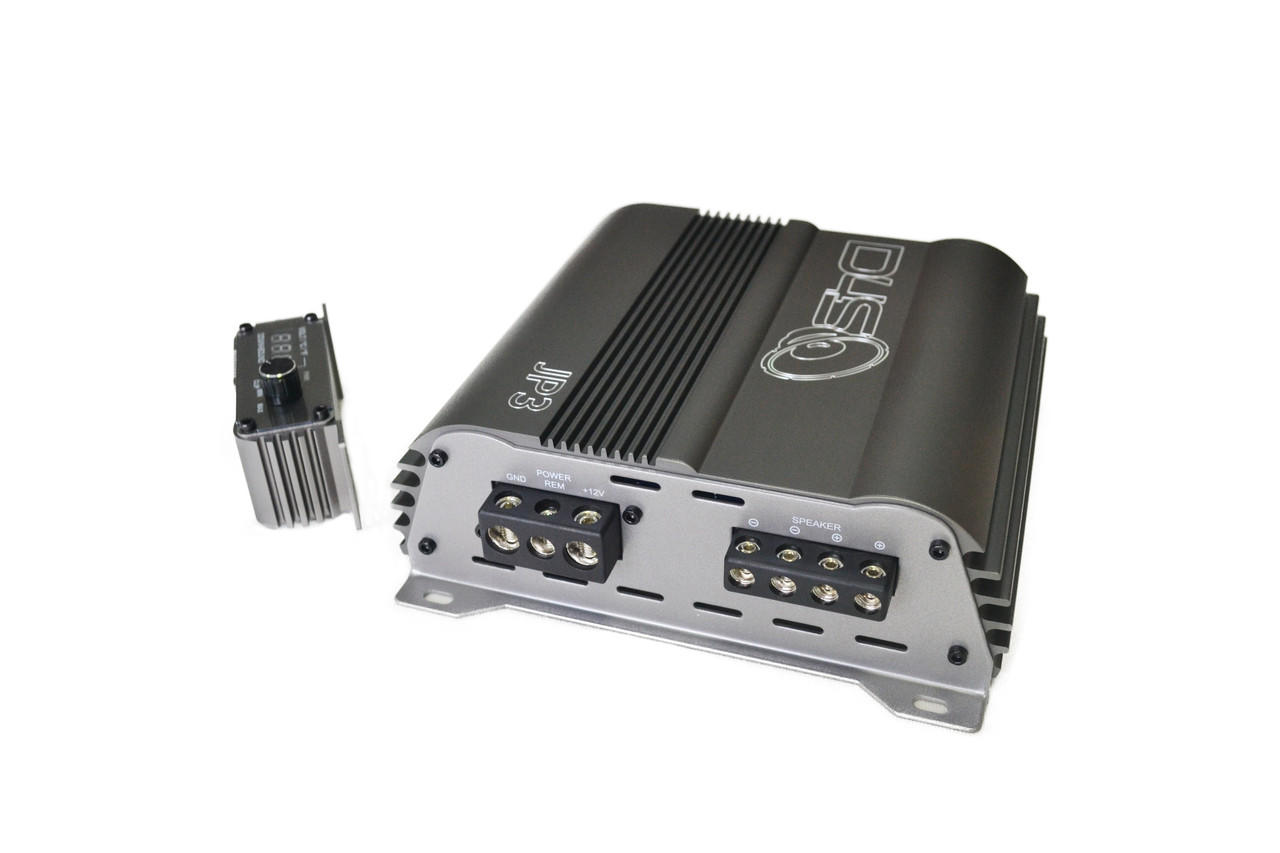

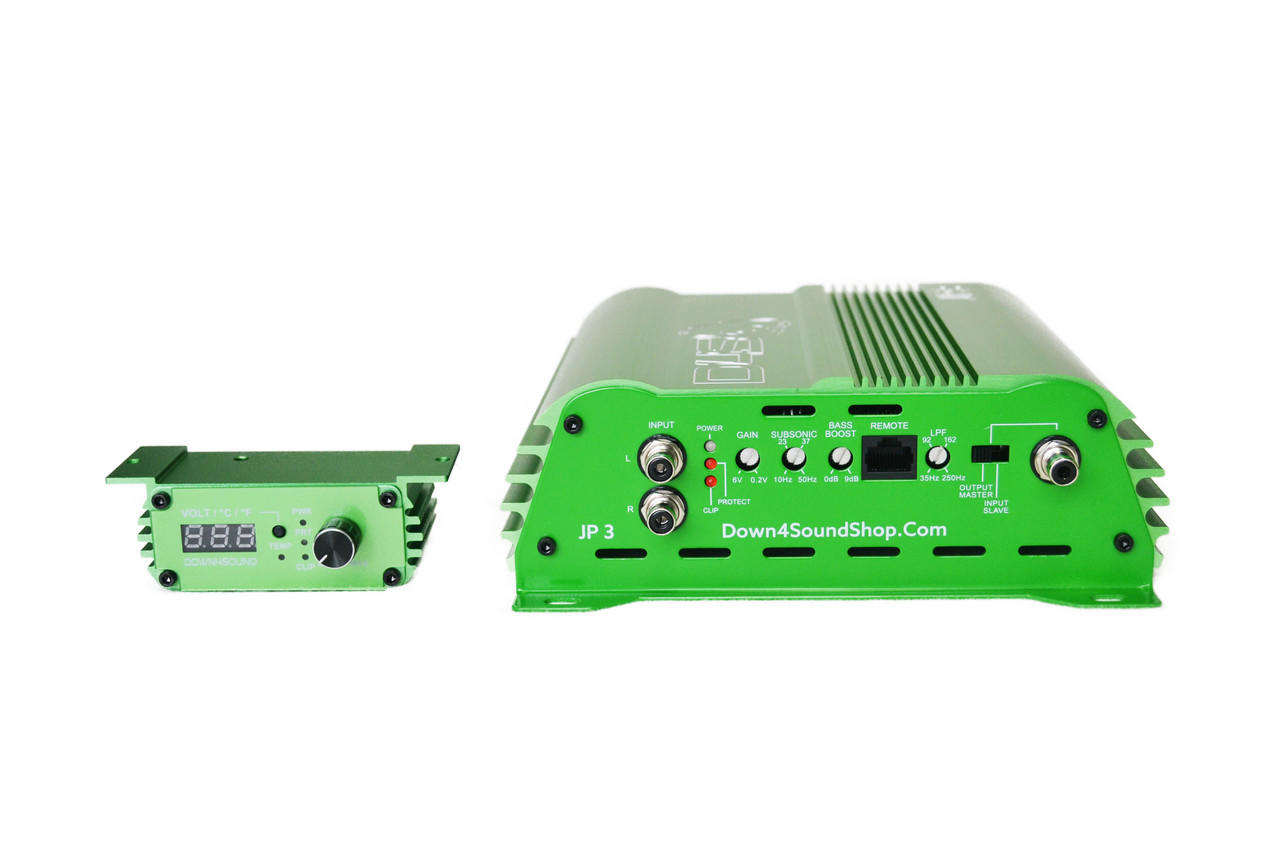

Available in any of ten colors, the Down4Sound JP3 CPT is a compact Class D amplifier. Equipped with a 4 AWG power and ground input and extensive acoustic controls, this highly flexible amp puts out the same power at 1, 2 or 4 ohms. Strap another JP3 CPT together for a single 1,100-watt powerhouse!

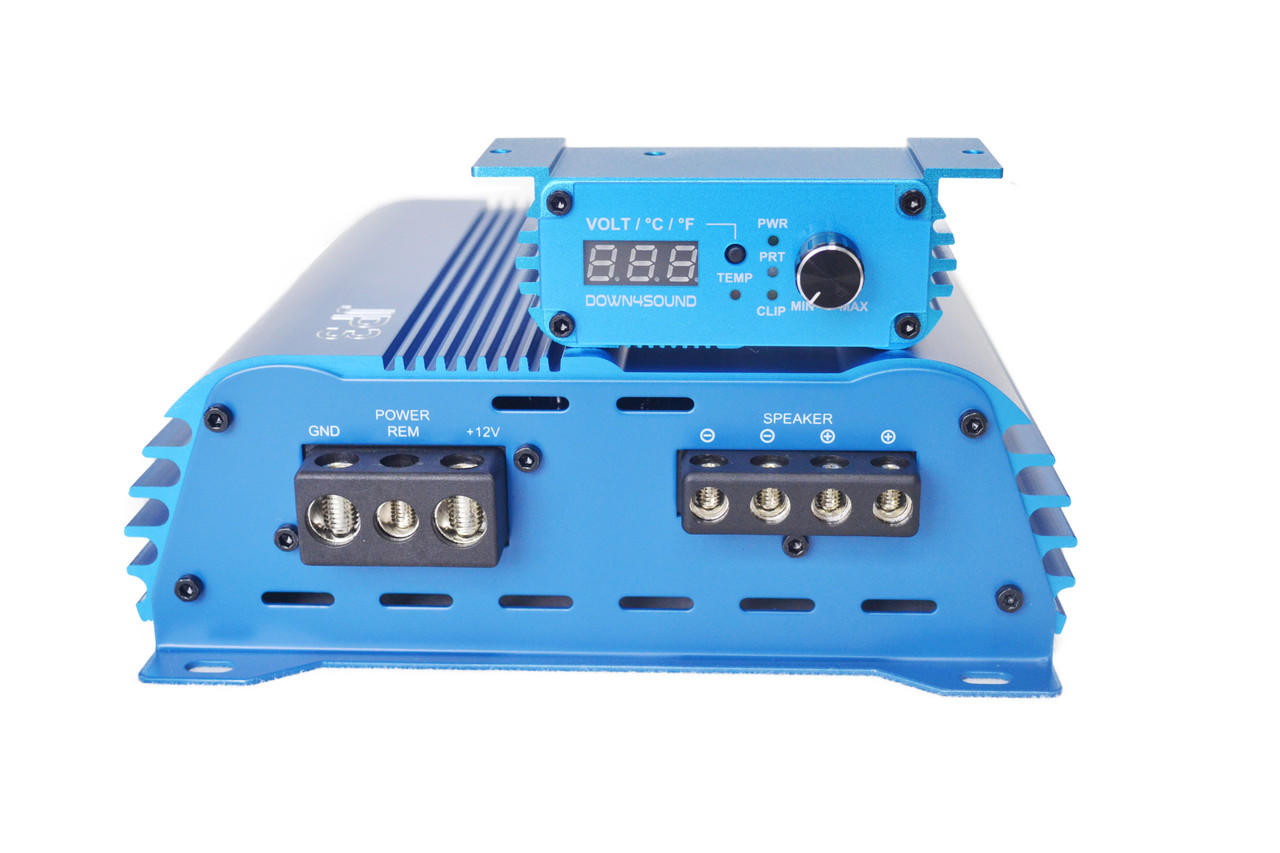

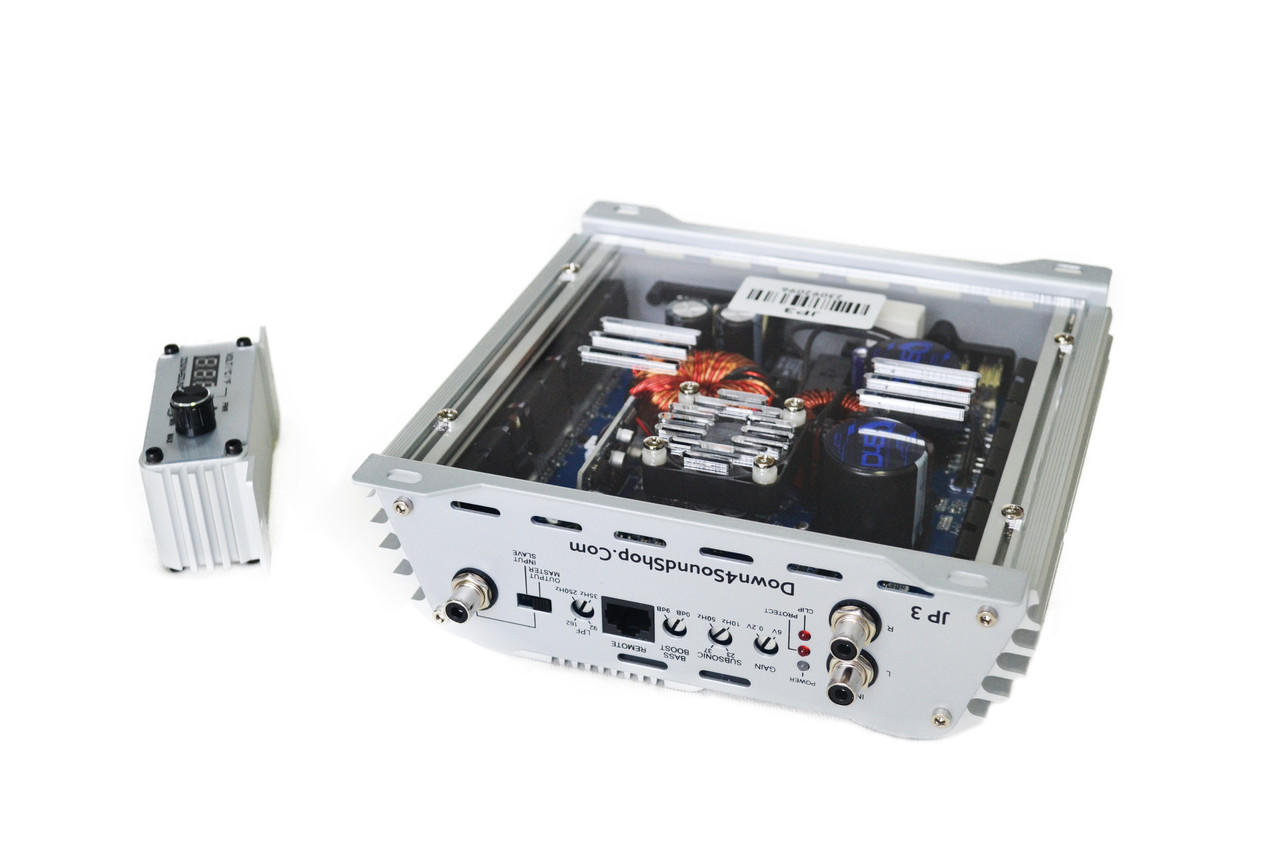

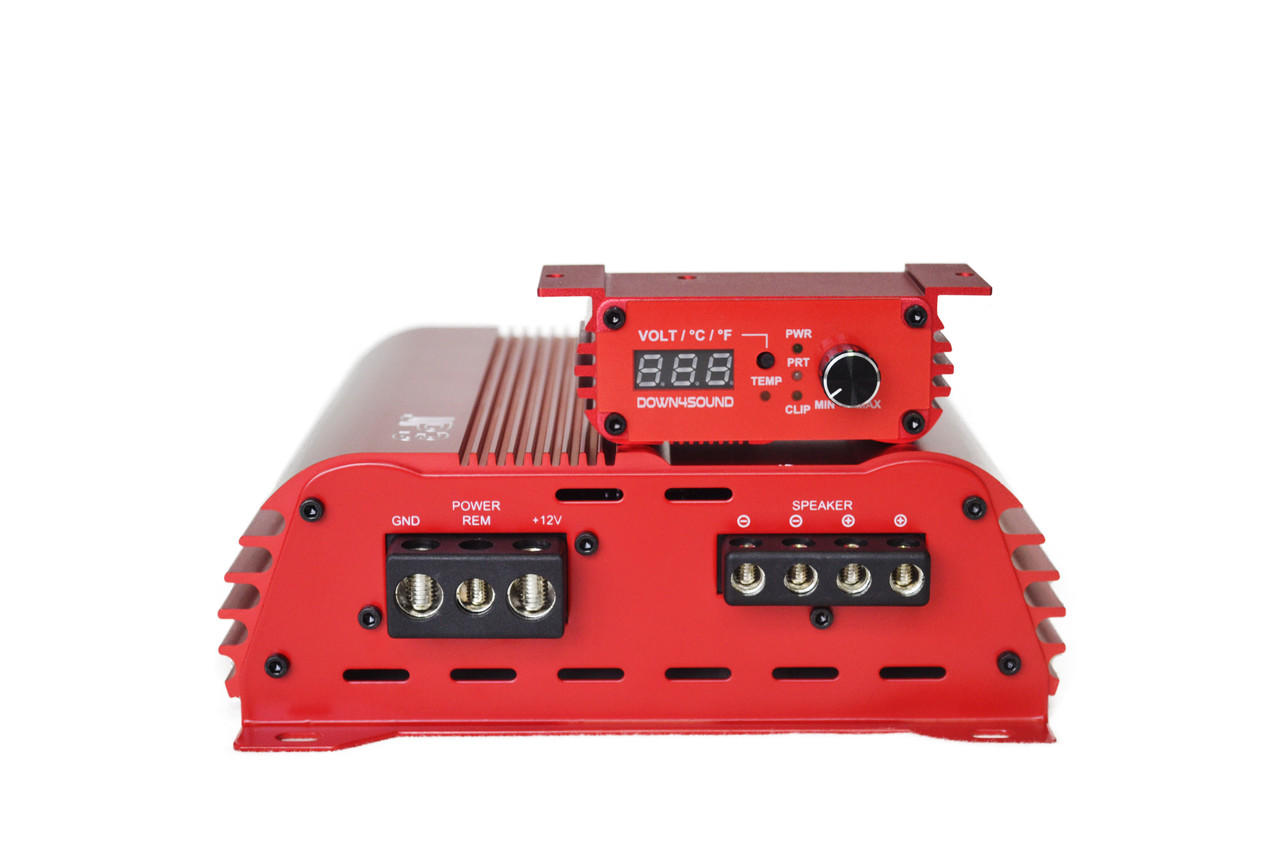

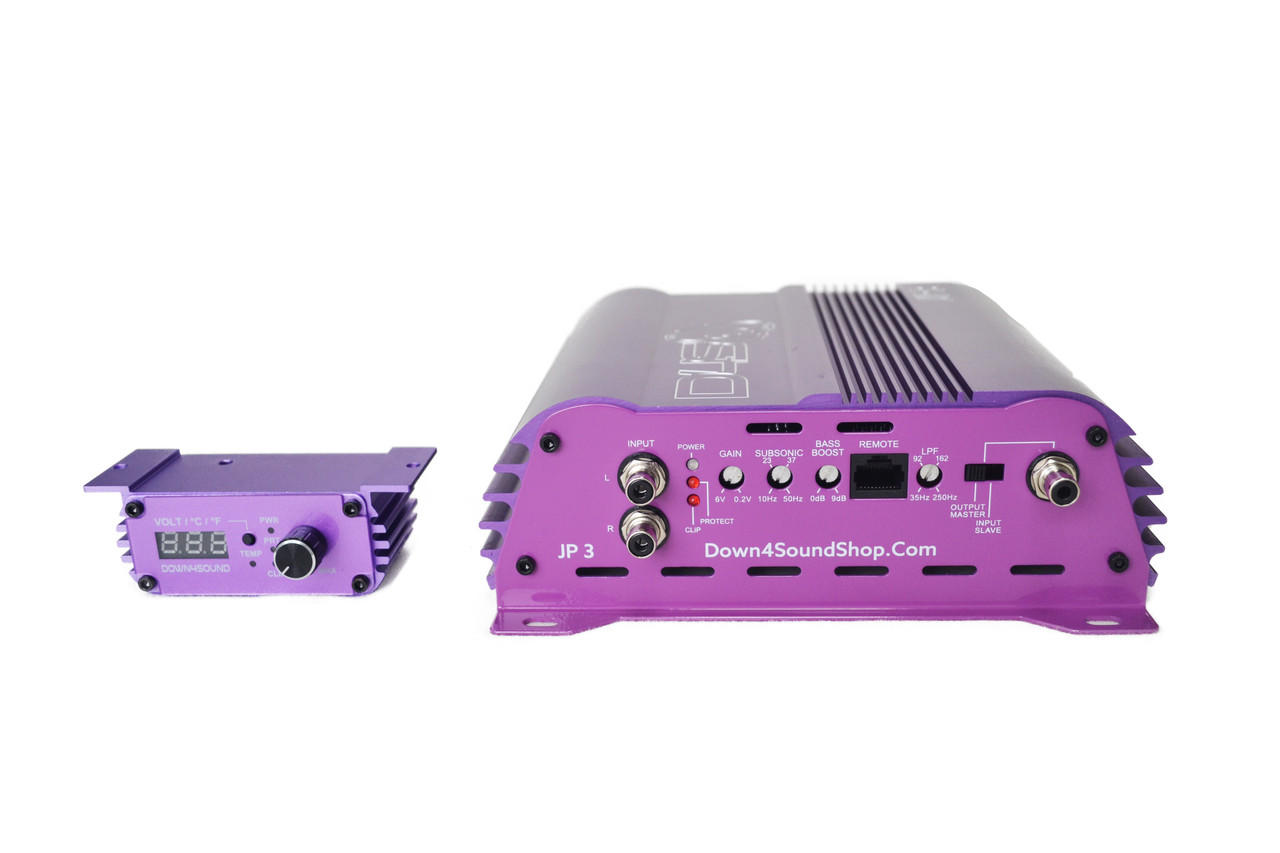

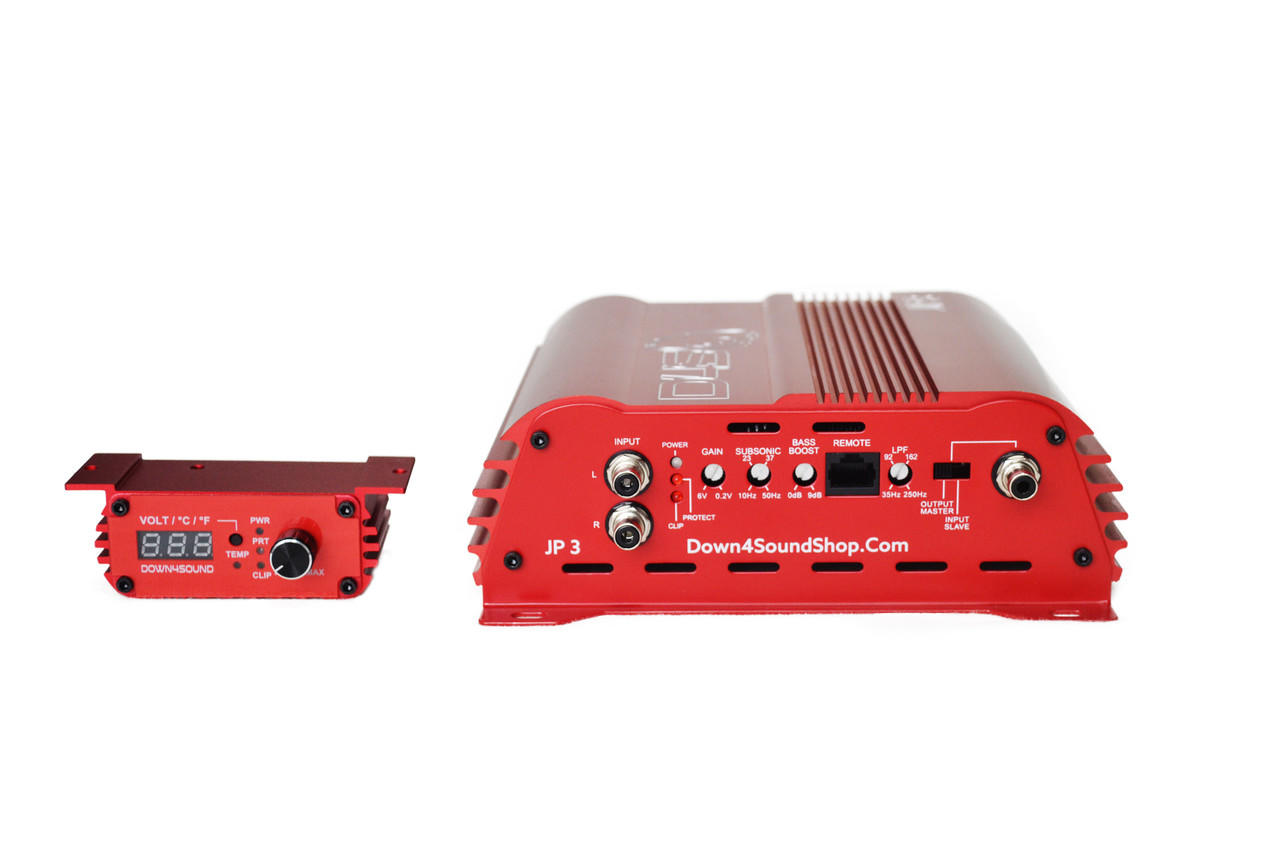

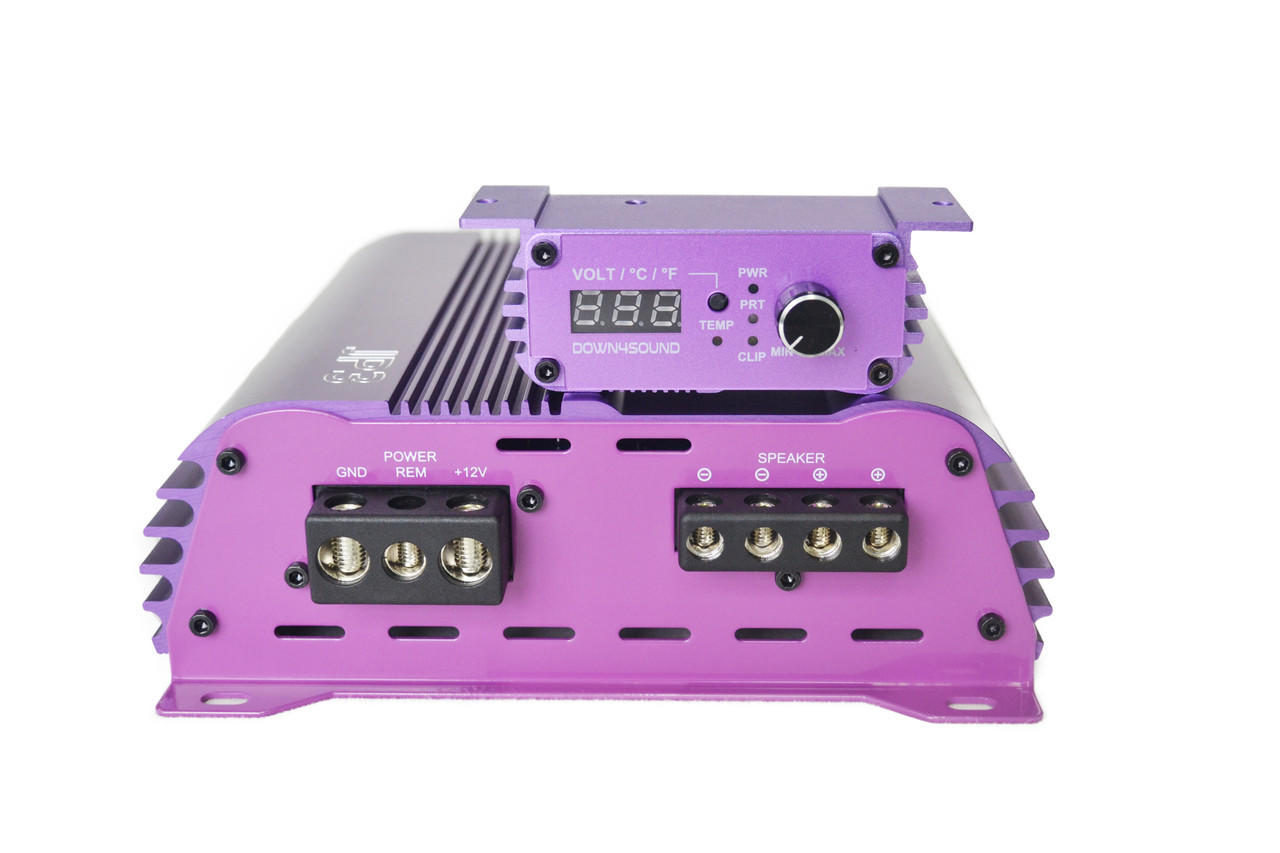

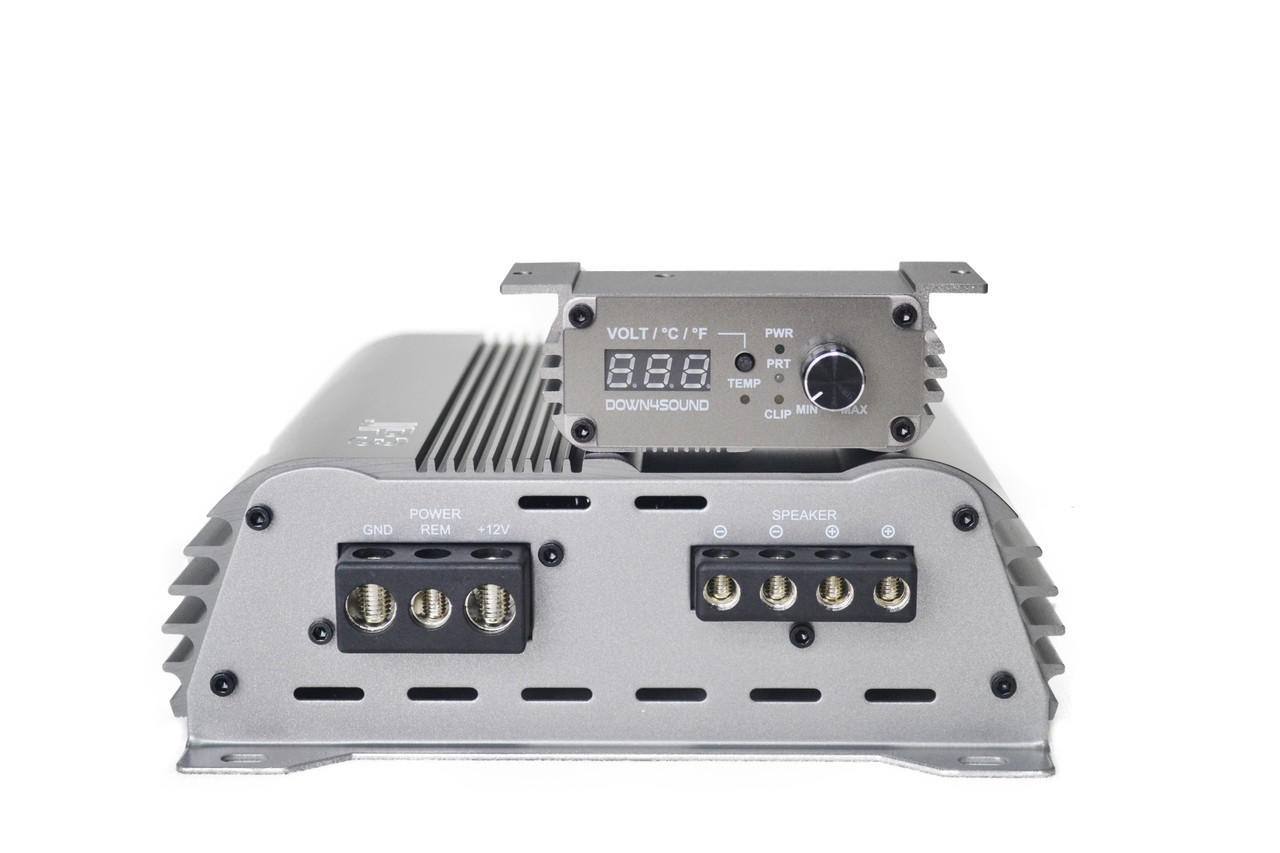

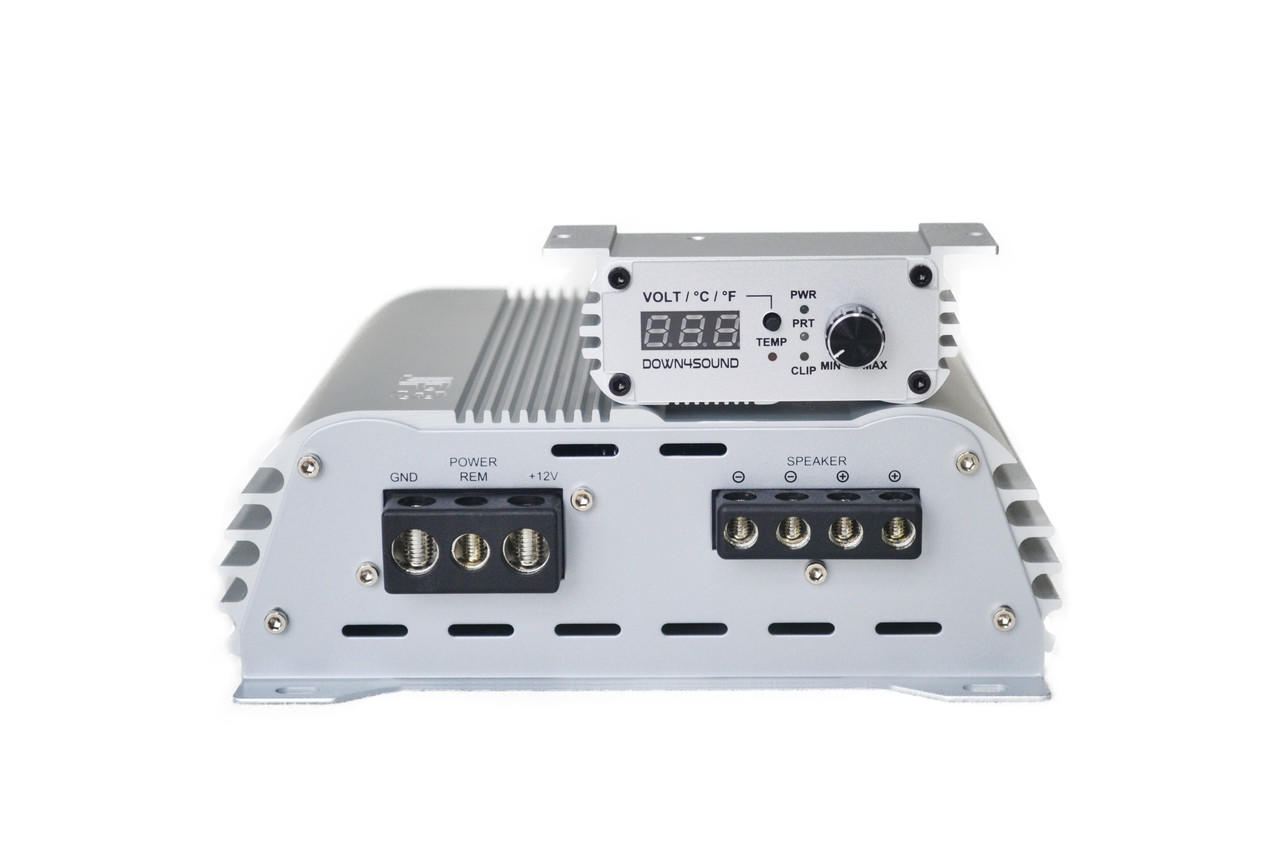

The included remote is packed with information like amp temperature, battery voltage, power, protection, and clipping status.

SPECIFICATIONS

Frequency Response: 10 - 254Hz

Variable Low Pass Filter: 35 - 250Hz

Variable Subsonic Filter: 10 - 50Hz

Variable Bass Boost: 0 - 9 dB

Signal to Noise: 93dB

Input Signal Sensitivity: 0.2 to 6 Volts

Recommended Fuse: 70 Amps

Dimensions: 6.29” Long x 7.4” Wide x 2.24” High
