Down4Sound EZPWR810 10 Channel Amp

Full System Class D Amplifier

10 Full-Range Channels

On Board Clipping Indicators for Input and Output

Remote With Voltage & Temperature Display + Power, Protection & Clipping Indicators

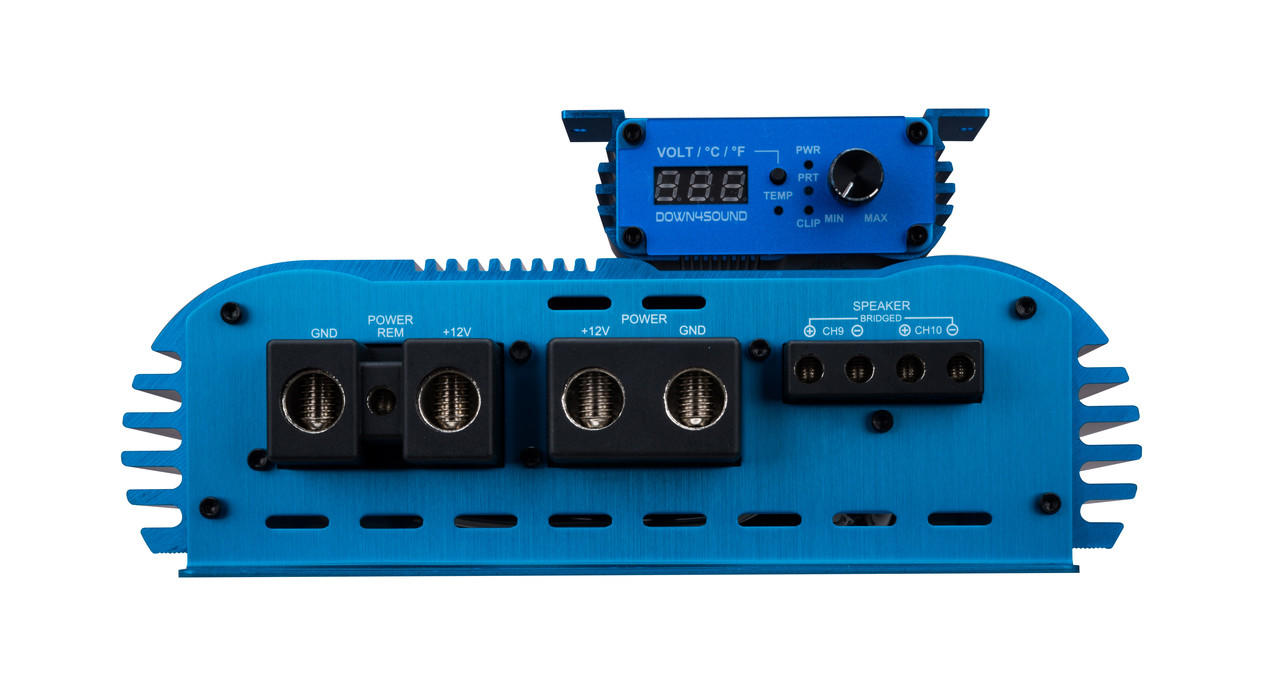

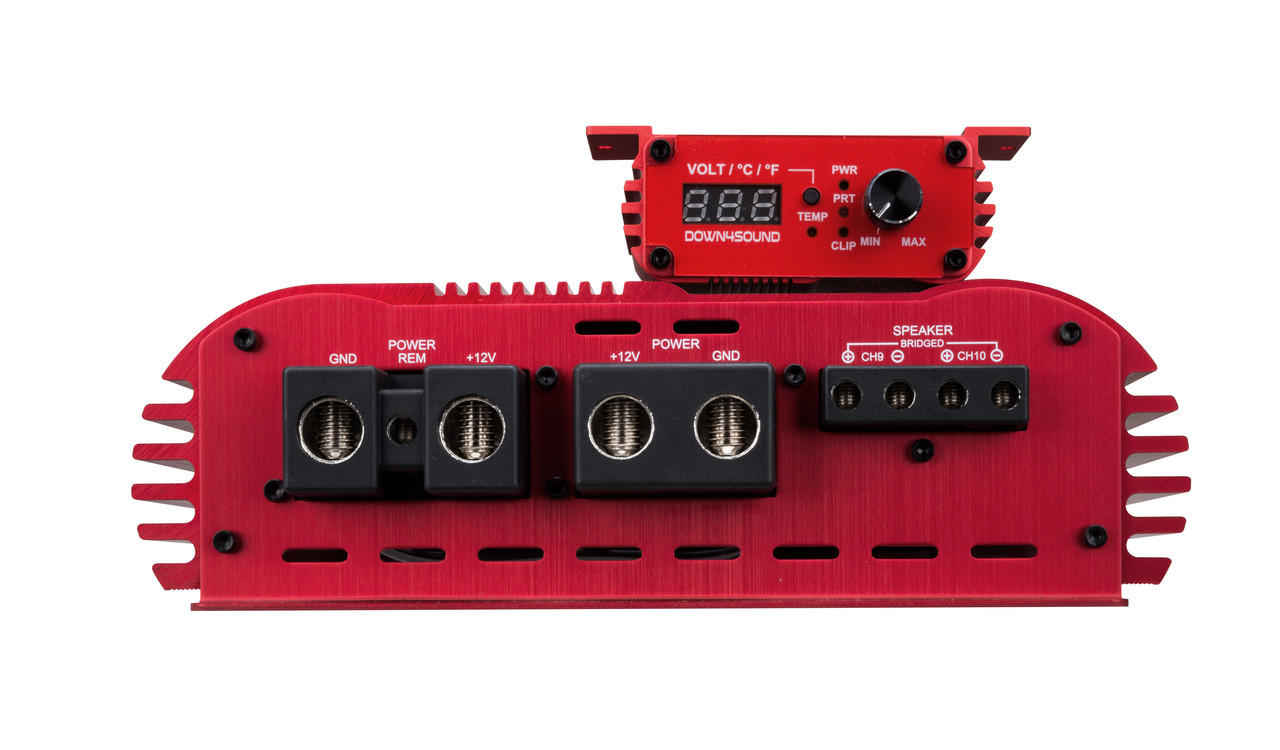

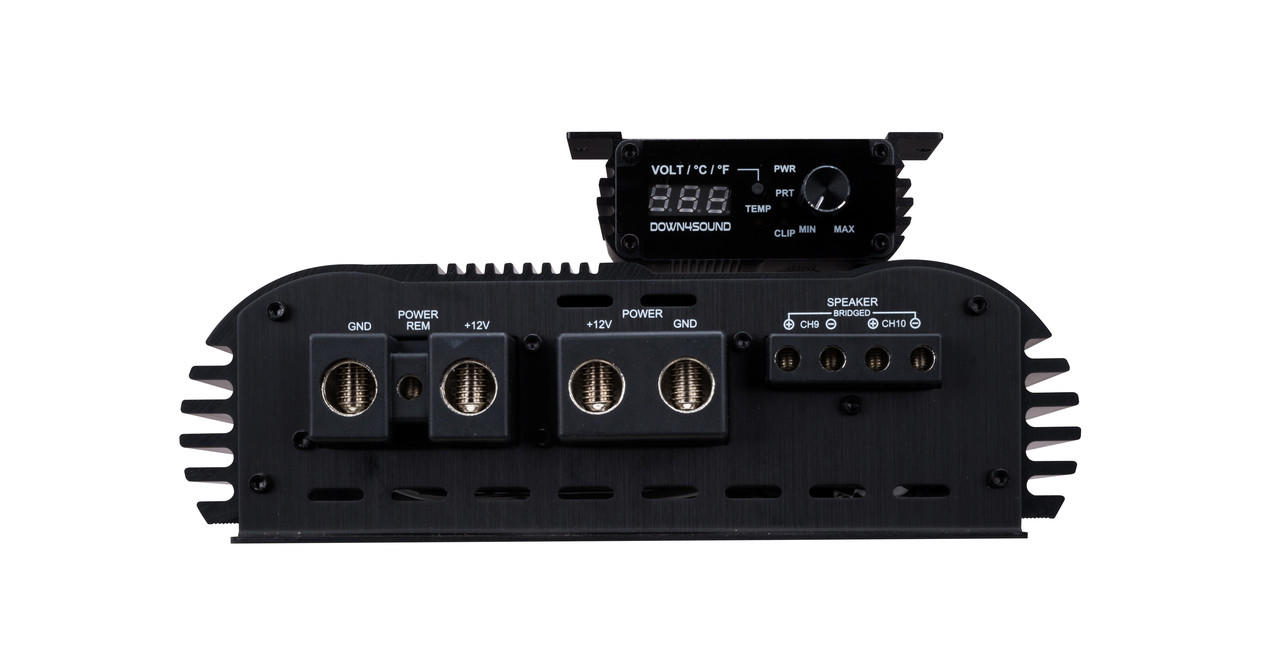

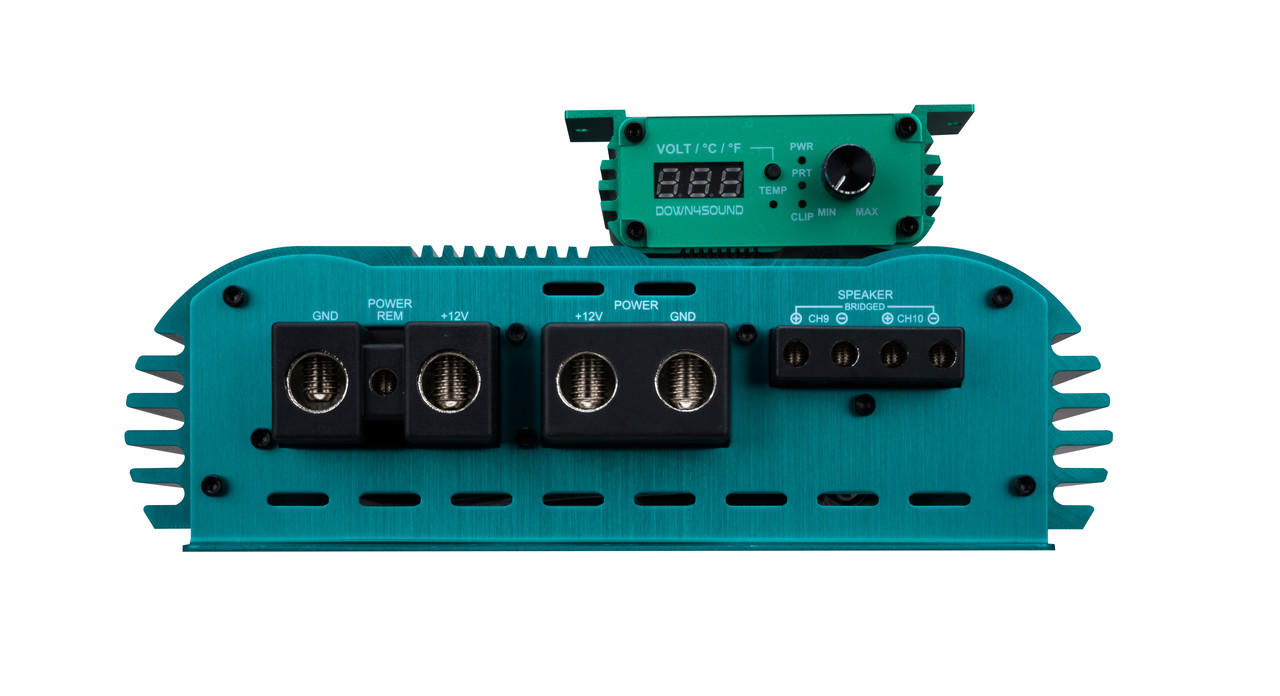

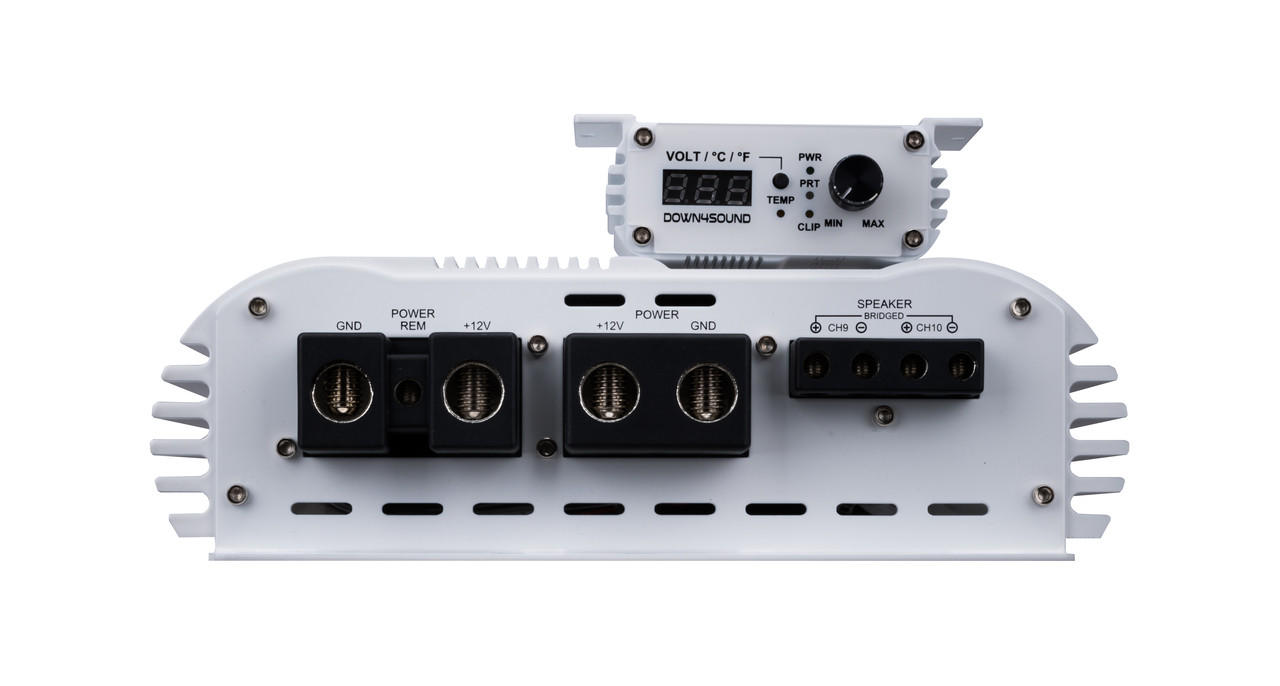

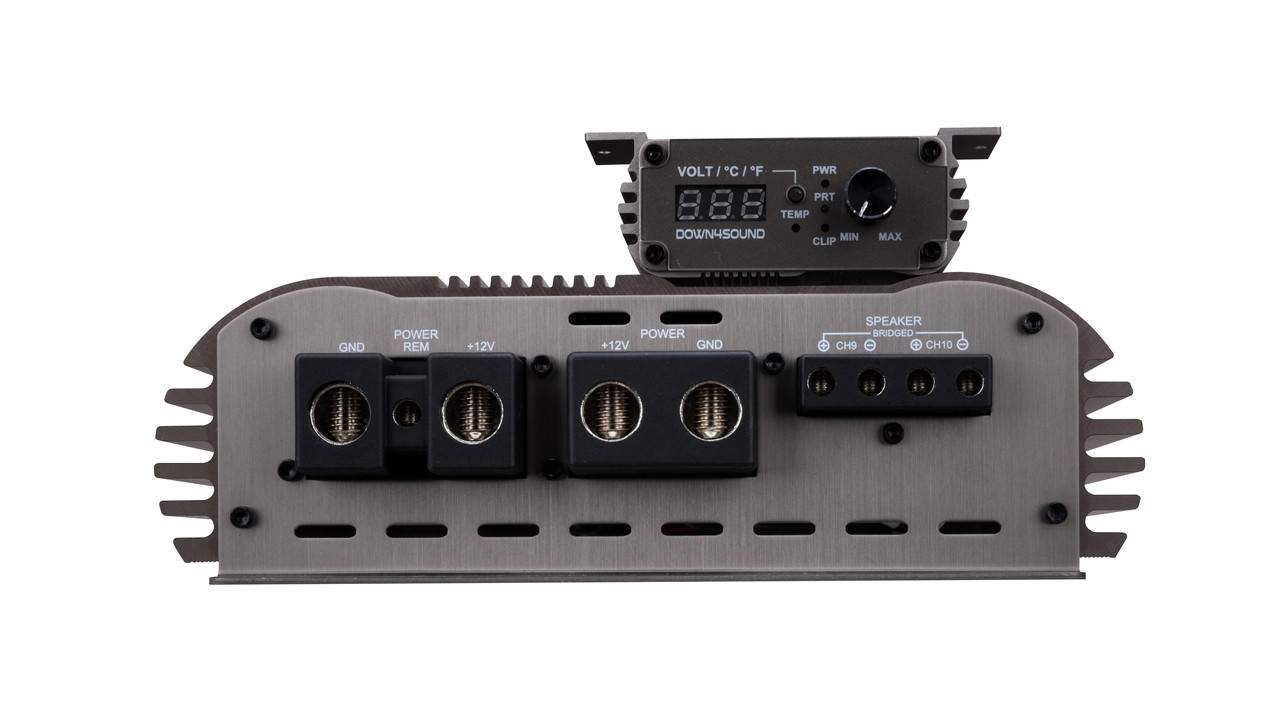

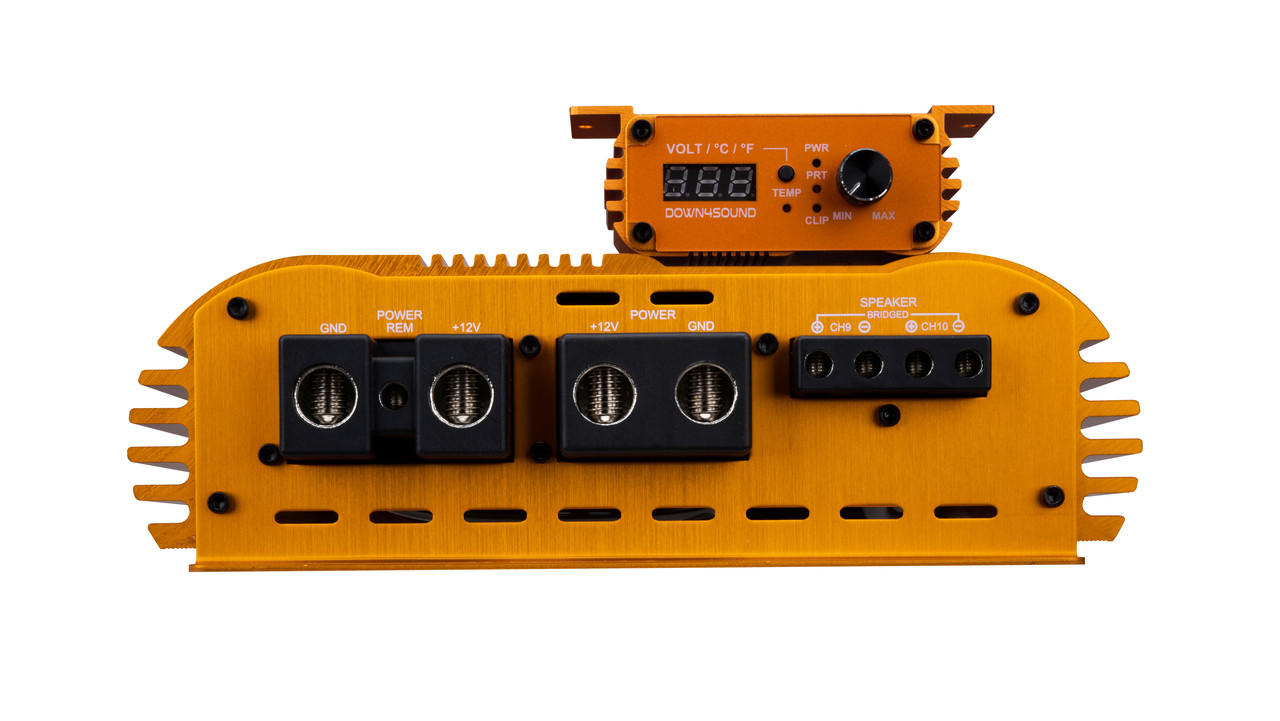

Dual 1/0 AWG Power & Ground Inputs

Tested at 14.4V & 1% THD Max Rated Output:

4,670 Watts

2 Ohm RMS: 250W x 8 + 800W x 2 (Ch. 9 & 10)

4 Ohm RMS: 150W x 8 + 600W x 2 (Ch. 9 & 10)

4 Ohm Bridged: 480W x 4 (Ch.1-8) + 1700W x 1 (Ch. 9 & 10)

1 Ohm RMS: 1200W x 2 (Ch. 9 & 10)

2 Ohm Bridged: 2670W x 1 (Ch. 9 & 10)

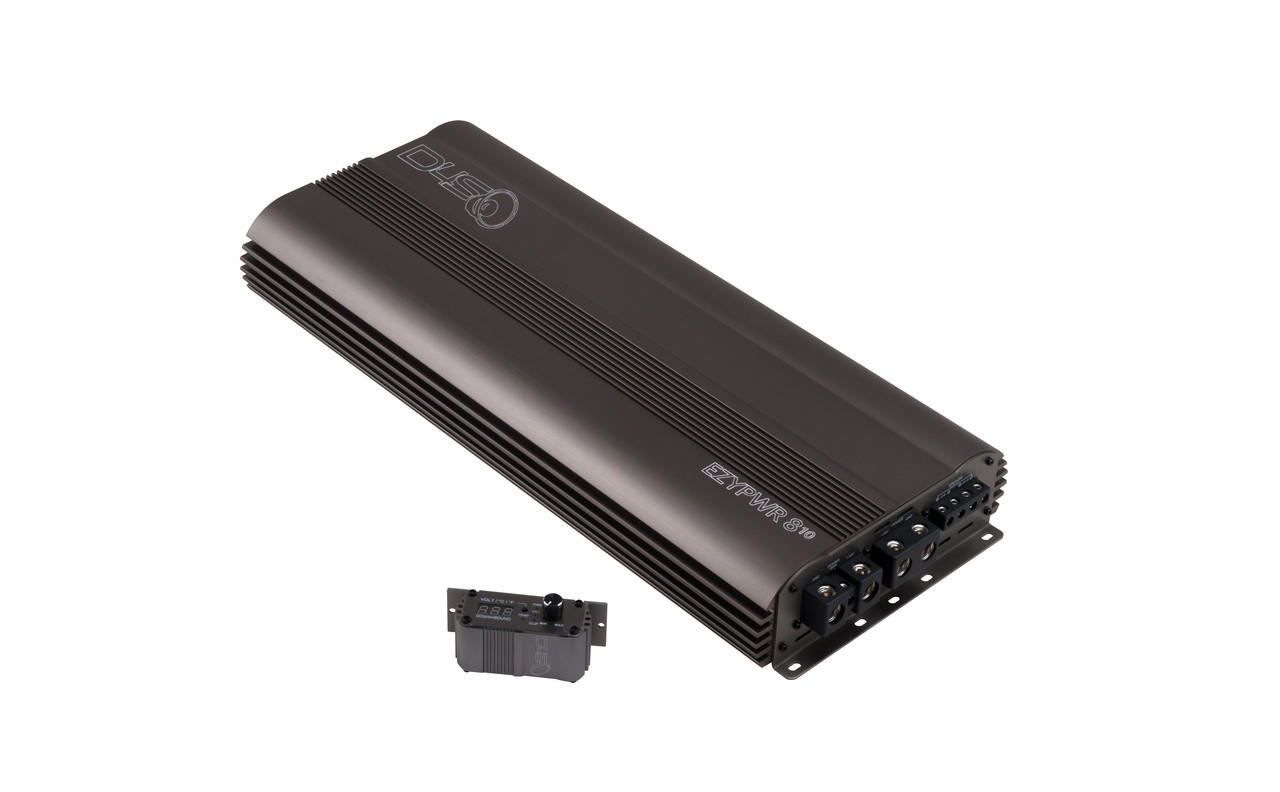

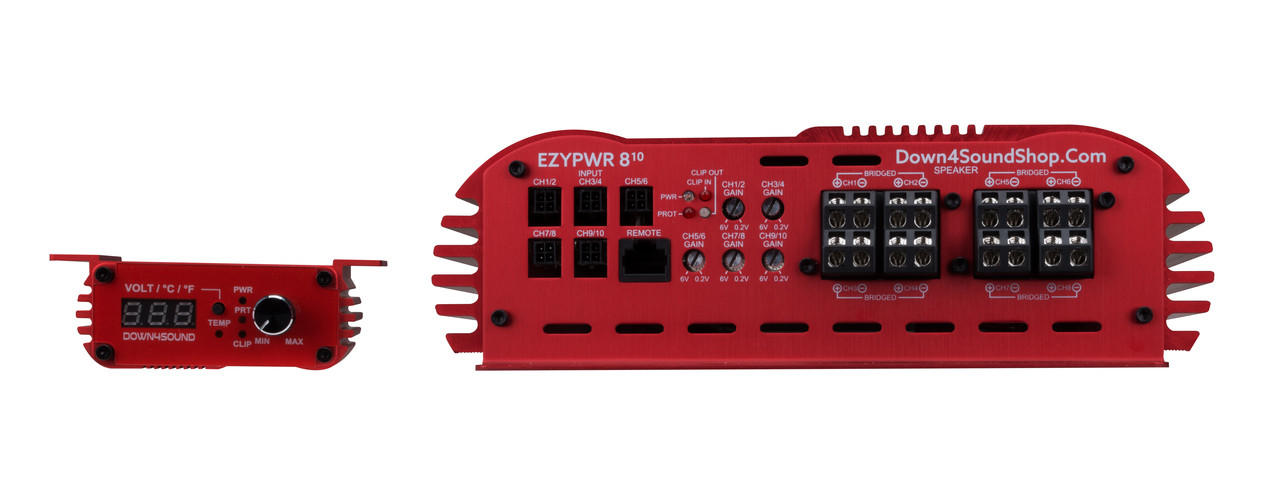

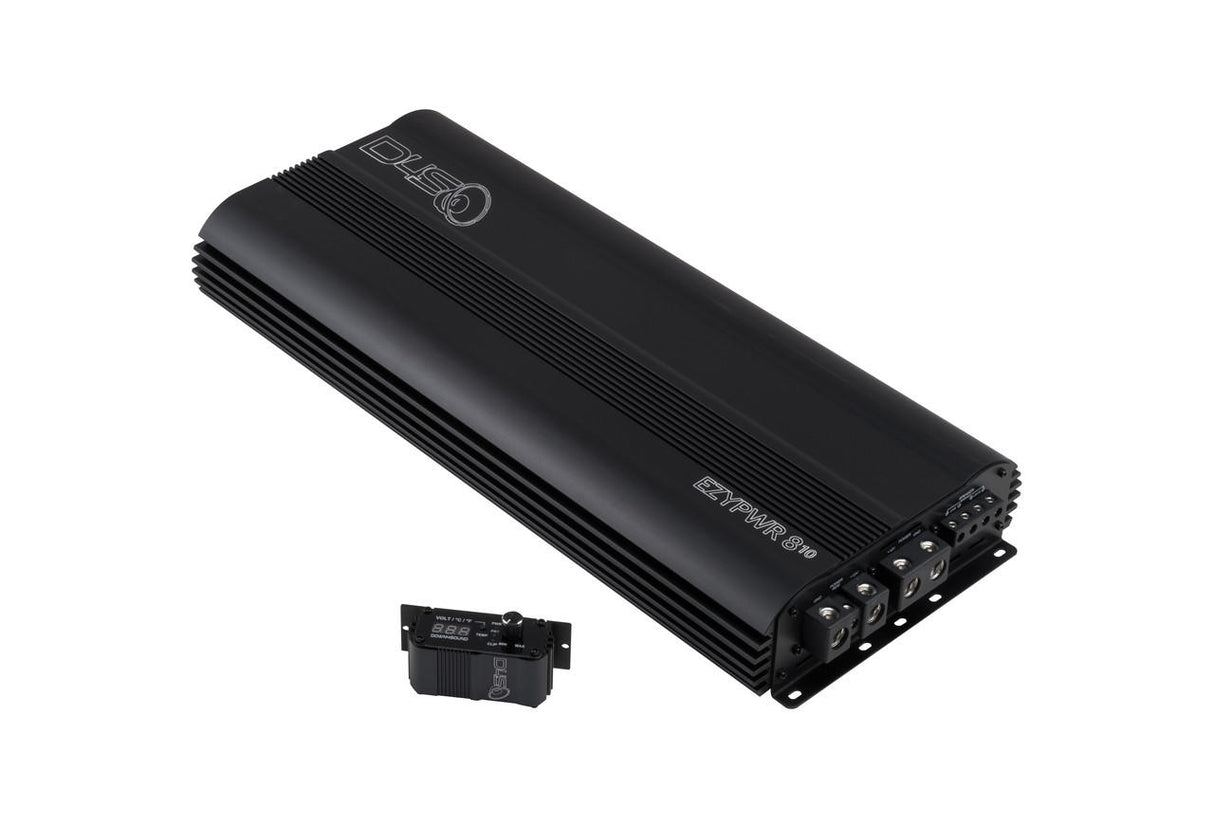

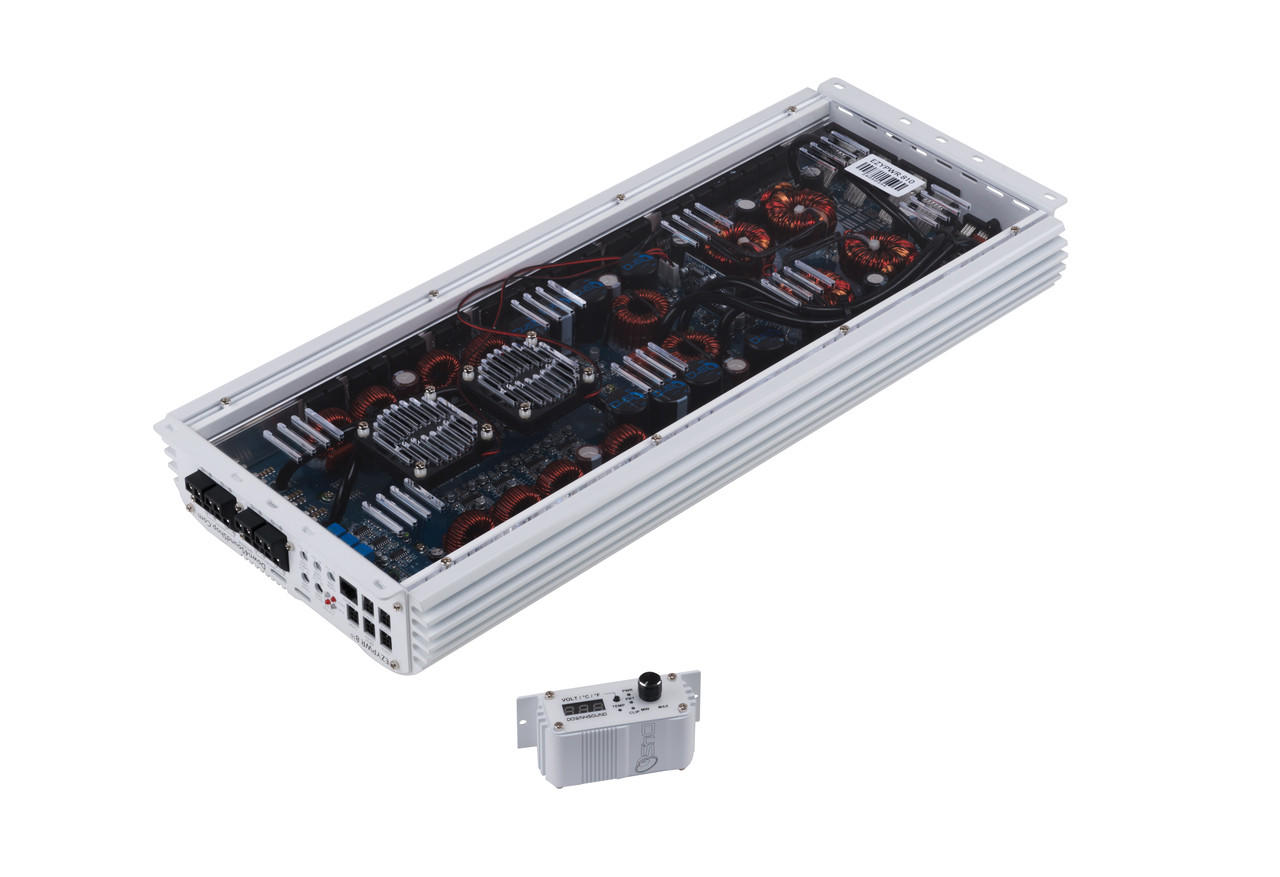

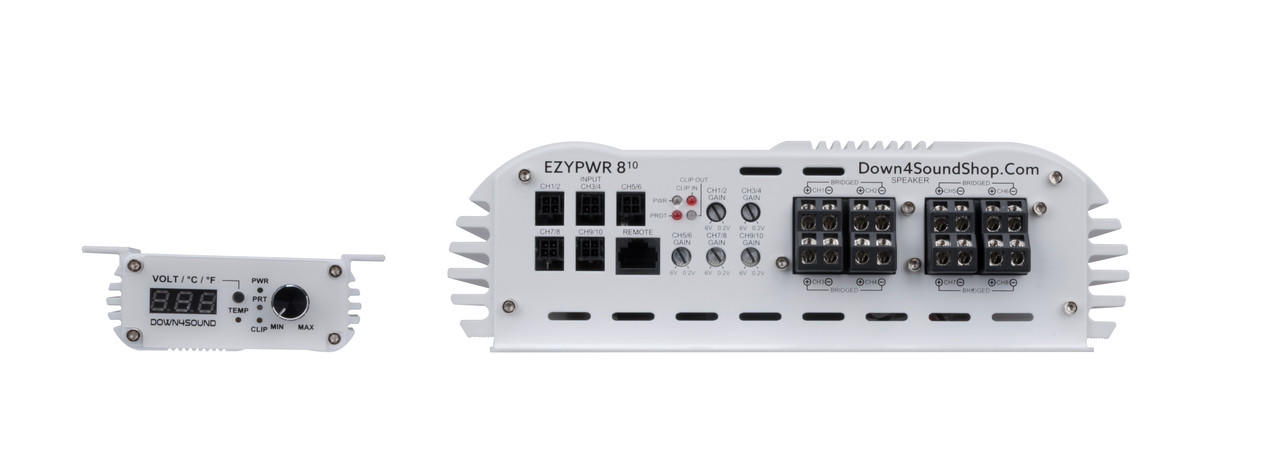

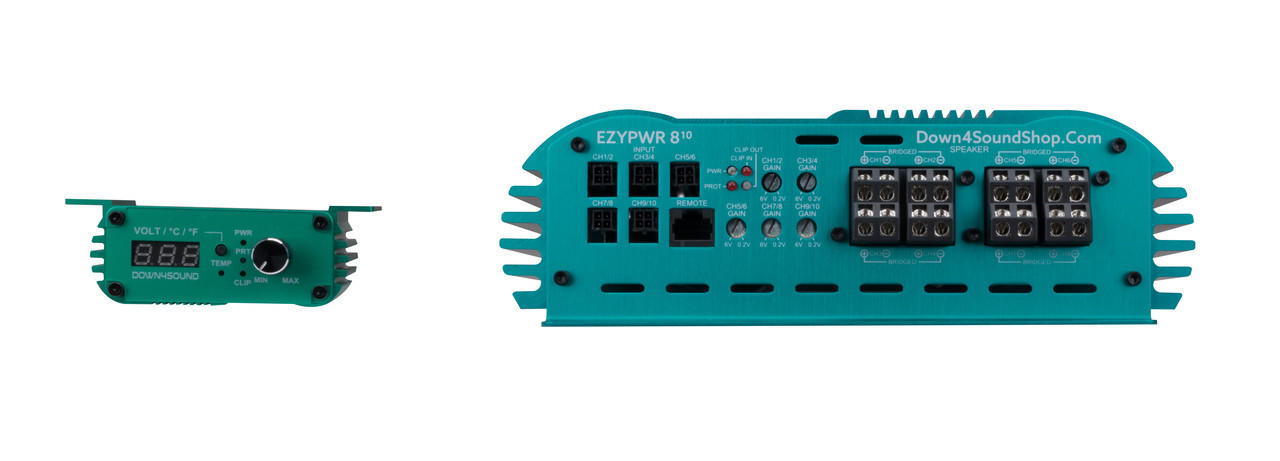

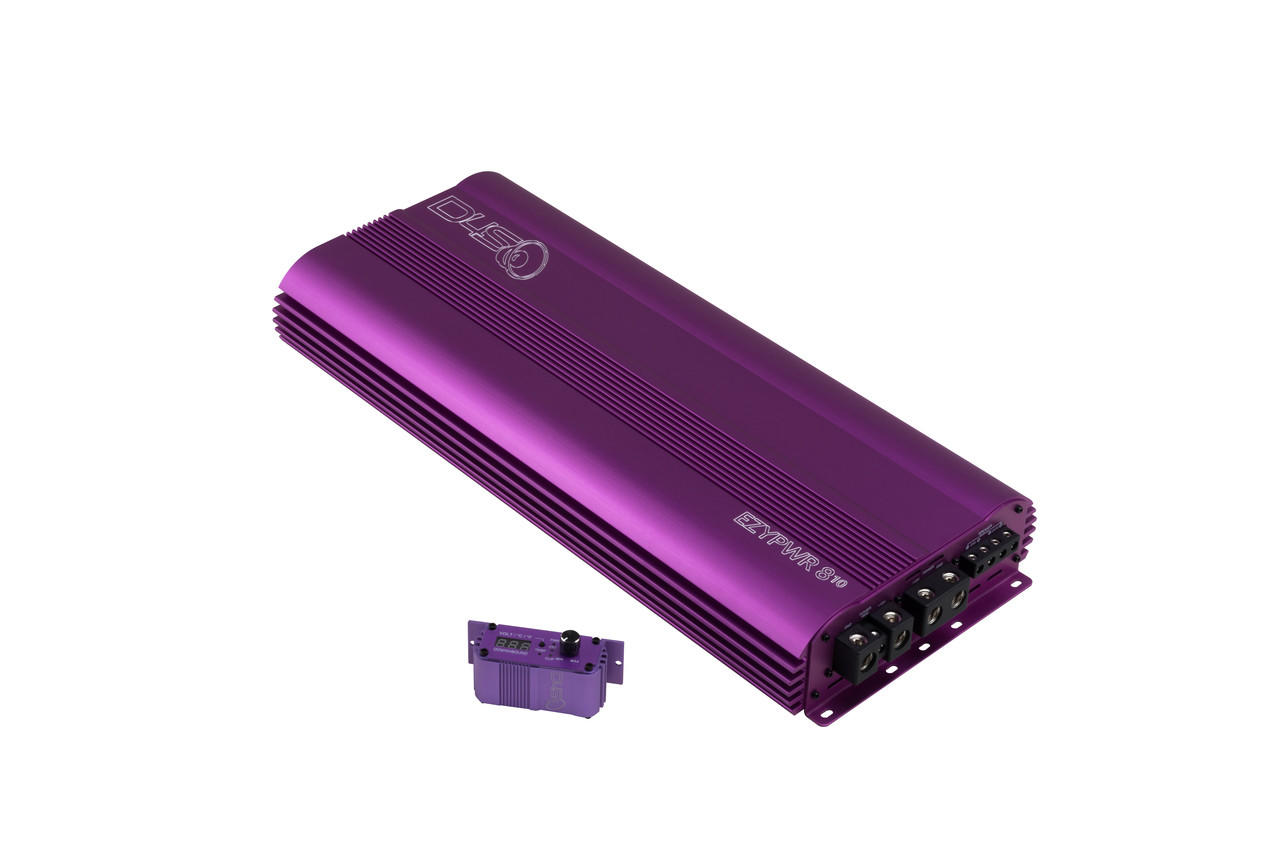

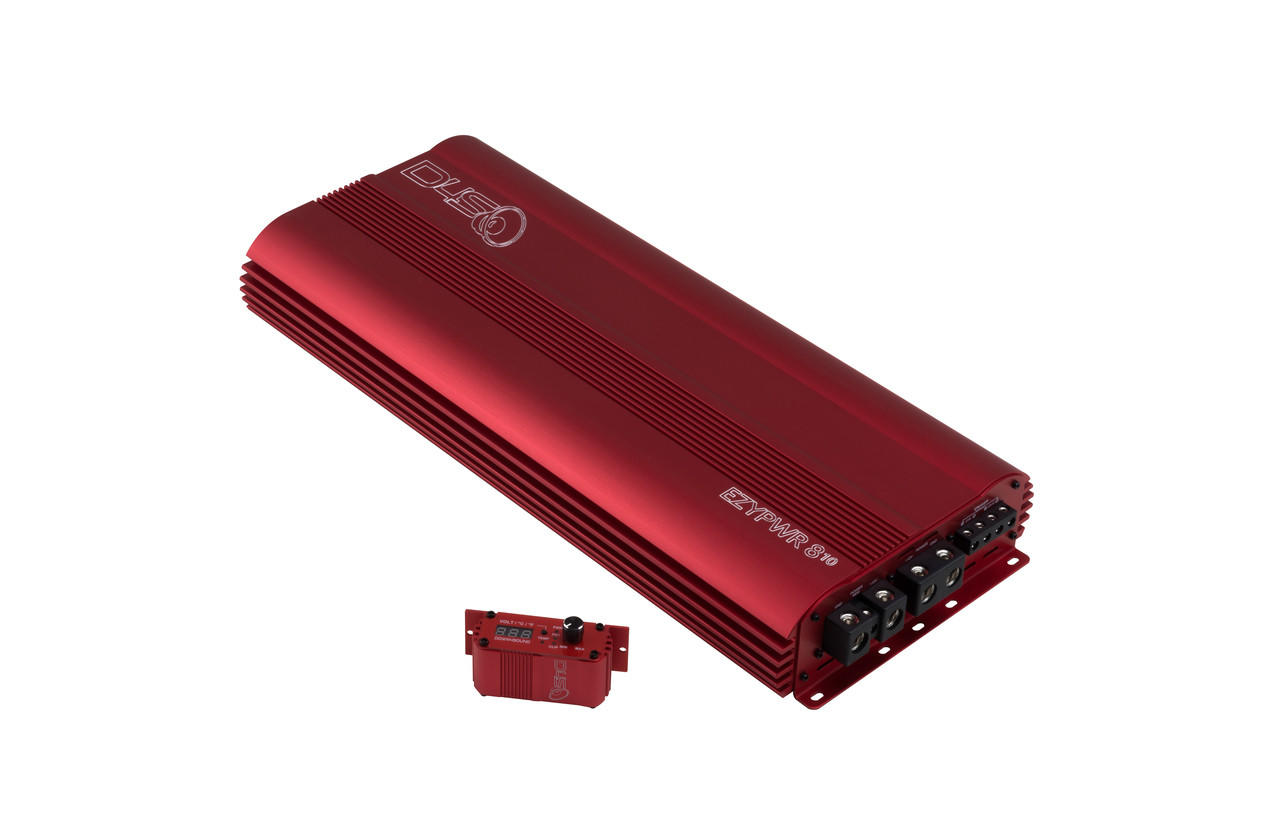

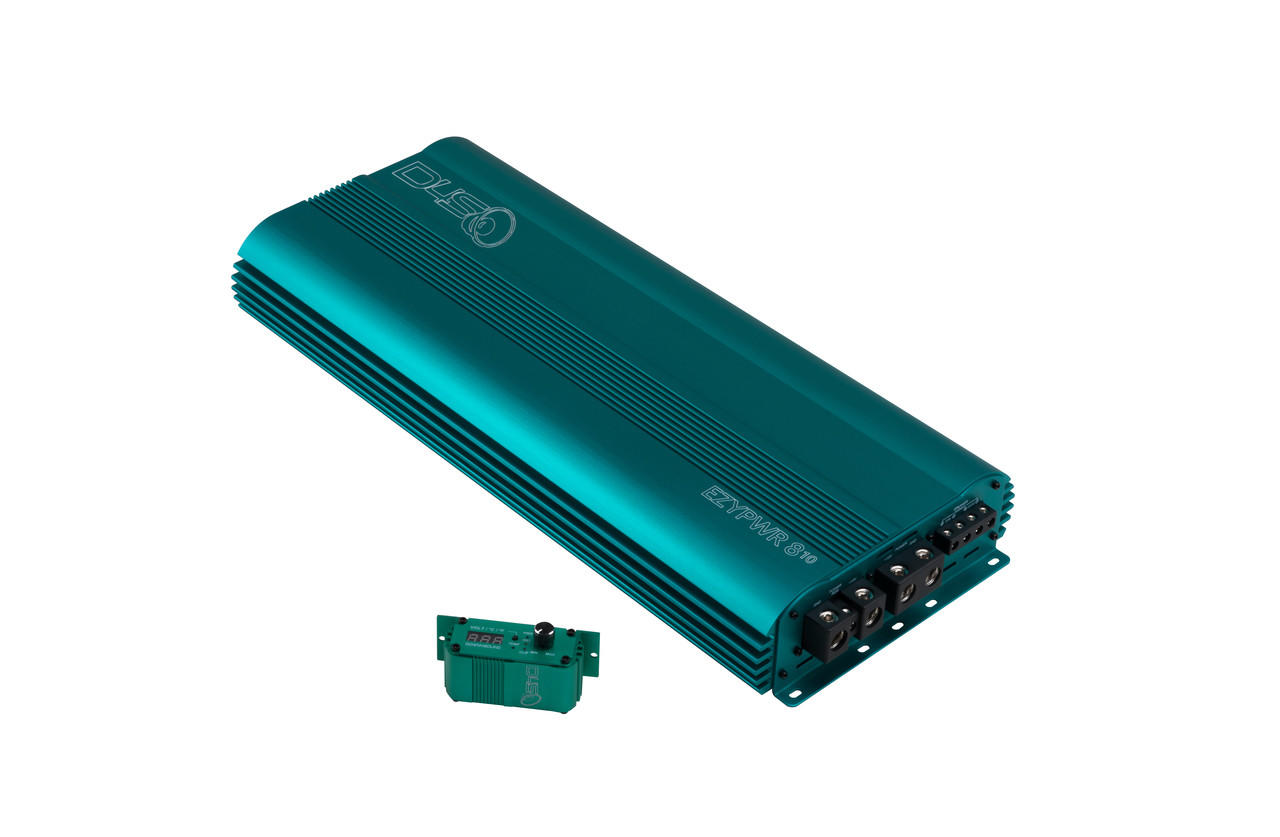

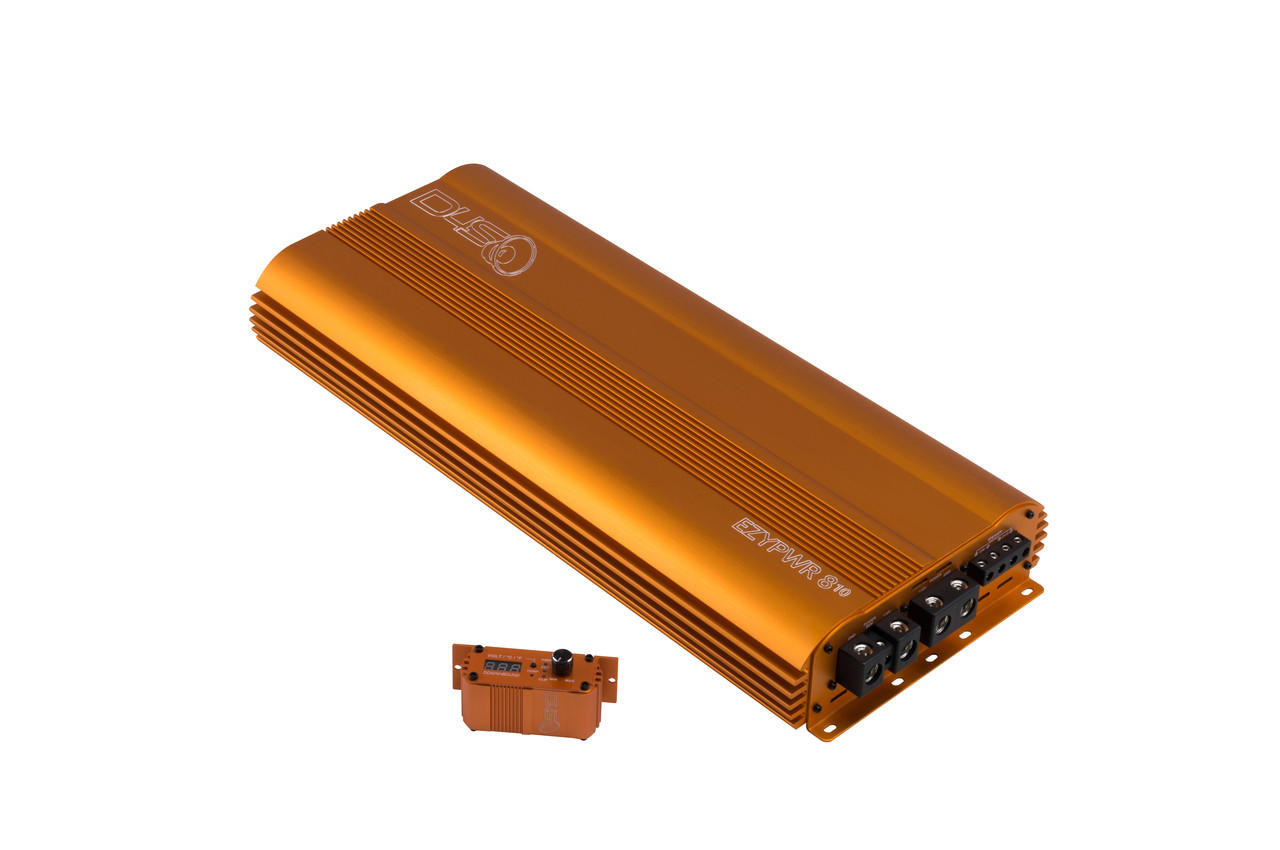

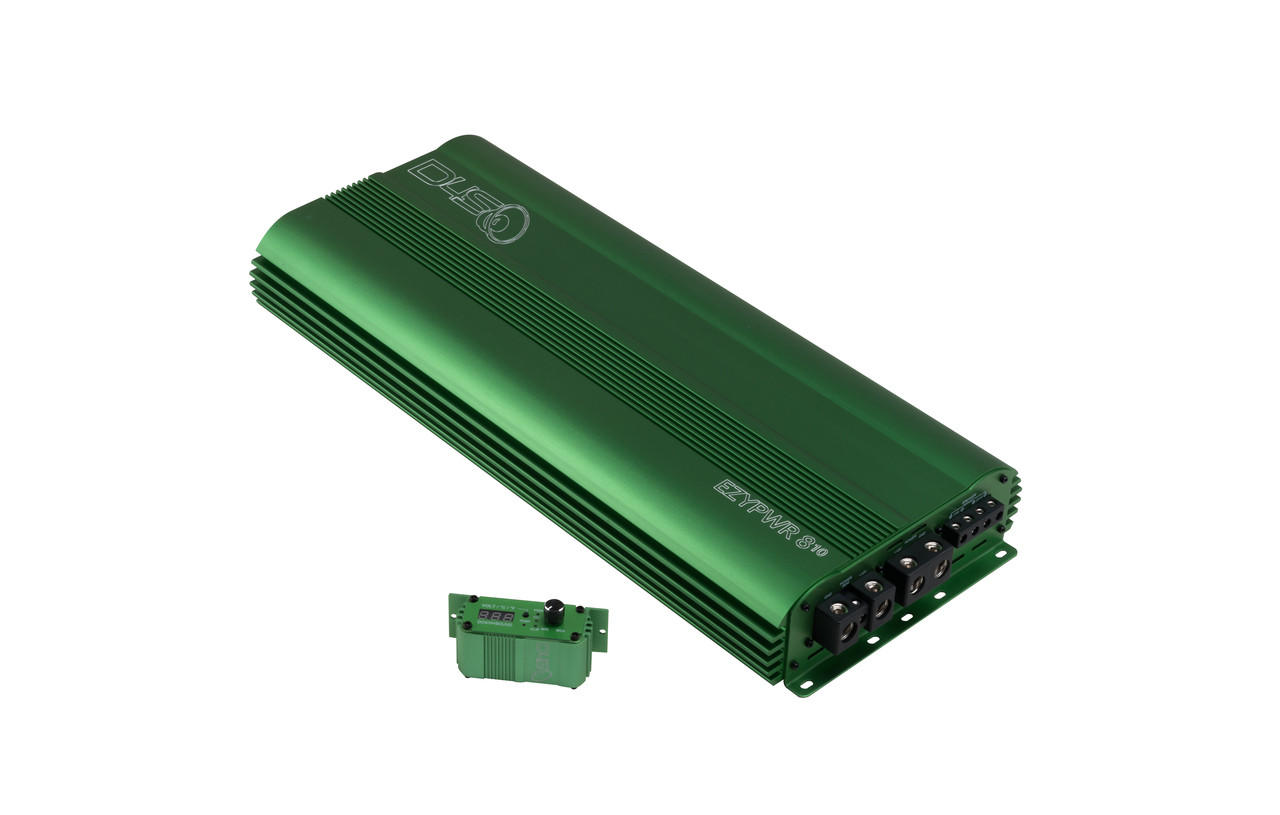

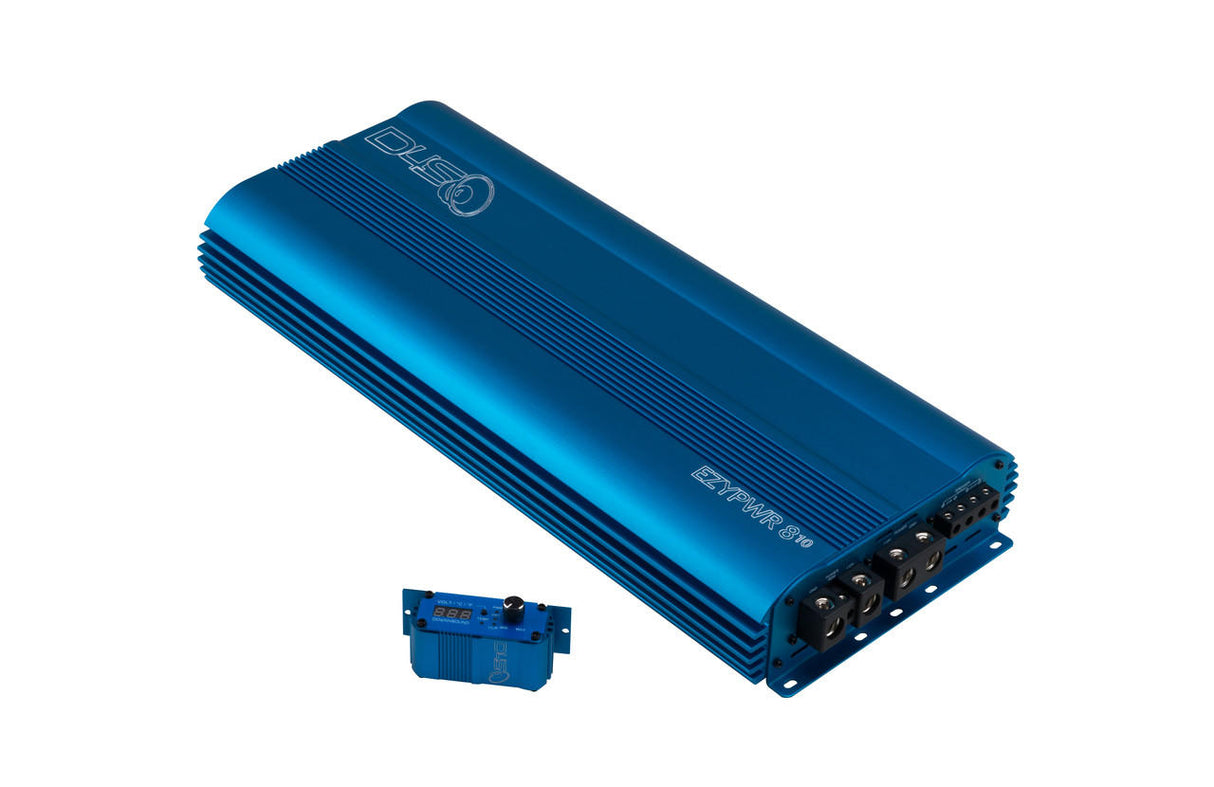

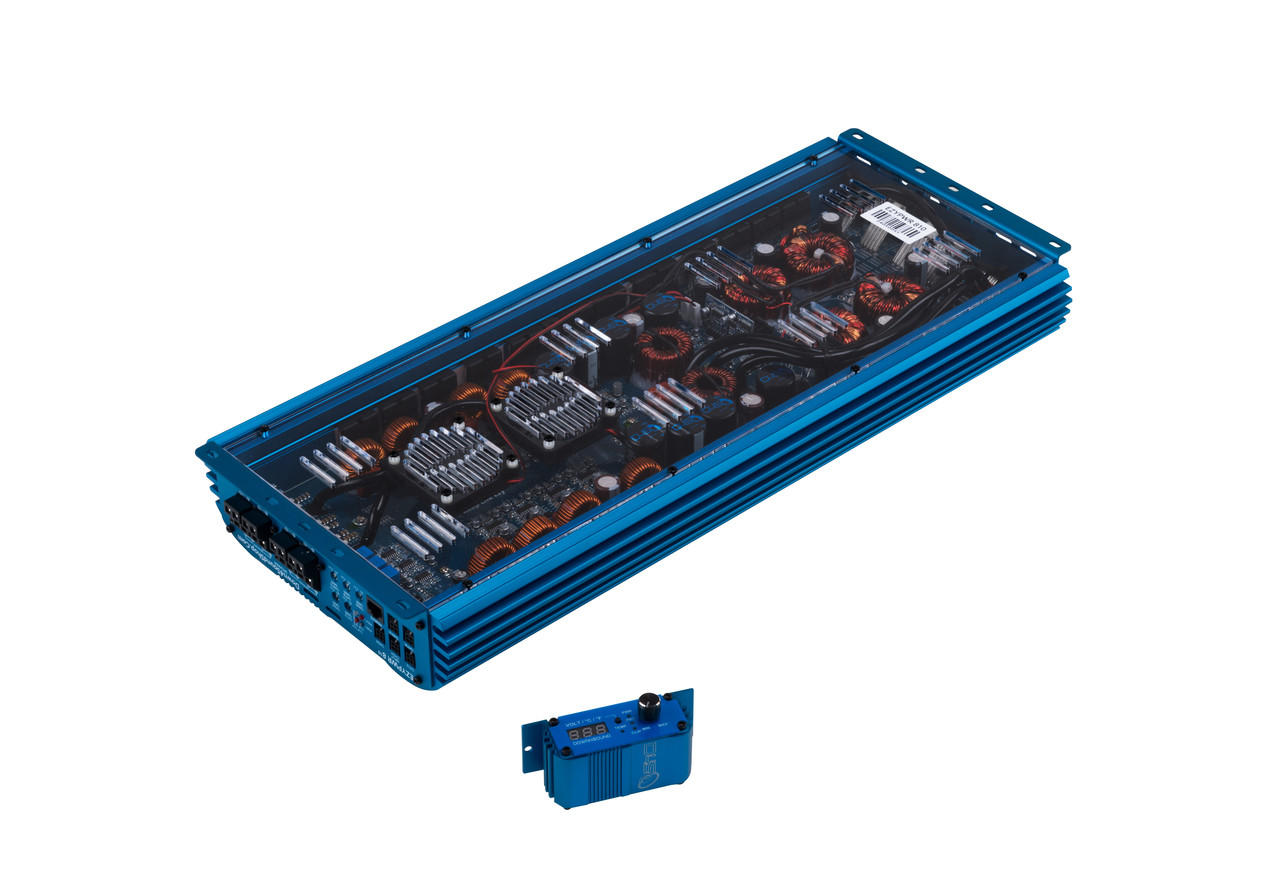

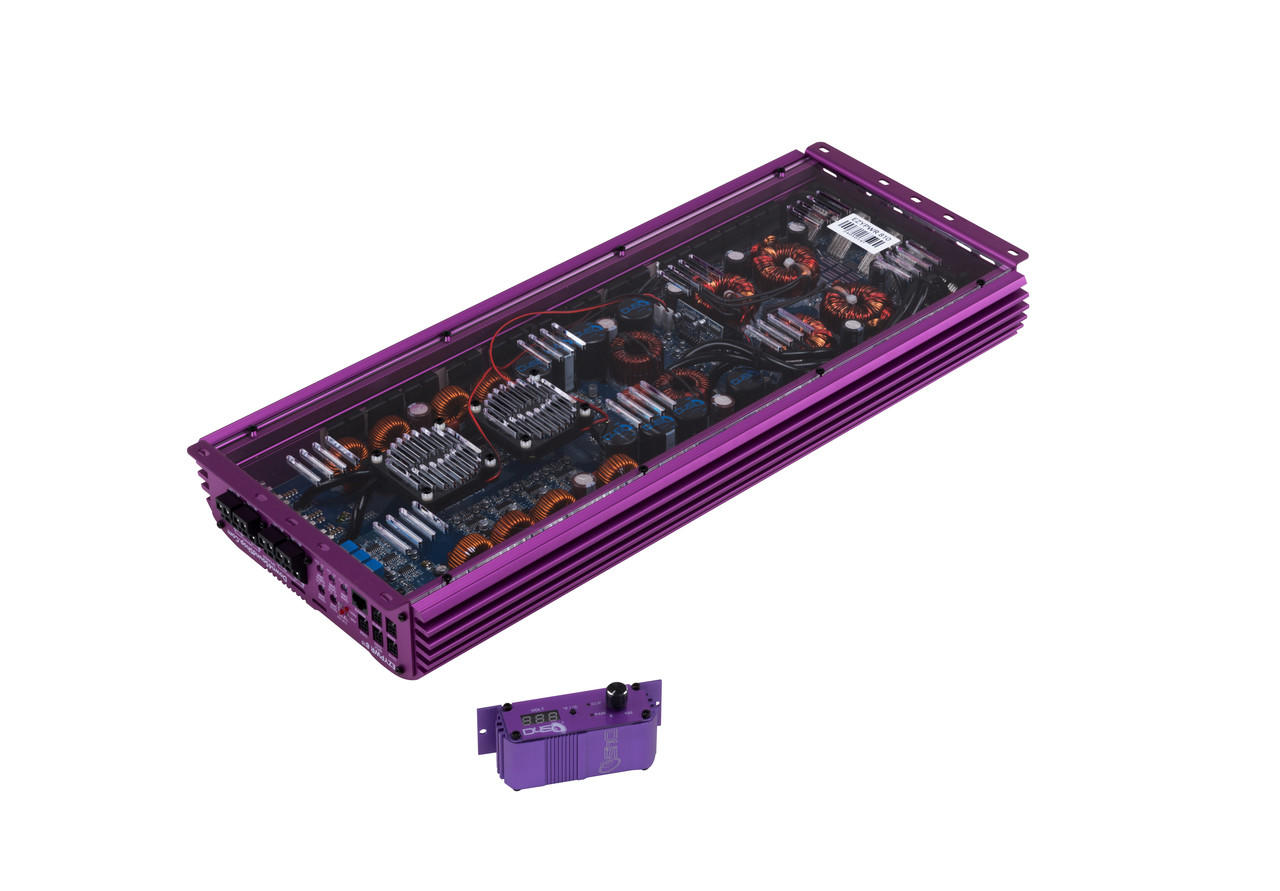

Available in any of six stunning colors, the Down4Sound EZYPWR 810 is a 10-channel, bridgeable power plant. Its full-range response allows the amp to powering your full system, or give life to a massive set of door speakers. The only limit is your imagination! No matter how you drive this amp, you get top-tier performance for your high-demand setup. Engineered with high-quality Class D technology, it maximizes efficiency while pushing out relentless power.

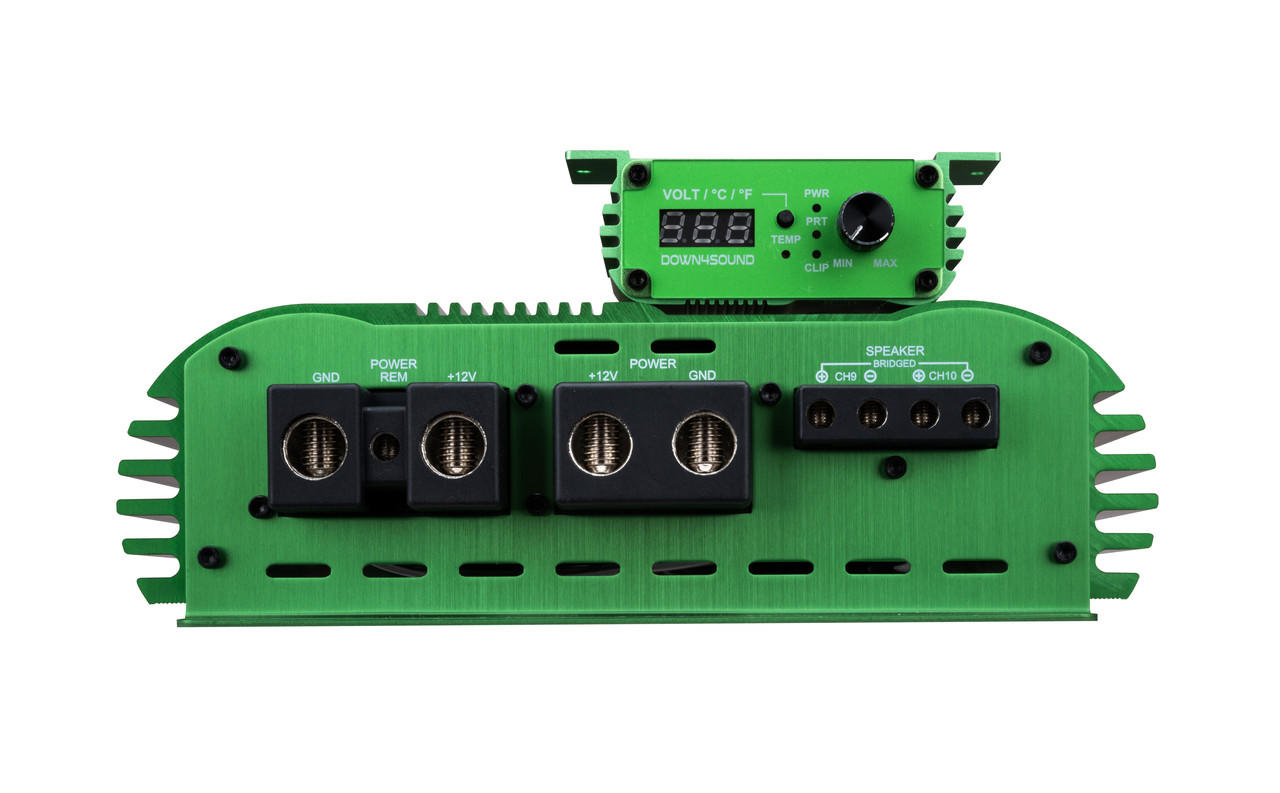

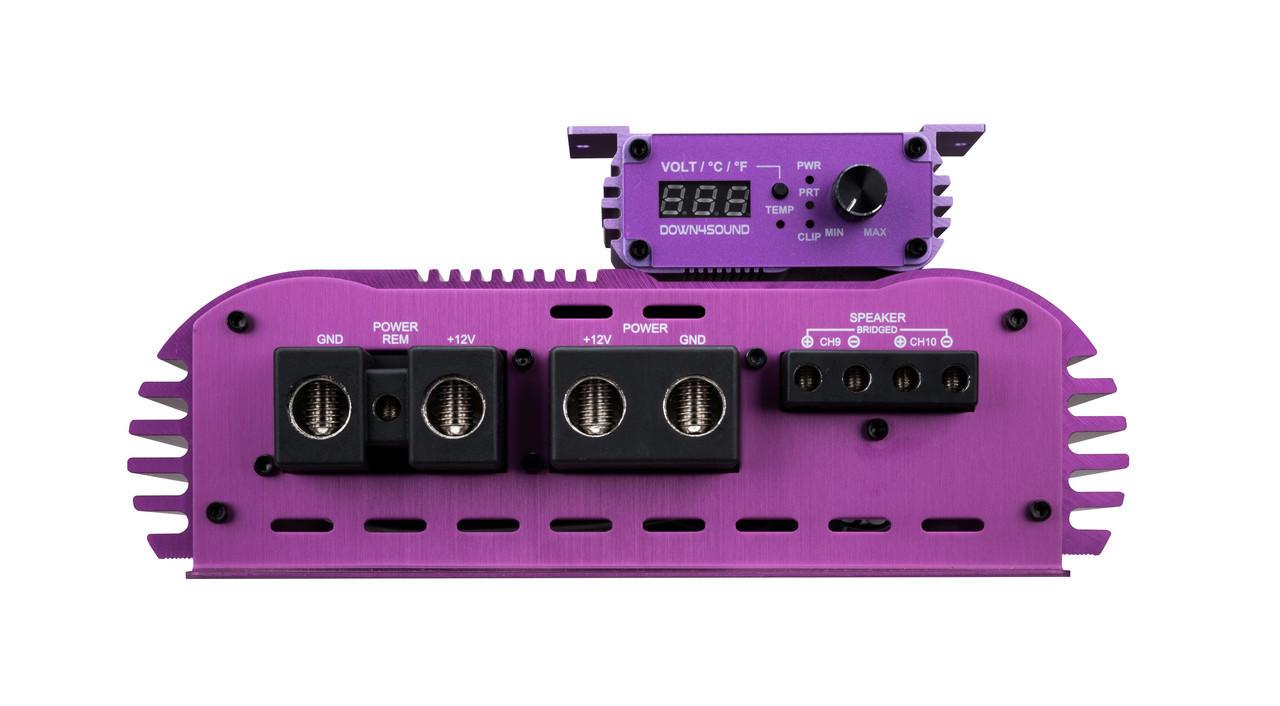

Equipped with dual 1/0 AWG power and ground inputs, the amp has eight full-range speaker channels, each capable of delivering as much as 250 watts. Two additional full-range channels create 1,200 watts at one ohm, or 2,670 watts bridged to two ohms.

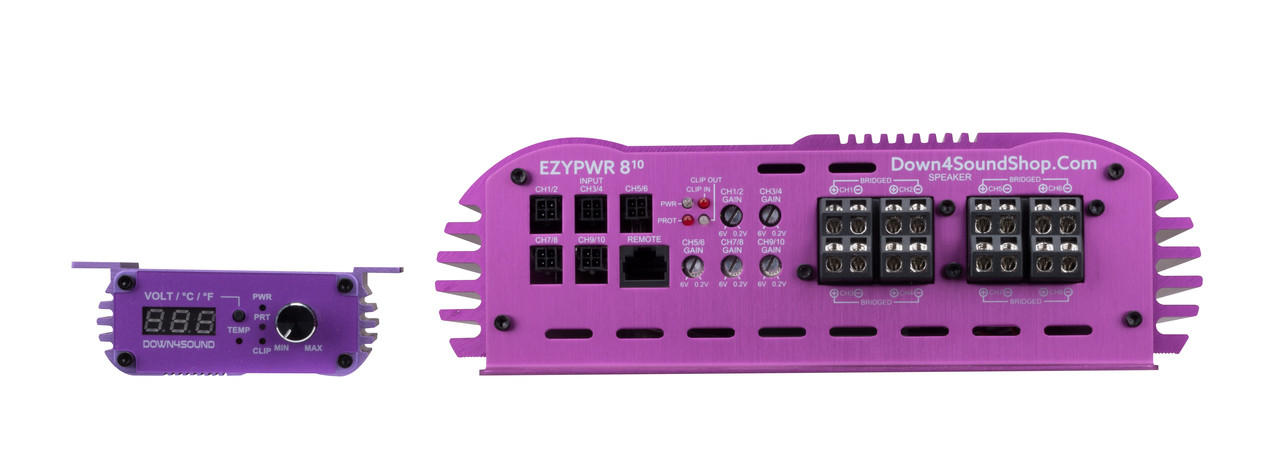

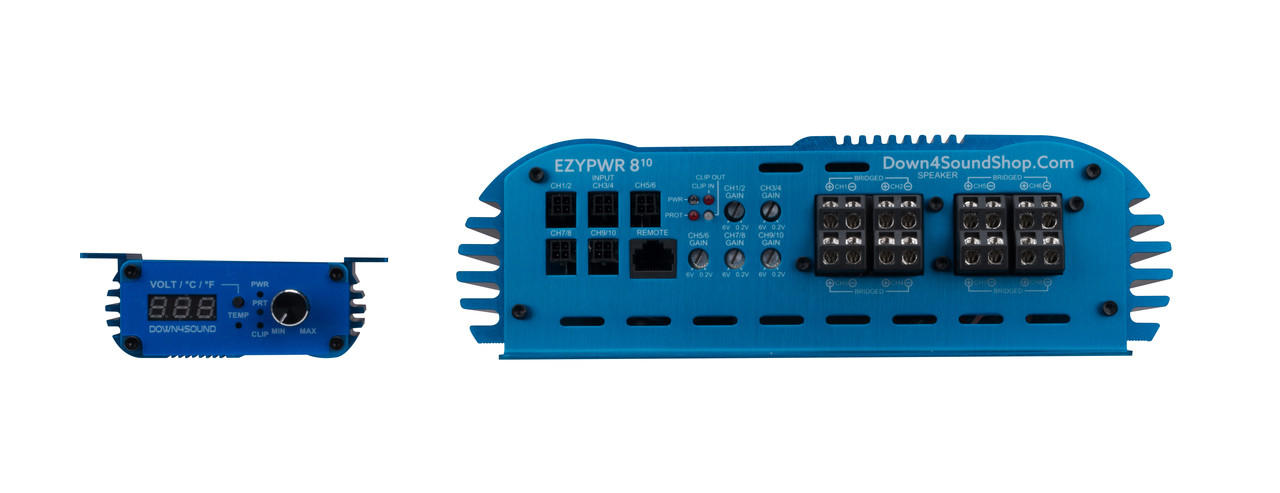

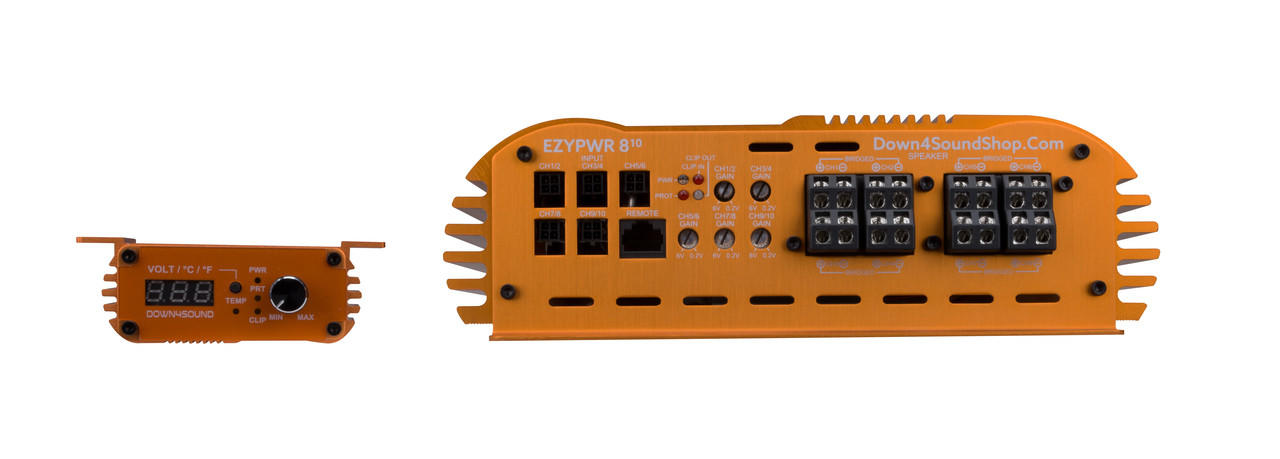

The included remote is packed with information like amp temperature, battery voltage, power, protection, and clipping status. For best performance, we recommend you add an outboard crossover or DSP.

SPECIFICATIONS

Frequency Response: 10Hz-24.5KHz (Ch. 1-8) 10Hz-25.5KHz (Ch. 9-10)

Signal to Noise: 75dB (Ch. 1-8), 90dB (Ch. 9-10)

Damping Factor: 100 (Ch. 1-8), 200 (Ch. 9-10)

Input Signal Sensitivity: 0.2 to 6 Volts

Battery Power Range: 9 to 15.5 Volts

Dimensions: 20.86” Long x 9.37” Wide 2.71” High
