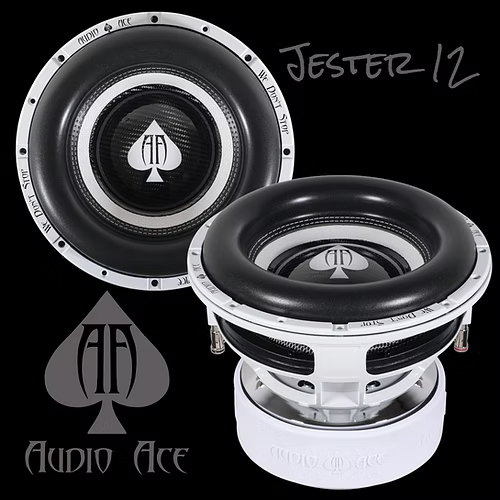

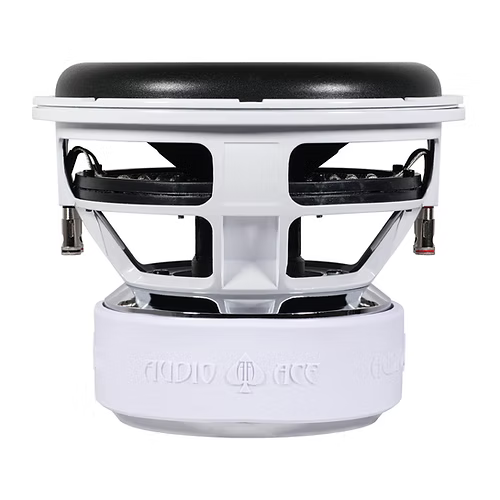

Jester 12" Subwoofer with Dyeable Cone – 3000W RMS

Overview

Built with the goal of achieving high-level SQ/SPL performance, the Jester 12" is conservatively rated at 3000W RMS. With a low Fs and powerful motor structure, this subwoofer is highly versatile—ideal for both competition builds and daily drivers that demand extreme output. Whether you're chasing trophies or daily bass thrills, the Jester is a perfect choice.

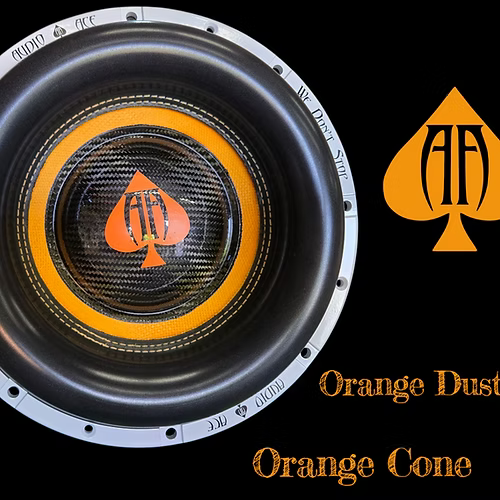

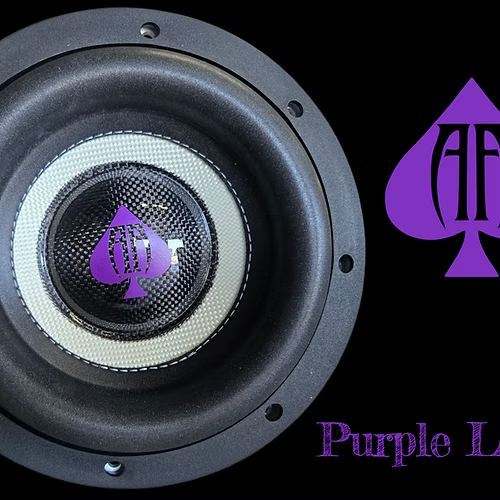

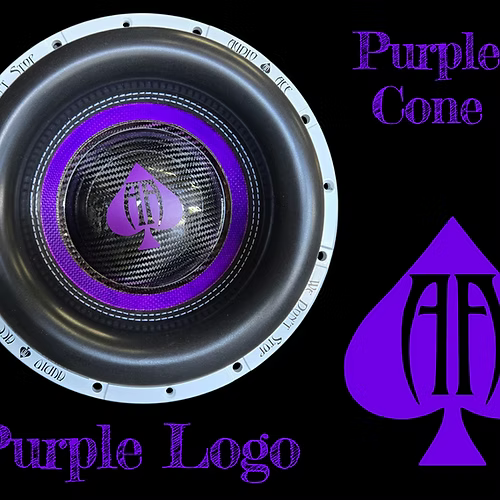

And with its dyeable cone, you get the unique ability to personalize your setup and stand out from the crowd.

Key Features

• "WeDontStop" Locking Ring
• 12" High-Performance Subwoofer
• Dual 2 Ohm Voice Coil
• Heavy-Duty Die Cast Aluminum Basket
• 3" BACCAW 4-Layer Voice Coil

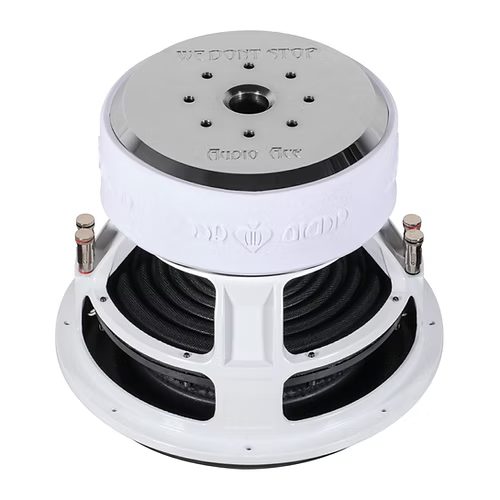

• 300 oz Magnet Structure
• 4-Layer 10" Spider
• Total Weight: 47.6 lbs
• Customizable dyeable cone

Electrical Parameters

• Re: 3.60
• Le: 3.009
• L2: 7.645
• R2: 19.44
• Cmes: 523.52
• Lces: 38.54
• Res: 41.07
• Fs: 35.4 Hz

Mechanical Parameters

• Mms: 454.545
• Mmd: 443.672
• Rms: 21.141
• Cms: 0.044
• Kms: 22.53
• Bl: 29.466

Loss Factors

• Qms: 4.787
• Qes: 0.420
• Qts: 0.386
• Qtp: 0.470

Miscellaneous Parameters

• Vas: 12.8560
• n₀: 0.131
• Lm: 83.37
• Lnom: 83.83
• Sd: 452.39 cm²

Mounting Info

• Mounting Depth: 8.5 Inches
• Cutout Diameter: 11.25 Inches

Box Recommendations

• Ported Enclosure: 2.0 – 2.6 cubic feet
• Port Area: 14 – 16 square inches per cubic foot
• Tuning: 28 – 34 Hz
• Optimal for 4th and 6th order enclosures
• Note: Not recommended for sealed enclosures

Built for Power. Designed for Customization.

With extreme output and a cone you can dye any color you want, the Jester 12 is a subwoofer that lets you perform—and look—like a pro.
