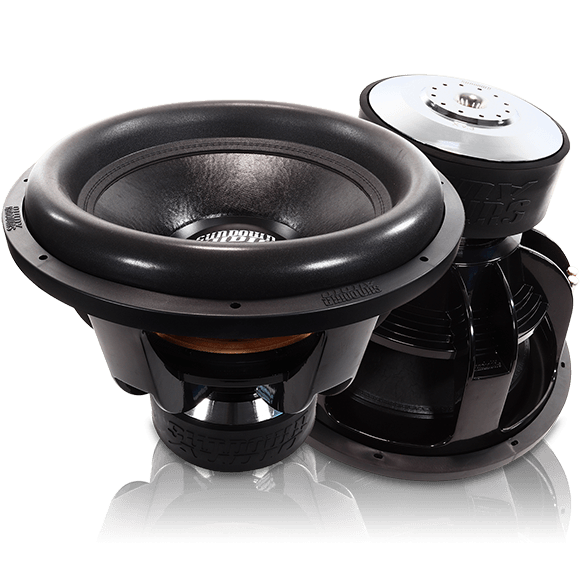

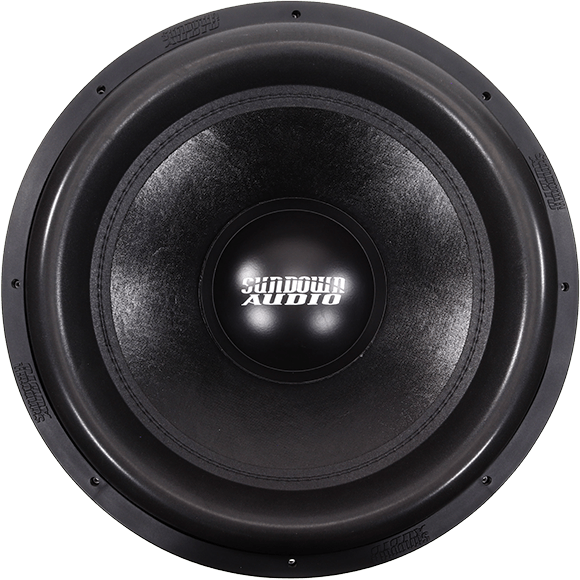

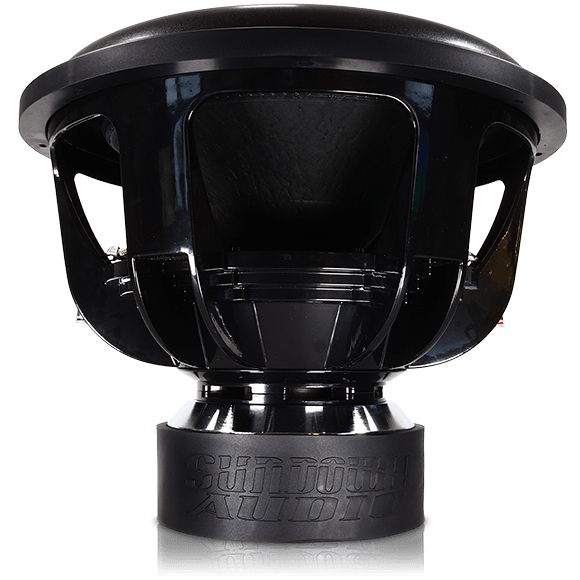

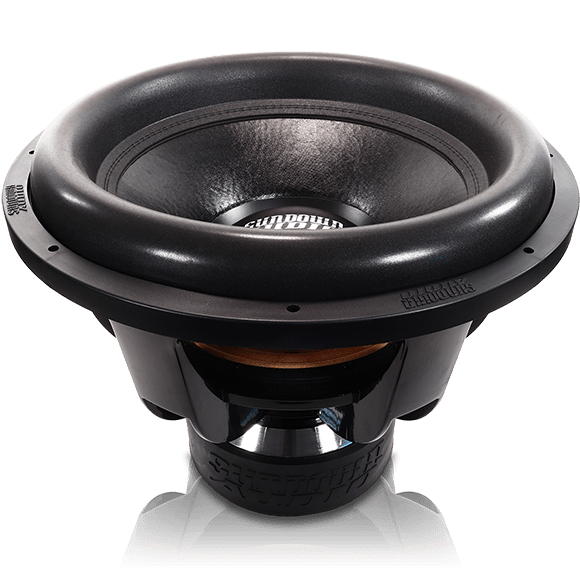

Sundown Audio X-Series v.3 18" Subwoofer
Sundown Audio X-Series v.3 18" Subwoofer - D2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- 2500 Watts RMS / 5000 Watts Peak
- Dual 1 or 2 ohm voice coil
- Made for extremely deep bass

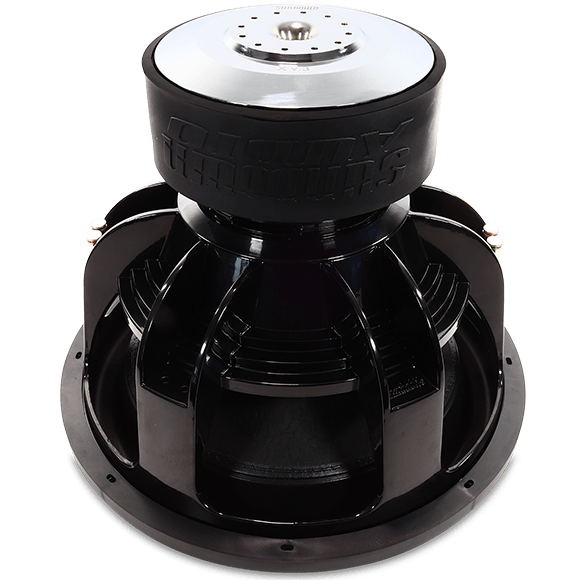

- Triple-stacked magnet
- 3” voice coil
- Hyper-extended pole
- Built to order
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

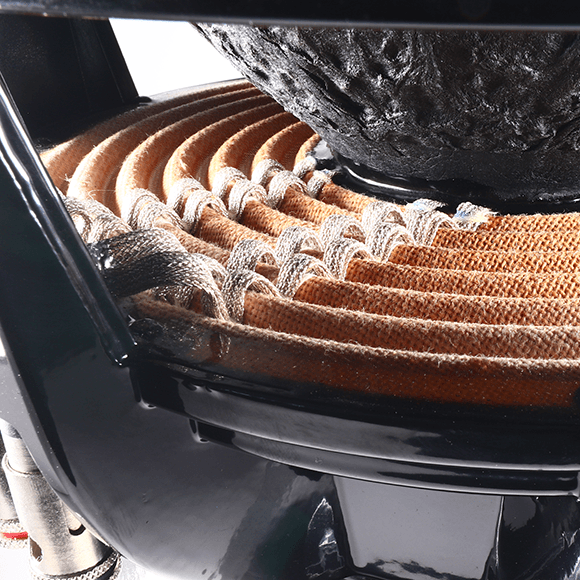

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 26.650 | 28.207 |
| VAS (L) | 130.302 | 109.935 |
| Qes | 0.526 | 0.657 |
| Qms | 2.793 | 3.091 |
| Qts | 0.442 | 0.542 |
| Le (mH) | ||
| BL (NA) | 14.543 | 20.854 |
| Mms (Grams) | 474.114 | 504.115 |
| Cms (uM/N) | 75.224 | 63.154 |
| Sens (dB @ 1w/1m) | 88.6dB | 87.6dB |
| Xmax | 30mm | 30mm |
| T/S SPECS | X V.3 18″ D1 | X V.3 18″ D2 |
|---|
Enclosure Specifications
| X v.3 18 | |
| Sealed Enclosure | N/A |
| Ported Enclosure | 7.00 cu ft |
| Recommended Tuning | 32hz |
| Recommended Port Area | 112 sq in |
| Displacement | 0.23 cu ft |
| Depth | 13.6" |
| Outside Diam. | 18.42" |
| Cutout | 16.69" |
| Physical Dimensions | Download |
